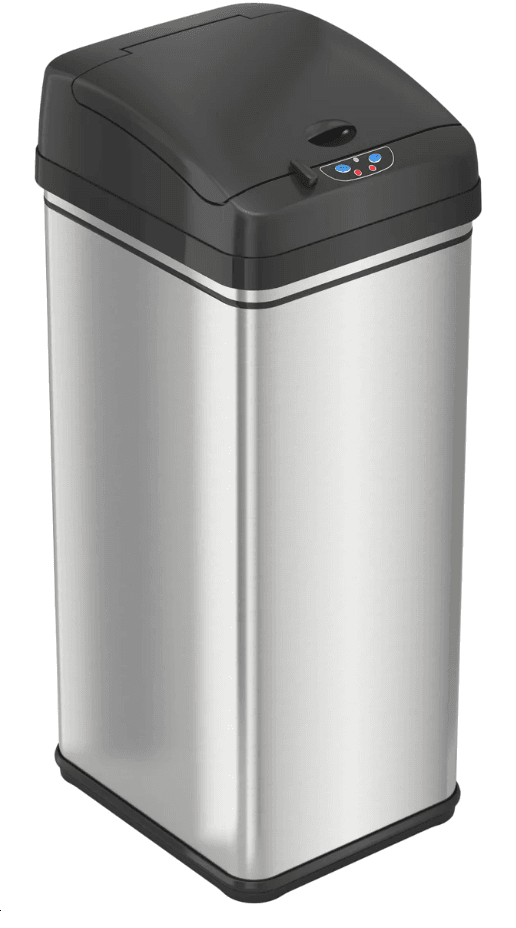

iTouchless DZT13P Sensor Trash Can with Deodorizer
About your iTouchless® Sensor Trash Can
- The touchless sensor operation promotes a germ-free environment. The AbsorbX® Odor Filter neutralizes odors. The lid sensor uses invisible and harmless, patented infrared technology for accurate and responsive lid open and close operation. There are two buttons on the front of the lid, “OPEN” and “CLOSE”, to open and close the lid manually, and an ON/OFF power switch on the back of the trash can lid. The infrared sensor on the lid will automatically open the lid
when your hand or object is within 6 inches/10 cm of the sensor. The lid will remain open if the sensor detects any object within its radius and will automatically close in 4 seconds after the object is withdrawn.
VisioSense™ Indicator Light (LED Light)
- When there is an object in the Sensor Zone, the LED Indicator Light will remain green and the Lid will remain open until the object is removed from the sensor zone.
- Once the item is removed from the Sensor Zone, the LED Indicator Light will flash red to indicate that the lid will close in 6 seconds.
- If an object is placed back into the Sensor Zone when the LED Indicator Light is flashing red, the light will turn solid green again and the Lid will remain open
Features
- Quiet lid opening and closing
- VisioSense™ Sensor Zone Indicator technology
- Pet Lock prevents pets from opening the lid
- 5 minute automatic mode reset
- Extra-wide lid opening accommodates larger or bulky items
- AbsorbX® Odor Filter Compartment with one (1) AbsorbX® Odor Filter pre-installed (lasts up to 3 months)
- Advanced Seal Technology: sealed lid hinges last longer and are easier to clean
- Ventilation holes provide effortless trash bag removal
- Powered by optional AC Adapter (sold separately) or 4 “D” size batteries (not included). The same set of batteries can power the trash can for up to two years
We’re here to help
- Go to itouchless.com/register to register your product for simple warranty service and to receive product updates and special offers.
- Product Model # DZT13P
- If you have any questions or concerns about this product, please contact iTouchless Customer Support for immediate assistance. You can reach us at 1-844-660-7978 or support@itouchless.com
Contents of the Box
- Sensor Trash Can Lid
- Brushed Stainless Steel Coating Can Body
- Trash Bag Retainer Ring
- AbsorbX® Odor Filter Compartment
- One (1) AbsorbX® Odor Filter
- User Manual
Optional items NOT in the package
- Official AC Power Adapter
- Replacement AbsorbX® Odor Filter
- Removable Caster Wheels
- Stainless Steel Cleaner
- Premium Trash Bags
- To order optional items, please visit www.iTouchless.com
Attention
- Do not submerge the lid in water as it houses the electronic control. You may clean it with a lightly dampened cloth.
- Clean the trash can body only with products safe for use on stainless steel.
- Do not press or force the Lid Cover to close. The lid will close automatically after your hand is removed from the sensor zone.
- Replace batteries immediately when the indication light turns to yellow/amber. This will ensure the lid continues to operate properly.
- Avoid direct sunlight on the infrared sensor.
- Ensure there is enough room to operate the trash can without blocking the opening and closing of the lid.
- Do not use a power adapter that is not authorized by iTouchless; it may result in, electric shock or injury.
- Do not use a power adapter and battery at the same time to operate the trash can. It can only be powered by one source at a time.
- Do not overstuff the trash bag. It may cause tearing or difficulty in removal.
- Automatic parts may not be suitable for small children or pets
Operating Instructions
Power with 4 “D” Size Batteries (not included)
- View video instructions at www.itouchless.com/battery-filter-replacement
Power with AC Adapter (sold separately)
- a. Turn on the power switch on the back of the Lid Unit. A red Indicator Light will turn on for 3 seconds. It will flash once every 3 seconds to indicate the system is on and ready to use.
- b. Place your hand or any object 6 inches above the Infrared Sensor on the front of the Lid Unit to open. When there is an object in the Sensor Zone, the LED Indicator Light will remain green and the Lid will remain open until the object is removed from the Sensor Zone. Once the item is removed from the Sensor Zone, the LED Indicator Light will flash red to indicate that the lid will close in 6 seconds. If an object is placed back into the Sensor Zone when the LED Indicator Light is flashing red, the light will turn solid green again and the Lid will remain open.
- c. If you press the open button, Lid will open, and remain open for 5 minutes before closing automatically – unless you press the close button. The trash can will then resume operating in automatic mode.

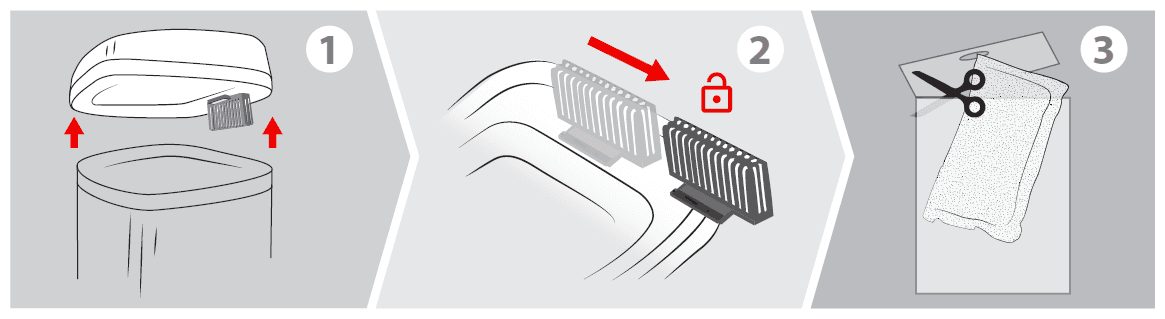

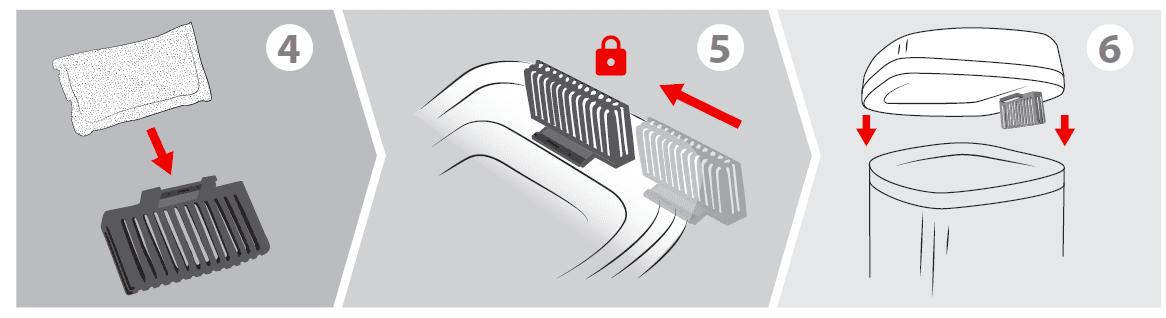

- The Touchless Trash Can is equipped with an AbsorbX® Odor Filter Compartment that houses the odor-stopping AbsorbX® Odor Filter to eliminate trash odors up to 90%. One (1) replaceable AbsorbX® Odor Filter is pre-installed inside the Filter Compartment. Please follow the instructions below to maximize the filter’s effectiveness

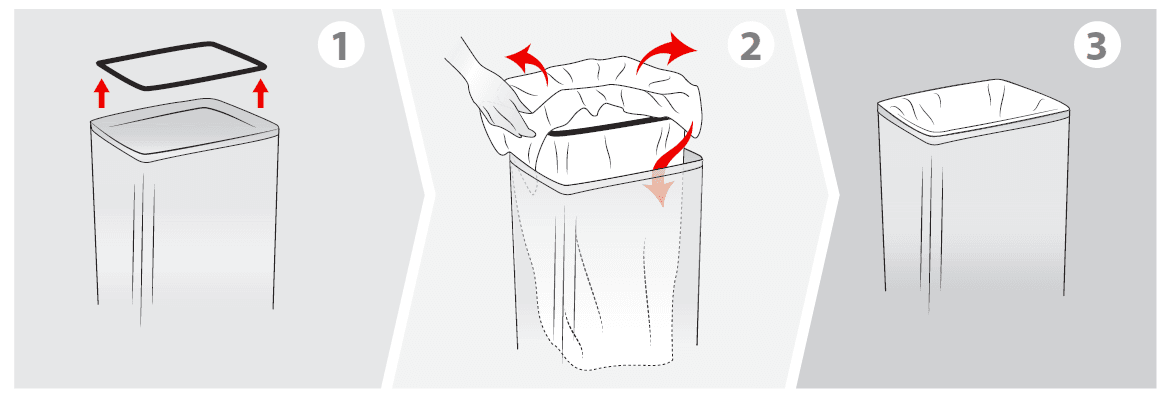

How To Use The Trash Bag Retainer Ring

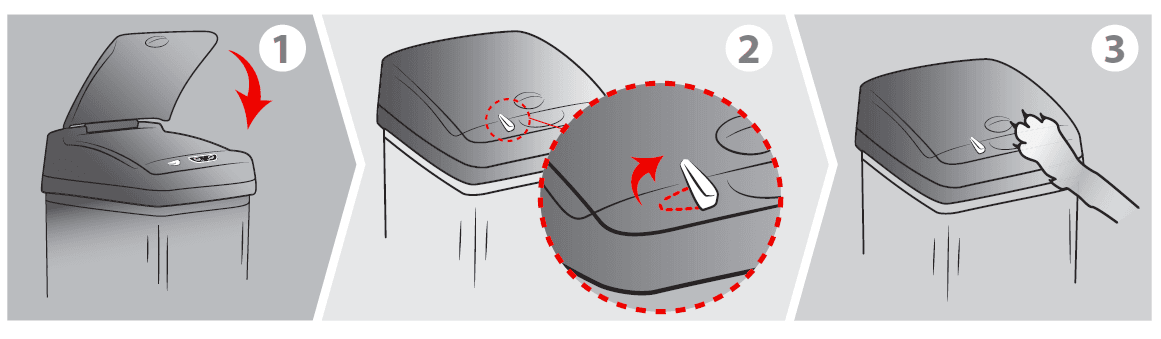

How to Operate the Pet Lock

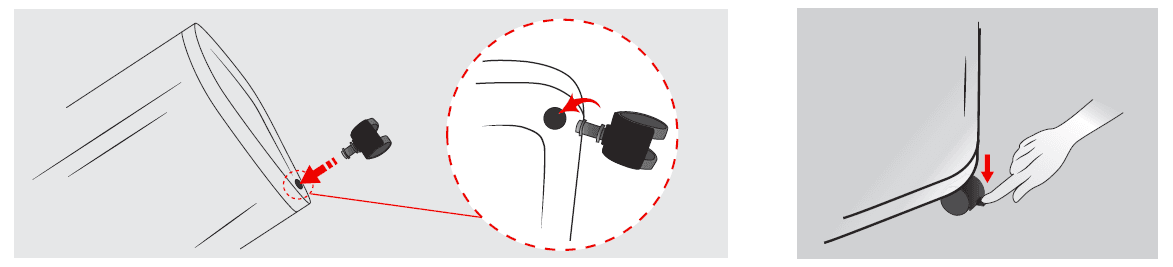

How to Insert and Lock Wheels (sold separately)
Tips
- Replace the AbsorbX® Odor Filter every 3 months or when the odor becomes too strong.
- If the carbon filter mount is too tight, unscrew it to loosen it.
- WARNING: Be sure to properly fasten both the carbon filter compartment and mount.
- Order the most updated version of AbsorbX® Odor Filters online at www.iTouchless.com
- The Filter Compartment can be washed if it gets dirty
- Used AbsorbX® Odor Filter pouch should be disposed of in a trash can
General Troubleshooting Steps
- Turn off the power switch, remove the battery or AC power adapter, then rub and wipe clean the sensor area with a soft, damp cloth and dry it immediately with a soft, dry cloth. Re-insert batteries or plug in AC adapter (DO NOT USE battery and AC adapter at the same time).
- Place the trash can in an open area where nothing is blocking or within 10 inches of the sensor eye. Make sure no sunlight or spotlight shines on the sensor. Turn on the power and try opening the lid again.
- If the trash can is still not working correctly, remove the batteries or unplug the AC adapter. Let the trash can sit for at least 2 hours to reset. Try opening the lid after resetting.
Troubleshooting
|

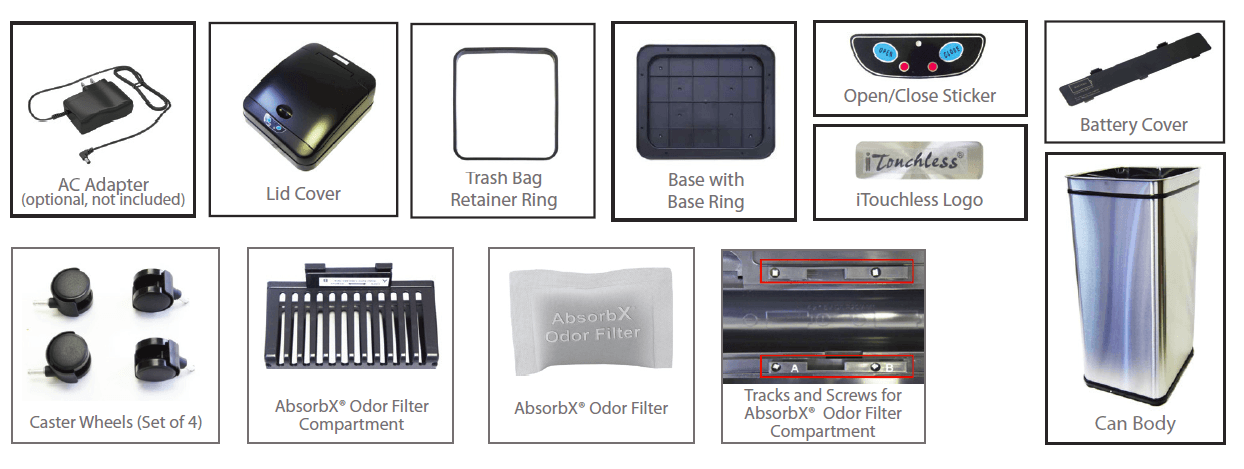

Parts & Accessories
Order at itouchless.com/parts
