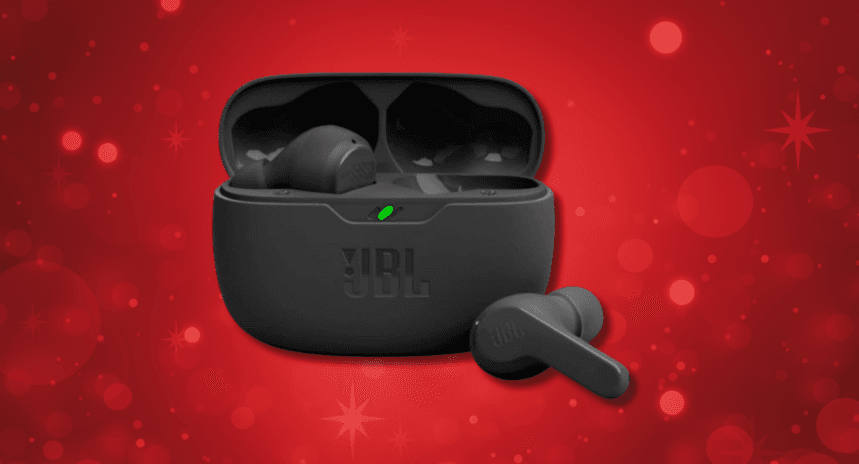

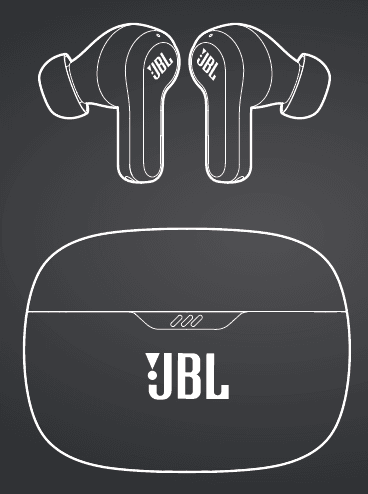

JBL Vibe Beam True Wireless Earbuds

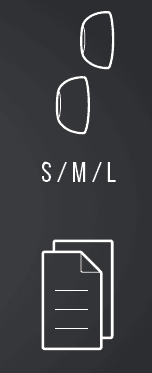

WHAT’S IN THE BOX
APP
JBL Headphones

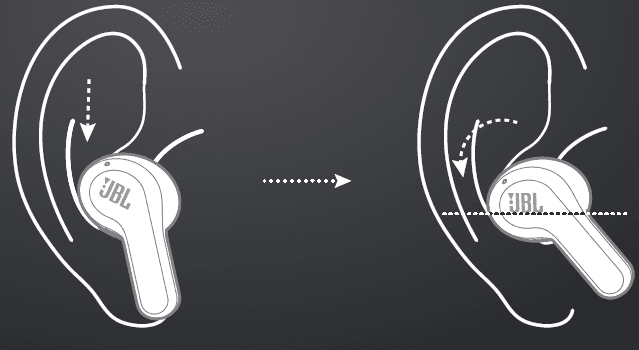

How to wear

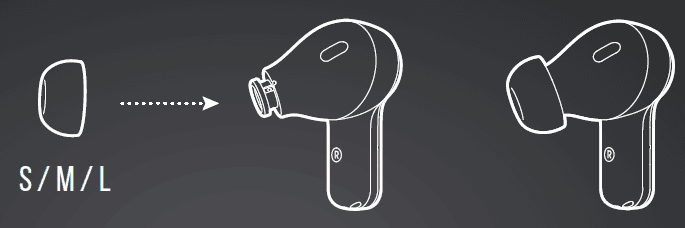

- Try different sizes for a perfect fit and audio performance.

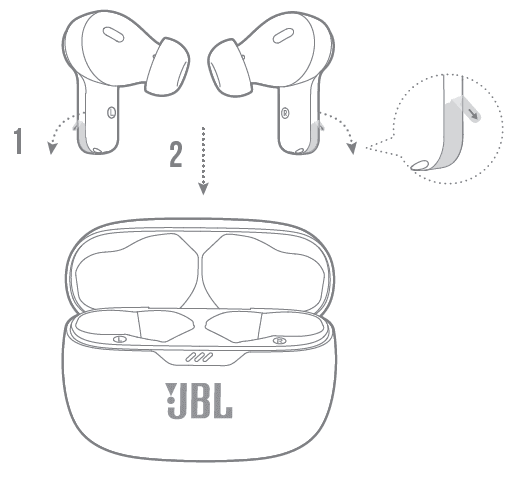

FIRST TIME USE

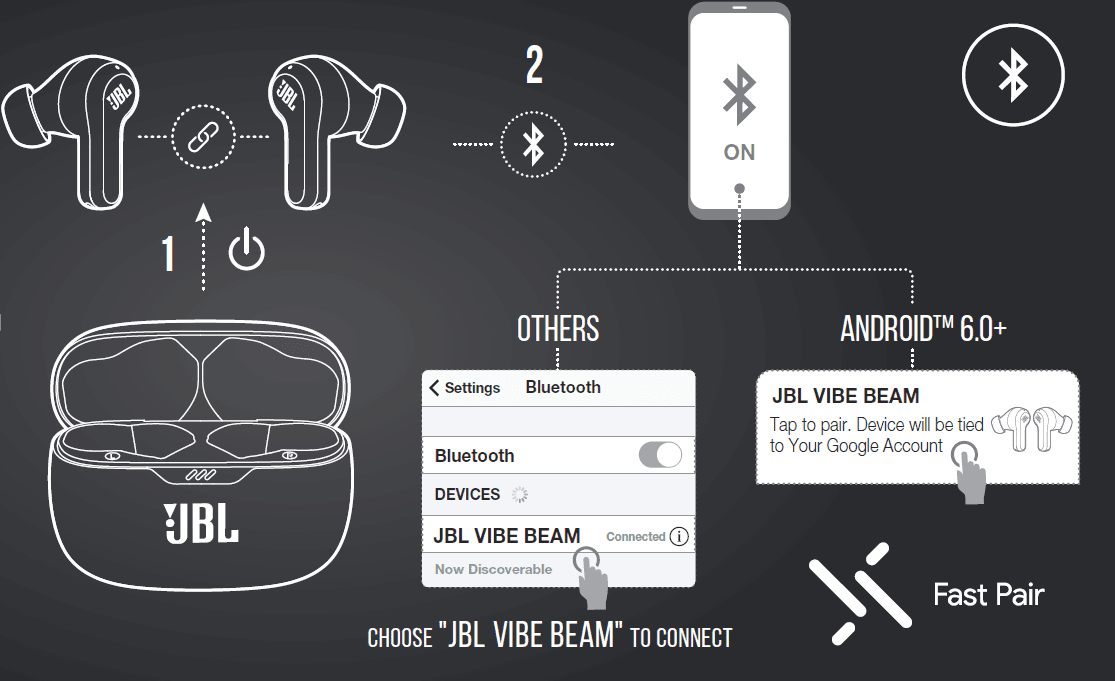

Power on & CONNECT

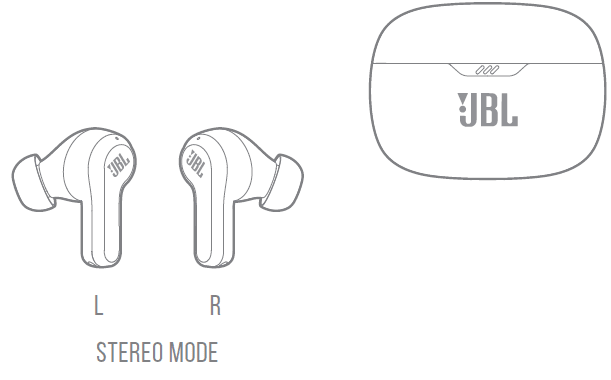

DUAL CONNECT

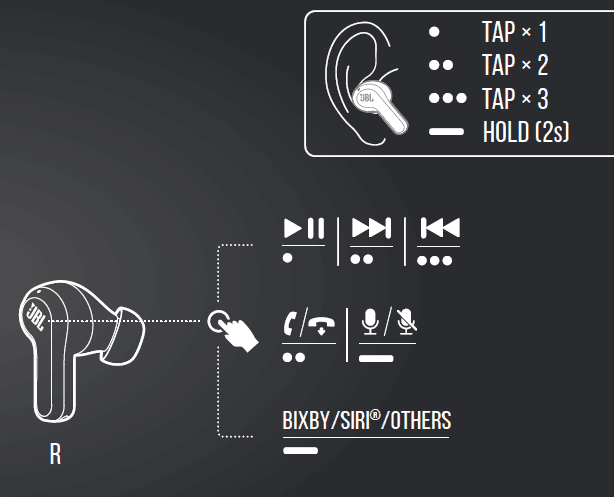

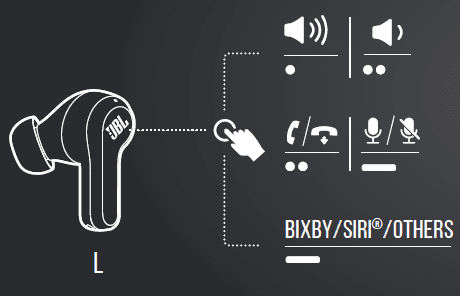

CONTROLS
- Enable advance controls by connecting your JBL VIBE BEAM to the JBL Headphones App

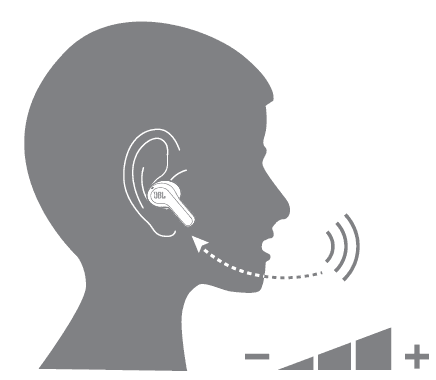

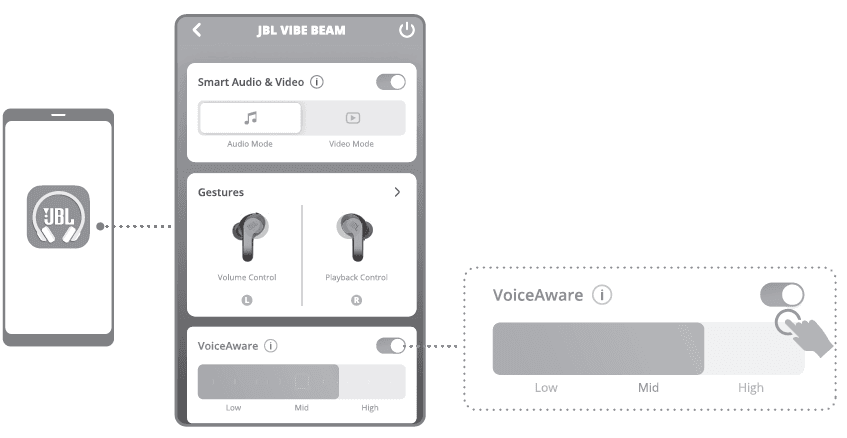

VOICEAWARE

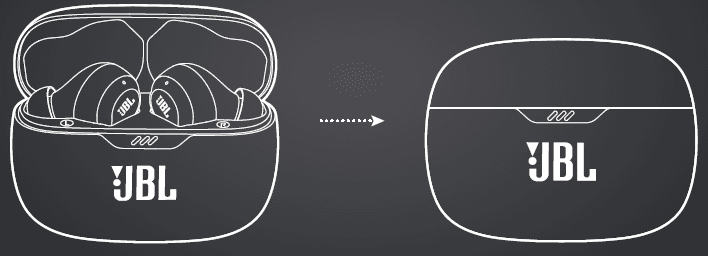

Power off
Manual SETUP

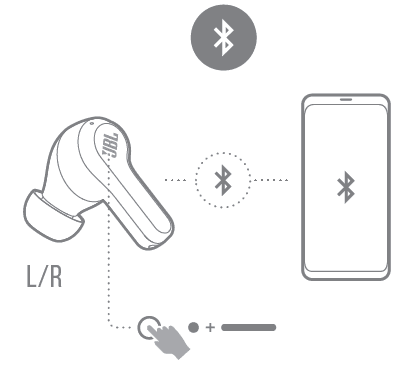

- Connect to a new Bluetooth device

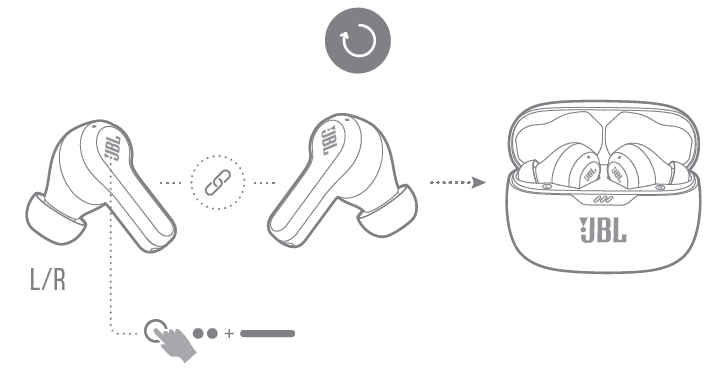

- Factory reset

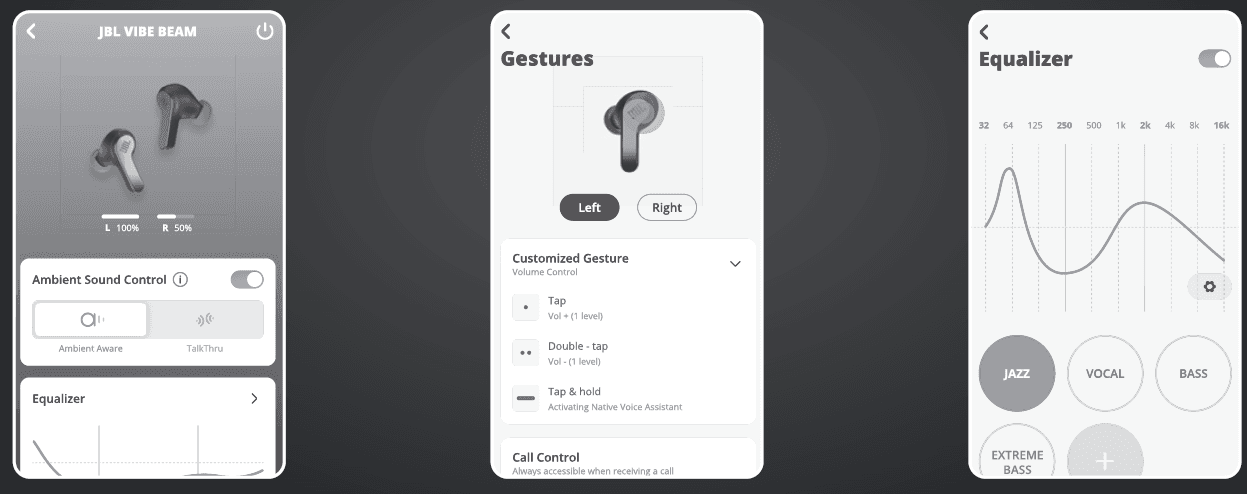

DO MORE WITH THE APP
Charging

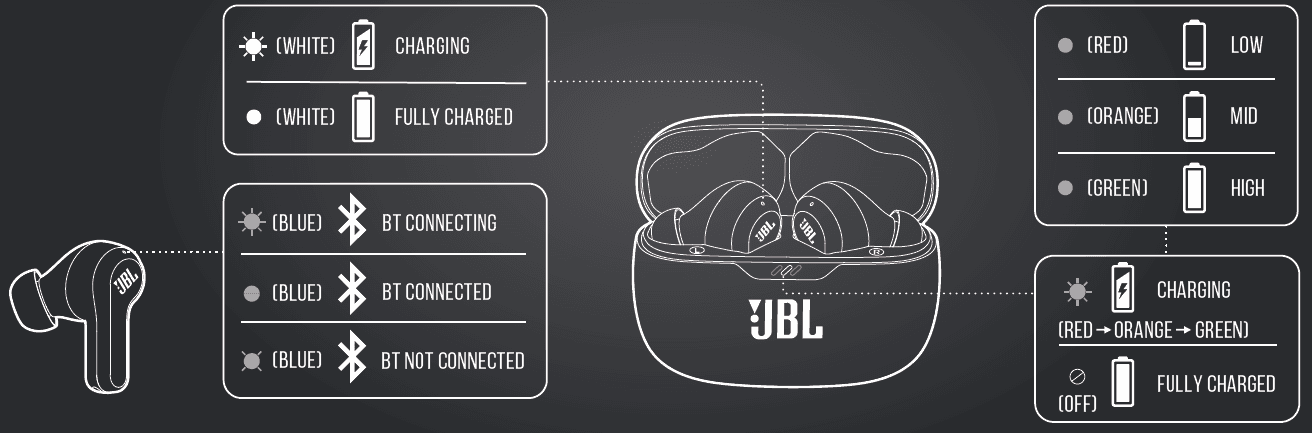

Led behaviors
TECH SPEC
- Model: VIBE BEAM
- Driver size: 8 mm/ 0.315” Dynamic Driver
- Power supply: 5 V 1 A
- Earbud: 4.4 g per pc (8.8 g combined)/0.0097 lbs per pc (0.0194 lbs combined)
- Charging case: 39.5 g/ 0.0871 lbs
- Earbud battery type: Lithium-ion polymer (48 mAh/ 3.85 V)
- Charging case battery type: Lithium-ion polymer (530 mAh/ 3.7 V)
- Charging time: <2 hrs from empty
- Music playtime with BT on: 8 hrs
- Talk time: 4.5 hrs
- Frequency response: 20 Hz – 20 kHz
- Impedance: 16 ohm
- Sensitivity: 100 dB SPL@1 kHz
- Maximum SPL: 95 dB
- Microphone sensitivity: -38 DVB/Pa@1 kHz
- Bluetooth version: 5.2
- Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: <15 dBm
- Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
- Maximum operation temperature: 45 °C
For more manuals by JBL visit, ManualsLibraryy
JBL Vibe Beam True Wireless Earbuds-FAQs
Do the JBL Vibe Beam earbuds have noise cancellation?
No, the JBL Vibe Beam does not come with active noise cancellation.
Why are my JBL earbuds blinking green while charging?
The charging case blinks red, orange, and then green while charging. Once fully charged, the light turns off.
Do the JBL Vibe Beam earbuds have good bass?
Yes, they deliver deep, powerful bass designed to enhance your listening experience.
How long does the battery last on JBL Vibe Beam earbuds?
You get up to 4 hours of playback on a single charge, plus 12 additional hours from the charging case. A quick 15-minute charge gives you 1 extra hour of listening time.
How do I reduce background noise on JBL earbuds?
The Vibe Beam does not include active noise cancellation. If you’re using a different model with ANC, you can toggle ANC and talk-through modes using the multi-function button.
Can I leave my JBL earbuds charging overnight?
Yes, charging overnight is safe. Just make sure the charging connection is secure and not loose.
Is there a JBL app for the Vibe Beam earbuds?
Yes, you can use the JBL app to control functions and check battery levels when connected via Bluetooth.
What does ANC mean in JBL headphones?
ANC (Active Noise Cancellation) uses microphones to block out background noise, creating a quieter listening environment. However, this feature is not available on the Vibe Beam.
