Jensen Heavy Duty JHD40BT Audio System User Manual

Jensen Heavy Duty JHD40BT Audio System

WARNINGS AND COMPLIANCE

Important Safety Instructions

• NOTE: Keep the volume level low enough to be aware of your surroundings
• FCC Notes
• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
• However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help

INTRODUCTION

System Features

Features of the Jensen JHD40BT audio system include:

• White LED Backlit LCD
• iPx6 Waterproof
• Low Battery Alarm
• AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM)
• Weatherband with Weather Alert
• Bluetooth (Supports A2DP and AVRCP)
• USB Playback of MP3/WMA Files
• Made for iPod/iPhone (USB Input)
• Mute
• Pre-set Equalizer – 5 settings (User > Flat > Pop > Classical > Rock)
• Electronic Bass, Treble, Balance, and Fader Controls
• Output Power 40W x 4
• Wired Remote Control Ready (Harley Factory Handle Controls)
• 2-Channel Pre-amp Line Level Outputs
• Auxiliary Audio Input (Rear RCA)

Content List

• Jensen JHD40BT Radio
• Owner’s Manual
• Installation Opening Cutout Template
• M4 x 0.7 Screws (x4)

INSTALLATION

Before You Begin

• Before you begin, always disconnect the battery’s negative terminal.

Important Notes

• Before final installation, test the wiring connections to make sure the unit is connected properly and the system works.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications to your vehicle.
• Install the unit where it does not interfere with driving and cannot injure passengers if there is a sudden or emergency stop.

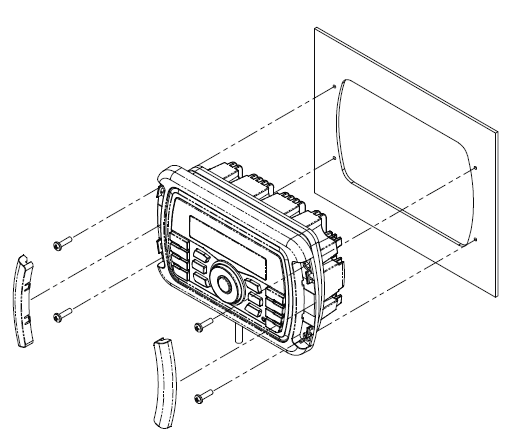

Front Mount

1. Use the included template to cut the installation opening.
2. Check the dashboard opening size by sliding the radio into it. If the opening is not large enough, carefully cut or file as necessary until the radio slides into the opening. Check that there will be sufficient space behind the dashboard for the radio chassis.
3. Place the radio in front of the dashboard opening so the wiring can be brought through the opening.
4. Follow the wiring diagram carefully and make certain all connections are secure to ensure proper operation.
5. After completing the wiring connections, turn the unit on to confirm operation (vehicle accessory switch must be on). If the unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the accessory switch off and proceed with the final mounting of the chassis.
6. Carefully slide the radio into the opening, making sure it is right-side-up.
7. Secure the radio to the dashboard using #6 panhead screws (not provided).
8. Replace the covers on either side of the radio.
9. Test radio operation by referring to the operating instructions for the unit.

Reconnect Battery

• When wiring is complete, reconnect the battery negative terminal.

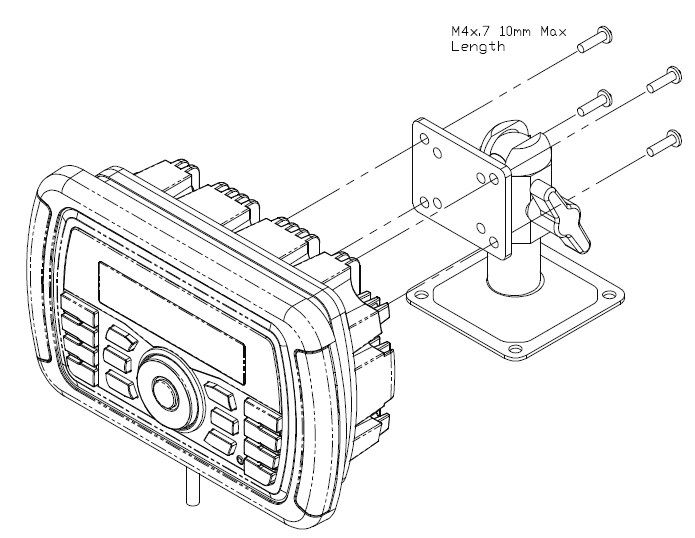

• Bracket Mount
• The VOSHD4MNT (sold separately) is a versatile mounting base/bracket for easy installation on most flat surfaces. Please use the included M4 screws to attach the radio to the bracket, as shown in the diagram below.

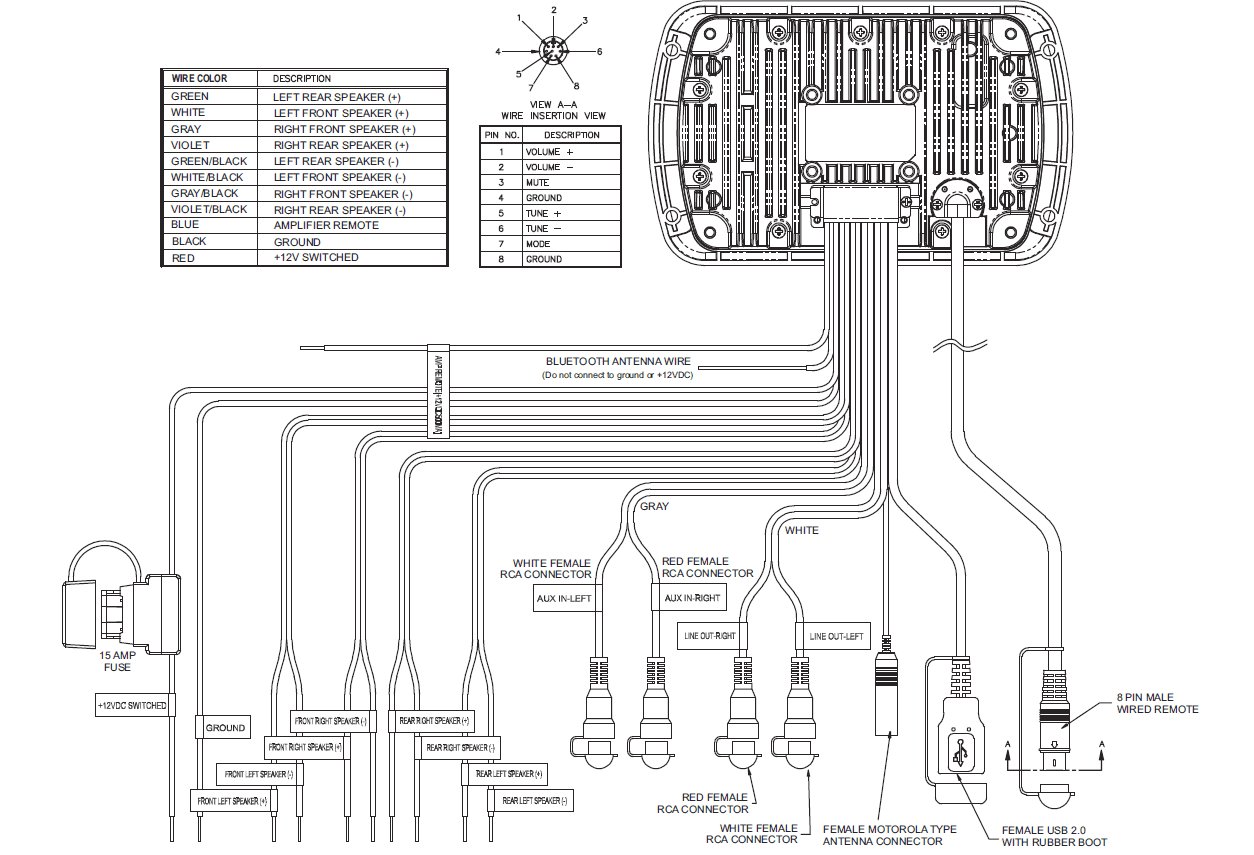

WIRING

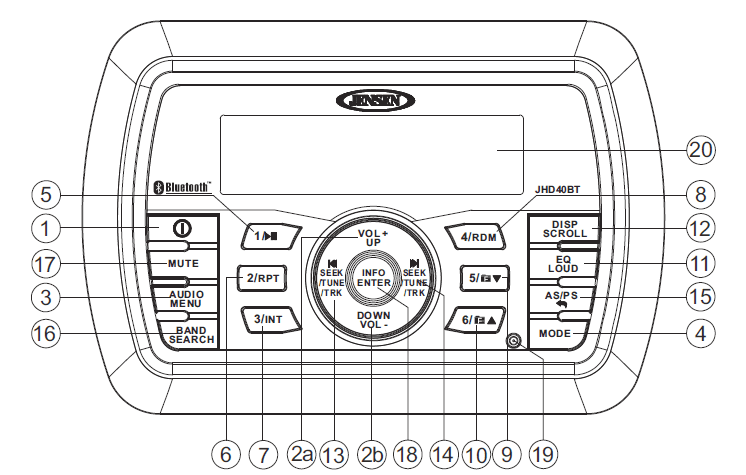

BASIC OPERATION

• Power On/Off
• Press the power button (1) on the front panel to turn the unit on or off.
• Volume Control
• To increase the volume, press the VOL + button (2a). To decrease the volume, press the VOL – button (2b).
• Mute
• Press the MUTE button (17) on the control panel to mute the audio output. Press MUTE again to restore the audio output to the previous level.
• Mode
• Press the MODE button (4) on the control panel to select a different mode of operation, as indicated on the display panel. Available modes include AM/FM Tuner, Weatherband, iPod, USB, AUX In (optional Auxiliary Input), and BT Audio.
• Reset
• The reset button should be activated for the following reasons:
  • initial installation of the unit when all wiring is completed
  • function buttons do not operate
  • error symbol on the display
• Use a ballpoint pen or similar object to press the RESET button (19). This may be necessary should the unit display an error code. You can recover factory default settings using the RESET function located on the system menu. With “Reset to Defaults?” flashing, press the INFO/ENTER button (18) to activate.
• Audio Menu
• Press the AUDIO/MENU button (3) on the control panel to access the audio menu. You can navigate through the audio menu items by pressing the AUDIO/MENU button repeatedly. Once the desired menu item appears on the display, adjust that option by pressing the VOL +/- buttons (2) within 5 seconds. The unit will automatically exit the audio menu after five seconds of inactivity. The following menu items can be adjusted.
  • Bass
  • Use the VOL buttons to adjust the bass level range from “-6” to “+6”.
  • Treble
  • Use the VOL buttons to adjust the treble level range from “-6” to “+6”.
  • Balance
  • Use the VOL buttons to adjust the balance between the left and right speakers from “L12” (full left) to “R12” (full right).
  • Fade
  • Use the VOL buttons to adjust the fader between the rear and front speakers from “R12” (full rear) to “F12” (full front).

System Menu

1. Press and hold the AUDIO/MENU button (3) for more than 2 seconds to enter the system menu.
2. Press the VOL +/- buttons (2) repeatedly to navigate the system menu and select the desired item.
3. Press the INFO/ENTER (18) or SEEK+/- (13, 14) buttons to adjust the selected menu item.
4. Press the AS/PS button (15) to return to the previous operation.
   • The following items can be adjusted:
   • Key Beep (On/Off): Turn the audible beep On/Off (heard when functions/buttons are selected). NOTE: Beep tone off will not affect the Battery Alarm audible tone.
   • LCD Backlight (1/10 – 10/10): Adjust LCD brightness.
   • LCD Contrast (1/10 – 10/10): Set LCD contrast.
   • Tuning Region (USA/Europe): Set frequency spacing for various regions.
   • Weather Alert Configure: Press the INFO/ENTER button (18) to see weather alert options.
   • Weather Alert (On/Off): Determines if the weather band alert feature is activated.
   • Alert Volume (1/40-40/40): Set default volume for weather alert broadcasts.
   • Battery Alarm (On/Off): Monitor voltage on ACC line and send alert when voltage is low.
   • Battery Auto-Off (On/Off): Automatically turns off power to the radio when the battery voltage is low.
   • Bluetooth Device (Lock/Unlock, Disconnect/Connect, Delete): View, lock, and delete from a list of previously paired mobile phone device models.
   • Bluetooth Pair <ENTER>: Press INFO/ENTER to automatically pair a device.
   • Bluetooth (On/Off): Choose “Bluetooth On” or “Bluetooth Off”.
   • Volume Preset (1/40-40/40): Select an automatic turn-on volume.
   • Reset to Defaults <ENTER>: Return the EEPROM to factory default setup values. Press the INFO/ENTER button (18) to select.

TUNER OPERATION

• Select a Band
• Press the BAND/SEARCH button (16) to change between three FM bands and two AM (MW) bands.
• Manual Tuning
• Press the SEEK/TUNE/TRK |<< or >>| buttons (13, 14) to seek stations up/down step by step.
• Auto Seek Tuning
• Press and hold the SEEK/TUNE/TRK |<< or >>| buttons (13, 14) to automatically seek the next or previous strong station.
• Preset Stations
• Six numbered preset buttons store and recall stations for each band.
  • Store a Station
  • Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two seconds. The preset number will appear in the display.
  • Recall a Station
  • Select a band (if needed). Press a preset button (5-10) to select the corresponding stored station.

Installing a USB Device

Controlling Playback

• Pause/Play
• Press the 1 >/|| button (5) to suspend playback. Press the 1 >/|| button again to resume play.
• Track Select
• Press the SEEK/TUNE/TRK >>| (14) or |<< (13) button for less than one second to advance to the next file, or press and hold to fast forward or fast reverse. Playback begins when the button is released.
• Repeat (RPT)
• Press the 2 RPT button (6) to repeatedly play the current file. Press 2 RPT again to repeat all songs in the current folder. Press 2 RPT a third time to resume normal playback.
• Intro Scan (INT)
• Press the 3 INT button (7) once to play the first 10 seconds of each file on the current device. When the desired file is reached, press 3 INT again to end the scan and play the selected file.

iPod OPERATION

This unit is equipped with an iPod-ready function that will allow you to control your iPod (if compatible) using the control panel buttons. The following iPod versions are supported:

• iPod Nano 5G, iPod Nano 6G
• iPod 5G
• iPod Classic
• iPhone 4, iPhone 4S
• iPod Touch 3G, iPod Touch 4G

Alternate Display Information

• Press the DISP/SCROLL button (12) to change the display information from single-line default display to Artist/Song Title double-line display mode.
• Search Mode
• Press the BAND/SEARCH button (16) to enter iPod search mode and choose from the following search criteria: Playlist, Artist, Album, Song, Genre, Composer, Audiobooks, and Podcasts (consecutively).
• When search mode is selected, press the INFO/ENTER button (18) to confirm selection. Use the VOL +/- buttons (2) to navigate through various list selections. Press INFO/ENTER (18) to make your final selection. Use the AS/PS button (15) to reverse navigate the list.

BLUETOOTH OPERATION

• The JHD40BT includes built-in Bluetooth technology that allows you to connect this head unit to Bluetooth devices for streaming audio playback.

About Bluetooth Technology

• Bluetooth is a short-range wireless radio connectivity technology developed as a cable replacement for various electronic devices. Bluetooth operates in the 2.4 GHz frequency range and transmits voice and data at speeds up to 1 megabit per second. Bluetooth was launched by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba, and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

Before you begin, consult the owner’s manual for the Bluetooth device you want to pair with the JHD40BT.

1. Make sure the device is on and ready to receive a signal from the JHD40BT. With the JHD40BT in BT Audio mode, choose BT PAIR from the JHD40BT menu and press the INFO/ENTER button to select ON. The unit is waiting to connect to a mobile phone device. With the BT function of the mobile phone device turned on, search for a Bluetooth device.
2. When the Bluetooth device has completed its search, the mobile phone will display the Bluetooth device name (JHD40BT).
3. Select JHD40BT. The BT AUDIO icon ( ) on the radio LCD will display.
4. Enter the pairing password (0000), if requested.

CARE AND MAINTENANCE

• Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits.
• Keep the product away from dust and dirt, which can cause premature wear of parts.
• Handle the product gently and carefully. Dropping it can damage circuit boards and cases, and can cause the product to work improperly.
• Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the product.
• Use and store the product only in normal temperature environments. High temperatures can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts.

TROUBLESHOOTING

SPECIFICATIONS

• FM Radio
• Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz
• Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz
• Sensitivity (S/N=30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4μV
• Image Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 45 dB
• Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 25 dB
• AM/MW
• Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz
• Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz
• Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB
• General
• Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DC 12 Volts
• Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground
• Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8 ohms per channel
