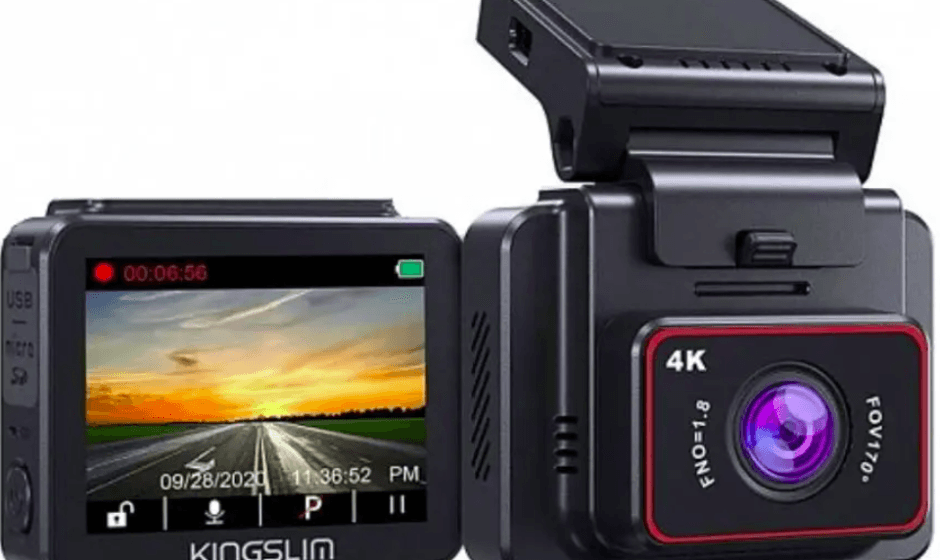

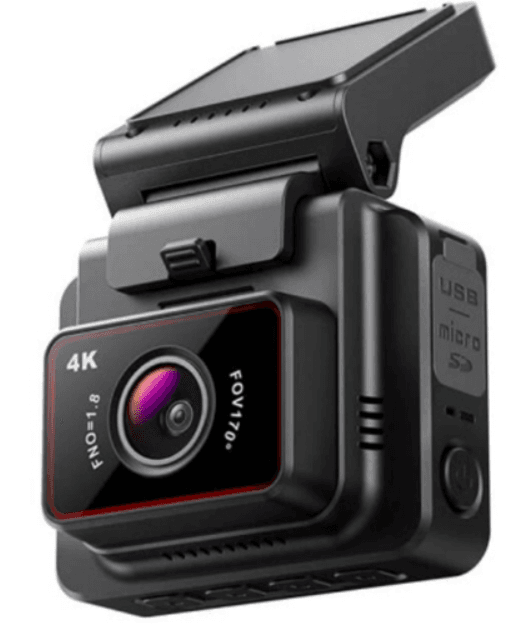

KingSlim D5 Dash Cam

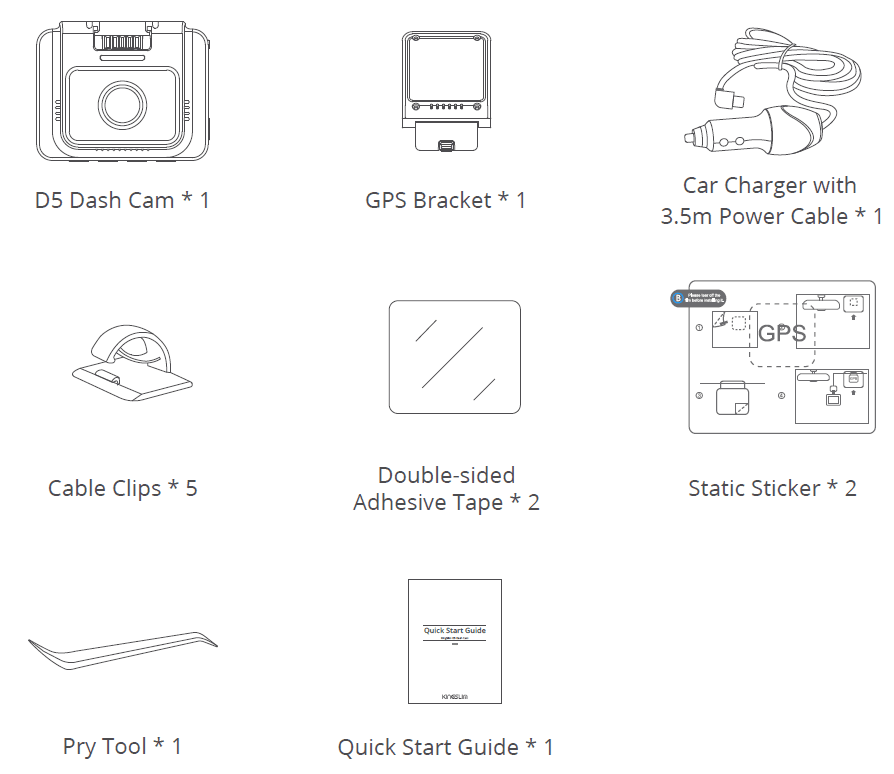

What’s in the Box

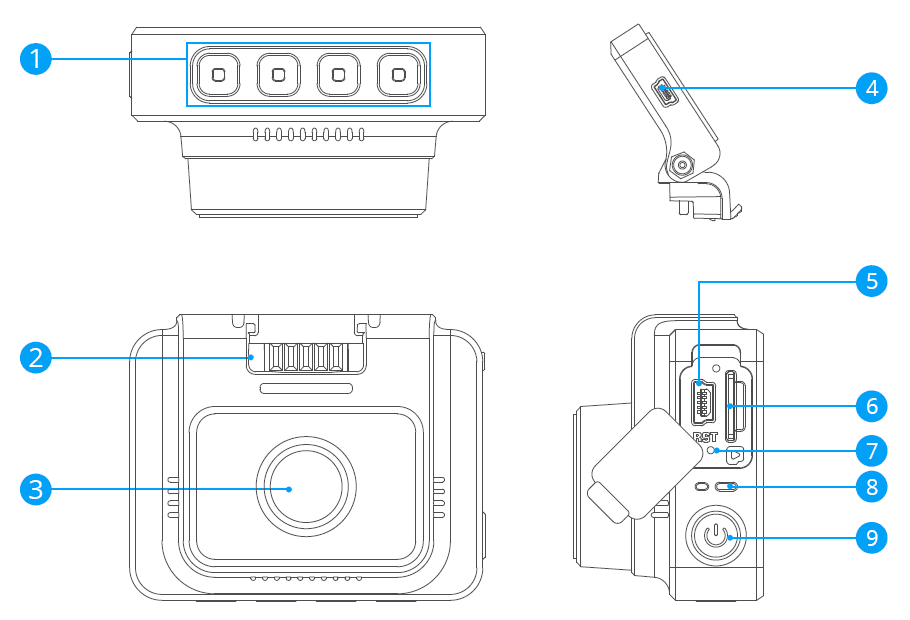

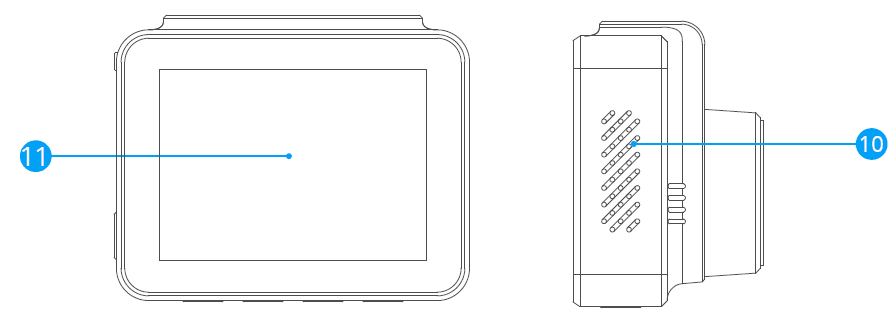

Camera Overview
- Function Button
- Bracket Slot
- Front Camera
- Mini USB Power Port 1 (Power supply)
- Mini USB Power Port 2
- Memory Card Slot
- Reset
- Working Indicator
- Power Button
- Speaker
- Screen
Installation

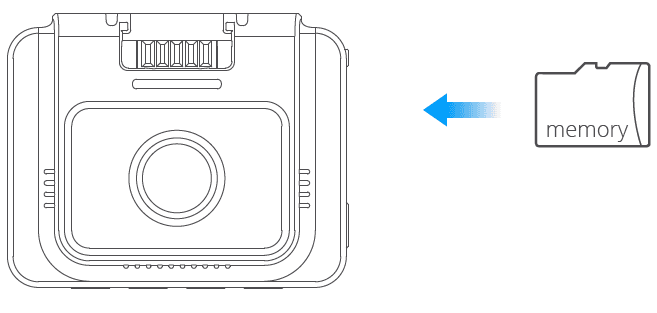

- Insert a memory card (sold separately).
Tip: The D5 Dash Cam supports a Class 10 or above memory card of up to 256 GB (memory card not included). Please format the card in the camera before using it in the dash cam. Do not remove or insert the memory card when the dash cam is turned on as this may damage the card

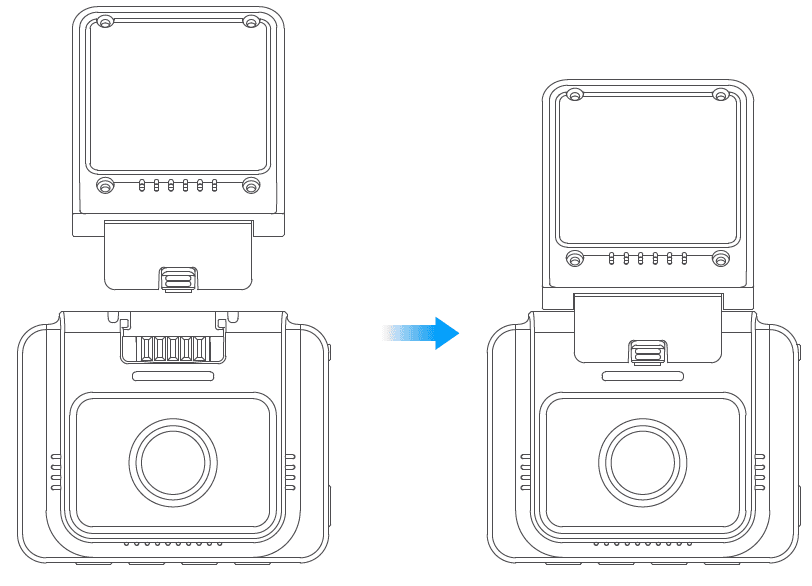

- Insert the GPS bracket into the bracket slot.
- Install the D5 Dash Cam on the windshield.
- Clean the windshield with a dry cloth.
- Remove the static sticker film and apply the sticker to the windshield while making sure there are no air bubbles.
- Peel off the film on one side of the double-sided adhesive tape and apply the tape to the D5 Dash Cam.
- Peel off the film on the other side of the adhesive tape and press the D5 Dash Cam firmly to secure it on the static sticker (if you wish to remove the dash cam, please take off the static sticker).
Note: You can stick the dash cam to the windshield without using the static sticker.
Video Recording
- After formatting is complete, connect a car charger and start the engine; the device will automatically turn on and begin recording.
- Loop recording is already enabled on the D5 Dash Cam; the default setting is 3 Minutes.
- The G-sensor is already enabled on the D5 Dash Cam; the default setting is Low. If an impact or sudden braking is detected, it will automatically start recording and save the footage in the “frontier” folder

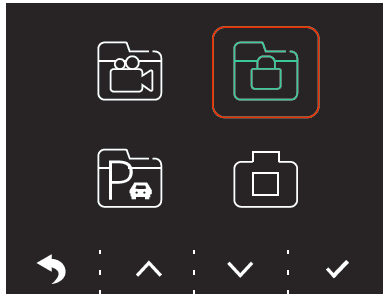

Viewing Album
- Press the 4th function button to stop recording.
- Press the 2nd function button to enter the album.
- Options:
- Video
- Emergency recording
- Parking mode recording
- Photo

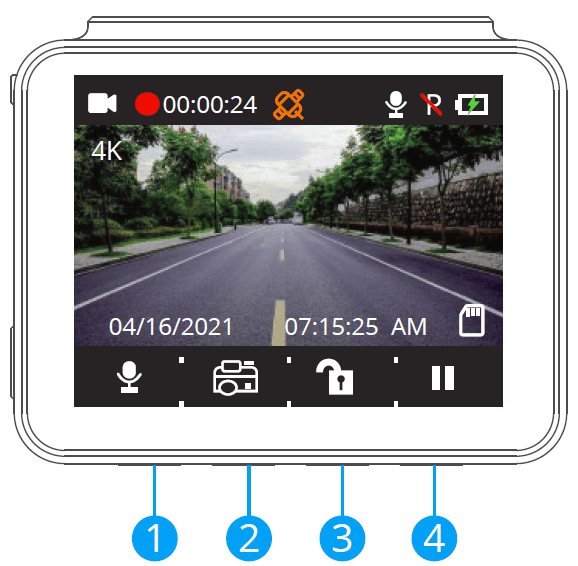

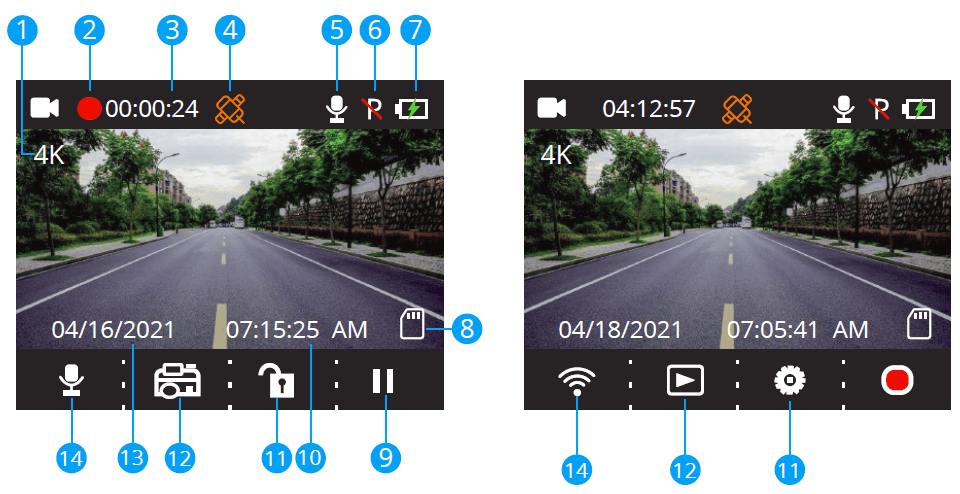

Icon Introduction
- Recording Resolution
- Recording Indicator
- Video Time
- GPS
- Microphone Indicator
- Parking Mode
- Power Status
- Memory Card Indicator
- Stop/Start Recording
- Time
- Setting/Emergency Recording
- Album/Photo
- Date
- Wifi Indicator/Audio Recording (Mute/Unmute)
Setup Menu
- Language
- Select to switch language.
- Options:
- English
- Français
- Español
- Deutsch
- Resolution
- Select to switch resolution.
- Options:
- 4K P30
- 2K P30
- 1080P P60
- Loop Recording
- If you choose the 3 Minutes option, the files will be saved every 3 minutes. When the memory card is full, new files will overwrite the old ones if Loop Recording is on. If it is off, the camera will stop recording when the card is full. You will then need to format the memory card or insert a new one.
- Options:
- 1 Minute
- 3 Minutes
- 5 Minutes
- Off
- Default setting: 3 Minutes
- Car No.
- Enter your license plate number and videos/photos will include it in the left or right corner.
- Date/Time
- Set the date and time manually.
- Motion Detection
- When Motion Detection is on, the D5 Dash Cam will detect whether you are driving or parked. If no movement is detected after 5 minutes of recording, Parking Mode will be activated.
- Default setting: Off
- Time-lapse Recording
- When Time-lapse Recording is selected, the camera will take static photos to create a video montage.
- Default setting: Off
Download the App and GPS Player
- Download the “Kingslim” app on the App Store or Google Play.
- Download the GPS player: www.kingslim.net/player

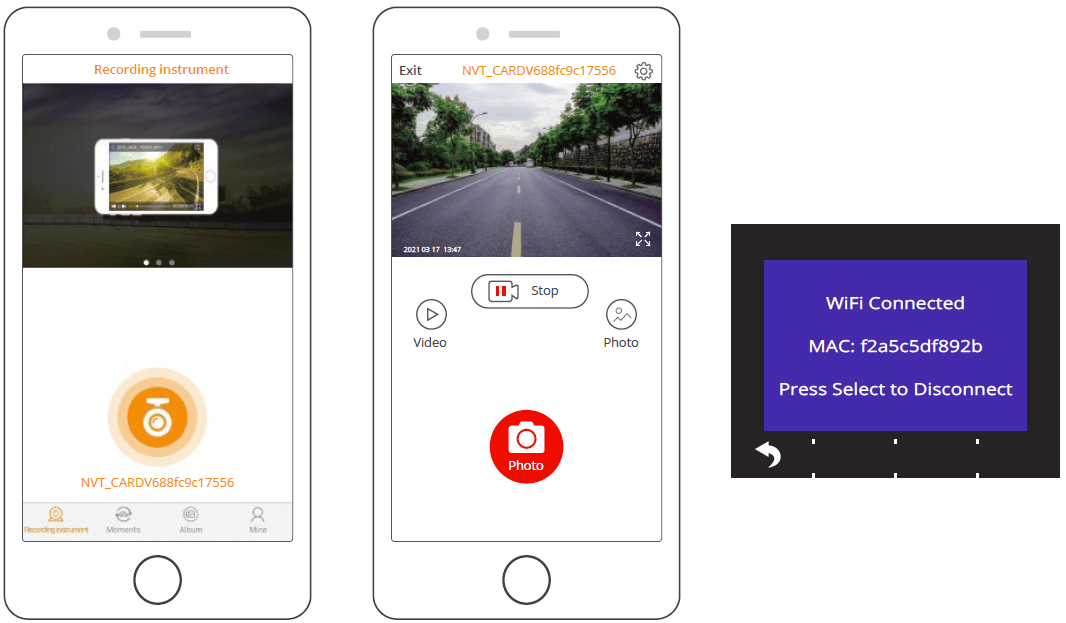

Using the “Kingslim” App
Connect the camera with the app.
- Short press the fourth function button to stop recording on the D5 Dash Cam.
- Short press the first function button to enter Wifi settings on the main menu.
- Go to your smartphone’s Wifi settings and connect to the Wifi name shown on the dash cam. Enter the password and confirm the Wifi network.
- Open the “Kingslim” app, tap “NVT_CARDVxxxx” and wait a few seconds to enter the preview interface.
- Tap the video or photo icon to control the D5 Dash Cam in either recording videos or shooting photos.
Specifications
- Video: 4K at 30 fps/2K at 30 fps/1080P at 60 fps
- Video Coding: H.264/H.265
- Working temperature: 20–60°C (-4–140°F)
- Input: 5V DC
If your D5 Dash Cam is not working properly, please follow these troubleshooting steps:
- The dash cam cannot record.
- Check whether the memory card has enough space. Please back up any important data to other devices first, then format the memory card.
- Check if Loop Recording in the Settings menu is set to Off. Set “Loop Recording” to 3 minutes.
- The recording stops automatically. During recording, a large amount of high-definition video data is processed. Please use a high-speed memory card of Class 10 or higher.
- A “File Error” prompt appears when playing back pictures and videos. Please use a genuine memory card. Please format the memory card.
- The image is misty. Ensure that there are no fingerprints or other marks on the camera lens. Use a soft dry cloth to clean the lens. Clean the front windshield.
- The device crashes. If your device crashes, use a sharp object to press the reset button and restart the device.
- There is no sound on the video. Ensure that Audio Recording Mode is on.
- The camera keeps turning on and off automatically. Please charge the camera with the included car charger. Do not charge the battery via the USB data cable with other adapters.
CAUTION
- Please mount your device in a secure place and protect the lens from scratches and dirt.
- Do not expose the device to rain, moisture or water under any circumstances.
- Avoid leaving the device in direct sunlight for extended periods of time.
- Do not dismantle or expose the internal battery.
Contact Us
For any inquiries about KingSlim products, please feel free to contact us. We will respond within 24 hours.
- Tel: 888-811-1140 (US)
- Email: cs@kingslim.net
- Web: www.kingslim.net
