KRIB XQB60 Bling Automatic Washing Machine Instructions Manual

KRIB XQB60 Bling Automatic Washing Machine

Troubleshooting

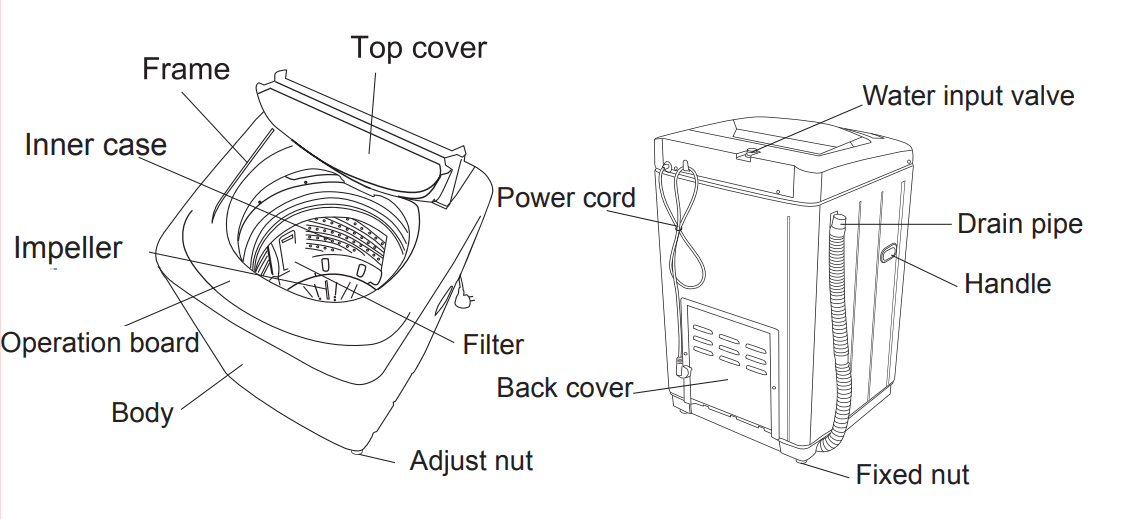

Parts and Bom

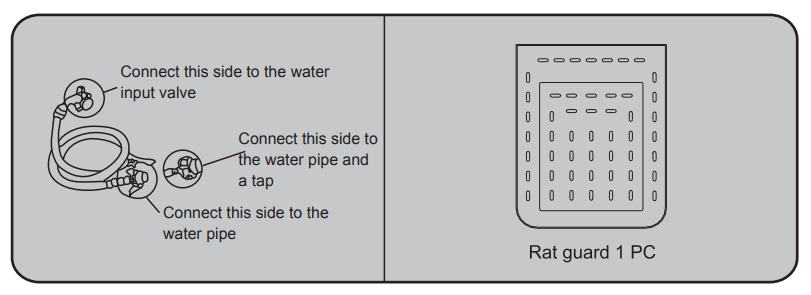

Accessory

Notice

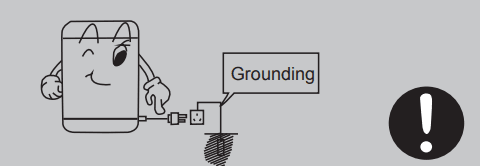

• Please connect the power plug of the machine to the designed electrical 220V socket separately. Do not attach to adapters

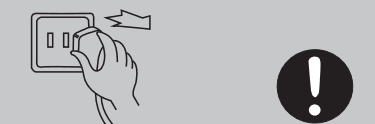

• When the machine is in normal use, please keep the machine plugged in. During a power outage or if the machine is not intended for use, it should be unplugged and the water tap turned off. Please don’t unplug or plug the machine with wet hands.

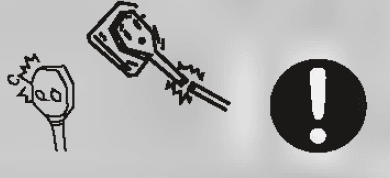

• Do not obstruct the power cord, damage the power cord, put any items on top of the power cord, or bend the cord to improper angles. When the power cord or power plug is damaged, it must be repaired by specialist maintenance. Tampering with the cable will void all guarantees.
• Don’t place the machine in the bathroom or other damp place, and do not put the wet clothes on the operation board. This may let water into the PCB board which may cause an electrical fire.

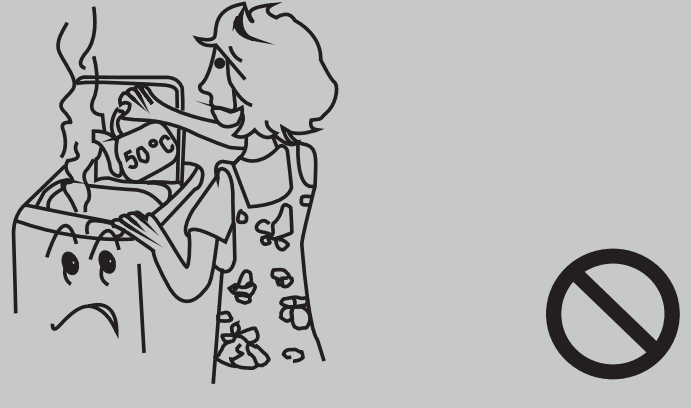

• Do not use water at a temperature of more than 50℃.

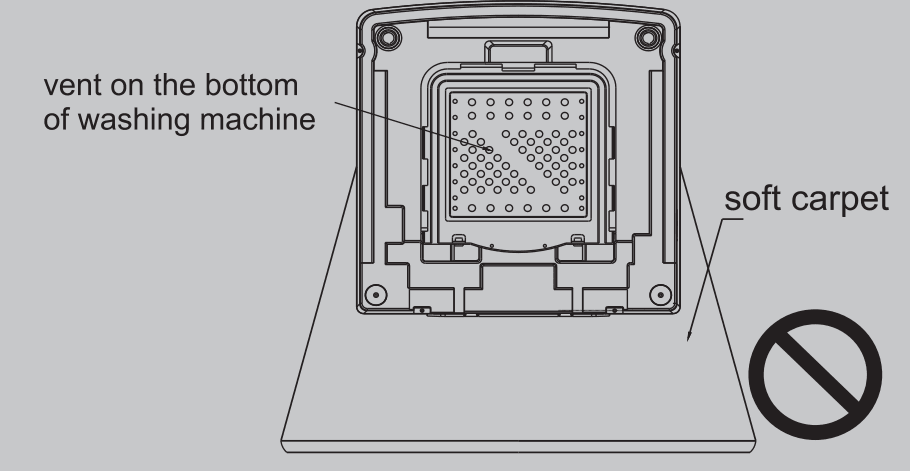

• Please ensure that the vents at the bottom of the machine are well-ventilated. Take care especially when placing the machine on the carpet.
• Don’t wash raincoats or waterproof clothing, such as bicycle covers, etc. This will cause such items to be damaged.

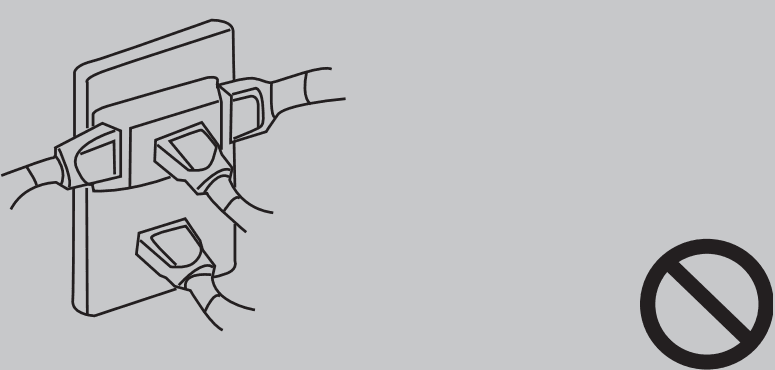

• Don’t share a socket with other appliances. If the power plug is damaged or the socket is loose, please do not use it and have it repaired by a professional.

Filter cleaning

• Must use a filter when washing
• Please clean up the filter timely

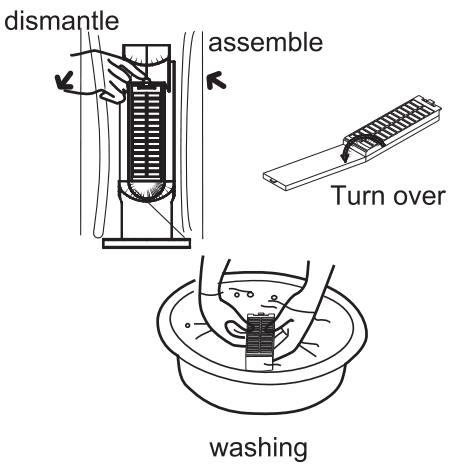

1. Take off the filter. See the pic.
2. Clean the filter
3. Hold on to the handle of the filter and press on the bottom to put it in.

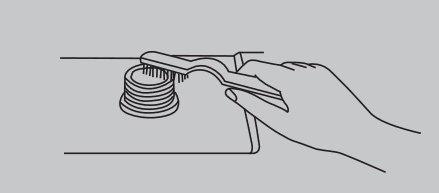

Clean the water inlet filter by brush every 2 months

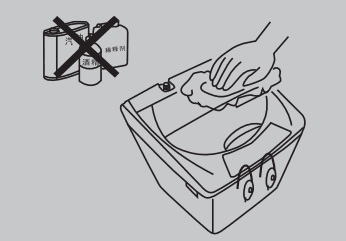

Use a wet soft cloth to wipe the dirt on the body

1. Don’t directly flushing
2. Use neutral detergent to wipe
3. Don’t  use thinner, oil, and alcohol to wipe

• Turn off the tap when finish washing
• please don’t store water in the machine, once finished washing please drain up water directly
• Must unplug first then do maintenance
• Hang the power cord and drain pipe on the hook
• Wipe the wet surface and inner case with a soft and clean cloth, open the top cover for a period of time(about 1 hour) then close it.

Wash and Spin

How to use laundry detergent

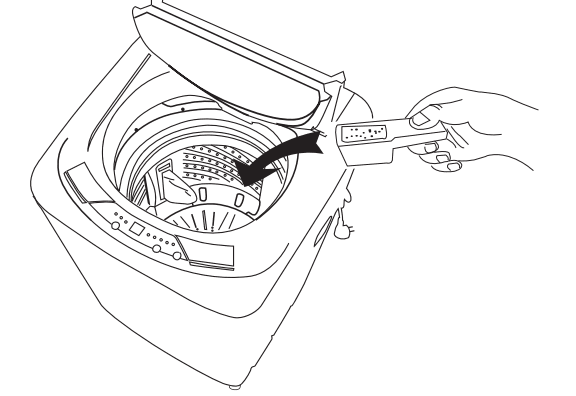

• Once the water has reached the water level, put the right amount of detergent into the container; slowly pour the powder into the tub. Allow at least 30 seconds to ensure an even dissolution or use the soak function for best results.
• Put in washings and select a suitable water level.
• Clothes with color or patterns are easy to rub off, please read the label before you wash your clothes. Please ensure that you wash whites, with whites only, and colors with other colors. Do not mix (if you don’t want your whites to no longer be whites! However, if you do we suggest you use red for a nice light pink.). Use laundry detergent in moderation We recommend that you do not use a high-foaming detergent, as it will no doubt make a mess and in extremely high dosages may even enter the control panel and destroy the appliance. Laundry detergent dosage should refer to the detergent instructions.

How to use bleach

• Once the water has reached the water level, put the right amount of washing bleach into the container; slowly pour the powder into the tub.
• Clothes with colour or patterns are easy to rub off, it should be avoided also to use bleach. Please ensure you wash whites, with whites only and colours with other colours. Do not mix (if you don’t want your whites to no longer be whites. However if you do we suggest you use red for a nice light pink).
• Bleach should not have direct contact with the washing.
• Use of bleach method and usage according to bleach instructions.
• Powder-type bleach should be melted before using. Please note that it is not advisable to use bleach in washing clothes due to potential skin irritations etc.

Please note:

• There is a period of time to start spinning dry even if there is no water in the tub.
• Clothing with colours may easily rub off and must be washed separately from other clothes.
• If the water is below the minimum water level the impeller will not turn.

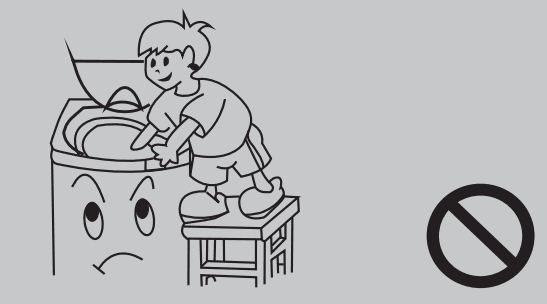

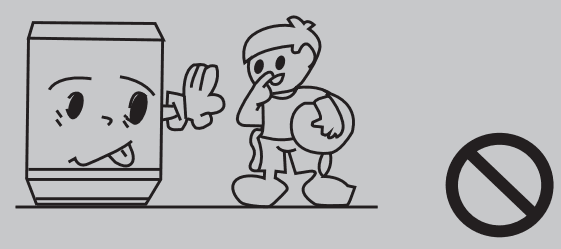

• When the washing machine is on working, don’t put your hands into the inner case. And don’t let the child climb upon the washing machine.

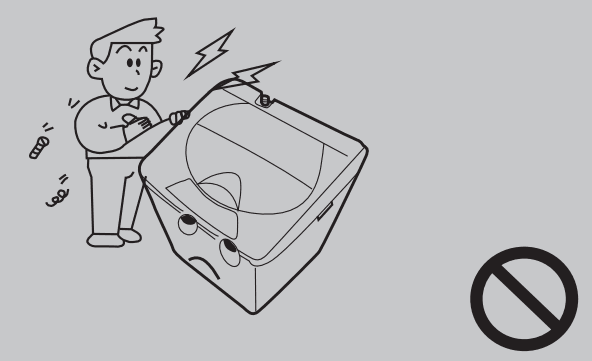

• Do not dismantle, repair and rebuild the machine on your own!
• Don’t place any hot or heavy objects (such as a pot of hot water) on the washing machine.

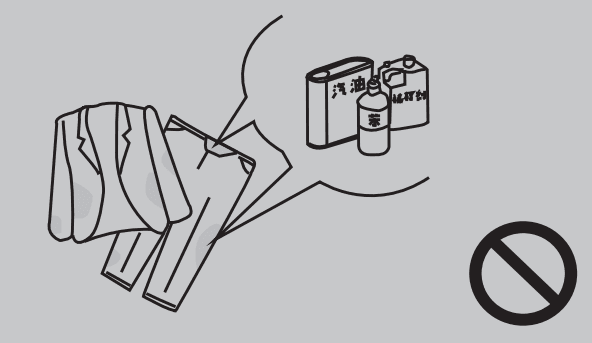

• Don’t wash clothes with volatile substances (thinner, gasoline, etc.).
• Do not Leave Children without supervision. Certain disabilities, illnesses, persons on medication that can cause dizziness or hallucinations as a side effect, or the intoxicated may not use this.

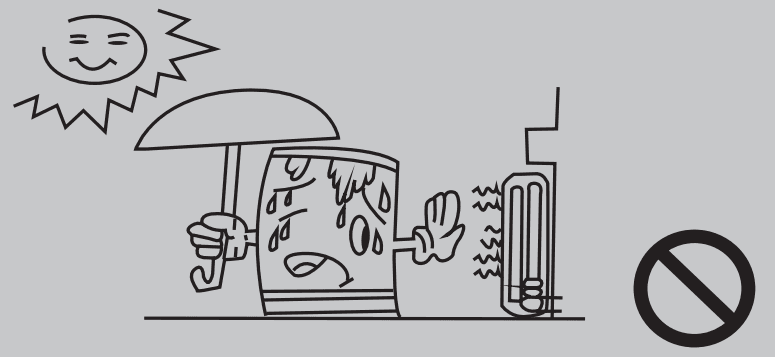

• Do not put it under direct sunlight; do not put the appliance close to a heating heat source, etc.
• Filter must be intact and installed correctly.
• Before washing or spinning laundry, please check that all foreign matters are out of the pockets or not wrapped in blankets (such as coins, keys, headphones, batteries, sand, hairpins etc)
• Before Laundry, Please check whether the tap is open or not and whether the water pipe is connected or not.
• Suggest using low foam detergent.

Installation

Please install and adjust the washing machine according to the requirements of the specifications, this is very important for your safety and correctly use the washing machine.

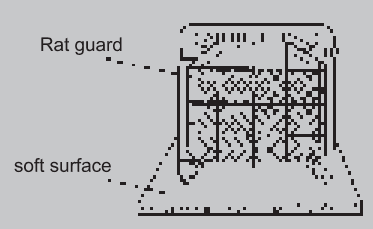

Install the rat guard

1. Install in a front way

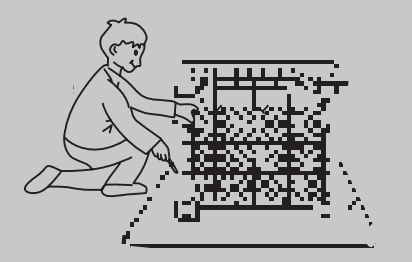

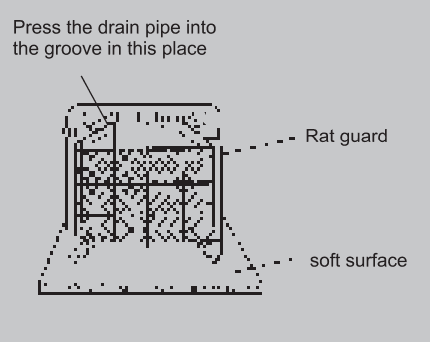

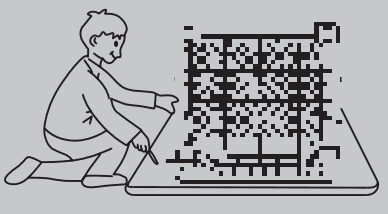

   Opened the package, put the washing machine back down gently on a soft surface (such as terry cloth, or carpet), Insert the rat guard from front to back and you can hear a crack click when it is installed in place. Then gently lift it up like in the Picture.
2. Install in the back way
   Opened the package, put the washing machine back down gently on a soft surface (such as terry cloth, or carpet), Insert the rat guard from back to front and you can hear a crack click when it is installed in place. Then gently lift it up like in the Picture.

Adjust the Installation position

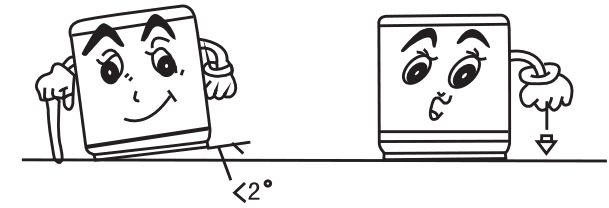

Please leave, more than 20 mm between the washing machine and the wall, the maximum slope Angle is 2 ° on the bearing surface. Ground tilt or uneven may cause the washing machine to run unstable or stop midway, please use the following method to adjust:

• Determine horizontal: Use a bubble-level tool or a free bubble-level mobile phone app to confirm whether the washing machine is horizontal. If you do not have access to either place a straw or needle on the machine and see if it rolls.

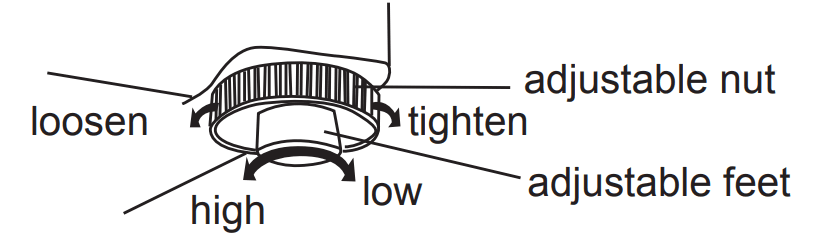

• Adjust the adjustable nut
  1. Lift up the machine’s adjustable side, loosen the adjustable nut rotate it, and male the machine horizontally.
  2. After stable adjustment, tighten the adjustable nut.

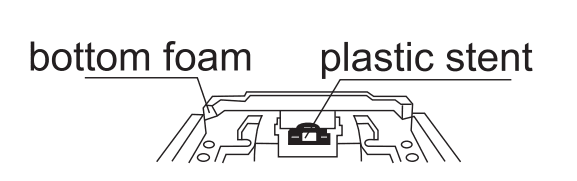

• Before installation, remove the bottom foam and plastic stent.

Programming and features

• *The washing capacity means the maximum weight of washing or spinning for a wash.
• *The thickness of the fabric, size or kind, will affect the actual washing capacity.
• *Do not select a high water level when fabric weight is below 1.0kg
• * Please select the high water level when you believe it is suitable. It will not clean clothes better if you use a high water level for a small amount of clothes so please try and save water.

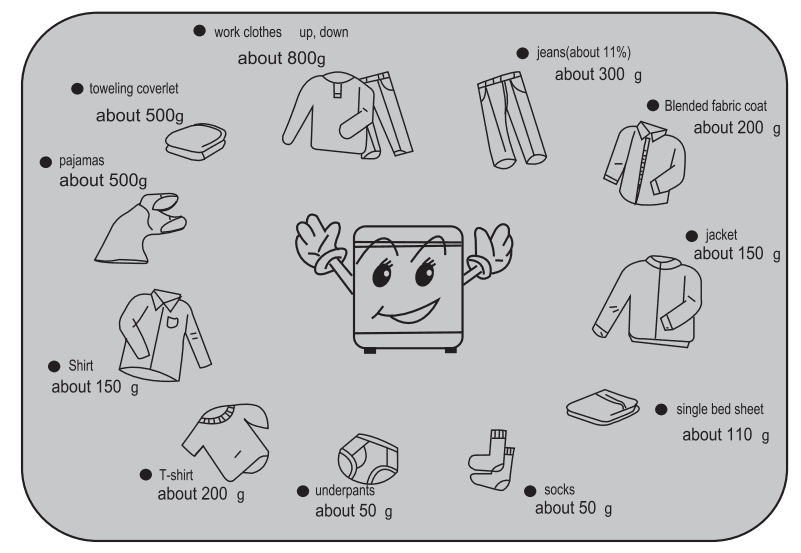

The reference weight of washing

Pre-wash

Preparation before washing

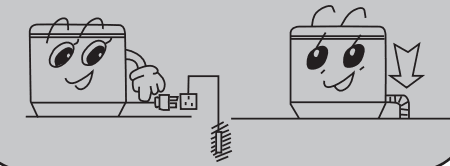

1. Connect the water pipe well, and turn on the tap.
2. Plug into the socket
3. Put down the drain pipe

• a. Ensure no items in the clothes pocket (such as screws, coins, etc.)
• b. Turn clothes over to wash, so that chips or lines do not adhere to the surface of clothes during washing.
• c. When doing fine cleanings, like Women’s underwear, thin nylon, and polyester materials, please
  put them into a washing bag.
• d. Tight loose belt in clothing and pull on the zipper.
• e. To get rid of the mud and sand on clothing before washing.
• f. clothes that are easy to float on, please put them in the bottom, in addition, when floating, please
  stop and press it into the washing liquid.
• g. Please separate thick clothes and thin clothes in washing.
• h. Inappropriate to wash down jacket and not bibulous clothing, if needed, please select the
  low water level and do a single washing.
• e. It is forbidden to wash fur blankets and electric blankets.

Spin drying can lead to shrinkage and deformation of the wool fabric.

1. Please don’t use the spin function on wool.

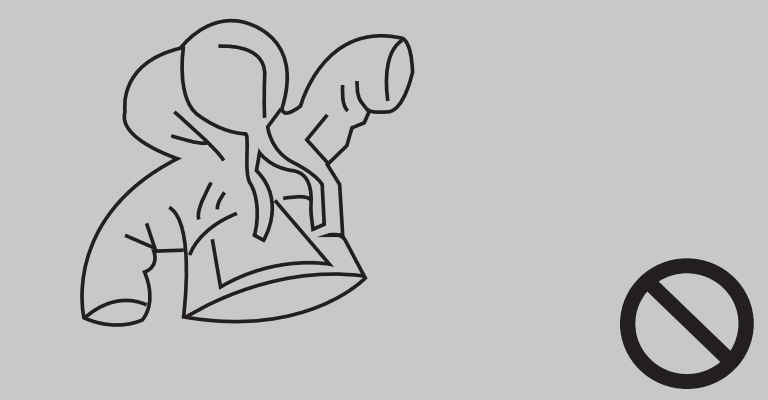

2. It is forbidden to spin dry-down jackets and other lightweight but bulky clothing to avoid danger. Please check the washing label of your clothes item before you wash.

Notice

It is forbidden to wash fur blankets and electric blankets.

How to change the drain pipe direction

• Pull out from the right side of the groove
• Pull out from the left side.

How to use drain pipe

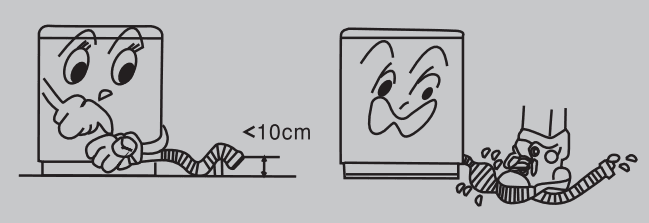

1. The height of the drain pipe should be less than 10 cm, or it may cause: the drain not to fluently, longer, and stop working midway.
2. Don’t trample or pressure pipes.

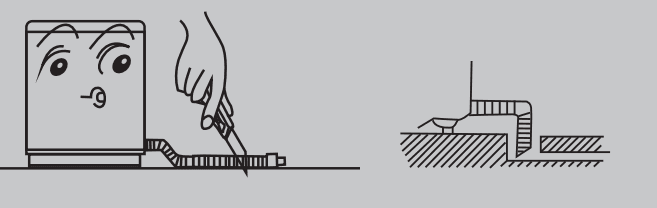

3. You can cut the drain pipe from the middle part if the pipe is too long and bevel cutting the front side of the pipe can help drain fluently.

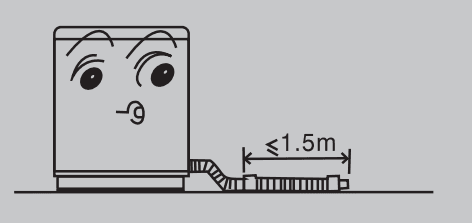

4. If you need to lengthen the pipe, please purchase another pipe(whose length does not exceed 1.5m) and seal it on the connected part of the two pipes.
5. when the pipe is too long please cut it from A or B

Further adjustments

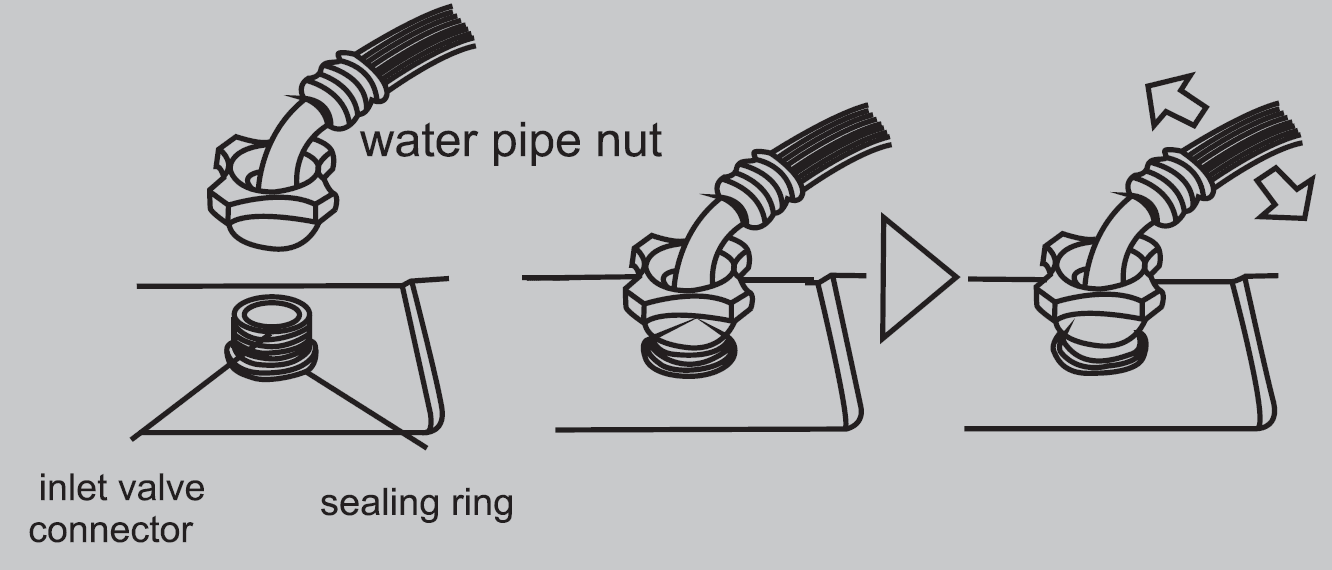

Connect the water pipe to the washing machine

1. Don’t remove the sealing ring, and please check whether the sealing ring is off or damaged before every use.
2. input pipes connect to the valve
3. Tighten the pipe nut and shake it to check whether it is suitable

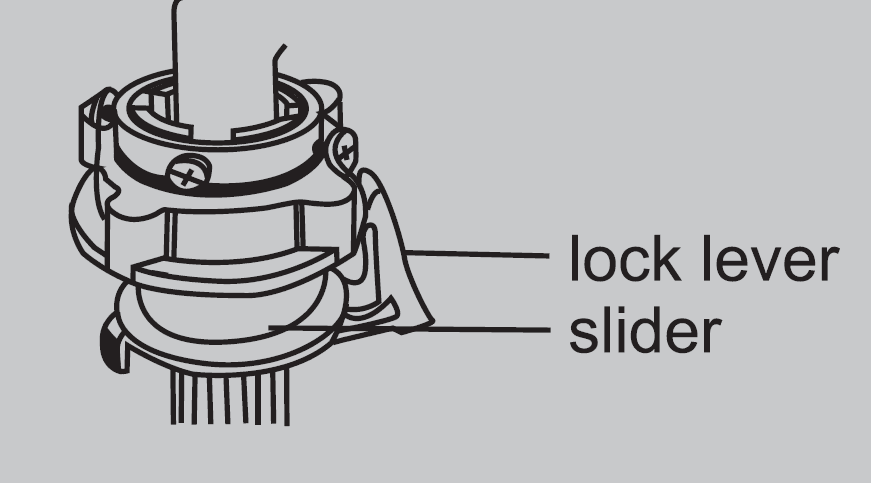

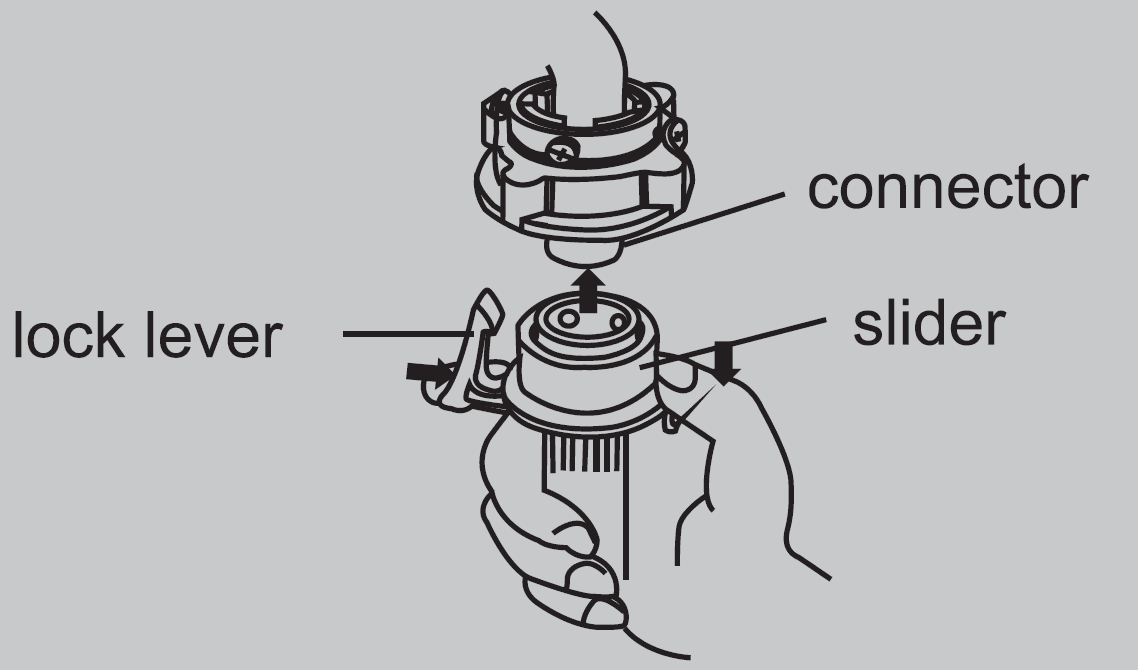

Connect pipe connector and water pipe

1. Press the slider to insert the pipe into the connector.
2. hook the lock lever on the connector, and put the slider down until hear a crack click.

Check the connection between the water pipe and the tap

1. Pull the water pipe slightly to check whether it is tight.
2. Tum on the tap to check whether it is leaking.

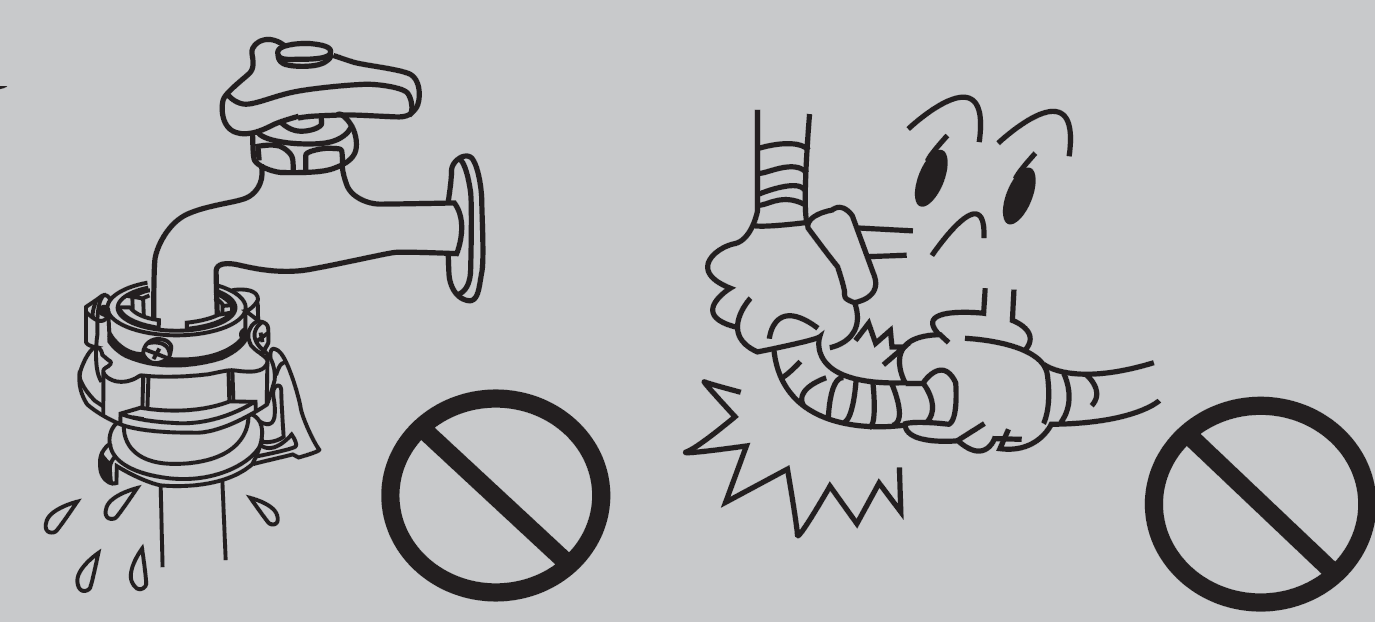

3. Don’t bend the water pipe
4. Please check the connection between the water pipe and the tap, to see whether the installation is tight or not before use.

Dismantle the water pipe

1. tum off the tap
2. Press on the lock lever and slider then pull down the pipe.
   Tips: if using the machine more than once a week, it is better to keep the pipe connector on.

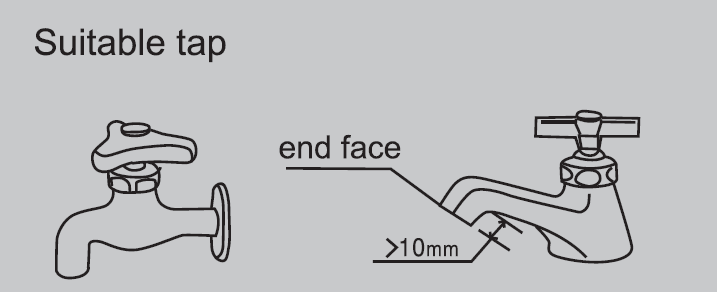

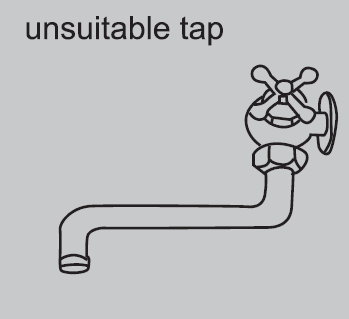

Check the tap

The length of the front part is required more than 10m Tap mouth must be even, if not, please make it
even and smooth to avoid leakage

Connect the water pipe and the tap

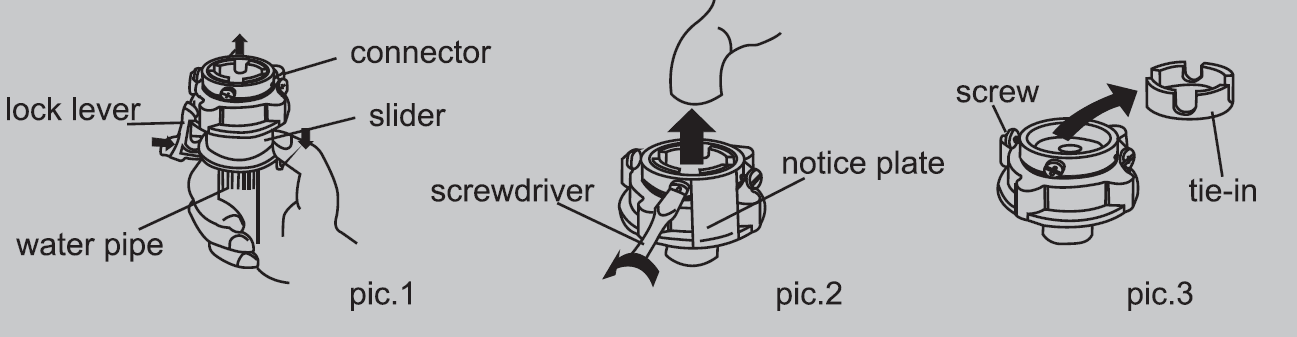

1. Press on the bottom of the lock lever press the slider downward, and take out the connector from the water pipe. See pic.1.
2. Loosen 4 screws on the connector to make It can hook on the tap, Input the connector on the tap .see pic.2 (if the diameter of the tap is too big, please loosen the 4 screws and take off the tie-in, the tap mouth should be kept even, or it will lead to a leak, see pic.3)

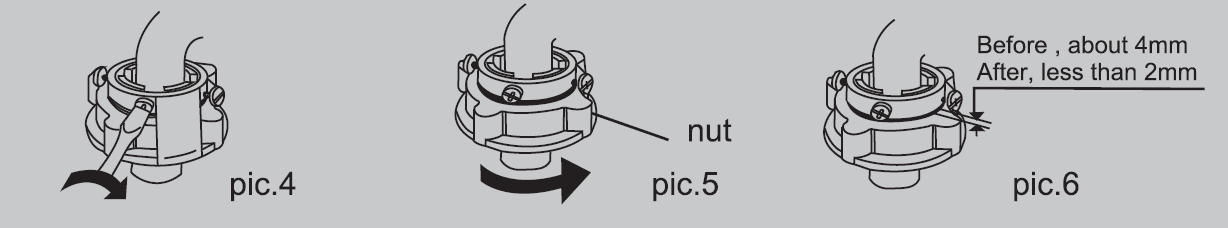

3. Tighten 4 screws as pic.4
4. take off the notice plate and tighten the nut as in pic.5
   Notes: before tightening the nut, the thread is about 4 mm; after tightening, it is less than 2mm.
