Krups Breakfast Set Stainless Steel Waffle Maker User Manual

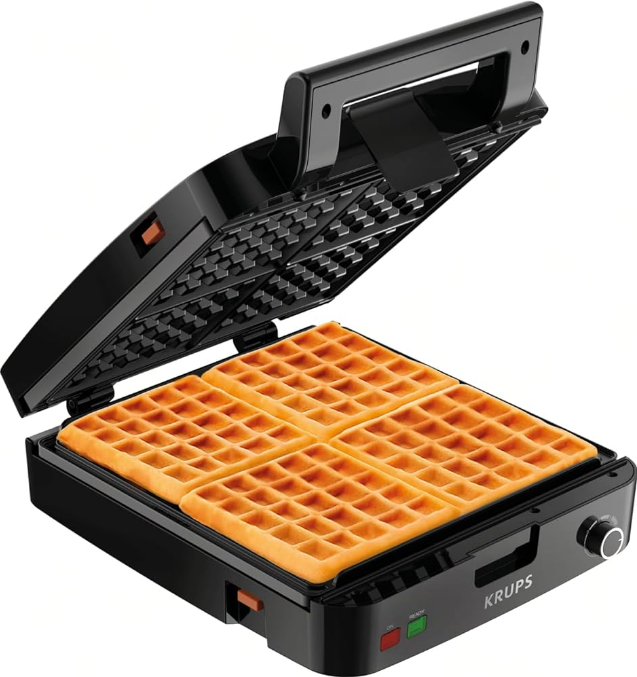

Krups Breakfast Set Stainless Steel Waffle Maker

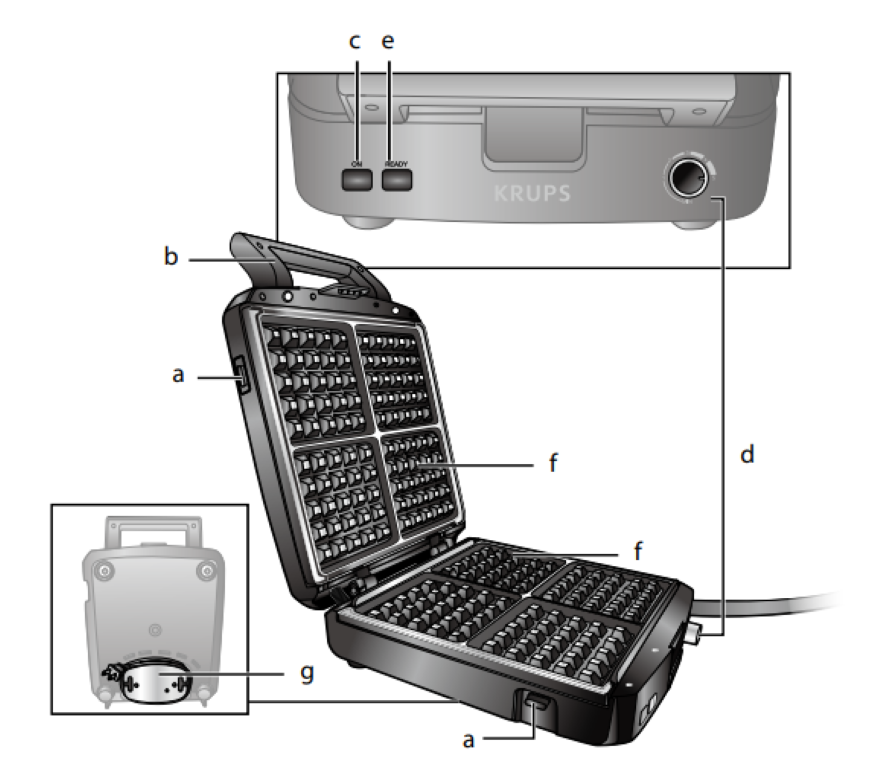

DESCRIPCION

• a  Plate release buttons
• b  Handle with locking latch
• c  On indicator
• d  Browning selector
• e  Ready indicator with beep
• f  Removable heating plates
• g  Cord storage compartment

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before use.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over the edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
13. Do not use appliance for anything other than its intended use.

BEFORE USE

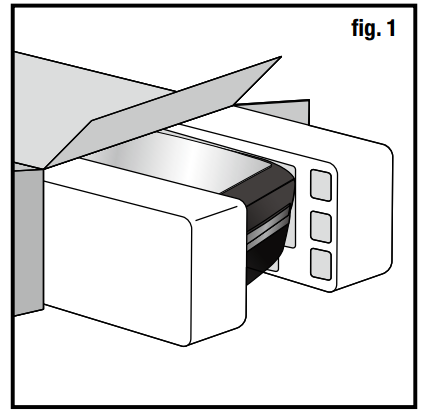

Remove all packaging and stickers from your waffle maker and wipe the housing and plates with a damp cloth to remove any dust or residue remaining from manufacturing. We recommend seasoning the non-stick plates with cooking spray or oil before use. For best results, it is suggested to repeat this process at the start of each use.

ASSEMBLY/DISASSEMBLY

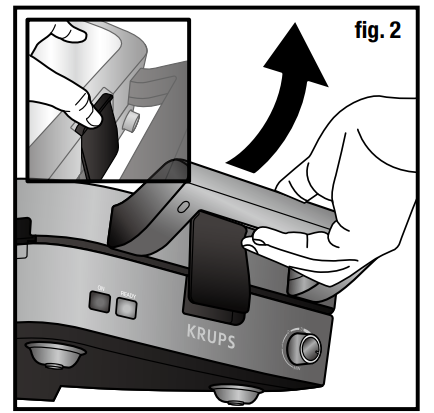

• Open the lid of the waffle maker by depressing the release latch located on the underside of the handle and lifting up.

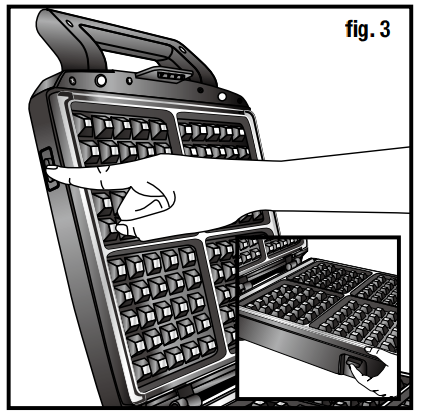

• To remove waffle plates:
• Be sure plates are completely cool.
• Press the upper plate release button (located on the left side of the lid above the indicator lights) with one hand, while removing the plate with the other hand.
• Repeat the process with the lower plates (release button located on the left bottom housing).

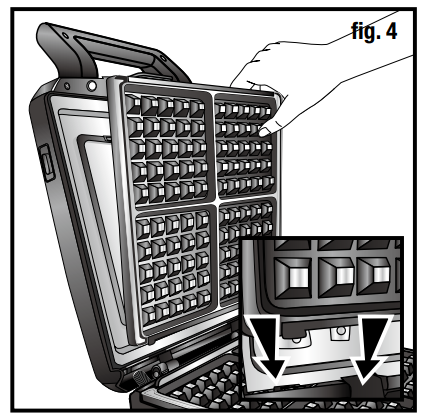

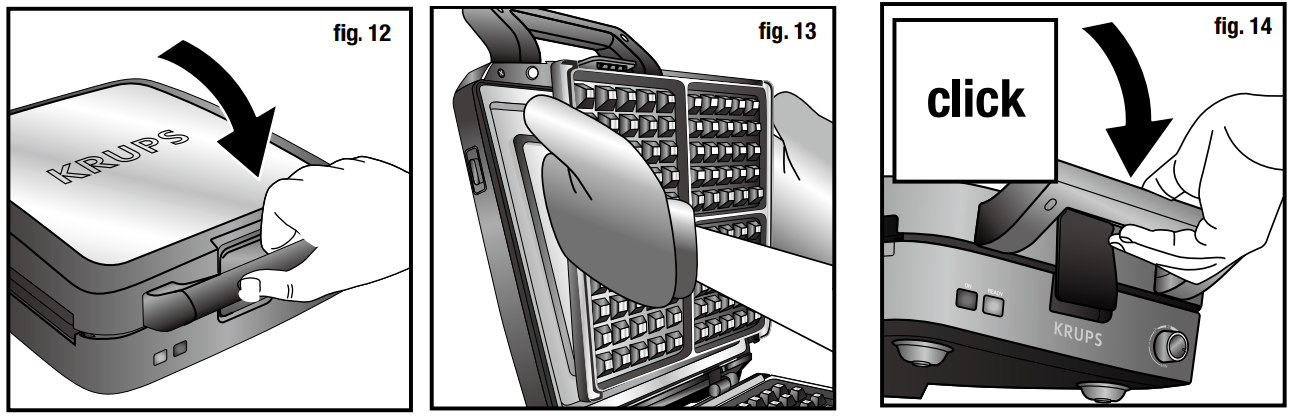

• To replace waffle plates:
• Insert the waffle plate tabs into the unit and press down. You will hear the plates click into place.

OPERATION

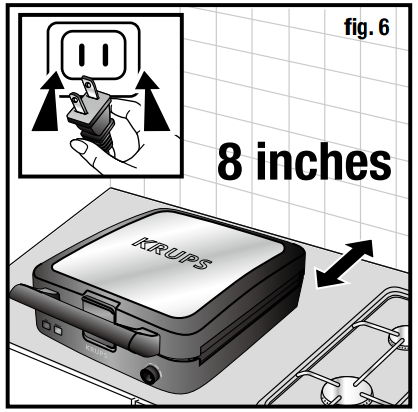

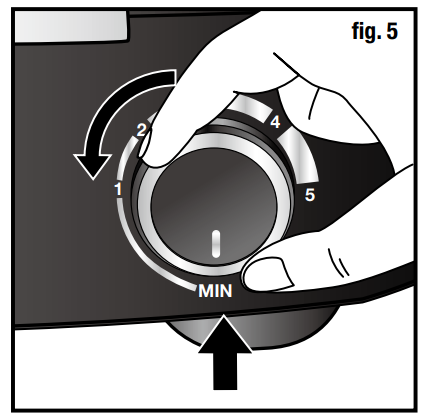

• Make sure the plates are in place and the selector knob is turned to the OFF position. Plug in the waffle maker.

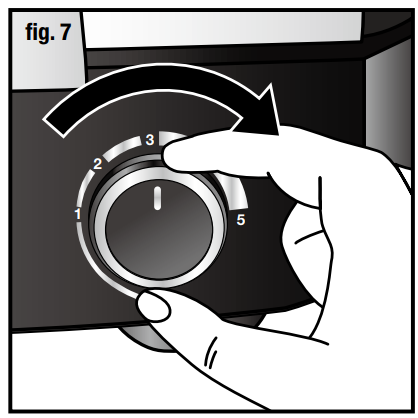

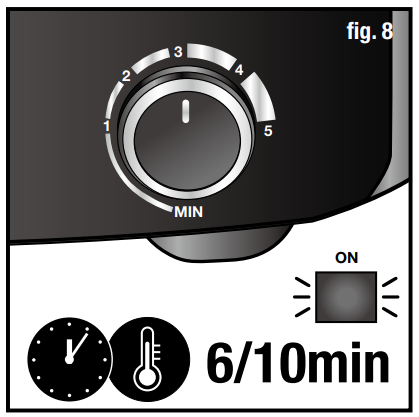

• Turn on the heater and begin preheating by selecting the desired setting with the Selector Knob (Setting 1 will result in the lightest waffle; Setting 5 the darkest). Pre-heat the waffle maker in the closed position.
• The red ON indicator will light up to indicate that the waffle maker is on and heating. NOTE: The Removable Plates have a non-stick cooking surface that may emit a slight odor during first use. This is normal and commonly occurs with non-stick coatings.

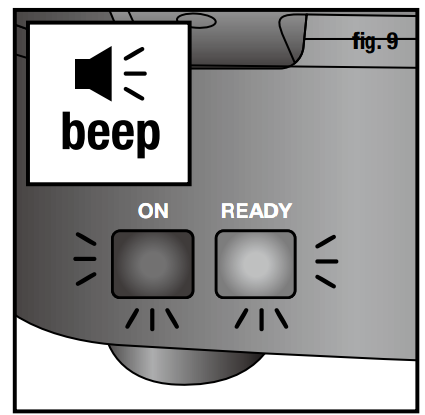

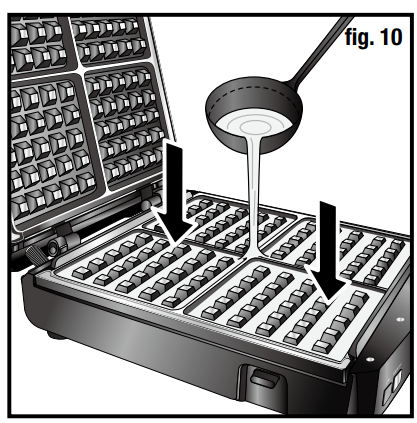

• When the waffle maker has reached the selected temperature and is ready to use, the green READY indicator will light up and the audible tone will sound. a. Lift the lid and add batter. Then close the lid again to cook.
• When your waffles are ready, the audible tone will sound and the READY indicator will light up again.
• Carefully remove your waffles and enjoy.
• If making more than one batch of waffles, once your first batch is removed, repeat the baking process by adding more batter (step 3a).
• To turn off your waffle maker at any time, turn the selector knob to the OFF position.

CLEANING & MAINTENANCE

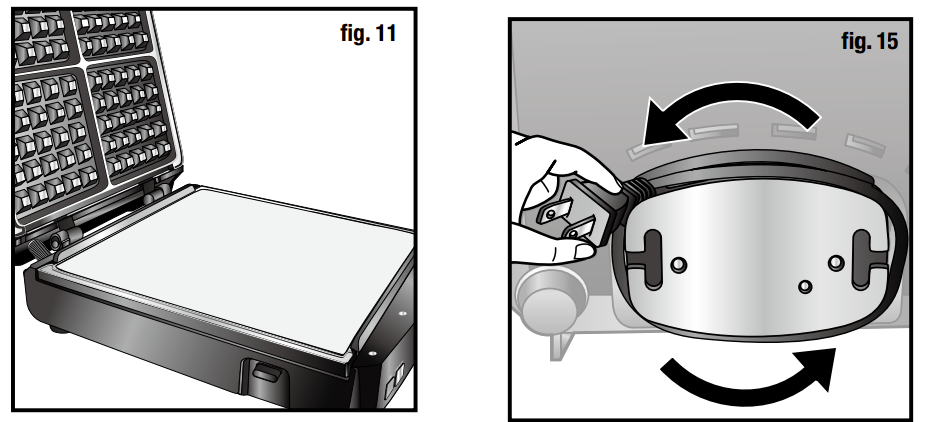

1. When you are finished cooking, turn the temperature knob to Off and unplug the power cord. Allow the unit to cool down completely before handling.
2.  Press the plate release buttons to remove plates from the housing. Be sure that the plates have cooled completely before handling.
3. We recommend cleaning the plates after every use. The plate should be washed in warm soapy water or in a dishwasher. Failing to do so may negatively impact the non-stick coating performance. Never use an abrasive cleanser or harsh pad on the non-stick coating.
4. To clean exterior, wipe with a soft dry cloth.

RECIPE

Traditional waffles

Ingredients:

• 3 cups of all-purpose flour
• 3 tsp of granulated sugar
• 2 tsp baking powder
• 3/4 tsp of salt
• 1-3/4 cups reduced fat milk
• 1/2 cup of vegetable oil
• 2 large eggs

Mix the flour and baking powder in a large bowl. Make a hole in the middle and add salt, sugar, vegetable oil, and eggs. Gradually mix in the milk a little at a time. Let the batter rest for 1 hour before using. After making sure your Waffle Maker has been preheated, you can then pour the batter in the waffle maker using a ladle: the batter in the baking compartments should not exceed the height of the separator bar. Close the waffle maker and cook for the recommended amount of time. The waffles should be nicely browned. To serve, put the waffles on a dish and top with syrup if desired. The waffles are also delicious with melted chocolate, whipped cream, jam, ice cream, strawberries,s or any topping you prefer.

Classic Belgian Waffles

Ingredients:

• 2 cups all-purpose flour
• 2 tablespoons sugar
• 4 teaspoons baking powder
• 1/2 teaspoon salt
• 2 cups milk
• 1/2 cup butter, melted, cooled
• 3 eggs, separated

Heat Krups Waffle Maker to desired Shade. In large bowl, mix flour, sugar, baking powder, and salt until well mixed. In medium bowl, whisk milk, butter, and egg yolks until blended. Pour into dry ingredients and stir until mixed. In large clean bowl, beat egg whites with electric beater on high speed until stiff peaks form. Fold into batter. When “Ready” light is on and audible tone sounds, spoon and spread about 1/2 cup of the batter in each square of the bottom plate. Close and latch lid. Cook until “Ready” light is on and audible tone sounds. Remove waffles and repeat twice, until all batter is used. Tips: To keep waffles hot, heat oven to 200°F. Place large cooling rack on large cookie sheet and place in oven to heat. Transfer cooked waffles to cooling rack to keep warm while cooking the rest of the waffles. These waffles freeze well. Cool completely and package in freezer storage bags. To reheat, toast in toaster oven or toaster with wide toast slots until heated through and crisp. You can also reheat in a 350°F oven.

Monte Cristo Waffles

Ingredients:

• 2 cups all-purpose flour
• 2 teaspoons baking powder
• 1/2 teaspoon salt
• 1 cup shredded Swiss cheese (4 oz)
• 1 cup finely chopped cooked ham
• 2 eggs, beaten
• 2 cups milk
• 1/3 cup vegetable oil
• Raspberry syrup, warmed if desired

Heat Krups Waffle Maker to desired Shade. In large bowl, mix flour, baking powder, and salt until well mixed. Stir in cheese and ham. In medium bowl, whisk eggs, milk, and oil until blended. Pour into dry ingredients and stir until mixed. When “Ready” light is on and audible tone sounds, spoon and spread about 1/2 cup of the batter in each square of the bottom plate. Close and latch lid. Cook until “Ready” light is on and signal sounds. Repeat with remaining batter. Serve with raspberry syrup.

Orange Chocolate Chip Dessert Waffles

Ingredients:

• 1 1/2 cups all-purpose flour
• 1/4 cup sugar
• 2 teaspoons baking powder
• 1 teaspoon baking soda
• 1/2 teaspoon salt
• 2 eggs, separated
• 2 tablespoons grated orange peel
• 1/2 cup butter, melted, cooled
• 1/2 cup sour cream
• 1/2 cup orange juice
• 1/2 cup buttermilk
• 1/3 cup miniature semisweet chocolate chips

TOPPING

• 1 cup orange marmalade
• 1/2 cup orange juice
• 1/2 cup whipping cream
• 2 tablespoons sugar

Heat Krups Waffle Maker to desired Shade. In large bowl, mix flour, 1/4 cup sugar, baking powder, baking soda, and salt until well mixed. In medium bowl, whisk egg yolks, orange peel, butter, sour cream, 1/2 cup orange juice,e and buttermilk until smooth. Pour into dry ingredients and mix until blended. In large clean bowl, beat egg whites with electric mixer on High speed until stiff peaks form. Fold into batter. When “Ready” light is on and audible tone sounds, spoon and spread about 1/2 cup of the batter in each square of the bottom plate. Sprinkle each with about 2 teaspoons chocolate chips. Close and latch lid. Cook until “Ready” light is on and audible tone sounds. Repeat with remaining batter. Meanwhile, in small saucepan, heat marmalade and 1/2 cup orange juice until warm and drizzling consistency. Beat whipping cream and 2 tablespoons sugar until stiff peaks form. Drizzle waffles with syrup and top with whipped cream.

Fresh Lemon Herb Waffles

Ingredients:

• 2 1/4 cups all-purpose flour
• 1 tablespoon sugar
• 2 teaspoons baking powder
• 1/2 teaspoon dry ground mustard
• 1 teaspoon baking soda
• 1/2 teaspoon salt
• 2 teaspoons chopped fresh rosemary
• 2 teaspoons chopped fresh thyme
• 3 eggs
• 2 teaspoons grated lemon peel
• 2 cups milk
• 1/2 cup vegetable oil
• 1/4 cup sour cream
• 2 tablespoons lemon juice

Heat Krups Waffle Maker to desired Shade. In large bowl, mix flour, sugar, baking powder, dry mustard, baking soda, and salt until well mixed. Stir in rosemary and thyme. In medium bowl, whisk eggs, lemon peel, milk, oil, sour cream, and lemon juice until smooth. Pour into dry ingredients and mix until blended. When “Ready” light is on and audible tone sounds, spoon and spread about 1/2 cup of the batter in each square of the bottom plate. Close and latch lid. Cook until “Ready” light is on and audible tone sounds. Repeat with remaining batter. Serve with syrup, or as a crispy side bread for a chicken dinner. Or use them as a base for your favorite chicken la king recipe, or creamed turkey or tuna.

Waffle Breakfast Sandwiches

Ingredients:

• 2 cups all-purpose flour
• 2 teaspoons baking powder
• 1 teaspoon salt
• 1/2 teaspoon onion powder
• 2 eggs, beaten
• 2 cups milk
• 1/3 cup vegetable oil
• 1 1/2 cups shredded sharp Cheddar cheese, divided
• 8 (1 oz each) fully cooked frozen sausage patties
• 1 tablespoon butter
• 4 eggs

Heat oven to 200°F. Place large cooling rack on large cookie sheet and place in oven to heat. Heat Krups Waffle Maker to desired Shade. In large bowl, mix flour, baking powder, salt, and onion powder until well mixed. In medium bowl, whisk eggs, milk, and oil until blended. Stir in 1 cup of the cheese. Pour into dry ingredients and stir until mixed. When “Ready” light is on and audible tone sounds, spoon and spread about 1/2 cup of the batter in each square of the bottom plate. Close and latch lid. Cook until “Ready” light is on and audible tone sounds. Transfer cooked waffles to cooling rack to keep warm while cooking the rest of the waffles and cooking sausages and eggs. Meanwhile, cook sausages as directed on package. Keep warm. For over easy eggs, melt butter in large nonstick skillet over medium-low heat. Carefully break eggs into skillet. Cook until whites are nearly set. Carefully turn over; cover skillet and cook until desired doneness. To make sandwiches, sprinkle remaining cheese on 4 of the waffles. Place 2 sausage patties and 1 egg on remaining 4 waffles. Place waffles with cheese over eggs, cheese side down. Serve as is, or offer syrup, mustard, ketchup, or mayonnaise as a dipping sauce. Tip: In place of frozen sausage patties, you can make 4 (2-ounce) 4-inch patties using bulk breakfast sausage and cook in skillet until thoroughly cooked. Place in oven with waffles to keep warm. Eggs can be cooked any way you like – sunny side up or scrambled.

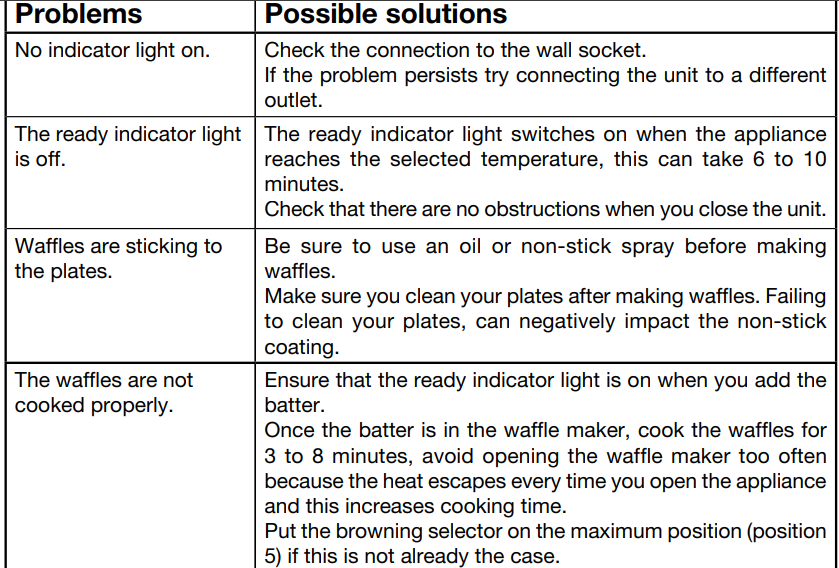

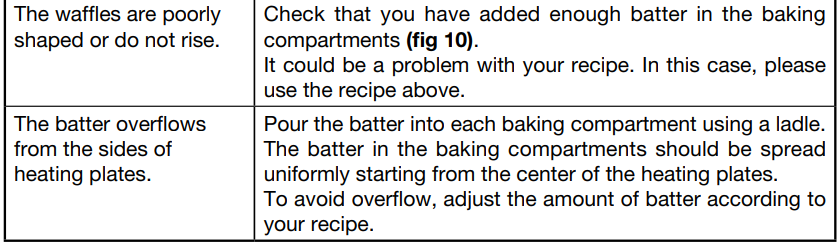

TROUBLESHOOTING

KRUPS INTERNATIONAL LIMITED GUARANTEE

This product is repairable by KRUPS during and after the guarantee period. Accessories, consumables, and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com

The Guarantee:

This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date. The international manufacturer’s guarantee by KRUPS is an extra benefit which does not affect consumers’ Statutory Rights. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS’s choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. KRUPS’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions:

The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country’s authorised service centres are listed on KRUPS website www.krups.com or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address.

KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance, or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• damage as a result of lightning or power surges
• scaling (any de-scaling must be carried out according to the instructions for use)
• damages or poor results due to wrong voltage or frequency
•  professional or commercial use
• ingress of water, dust, or insects into the product (excluding appliances with features specifically designed for insects)
• mechanical damages, overloading
• accidents including fire, flood, thunderbolt, etc
• damage to any glass or porcelainware in the product

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner, or mishandling by any carrier. In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre. The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product is purchased in one listed country and then used in another listed country:

• The international KRUPS guarantee does not apply in case of non-conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or non-conformity with other local legal requirements or other local technical specifications.
• The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS.
• In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights:

This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

For Australia only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please keep this document for your reference should you wish to make a claim under the guarantee
