La Crosse TX145WSDR Cyclone Wind And Rain Sensor
Initial Setup
Installing the Wind Cups (if needed)

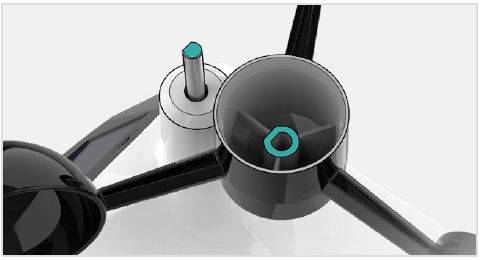

- Remove the Cyclone Sensor, Wind Cups, and Mini Screwdriver from the package. Take note of the flat edges located on the head of the Cyclone Sensor and the underside of the Wind Cups.
- Align the flat edges and place the Wind Cups on top of the Cyclone Sensor.

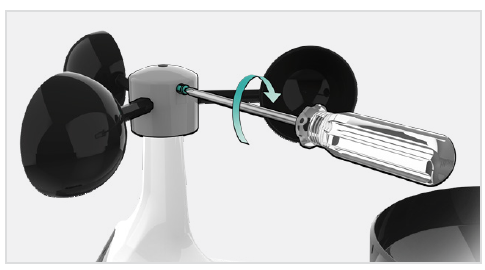

- Carefully tighten the screw on the side of the cups using the Mini Screwdriver. The screw should tighten into the flat edge of the post.

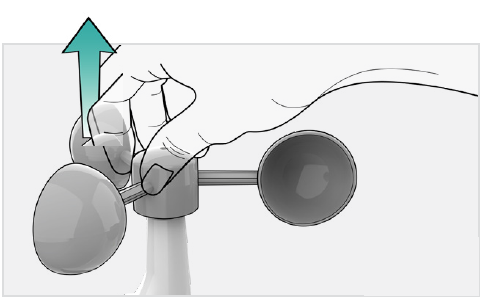

- When the screw is tight, gently pull up on the cups to ensure they are secure. If they pull off, start again with step two.
Powerup
Install 3-AA Batteries

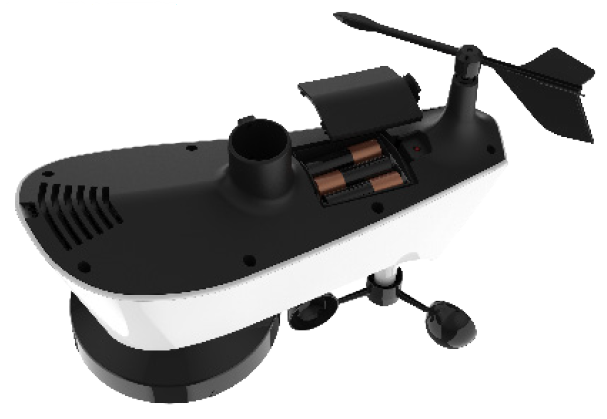

Insert 3-AA batteries into the bottom of the Sensor according to polarity.
Sensor Placement & Mounting
For Accurate Cyclone Sensor Measurements
- Use the built-in Bubble Level to ensure the Cyclone Sensor (especially the rain gauge) is mounted level.
- Ensure the Solar Panel is facing the South. This helps optimize battery life and transmit correct wind direction data.
- Ideally, the Cyclone Sensor should be mounted on the tallest object in your area. Avoid positioning the sensor parallel or below eaves, roof lines, trees, or other objects that may obstruct wind and rain readings.
- Make sure all the screws on the Mounting Bracket, Wind Cups, Wind Vane, and Battery Compartment are securely fastened.
- The Cyclone Sensor should be mounted with the Wind Cups on the top.
Cyclone Sensor Mounting
Basic Installation
Fence posts, poles, decks, and mailboxes are common mounting options due to their convenience. Many users prefer these types of locations as the data they provide is accurate from their ground level. However, because the wind in these spots is often affected by obstructions, the readings may differ when compared to local reporting stations.

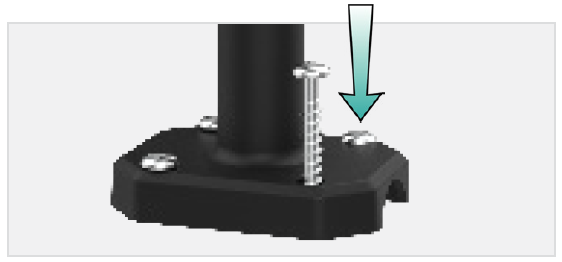

- Mount the Mast to a flat surface with the four provided screws.

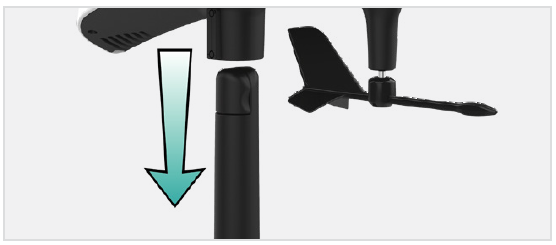

- Place the Sensor on top of the Mast. Ensure the Solar Panel is facing south.

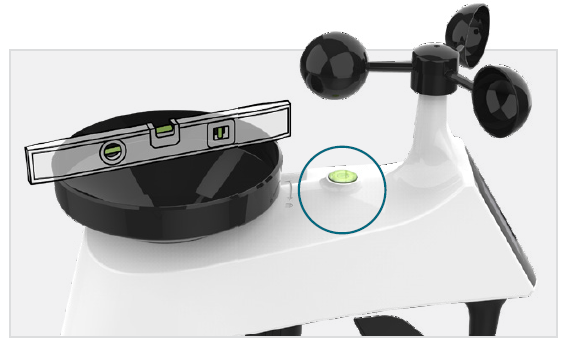

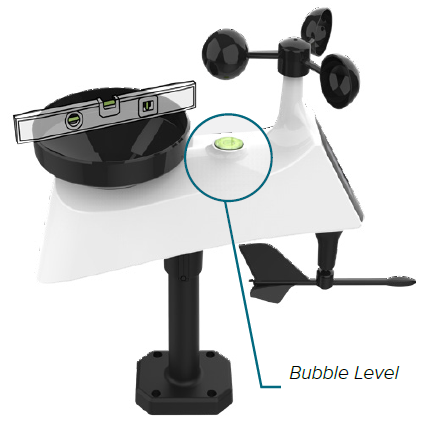

- Check the integrated Bubble Level or use your own across the Rain Funnel to ensure the sensor is level.

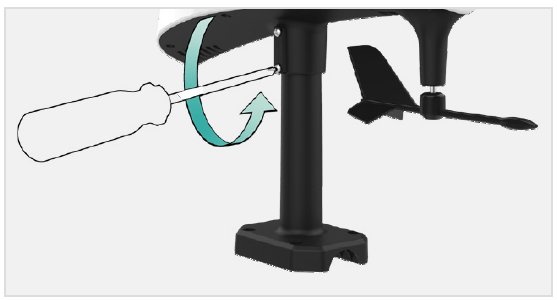

- Secure the Sensor to the Mast by tightening the screws on the side. After the crews are tightened, double-check check the sensor has remained level through the installation process.
Cyclone Sensor Mounting
Flexible Installation

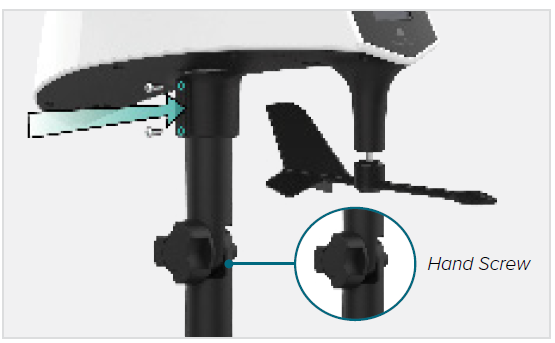

- Install the Hand Screw to the bracket, then secure the Sensor to the Mast by tightening the screws on the side.

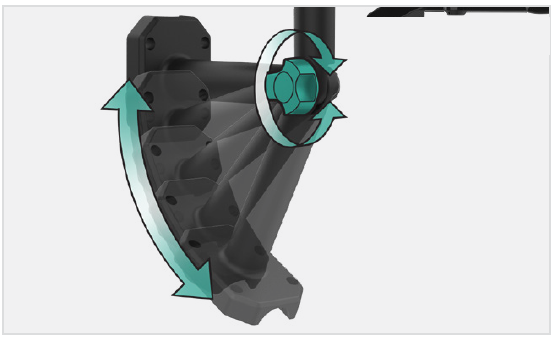

- This configuration allows you to attach the sensor to angled locations and easily make adjustments to ensure the Mast and Sensor are level.
Advanced Installation
Some advanced installation options include tripods, wall mounts, chimney mounts, and many others. Any of these can be combined with U-bolts for attachment onto a tall cylindrical conduit using our Adjustable Base. These options will require additional equipment and possibly professional help for the best results.
Freestanding Pole Setup
1” Maximum Outside Pole Diameter

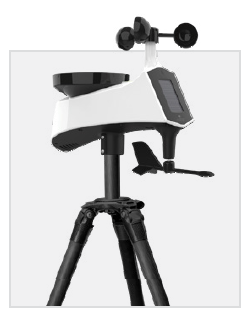

Tripod Setup Example
1” Maximum Outside Pole Diameter
Cleaning the Rain Sensor
- Remove the Rain Funnel by firmly twisting the funnel counter-clockwise and lifting up.
- Clear any leaves, insects, or other debris to allow the Rain Tipper to rock freely. Check and clear the Drainage Holes located on the underside of the sensor.

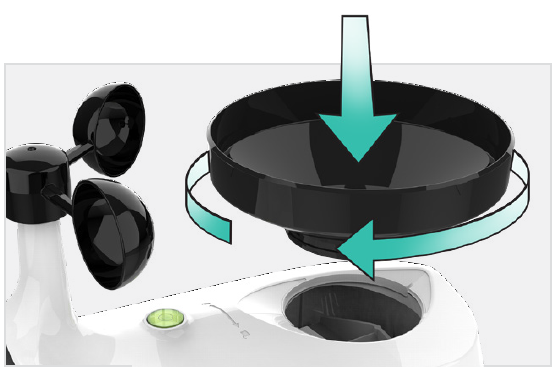

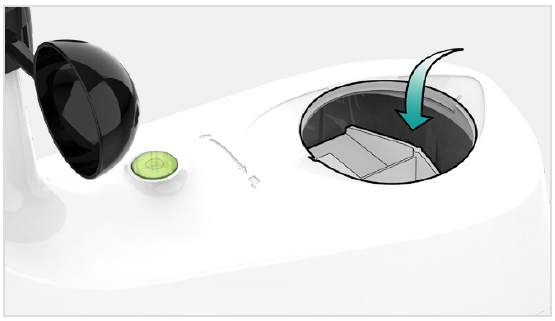

- After cleaning, reinstall the Rain Funnel by placing it back into the sensor and twisting clockwise until secure.

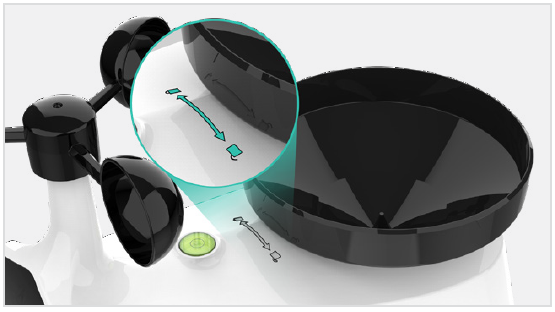

- You should feel the funnel lock into place when one of the arrows lines up with the center of the Lock/Unlock Line.
Tip: Remove the Cyclone Sensor’s batteries before cleaning to avoid accidental rain readings.

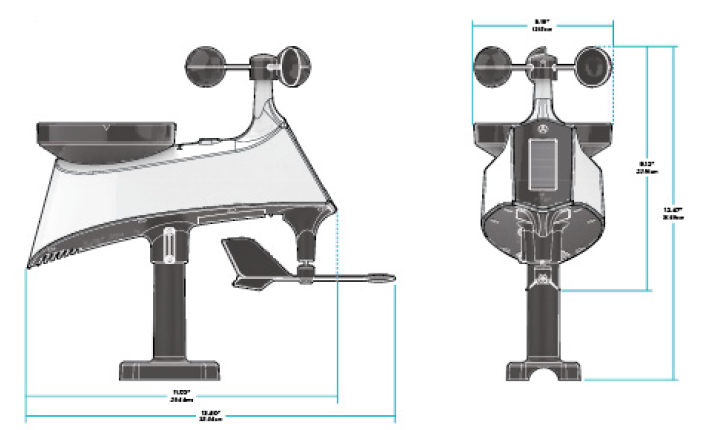

Specifications
CYCLONE SENSOR (TX145WSDR)
- Wind Speed Range: 0 to 111 mph (0 to 178 kph)
- Rainfall Range: 0 to 393.6 Inches (0 to 9999 mm)
- Transmission Range: 330 feet 433MHz (100 meters) open air
- Power Requirements: 3 “AA” Batteries (not included)
- Update Interval: Every 31 Seconds
Stay in Touch
Ask questions, watch setup videos, and provide feedback on our social media outlets.
Follow La Crosse Technology on Facebook, Instagram, YouTube, and Twitter.
We’re here to help.
Use the links below to find additional resources or reach out to our staff directly. Representatives are available Monday-Friday, 8 am-6 pm CST.
Online: bit.ly/contact_techsupport
Phone: 1.608-782-1610
Warranty
La Crosse Technology, Ltd. provides a 1-year limited-time warranty (from date of purchase) on this product, relating to manufacturing defects in materials and workmanship.
For full warranty details, visit:
www.lacrossetechnology.com/pages/warranty
La Crosse Technology, Ltd.
2830 S. 26th Street, La Crosse, Wisconsin 54601
California Residents
CA WARNING: This product can expose you to chemicals including acrylonitrile, butadiene, and styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information, go to: www.P65Warnings.ca.gov
Battery Replacement
Battery Replacement Instructions
When batteries of different brands and types are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference in voltage or capacity. This can result in venting, leakage, and rupture, and may cause personal injury.
- Always purchase the correct size and grade of battery most suitable for the intended use.
- Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different types.
- Clean the battery contacts and also those of the device prior to battery installation.
- Ensure the batteries are installed correctly with polarity (+ and -).
- Remove batteries from the product during periods of non-use. Battery leakage can cause corrosion and damage to this product.
- Remove used batteries promptly.
- For recycling and disposal of batteries, and to protect the environment, please check the internet or your local phone directory for local recycling centers and/or follow local government regulations.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment, and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with the provided instructions, and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions, and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
For more manuals by La Crosse, visit ManualsLibraryy
La Crosse TX145WSDR Cyclone Wind And Rain Sensor- FAQs
Q1. What is the La Crosse TX145WSDR sensor used for?
It measures wind speed, wind direction, and rainfall, sending the data to a compatible La Crosse weather station.
Q2. How do I connect the sensor to my weather station?
Insert batteries, power on the display, put it into configuration mode, and pair using the La Crosse View App.
Q3. How do I sync the wind sensor?
Hold the MINUS (-) button on the display for 5 seconds to clear old IDs, then spin the wind cups until the display reconnects.
Q4. Does the rain gauge need calibration?
No, it’s factory-calibrated. You can test it by slowly pouring a measured amount of water into the funnel.
Q5. How do I reset the sensor?
Remove batteries from both the sensor and display for 15 minutes, press any button 20 times, then reinsert fresh batteries.
Q6. Where should I mount the sensor?
Place it 6 feet or higher, in an open area with good airflow, and align it with the N-S-E-W markings for accurate wind readings.
Q7. How can I test if the rain sensor is working?
Pour water into the funnel. The display should record rainfall. If not, check for dirt, blockages, or low batteries.
Q8. How often should I change the batteries?
Use fresh alkaline batteries and replace them about once a year for best performance.
Q9. Why is my sensor not transmitting data?
This may be due to weak batteries, interference, or distance from the display. Reset and re-sync the sensor if needed.
