Logitech G502 X Plus Lightspeed Wireless Optical Mouse User Manual

Logitech G502 X Plus Lightspeed Wireless Optical Mouse

SETUP INSTRUCTIONS

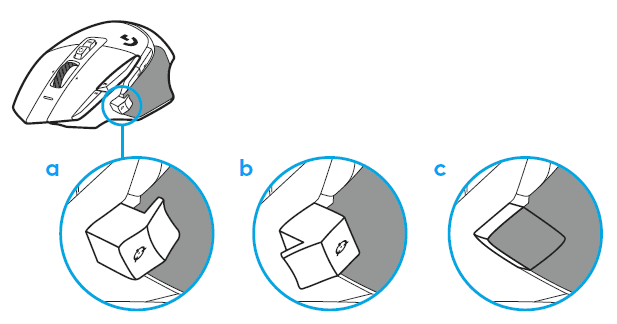

1. Orient the DPI Shift to fit your preference or replace it with the button cover to extend the grip surface
2. The receiver can be stored in the mouse behind the door when on the go

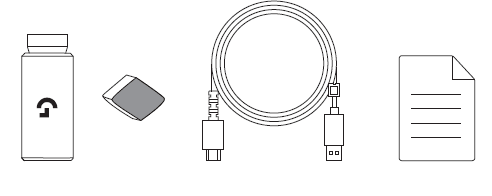

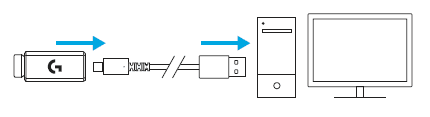

3. The LIGHTSPEED Wireless USB-A receiver is below the mouse in the product tray. Plug the USB-A cable connector into your PC and the USB-C connector into the receiver extension adapter. Plug the USB-A receiver into the adapter.
   • The LIGHTSPEED Wireless receiver can also be plugged directly into your PC, but using the cable and extension adapter will ensure a better connection and easy access to the cable when you need to charge your mouse.

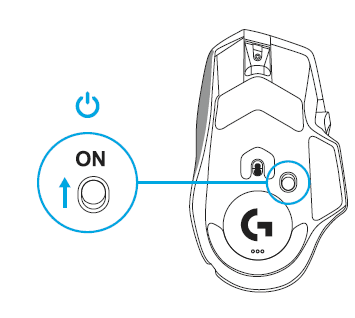

4. Slide the power button up to turn on your mouse.
5. Download Logitech G HUB gaming software to personalize your G502 X mouse. Fine-tune to suit your playstyle, personality, and each of your games, assign commands to any of the 13 controls, and more.
   • logitechG.com/ghub

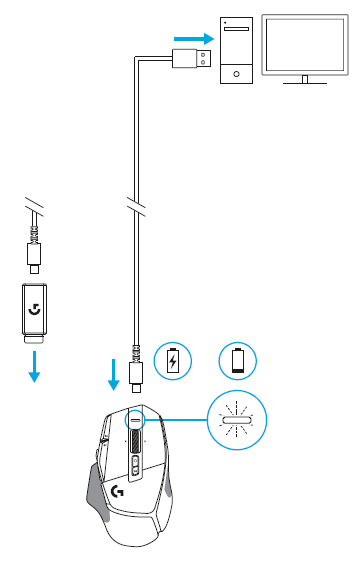

6. To charge your mouse, disconnect the cable from the adapter and plug it into the USB-C port located at the front of the mouse. Your mouse will operate in data‑over-cable mode whenever it is plugged in directly to a PC. Charging from 0% to 100% takes around 2 hours when plugged into a USB port. Compatible with Powerplay wireless charging system.

Tips:

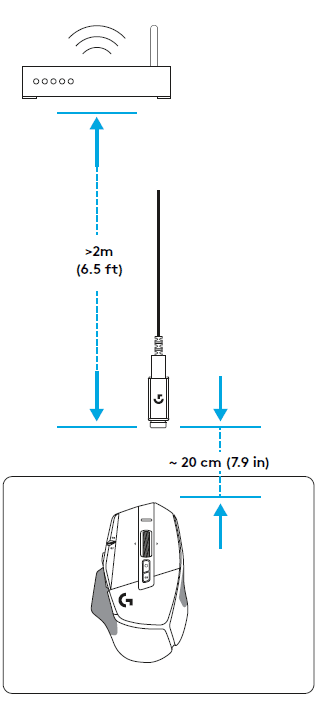

• Keep the mouse and receiver at least 2 meters away from wireless routers or other 2.4 GHz wireless devices to minimize environmental noise.
• G502 X PLUS and G502 X LIGHTSPEED have a wireless range of up to 10 meters. To ensure optimal performance in noisy wireless environments and to keep the charging cable easily accessible, it is recommended to keep the receiver within 20 cm of the mouse.

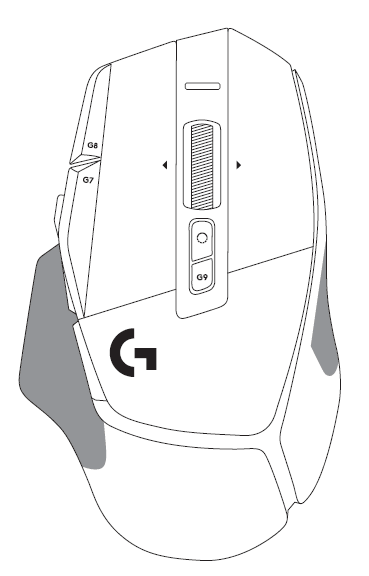

MOUSE FEATURES

1. Left click (Button G1)
2. Right click (Button G2)
3. DPI up (Button G8)
4. Scroll up
5. Scroll left (Wheel tilt left)
6. Scroll right (Wheel tilt right)
7. Middle click (Button G3)
8. Scroll down
9. DPI Shift (Button G6)
10. Wheel mode toggle button (not programmable)
11. DPI down (Button G7)
12. Profile cycling (Button G9)
13. Forward (Button G5)
14. Back (Button G4)

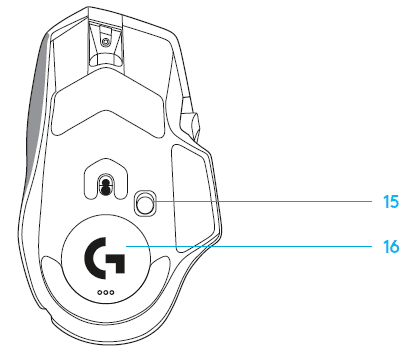

15. On / Off switch (bottom of mouse, not programmable)
16. POWERPLAY™ Aperture door wireless receiver storage

ONBOARD PROFILES BY DEFAULT

• Up to 5 Onboard memory profiles can be unlocked and customized in G HUB.

SETTINGS

PROGRAMMABLE CONTROLS

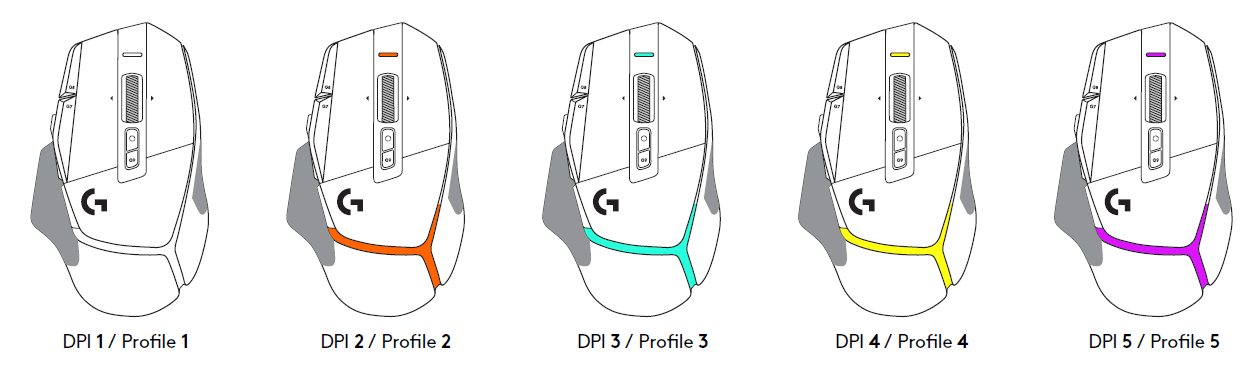

PROFILE, DPI SELECTION AND DPI SHIFT

• When the DPI Shift button is pressed, the mouse displays the color associated with the DPI shift speed. When released, the mouse displays the DPI setting color that was used prior to this action.
• DPI and profile selection are communicated using lighting on the top and the rear of the mouse. DPI change is expressed by different steady colors, while profile change is displayed by different blinking colors.

FREQUENTLY ASKED QUESTIONS

• www.logitechG.com/support/G502X-PLUS

BATTERY LIFE

• G502 X PLUS and G502 X LIGHTSPEED have a rechargeable 500 mAh LiPol battery, which provides up to 140 h of continuous motion for G502 X and up to 120 h for G502 X PLUS

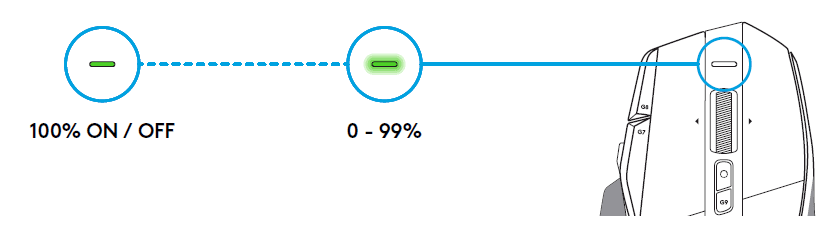

Charging Status:

When the charging cable is plugged into the device:

• Steady green = charge completed (100%) when device is ON or OFF
• Breathing green = charging (0 – 99%)

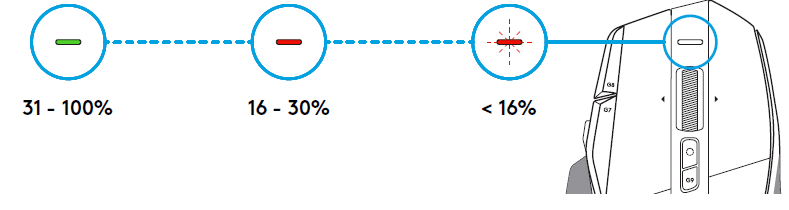

Battery level:

When turning the device ON:

• Steady green = good (31% – 100%)
• Steady red = low (16 – 30%)
• Slow blink red = critical (< 16%)

Tips:

• Charge level, power draw, and estimated remaining battery life can be checked in Logitech G HUB.
• Battery life and capacity may vary with age and use. Rechargeable batteries have a limited number of charge cycles.
