MIDOLA B-12 Cat Ear Wireless Bluetooth Headphones User Manual

MIDOLA B-12 Cat Ear Wireless Bluetooth Headphones

Table of Contents

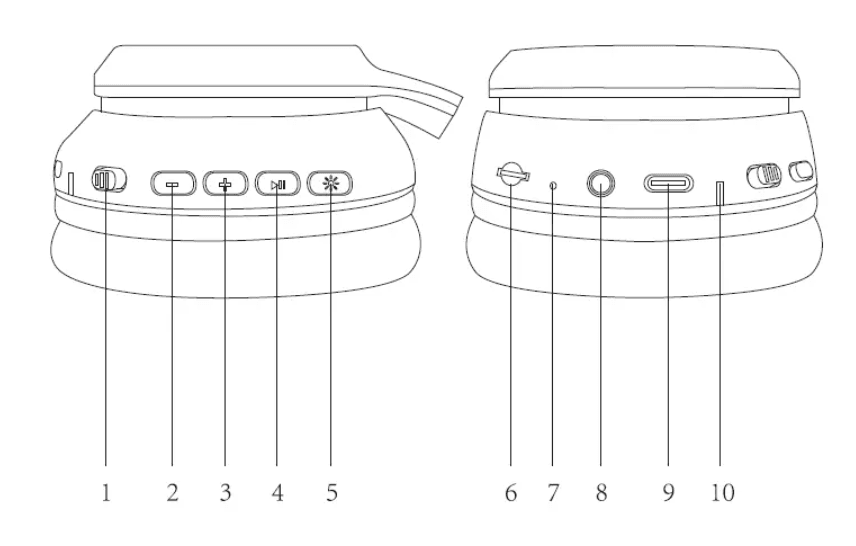

*Know your B-12

Power ON/OFF

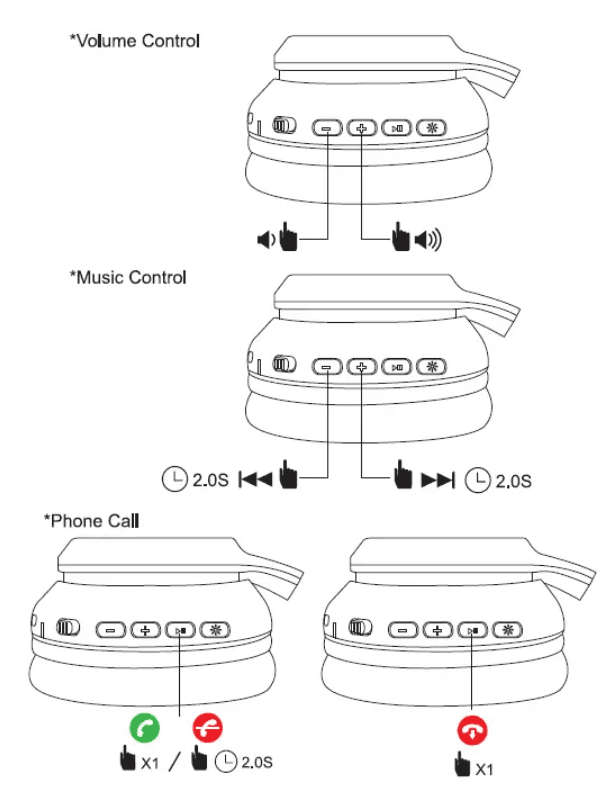

Volumes Down; Previous Track
Volumes Up, Next Track
Pause/Play; Answer /Hang up calling
RGB Lights ON/OFF
TF(Micro SD) slot
BuiIt-in Microphone
3.5mm Aux-in Jack
Type-C charging interface
indicator Light

RGB Lights

Power ON the headphones and the RGB lights be turned ON automatically

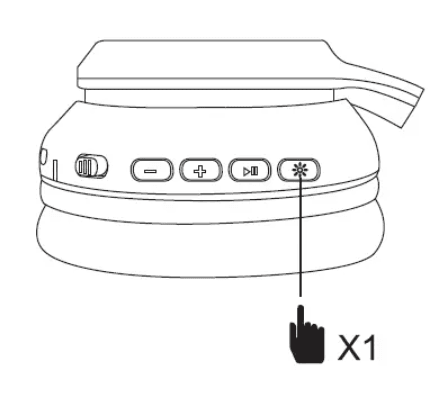

Click noce MIDOLA-B-12-Cat-Ear-Wireless-Bluetooth-Headphones-image (6), to turn OFF the RGB lights
Click noce MIDOLA-B-12-Cat-Ear-Wireless-Bluetooth-Headphones-image (6)again, to turn ON the RGB lights

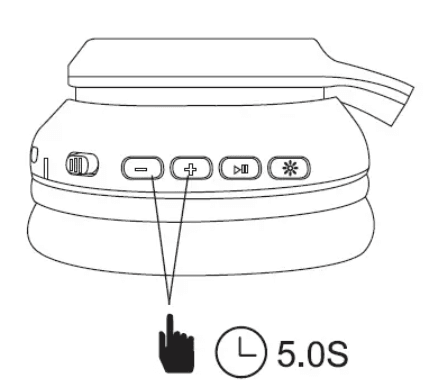

RESET

pls press and hold buttons of – ” & ” + ” at the same time for 5 seconds to reset the headphones.

Bluetooth

Pairing your device before the first use. Power ON the headphones and its Bluetooth mode is activated.

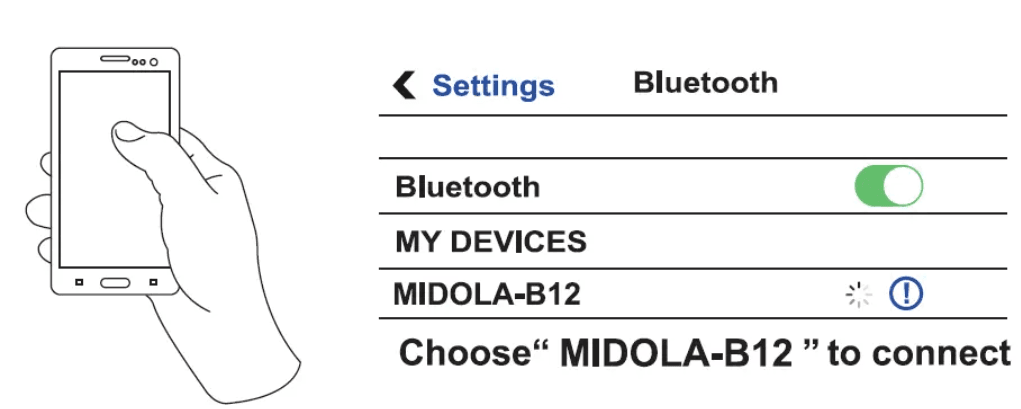

To pair the headphones with your mobile device Turn on the Bluetooth on your smart phone, search, and find “MIDOLA-B12” to connect. There will be a voice prompt after Bluetooth pairing is successful.

*Notice: If cannot find any Bluetooth device in the effective range after 5 minutes, the headphones will be power OFF automatically. Micro SD(TF) Power ON the headphones and insert the Micro SD(TF) card into the TF socket. The headphones will detect your TF card and play the music automatically AUX Input No need to power ON the headphones. Plug the audio cable (included) into AUX -in port, and plug another end of the cable into the output of the player i.e. phone/computer, etc. Attention: Do not plug the audio cable into the 3.5mm Aux-in port when your headphones are powered ON. Otherwise, your headphones will be turned OFF automatically Charging Plug the charging cable (included) into the charging port, Plug another end of the cable into the AC adaptor(not included) or computer for charging

Indicator Light status
Charging: Red Light ON
Fully Charged: Light OFF

Notice

When playing music intermittently or shutting down automatically, please charge the headphones in time.
The headphone is designed to automatically power off while it is being charged. Therefore, it is recommended to turn off the headphones before initiating the charging process. This will ensure a smooth and efficient charging experience.

Specifications

Bluetooth Version: V5.3
Working Distance: Appr. 10m
Impedance:32Q±15%
Speaker Size:cp40mm
Frequency Response: 20Hz-20KHz
The battery capacity: 600 mAh
Working voltage: 3.3-4.2 V
Charging time: Appr. 3 Hrs
Music time: Appr. 68 hrs (without RGB light)
Appr. 8 hrs (with RGB light)

Package Contents

Headphones* 1
Charging Cable *1
Aux-in Cable *1
User Guide *1

Battery Cautions

The product is powered by a rechargeable battery. The new battery performs better after two or three cycles of full charge and discharge. The battery can be recharged and discharged, but it will wear out.
Do not store it in over heat or cold places that may reduce battery capacity and life span. It is recommended to store it in 15 0 C to 25 0 C environment. It may not work in extreme cold or hot environment even it is fully charged.
Do not throw it into the fire to prevent exploding. A damaged battery may explode. Please follow the local regulations to handle the battery. Please recycle the battery as much as possible.
Please stop using it if there is a severe bulging. Do not use it after itis soaked.

TIPS: Please regularly recharge and discharge it every three months when unused for long time.

Precautions:

Do not put the product in a damp, dusty, oil smoke or steam environment, or expose to sunlight. Do not leave the product in the vehicle for a long time, it may cause malfunction.
Please adjust to proper volume, high volume may affect your hearing.
For safety, please do not use the product while driving or bicycling.
Do not use the product in places where may become dangerous for sound cannot be heard, such as railway intersections, train stations, pedestrian crossings, construction sites, etc.
Do not place heavy objects on the product, it may cause deformation during long-term storage.
The accumulated static electricity in the body may cause a slight tingle in the ears, wearing clothes made of natural materials can minimize the effect.
Do not excessively strike the product.
Please use a soft dry cloth to clean the product.
Do not put the product into water. Headphones are not waterproof.
Please observe the following precautions.
Beware of falling into sinks or other containers filled with water.
Do not use headphones in wet places or in bad weather, such as rain and snow.
Do not humidify the product. Touch the headphones with wet hands, or put the headphones in damp clothes, which may cause malfunction.
If feel uncomfortable when using the product, please stop using it immediately. If the problem persists, please contact the local dealer.
If you have any questions about this product that are not included in the manual, please contact a local dealer.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

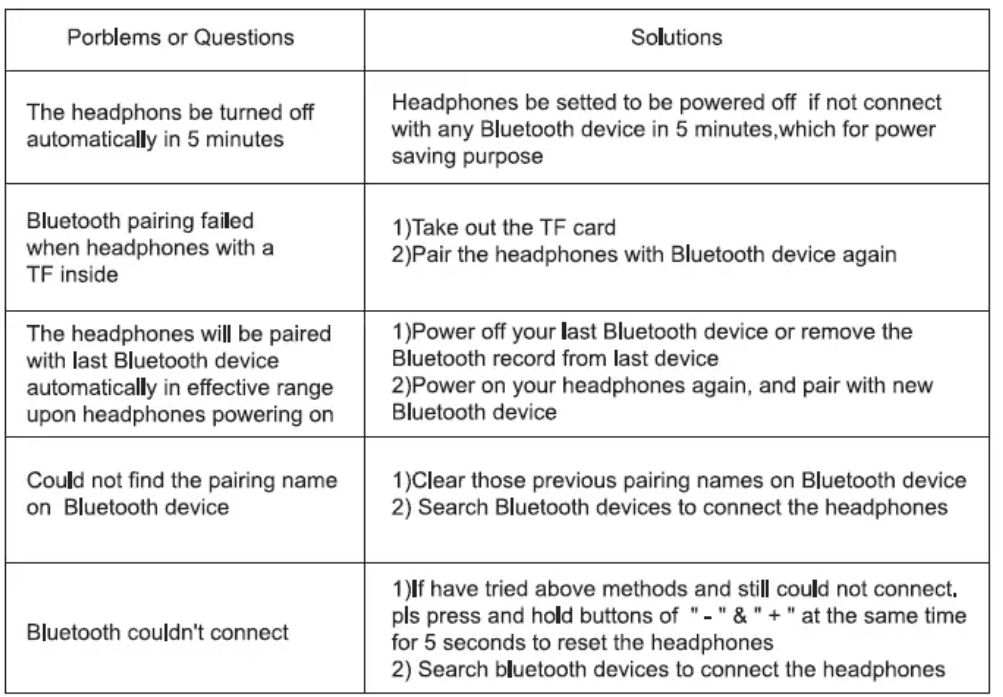

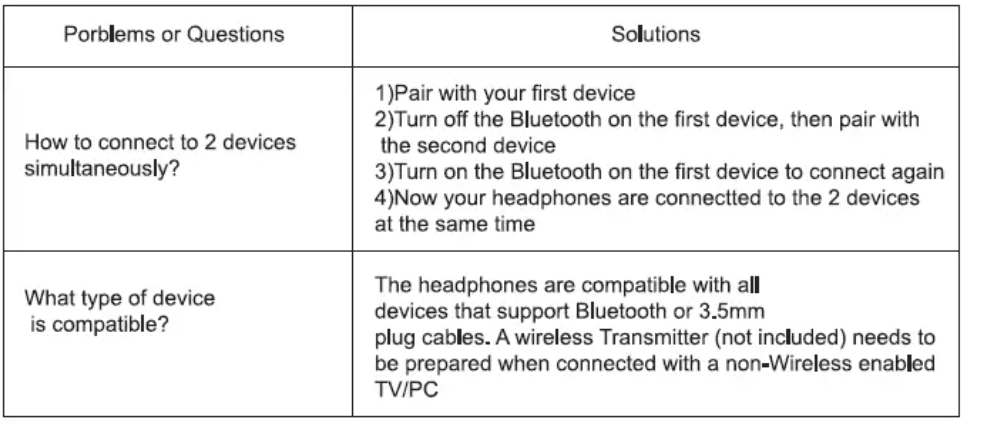

FAQ for Bluetooth connection
