Mocka Amalfi Cot
Assembly Instructions
Thank you for your purchase. Please follow the instructions below for the correct assembly
Ensure the cot is placed at a reasonable distance from curtains, blinds, heaters and power points. Keep all medications, string, elastic, small toys or small items,
such as money, out of reach from any position in the cot.
Assembly
- Care must be taken when attaching sid e s. Do not over-tighten screws as this can cause damage to the cot.
Care and Maintenance
- Regularly check all screws for tightness or damage that could render the cot unsafe. To clean – use a damp cloth, avoiding the use of detergents or abrasives.
Recommended mattress size
- This cot has been manufactured for use with a mattress that measures 1300mm long x 700mm wide x 100mm in thickness. The width and length are specified because it is important that gaps between the mattress and the sides and ends of the cot will not exceed 40mm. This is to minimize the risk of a child’s limb becoming caught in the gap. The thickness of the mattress has been specified to ensure that the depth of the cot is greater than 500mm with the mattress base in the lower position to minimize the risk of a child climbing or falling out of the cot
- WARNING: TO PREVENT FALLS, THE MATTRESS BASE OF THIS COT SHOULD BE ADJUSTED TO THE LOWEST POSITION BEFORE THE CHILD CAN SIT UP

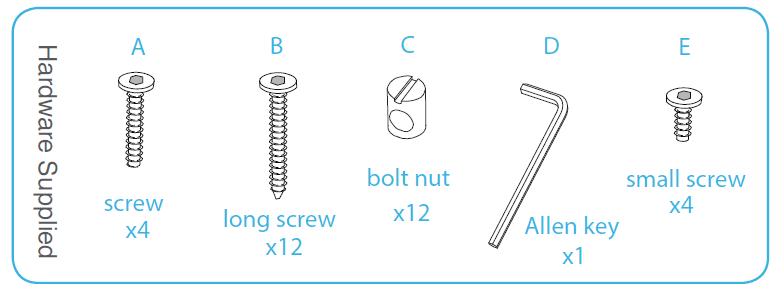

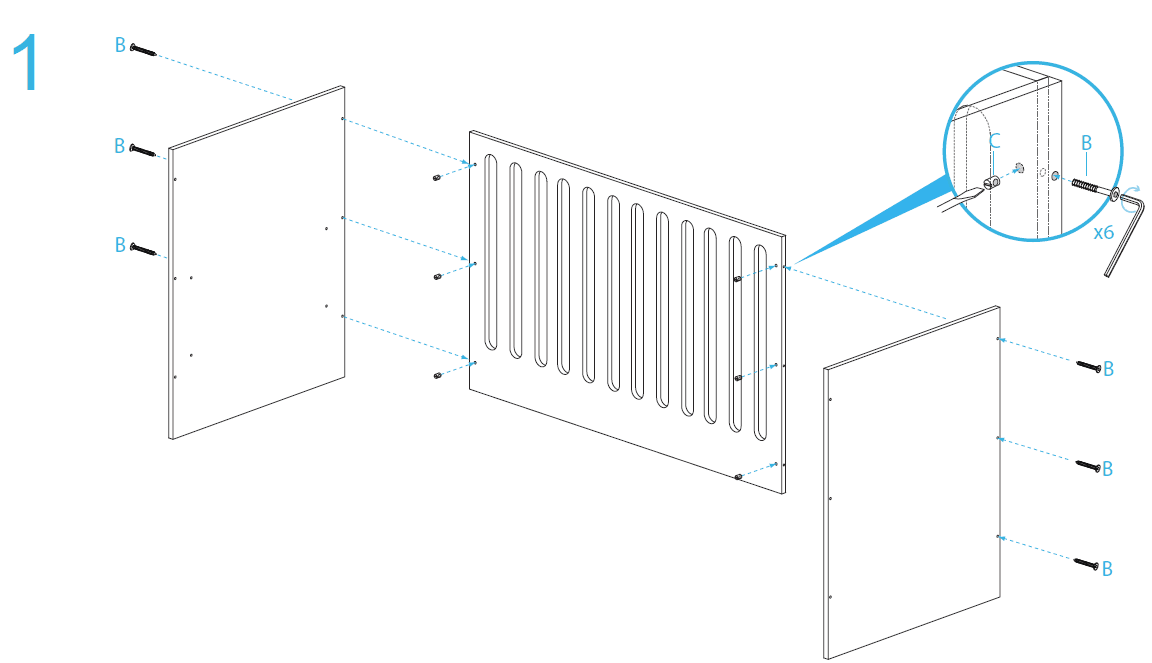

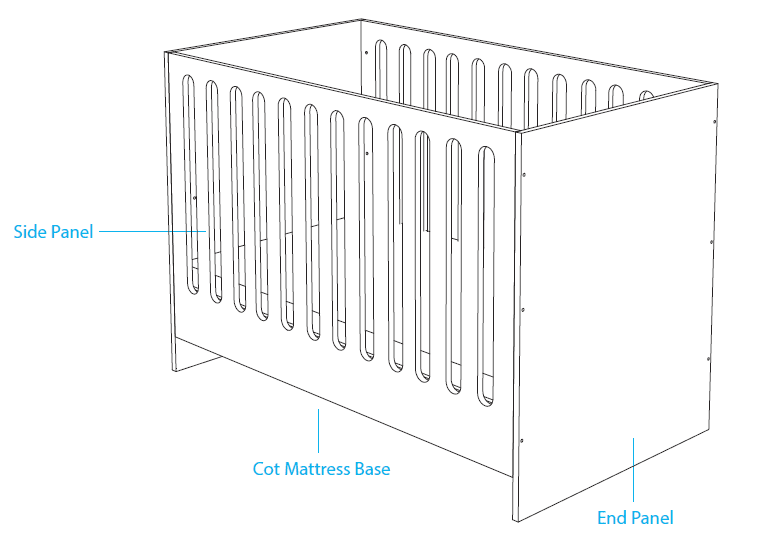

- Find one of the side panels and attach to both end panels of the cot using 6x long screws (B) and bolt nuts (C) in the holes as shown

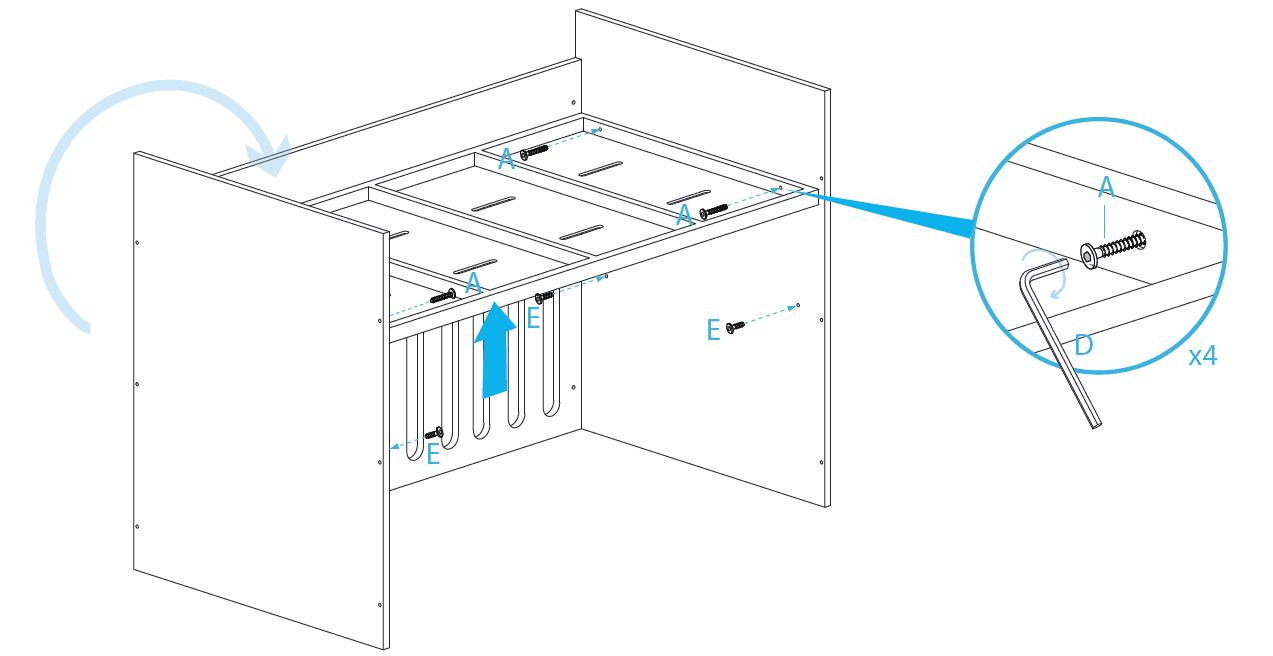

- Flip the cot upside down. Attach the cot mattress base at the required level using 4x screws (A) fastened from inside the base, and tightened using the allen key (D). Place 4x small screws (E) into the spare holes on both end panels as shown

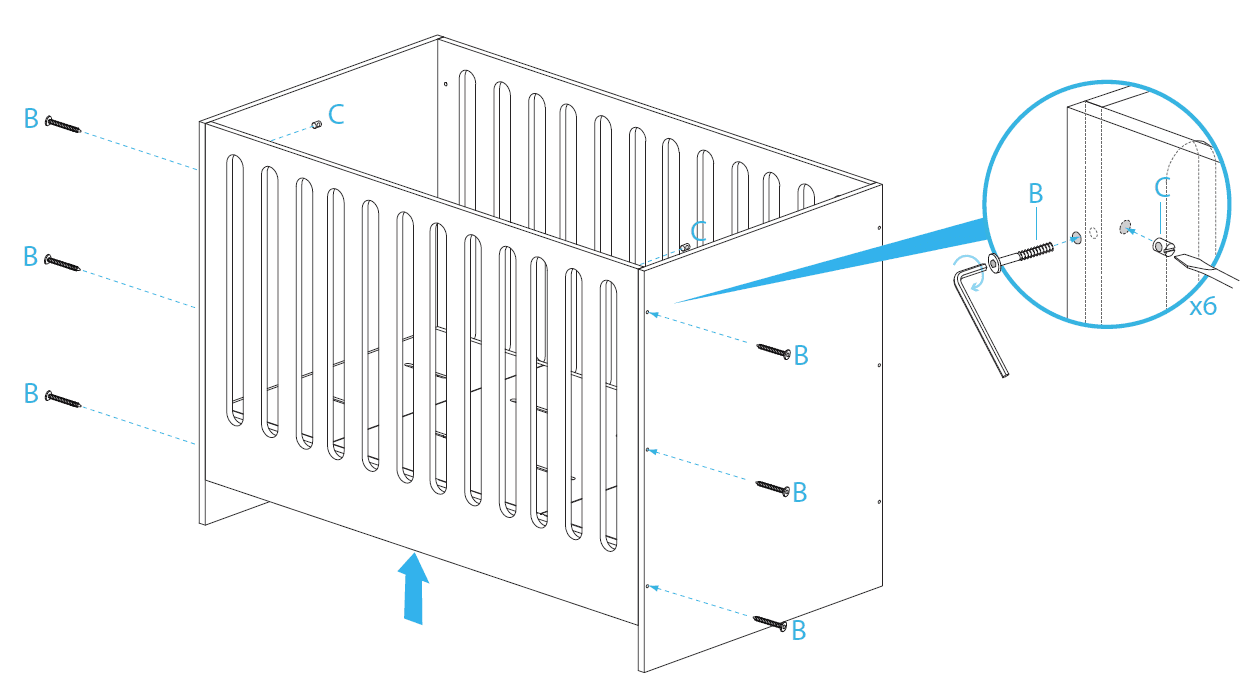

- Flip the cot back over. Slide the remaining side panel into place and attach using 6x long screws (B) and bolt nuts (C) repeating the process in step 1. You may need to turn the cot over to insert all screws and nuts. Tighten all screws using the Allen key (D)

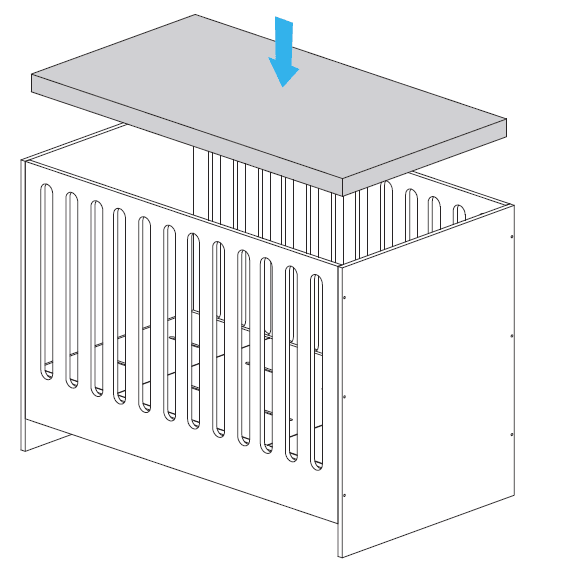

- All done! Regularly check all screws are suitably tightened. Place the correct size mattress into the cot before use. To clean use a damp cloth, avoiding the use of detergents or abrasives. Once assembled lift the furniture into place, do not drag

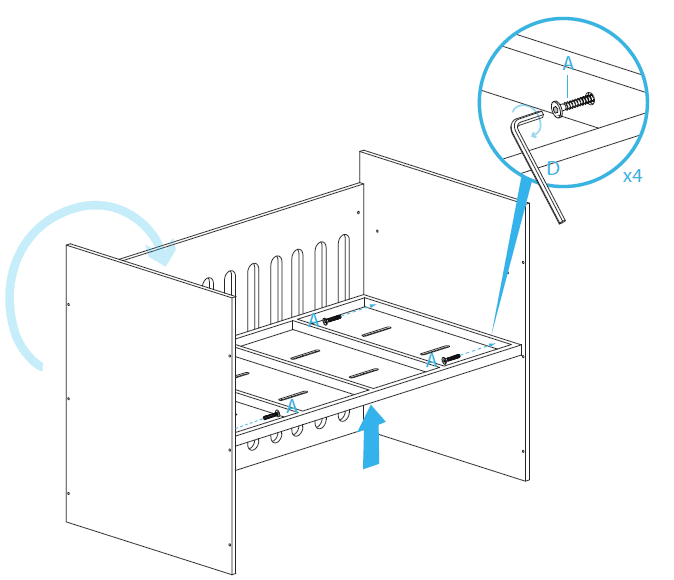

- OPTIONAL: To adjust the mattress base setting, repeat steps 2 and 3 by removing the side panel, unscrewing screws (A), (B) & (E), and move the base
to the corresponding holes. Securely fasten again in the adjusted position and replace the screws, using the spare holes you took the base from.
For more manuals by Mocka, visit ManuaslsLibraryy
Mocka Amalfi Cot Assembly-FAQs
How long does it take to assemble the Mocka Amalfi Cot?
It typically takes about 30–45 minutes to assemble the cot, depending on your experience with similar furniture.
What tools do I need to assemble the cot?
You’ll need a standard Phillips-head screwdriver. All other parts and tools are included in the package.
Can I assemble the cot on my own?
Yes, the cot can be assembled by one person, but having an extra set of hands can make the process easier and faster.
Are there safety precautions I should follow during assembly?
Ensure all screws are tightened securely and avoid overtightening. Assemble the cot on a flat surface to prevent wobbling.
Is there a video guide available for the assembly?
Yes, you can find a step-by-step video guide on Mocka’s official website or their YouTube channel for extra assistance.
What should I do if I’m missing parts?
Contact Mocka customer support immediately. Provide your order details, and they’ll arrange for the missing parts to be sent to you.
Can the cot height be adjusted?
Yes, the Mocka Amalfi Cot has adjustable mattress height settings for newborns and growing babies.
How can I ensure the cot is safe for my baby?
After assembly, double-check that all screws are tight, the cot is stable, and there are no sharp edges or loose parts.
What should I do if I encounter issues during assembly?
Refer to the instruction manual or contact Mocka support for assistance. They’re available to help troubleshoot any problems.
Can I disassemble the cot for storage?
Yes, the cot can be disassembled by reversing the assembly steps. Keep the instruction manual for reference when reassembling.
