Monster 2MNCA0116B0A2 Bluetooth FM Transmitter User Manual

Monster 2MNCA0116B0A2 Bluetooth FM Transmitter

Safety Instructions

• Please read this manual carefully before using
• Keep these instructions
• Do not disassemble
• Do not expose directly to sunlight or open flame
• Pay attention to the road and do not operate this product while driving

Introduction

Features:

• Input 12-24V
• FM transmitter: 88.1-107.9 MHz frequency range
• Bluetooth hands-free calling
• Stream music from a smartphone to a car system via FM transmission
• USB 1: 5V/2.4A with intelligent input current management
• Type-C: PD 24W
• Support USB flash drive playing
• Support TF card playing
• Supports playing from SD cards
• Car battery monitor

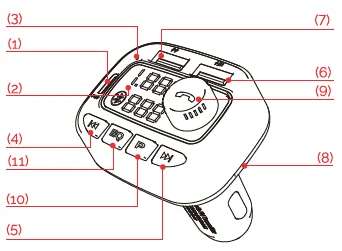

Product Description

1. Type-C charging port
2. LED display
3. Microphone
4. Previous song
5. Next song
6. USB2 flash drive reading & playing port
7. USB1 charging port
8. SD card slot
9. Multifunction knob button: change frequency; volume +/- ; answer & hang up calls
10. Music play modes switch button
11. EQ

Get it Ready for Playing

1. Plug 2MNCAOTI6B0A2 into your car’s cigarette lighter socket.
2. LED display light will turn on and show “13.5- bt-107.9”
3. Connecting Bluetooth: When the LED display reads “bt”, it is in pairing mode, and the voice prompt will say “Waiting for connection”. On your smartphone, enable Bluetooth function, search for available devices, select “MNCA0116,” and pair with it. Once connected, listen for the voice prompt ‘Bluetooth connection success.’ You are now paired.
4. Turn on your car’s FM radio and find an empty (only static) channel. Then, adjust the frequency on 2MNCA0116B0A2 to match the frequency of your car radio.
5. Adjusting FM transmitter frequency: Press and hold the multifunction knob button until the frequency display starts blinking; rotate the dial to adjust the FM transmitting frequency to match the car radio frequency.

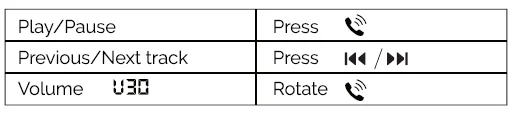

Play Music

Playing music from your phone:

After steps 1-5, you can start playing audio using your smartphone. The music will stream via the Bluetooth A2DP function; your phone’s FM transmission will travel to your car radio and through your car’s speakers.

Playing music from a USB flash drive:

Plug the USB flash drive into the USB port on the left side with the “” icon. 2MNCA0116B0A2 will start playing automatically.

Play music from the SD card:

Insert the SD card into the SD card slot. 2MNCA0116B0A2 will recognize it by displaying “” and start playing automatically. Follow the same directions as the USB flash drive playing mode.

How to switch playing modes

Press “P” and hold until the LED displays BT or TF (or USB), and the playing mode will switch.

EQ Switch Quick Button

The EQ quick button can be used to switch sound quality from standard (Eq0) to Bass (Eq1) with a short press. Press it again to switch back to standard (Eqo)

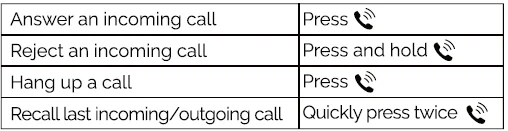

Hands-Free Call

After you set up playing, you can also use the hands-free function.

Under music playing status (BT/SD/USB flash drive), if there is a call coming in, it will switch to call mode automatically. After hanging up, it will switch back to playing mode automatically.

Charge Your Device

2MNCA0116B0A2 Bluetooth FM transmitter has one Type-C port and two USB ports, with a total max 36A output in intelligent current sharing mode:

• Type-C” PD 24W
• USB1: 5V/2.4A charging port
• USB2: 5V/1A Max & USB flash drive port: This port is used for charging low-current devices. Mainly, it is used for USB flash drive playing

Specifications

• DC input: 12V-24V
• Output: Type C PD3.020W for iPhone
• Bluetooth V5.0
• Bluetooth connect distance: 10m
• Audio format: MP3, WMA, FLAC, WAV
• FM transmitting distance: ≥22m
• USB capacity support: ≤64Gb
• Working temperature range: -20°C to 40°C
• Storage temperature range: -40°C to 75°C
