Scosche PowerUp 2000 Amp Portable Car Battery Jump Starter

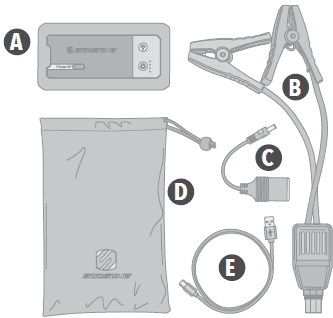

INCLUDED ELEMENTS

A. Powerbank

B. Jumper Cable

C. 12V Accessory Socket

D. Storage Pouch

E. USB-A to USB-C Cable

OPERATING INSTRUCTIONS

SECTION A – Overview

SECTION B – Charging the Powerbank

SECTION C – Jump Starting Vehicle

SECTION D – Using USB Backup Battery & Flashlight

SECTION E – Using 12V Accessory Socket

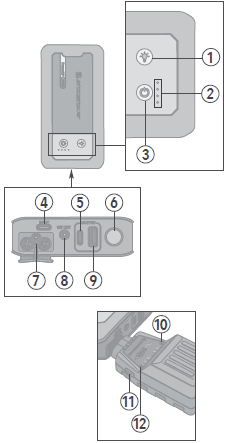

SECTION A

1. Flashlight Button
2. LED Battery Level Indicator
3. Power Button
4. USB-C Input
5. USB-C Output
6. LED Flashlight
7. 12V Jump Start Output
8. 12V Accessory Output
9. USB-A Output
10. Jumpstart-Ready Indicator (Green)
11. Boost Button
12. Error Indicator (Red)

SECTION B

Charging the Powerbank

Use the included cable to charge PowerUP with a USB-A charger or power source (not included). LED lights flash when charging. The device is fully charged when all LED lights are solid BLUE.

SECTION C

Jump Starting Vehicle

IMPORTANT: Before jump-starting the vehicle, the battery level of the PBJ2000 needs to be 75% or more.

Refer to the battery level chart in Section B.

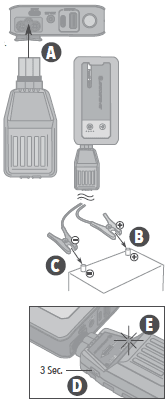

1. Connect jumper cables to the Powerbank (A).
2. Connect the RED clamp to the positive (+) battery terminal first (B), then connect the BLACK clamp to the negative (-) battery terminal (C).
3. Press and hold the “Boost” button (D) for approx. 3 sec. Until the Green indicator illuminates (E). Note: The Green indicator light on the power bank indicates it is ready to jump start. DO NOT PROCEED unless the light is Green. Refer to the chart on the next page.
4. Start the vehicle (E). Note: Rest for 10 sec. between each starting attempt.

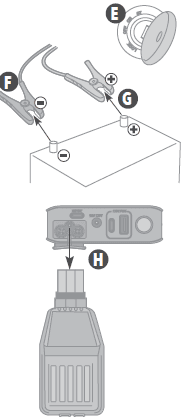

5. Once vehicle is started, remove jumper cables from battery starting with the BLACK clamp first (F) and then the RED clamp (G). Finally, disconnect the jumper cable from the power bank (H).

Boost Button

Note: A discharged car battery (Low Voltage) will trigger the PBJ2000’s Low Voltage Protection.

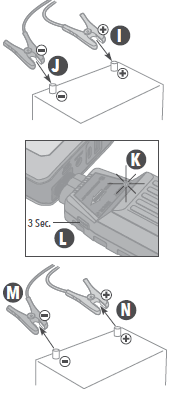

1. Connect the RED Clamp to the positive (+) battery terminal first (I), then connect the BLACK Clamp to the negative (-) battery terminal (J). Note: Make sure polarities are not crossed or clamps are not connected to the same piece of metal.
2. Press and hold the Boost button for 3 seconds (K).
3. The jump start ready indicator light will turn Green (L).
4. Once the vehicle is jump-started, remove jumper cables from the battery, starting with the Black clamp first (M) and then the Red clamp (N).

SECTION D

Using USB Backup Battery & Flashlight

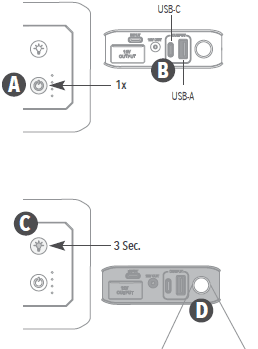

Battery: Tap the power button (A) to turn on USB-C & USB-A ports (B) and charge mobile device.

Flashlight: Tap the power button (A), then press and hold the flashlight button (C) for 3 seconds to turn on the flashlight (D).

• Tap the flashlight button once for a fast strobe.
• Tap a second time for a slow strobe.
• Tap a third time to turn it off.

SECTION E

Using 12V Accessory Socket

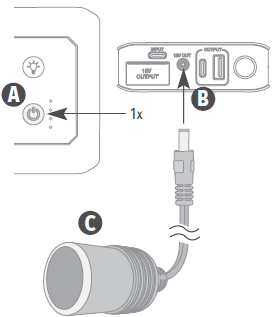

Tap the power button (A) to turn on the 12V output port (B) and connect the included 12V accessory socket (C).

SPECIFICATIONS

Power Bank Jump Starter

• Model No.: PBJ2000
• Capacity: 14.8V / 2500mAh (37Wh)
• Cranking Current: 12V 1000A (5 Sec. @ 350A)
• Peak Current: 12V 2000A*
• Total Output Power: 112W
• USB-C Input: 18W Max (5V 3A, 9V 2A , 12V 1.5A)
• USB-C PD Output: 30W Max (5 3A, 9V 2A , 12V 2.5A)
• USB-A Output: 12.5W Max (5V 2.5A)
• DC Output: 12V-16.8V, 8A Max
• Discharge Temp.: -4°F to 113°F (-20°C to 45°C)
• Charge Temp.: 32° to 104° (0°C to 40°C)

Theoretical Short Circuit Current

WARNING:

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

• Always wear safety glasses when jump-starting a battery (to protect your eyes) and gloves when handling a battery (to protect your hands).
• When jump starting a vehicle, please ensure that the blue plug is securely fitted into the jump starter socket on the PowerUP.
• Ensure the battery clamps are connected correctly and the connectors are free from rust and dirt.
• Do not allow this product to become wet. Exposure to excessive moisture will damage the unit.
• Do not immerse the product in water.
• Do not operate the product in explosive atmospheres, such as in the presence of flammable liquid, gas, or dust.
• Do not modify or disassemble this product.
• Do not store in locations where the temperature may exceed 104°F (40°C).
• Charge only using the charger provided.
• Under extreme heat conditions, battery leakage may occur. Avoid contact with your skin. In case of skin or eye contact, rinse immediately with clean water and seek medical attention.
• If battery leakage occurs, take it to your local battery recycling center for disposal. Do not attempt to use.
• PowerUP is for use with 12V vehicles only. Using on non-12V vehicles may cause serious damage to the vehicle, the PowerUP, or injury to the user. Refer to the owner’s manual for the vehicle if you are uncertain what voltage the vehicle runs on.

BATTERY DISPOSAL

The battery is self-contained and not consumer-replaceable. The battery must be disposed of properly when it no longer holds a charge. Proper charging practices will increase the life of the product. For more information on battery recycling and to find a Call2Recycle drop-off location near you, call 1-800-822-8837.

For information regarding air travel safety with batteries, please check the U.S. Department of Transportation prior to travel at: http://phmsa.dot.gov/safetravel/batteries or contact your airline if traveling from a country outside the U.S.

Note: PowerUP gives up to 37 watt hours of power.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this product, basic precautions should always be followed, including the following:

• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when the product is used near children. Children should not operate this device unless under strict supervision by a person responsible for their safety.
• Do not put fingers or hands into the product.
• Do not use any attachment that is not sold by PowerUP manufacturer, which may result in a risk of fire, electric shock, or injury to persons.
• To reduce the risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the PowerUP.
• Do not use a battery pack or an appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior, resulting in fire, explosion, or risk of injury.
• Do not operate the PowerUP with a damaged cord or plug or a damaged output cable.
• Do not disassemble the PowerUP; take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
• To reduce the risk of electric shock, unplug the PowerUP from the outlet before attempting any instructed servicing.
• WARNING – RISK OF EXPLOSIVE GASES:

1. WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF THE UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE POWERUP.
2. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on the engine.

• The device shall be stored indoors and protected from the elements.
• The unit shall not be charged outdoors.
• When in use, steps should be taken to reduce the exposure to rain, sleet, snow, and the like.
• PERSONAL PRECAUTIONS

1. Consider having someone close enough by to come to your aid when you work near a lead acid battery.
2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
3. Wear complete eye protection and clothing protection. Avoid touching your eyes while working with batteries.
4. If battery acid contact with skin or clothing, wash immediately with soap and water. If acid gets into the eye, immediately flood the eye with running cold water for at least 10 minutes and get medical attention immediately.
5. NEVER smoke or allow a spark or flame within the vicinity of the battery or engine.
6. Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might spark or short-circuit the battery or another electrical part, which may cause an explosion.
7. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery. A lead-acid battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn.

• When charging the internal battery, work in a well-ventilated area and do not restrict ventilation in any way.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid gets into the eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not expose PowerUP to fire or excessive temperature. Exposure to fire or temperatures above 130°C (266°F) may cause an explosion.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Attach output cables to a battery and chassis as indicated below.
• Dropping, hitting, or using other excessive amounts of force on the PowerUP may damage the unit (external and internal), which may result in loss of operation, electrical fire, or other serious damage.
• Do not overcharge the internal battery or short-circuit output connector.
• This product is suitable for use in the home, office, household workshop, or garage. Do not operate inthe  rough environment such as a repair facility.

WARNING: PowerUP is only intended to jump-start 12V cars, trucks, boats, or motorcycles with an internal combustion engine and single lead-acid battery system. Do not use this device to jump-start batteries outside of these four types of vehicles; doing so may cause a fire or other serious injuries. Refer to the user manual for additional safety information.

SAVE THESE INSTRUCTIONS
