MouKey MTs10-1 Trolley Speaker User Manual

MouKey MTs10-1 Trolley Speaker

Safety Instructions

To ensure safe use, please read these instructions carefully before using this product and use it in the right way according to the instructions. Please keep these instructions properly for future reference.

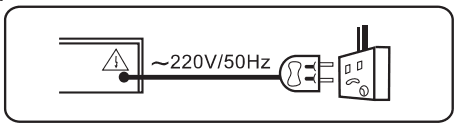

• Power: The product can only work with a power supply that is indicated in these instructions or specified in the product.

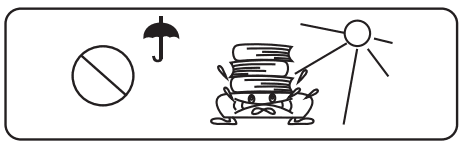

• No Heavy Objects & Overheating: Do not place heavy objects on the product. It should avoid sunburn and keep away from hot sources, e.g. oven. Do not rain or immerse, or put it in high temperature or moist conditions.

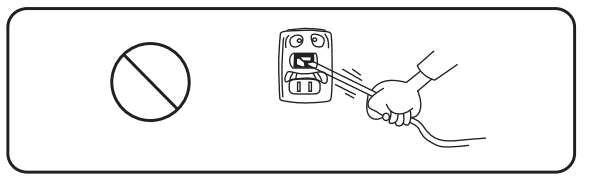

• Power Line Protection: The Power line should not be stepped, squeezed, or dragged

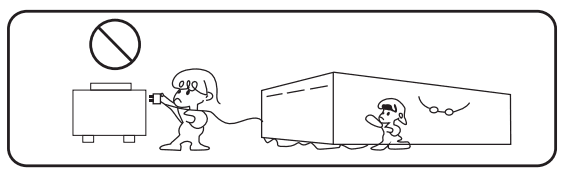

• Don’t use low-power voltage regulating and regulated power supply, to avoid burning down the product or the regulated power supply

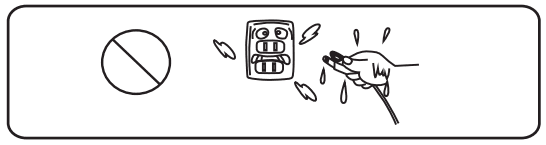

• Mind Electricity Shock: Don’t plug or unplug the power supply with wet hands to prevent an electricity shock

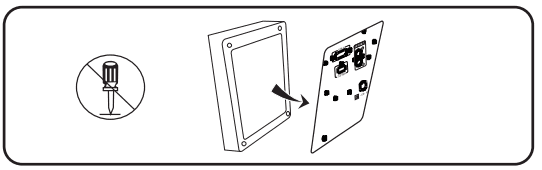

• Rear Plate Disassembly: Please do not disassemble the rear plate. If repair is needed, please ask the professional to operate.

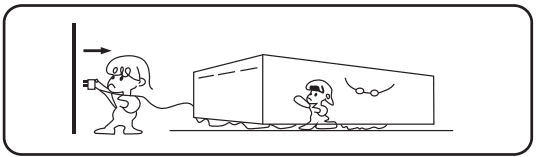

• Non-use Period: If you do not use this product for a long time, please turn off the power and unplug the power supply.
• The Speaker Top: Don’t place objects like a vase or a container filled with liquid. Please maintain air ventilation to dissipate heat.
• This product is only suitable for use in places below 2000 meters above sea level. It may pose da anger risk when it is used over 2000 meters above sea level.
• This product is only suitable for use under non-tropical climate conditions. It may pose a danger when it is used under tropical climate conditions

Parameter & Data

1. Mobile Speaker System

• High-powered PA speaker style
• Wireless music media function
• Multi-color automatic flashing LED party lights
• Built-in rechargeable battery
• FM radio with digital display screen
• Aux (3.5mm) input
• USB, TF flash card reader
• 1/4″ microphone input
• Battery energy LED indicator light
• Solid and durable mold pressing cabinet design
• Convenient rolling wheels and retractable handle
• Suitable for indoor and outdoor parties, crowd control, and Karaoke

2. Wireless Streaming Media

• Simple and relaxing matching
• Suitable for present latest devices like mobile phone, tablet, laptop, and computer etc.
• Wireless range: 20 meters max
• Bluetooth name: Moukey MTs 10-1

• Speaker
• Remote control, wireless microphone, power adapter, 3.5 mm AUX cable, instructions.

4. Specifications

• Peak power: 520 wattMAX
• Sound System: 10-inch Speaker, 3.5″ Tweeters
• Impedance: 4 Ohms
• Frequency Response: 55- 20 kHz
• S/N Ratio: 76dB+/-3dB
• SPI: 94dB (1W/M)
• T.H.D: <2%
• USB Type: 2.0
• Digital Audio Document Support: MP3
• Max USB Flash Support: 32GB
• Battery Life: 3 hours (Charging time: about 6 hours)
• Battery of Remote Control: 1.5V AA battery x 2 (Not included)
• Rechargeable Battery: 12V4.5V Lead-acid battery
• Power: AC110-240V, 50-60Hz, DC15V 2000MA adapter
• Dimensions (LWH): 12.4″x12.4″x22.4

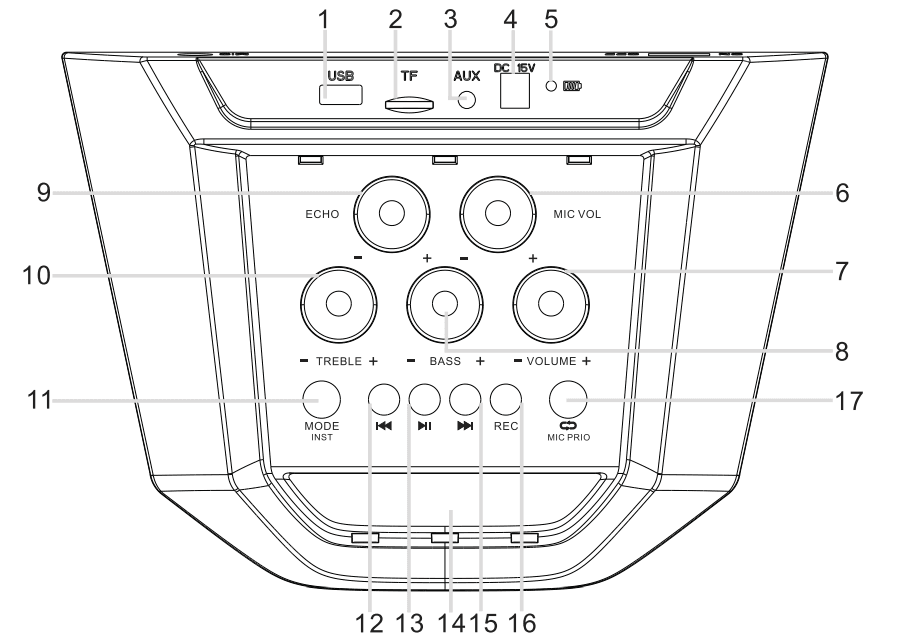

Instructions for function & operation

1. USB: USB input port (Up to 32 GB）
2. TF: TF card input port (Up to 32 GB)
3. AUX: Aux audio input (Use it when the type is “LINE”)
4. DC 15 V: Charging socket
5. LED Light: Charging light indicator (Red light is charging, green light is full)
6. MIC VOL: Adjust the microphone Volume
7.  VOLUME: Adjust the speaker Volume
8. BASS: Adjust the music bass
9. ECHO: Adjust the microphone echo
10. TREBLE: Adjust the music treble
11.  MODE: Mode conversion button: BT, FM, AUX, three-mode conversion(Press the button for a while, hiding the original singer’s vocal and playing an accompaniment when playing music, do it again to recover the original singer’s vocal.)
12. <Previous: Previous song at music playing mode ( Previous channel at FM mode)
13. >Play/Pause the music (Automatic searching channel at FM mode)
14.  LED display screen (respectively shows BT, Line, and FM mode)
15. >Next song for music playing mode( Next channel at FM mode)
16. REC: When the USB disk is inserted, press this button to record, and press it again to play
17. MIC PRIO: Repeat function selection- loop the selective song when plugging the USB disk (In microphone-used mode, press the button for a while to open the microphone, and do it again to close it.)

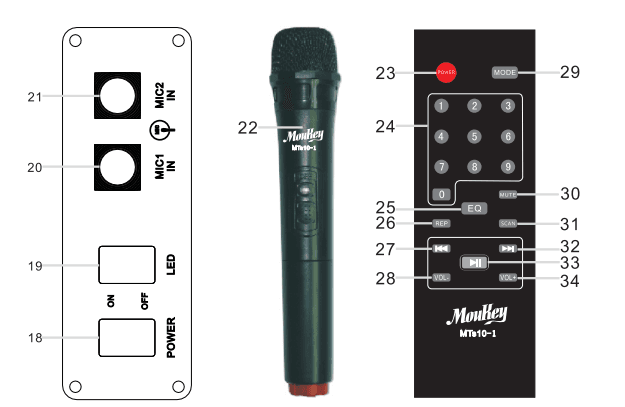

18. POWER: Main power switch ON / OFF
19. LED light ON/OFF
20. MIC1 IN: Wire microphone input
21. MIC2 IN: Wire microphone input 2
22. VHF wireless microphone
23. POWER: Main power switch ON / OFF
24. Press the number key to quickly select songs in USB disk playing mode
25. EQ: Press the EQ button to change the sound effect in USB disk playing mode
26. Repeat play at USB disk playing mode
27. Previous: Previous song at USB disk playing mode ( Previous channel at FM mode)
28. VOL-: decrease volume
29. MODE: Mode conversion button: BT, FM, AUX, three-mode conversion(Press the button for a while, hiding the original singer’s vocals and playing an accompaniment when playing music, do it again to recover the original singer’s vocals.)
30. MUTE: Silent in USB disk playing mode
31. Press the scan key to automatically search channels in FM mode
32. Next song at USB disk playing mode( Next channel at FM mode)
33. Play/Pause the music (Automatic searching channel at FM mode
34. VOL+: increase volume

Overlapping function operation

1. Aux input: Press the MODE button to turn to LINE mode and use the 3.5 mm audio cable provided by our company to receive external audio.
2. In playing music mode, press the MODE button for a while to hide the original singer’s vocals, enabling you to enjoy singing. Press it again to recover the singer’s singing whenever you want.
3. Turn to FM mode, press the button to automatically search FM channel, press this to play the previous channel, and press this to play the next channel
4.  In USB disk mode, press this button to have audio recordings with the VHF microphone, and press again to play back the recording
5. Press the button in playing music mode to open the microphone( Microphone priority function: when playing music and using the microphone at the same time, when the microphone is speaking, the music will be automatically paused, resume playing music after speaking finishes. And press it for a while to close the microphone.
