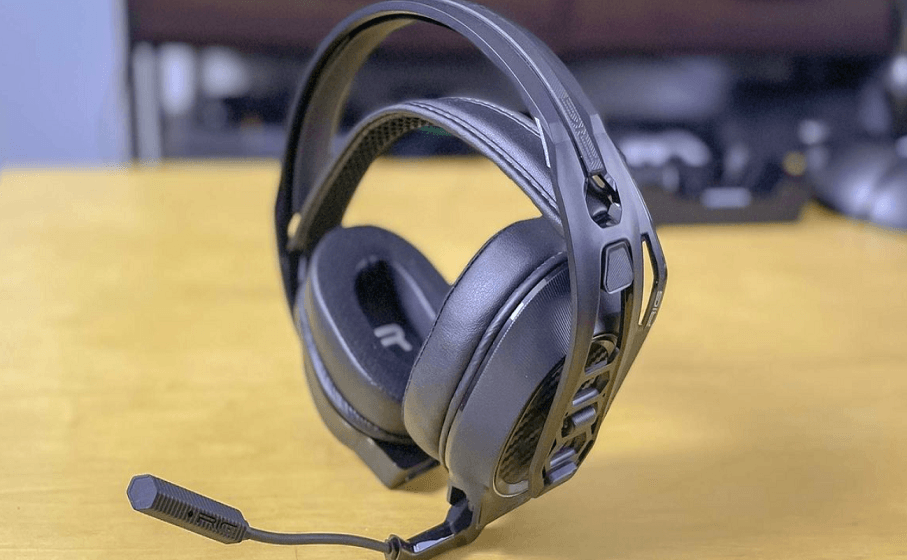

Nacon RIG 800 PRO HX Wireless Headset

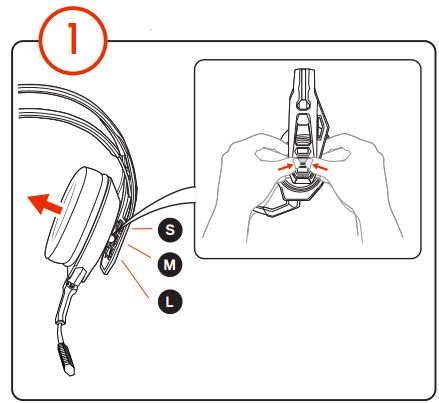

FIT / ADJUSTMENT

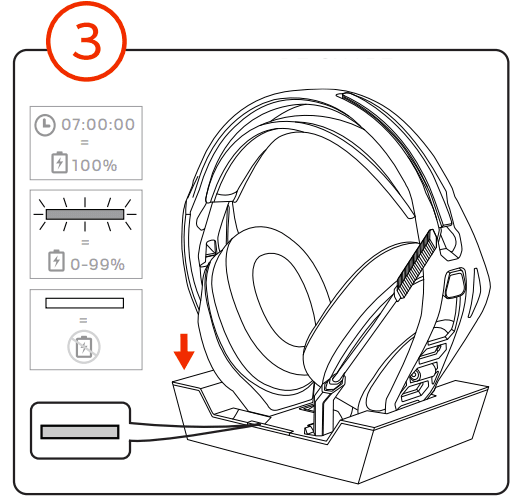

CHARGE
CHARGE INDICATION

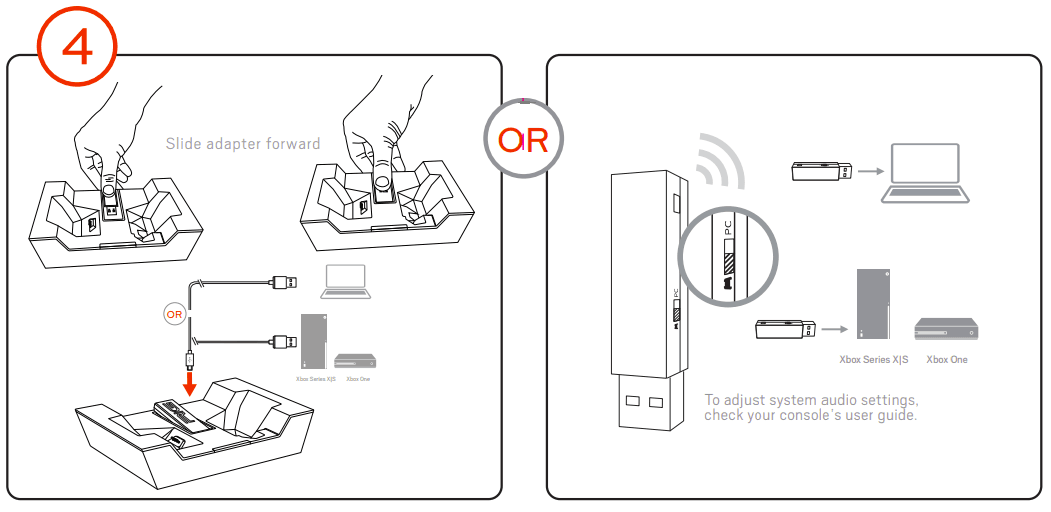

CONNECT

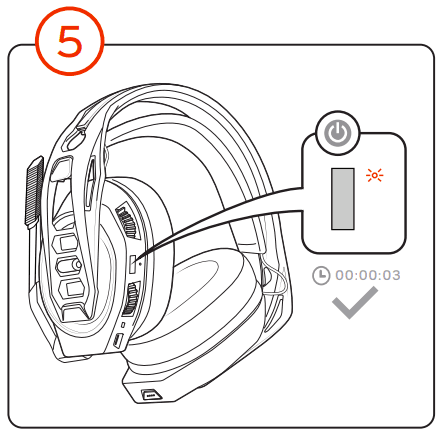

POWER / ALIMENTATION

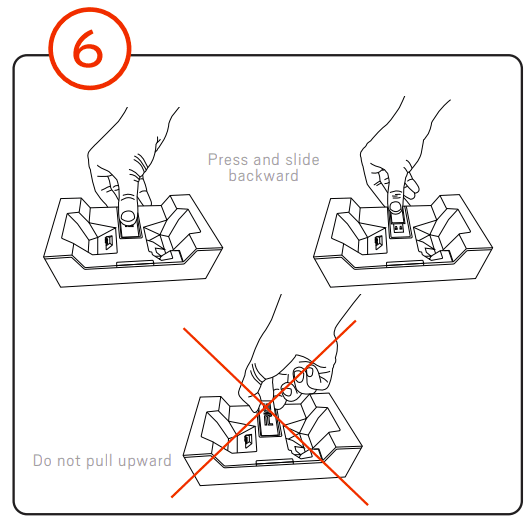

DISCONNECT

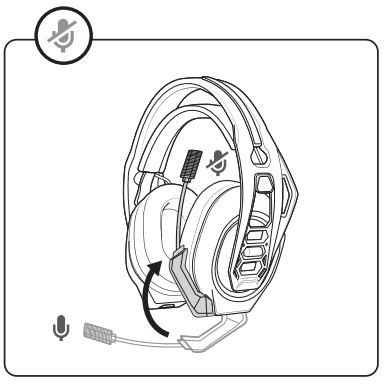

MUTE
- Nacon hereby declares that the radio equipment type “RIG 800 PRO” complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following web address: https://my.nacongaming.com/support
- Link to the full product declaration: https://my.nacongaming.com/support
Electrical parameters RIG 800 PRO
- Headset
- Dongle HS/HD
- Dongle HX
- Charging base
- Operating Current
- < 30mA
- < 100mA
- < 100mA
- < 500mA
- Frequency Range for the speaker
- 20Hz ~ 20kHz
- EIRP: headset: <13dBm / dongle: <13dBm Hereby, Nacon declares that the radio equipment type wireless controller/headset is in compliance with Directive 2014/53/EU.
- Frequency band: (2,402 ~ 2,480) GHz
- A crossed-out wheelie bin symbol denotes that waste electrical and electronic equipment and batteries must not be disposed of as unsorted municipal waste, but collected separately.
For more manuals by Nacon visit ManualsLibrary
Nacon RIG 800 PRO HX Wireless Headset-FAQs
How long does it take to charge the RIG 800 PRO HX?
Charging takes approximately seven hours to reach full capacity, providing up to 24 hours of playtime.
How do I know if my RIG 800 PRO HX is charging?
A red LED light appears while charging and turns off when the headset is fully charged. A full charge takes about 4.5 hours.
Can I connect my RIG 800 headset to my phone?
Yes! You will need a USB to USB-C adapter to connect it to your phone.
Can I use my RIG 800 headset while charging?
Yes, by plugging the wireless USB adapter directly into your Xbox while storing and charging the headset on the dock.
How do I adjust the mic volume on the RIG 800 PRO HX?
1. Top dial: Adjusts game and chat volume.
2. Bottom dial: Controls master volume.
3. Mic mute: Lift the boom to mute.
4. Mic monitoring: Hold the Mute button to cycle through levels.
How do I make my RIG headset mic work?
Check these settings:
1. Go to Settings > General > Volume & Audio Output and ensure Headphone Microphone is enabled.
2. Adjust the Chat Mixer slider to balance in-game audio and chat volume.
How do I charge the RIG 800 PRO HX?
1. Older models use a micro-USB to USB-A cable to connect to the charging base.
2. Newer models feature a USB-C connection at the back of the charging station.
What type of battery does the RIG 800 use?
The headset uses a 1,500mAh rechargeable lithium-ion polymer battery.
