NIXON THE STAPLE digital Watch
WELCOME. You just bought a NIXON watch. How about that? Welcome to the NIXON side, a side that’s about custom-built products, quality, and durability.
We’re stoked you selected one of our watches. The fact that you bought a NIXON means you can probably tell time, but you may not be familiar with all the doodads and features of our watches.
So if you’re stuck, read through these instructions. Or get your friends to read them and then they can tell you what’s up.
NEVER PUSH A BUTTON OR SET THE WATCH WHEN IT IS SUBMERGED.
FEATURES
Custom digital LCD module with dual independent mode loops. Functions include time of day with 12/24 hr time, day/date with auto calendar through 2099, chronograph with 1/100 second resolution, timer, alarm, and EL backlight. Display layout allows for any two functions to be displayed simultaneously.

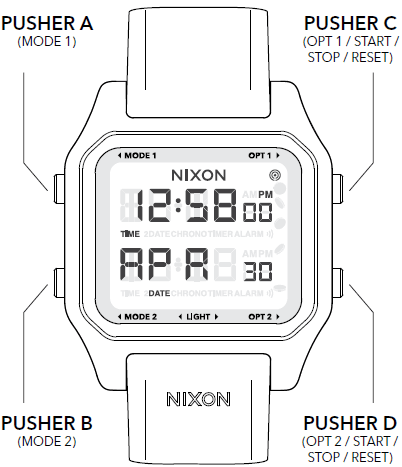

Press PUSHER A or PUSHER B to advance through the modes on their respective lines in the following sequence:
TIME, DATE, CHRONOGRAPH, TIMER, ALARM
Press PUSHERS A & C simultaneously for COIN TOSS. Sound can be toggled ON / OFF in the Time Mode setting state.
Press PUSHERS B & D simultaneously for LIGHT
IMPORTANT NOTES:
The following instructions apply to the mode loop across the top row. The same instructions apply to the bottom row, using the lower pushers.
T1 / T2 on the top row will always equal T1 / T2 on the bottom row.

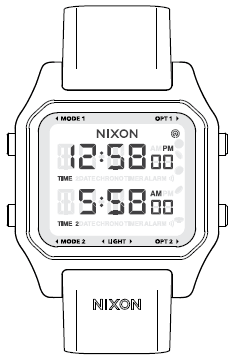

TIME MODE
TIME MODE features hours, minutes, and seconds in 12 or 24-hour format
To set the time:
- Press and hold PUSHER A to enter setting state (12/24 HR will blink)
- Press PUSHER C to increase the value & PUSHER D to decrease the value
- Press PUSHER A to advance through seconds, hours, minutes, and the COIN TOSS sound
- Press PUSHER B to confirm and exit the setting state
- To peek T2, press PUSHER C, or press and hold to switch to T2 (watch will beep)
- Switching a row to T2 will also switch that row to Date 2
- Use the instructions above to set T2
- Press PUSHER A to advance to DATE MODE

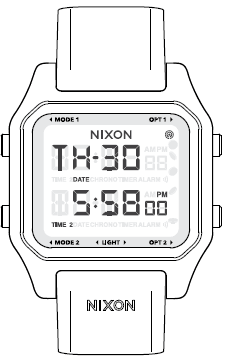

DATE MODE
DATE MODE features date in day/date or month/date format
To set the date:
- Press and hold PUSHER A to enter the setting state (year will blink)
- Press PUSHER C to increase the value & PUSHER D to decrease the value
- Press PUSHER A to advance through the year, month, and day
- Press PUSHER B to confirm and exit the setting state
- To peek at another date format, press PUSHER C, or press and hold to switch to another format (the watch will beep)
- Use the instructions above to set T2
- The time zone of the row will dictate date 1 or 2 for that row
- Press PUSHER A to advance to CHRONOGRAPH MODE

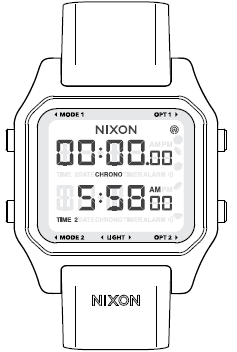

CHRONOGRAPH MODE
CHRONOGRAPH MODE features a count-up timer with 1/100th second resolution
To use the CHRONOGRAPH:
- Press PUSHER C to start when stopped, or stop when running
- Press and hold PUSHER C to reset when stopped
- Press PUSHER A to advance to TIMER MODE

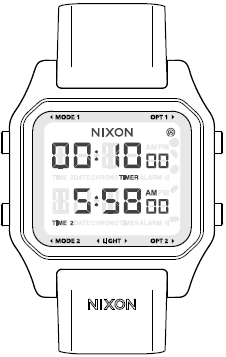

TIMER MODE
TIMER MODE features a customizable countdown timer at 1-second resolution
To set the TIMER:
- Press and hold PUSHER A to enter the setting state (hours will blink)
- Press PUSHER C to increase the value & PUSHER D to decrease the value
- Press PUSHER A to advance through hours, minutes, and seconds
- Press PUSHER B to confirm and exit the setting state
To use the TIMER:
- Press PUSHER C to start when stopped, or stop when running
- Press and hold PUSHER C to reset when stopped
- Press PUSHER A to advance to ALARM MODE

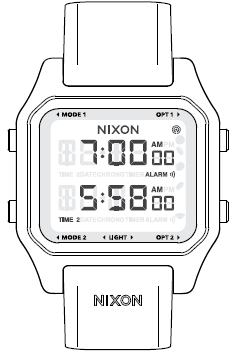

ALARM MODE
ALARM MODE features customizable alarms in both time zones. The alarm will impact the foreground time zone for the corresponding row
To set the ALARM:
- Press and hold PUSHER A to enter the setting state (hours will blink)
- Press PUSHER C to increase the value & PUSHER D to decrease the value
- Press PUSHER A to advance from hours to minutes
- Press PUSHER B to confirm and exit the setting state
- Press PUSHER C to toggle Alarm ON / OFF, the symbol indicates Alarm is ON
- Press and hold PUSHER C to toggle hourly chime ON / OFF (top row only), indicating the hourly chime is ON
- Press PUSHER A to return to TIME MODE
WARRANTY INFO
Nixon offers a limited warranty of defects in materials and workmanship for a period of two (2) years after original purchase from an authorized Nixon dealer. This means that if the materials in your watch aren’t right or if the watch isn’t put together correctly, we’ll repair or replace it, at our option. But this doesn’t mean you can abuse your watch and expect us to fix it for free. We don’t cover normal wear and tear or batteries, crystal, watch case, strap, bracelet, loss, or theft. You will void your warranty if you open your caseback, push the buttons underwater, or forget to screw down or push in the crown and expose your watch to moisture. Proof of purchase is required for all warranty claims and service requests, so hold onto your receipt. Nixon will not accept a warranty claim or repair request if a watch has evidence of excessive wear or misuse.
PROBLEMS?
Contact your closest Nixon Service Center and we’ll do what we can to resolve the problem. If you’re in North America, visit our Online Repair Center or call us at (888) 455-9200 from 8 to 5 pacific time, Monday to Thursday, 9 to 5 pacific time Friday, and we’ll talk you through a solution or get you a service authorization number.
Watches sent back to us without a service authorization number will not receive service.
NOTE: Your warranty is not void if you do not register your watch.
