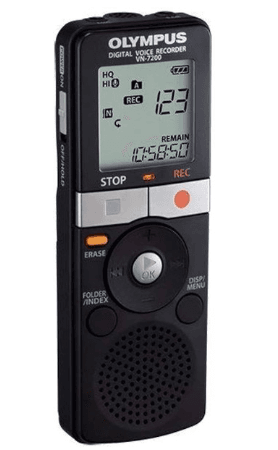

Olympus VN-7200 Digital Voice Recorder

Introduction

Thank you for purchasing an Olympus Digital Voice Recorder. Please read these instructions for information about using the product correctly and safely. Keep the instructions handy for future reference. To ensure successful recordings, we recommend that you test the record function and volume before use.

• The contents of this document may be changed in the future without advanced notice. Contact our Customer Support Center for the latest information relating to product names and model numbers.
• The illustration of the screen and the recorder shown in this manual may differ from the actual product. The utmost care has been taken to ensure the integrity of this document but if you find a questionable item, error or omission, please contact our Customer Support Center.
• Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reason is excluded.

Safety precautions

Before using your new recorder, read this manual carefully to ensure that you know how to operate it safely and correctly. Keep this manual in an easily accessible location for future reference.

• The warning symbols indicate important safety related  information. To protect yourself and others from personal injury or damage to property, it is essential that you always read the warnings and information provided.

A Danger

If the product is used without observing the information given under this symbol, serious injury or death may result.

A Warning

If the product is used without observing the information given under this symbol, injury or death may result.

A Caution

If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

Caution for usage environment

• To protect the high-precision technology contained in this product, never leave the recorder in the places listed below, no matter if in use or storage:
• Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.
• In sandy or dusty environments.
• Near flammable items or explosives.
• In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.
• In places prone to strong vibrations.
• Never drop the recorder or subject it to severe shocks or vibrations.
• The recorder may malfunction if it is used in a location where it is subject to a magnetic/ electromagnetic field, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large monitor unit, TV/radio tower, or transmission towers. In such cases, turn the recorder off and on again before further operation.
• Never drop the recorder or subject it to severe shocks or vibrations.
• The recorder may malfunction if it is used in a location where it is subject to a magnetic/ electromagnetic field, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large monitor unit, TV/radio tower, or transmission towers. In such cases, turn the recorder off and on again before further operation.

Battery handling precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

A Danger

• Batteries should never be exposed to flame, heated, short- circuited or disassembled.
• Never heat or incinerate batteries.
• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.
• If a battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

Getting started

Remove the screen protector on the display.

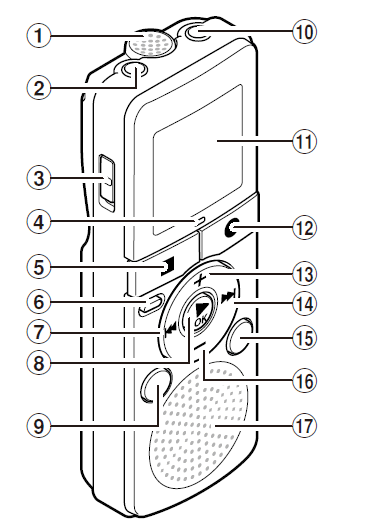

Identification of parts

1. Built-in microphone
2. MIC (Microphone) jack
3. POWER switch
4. Recording indicator light (LED)
5. STOP button
6. ERASE button
7. button
8. 0K button
9. FOLDER/INDEX button
10. EAR (Earphone) jack
11. Display (LCD panel)
12. REC (® ) (Record) button
13. + button
14.  button
15. DISP/MENU button
16.  – button
17. Built-in speaker

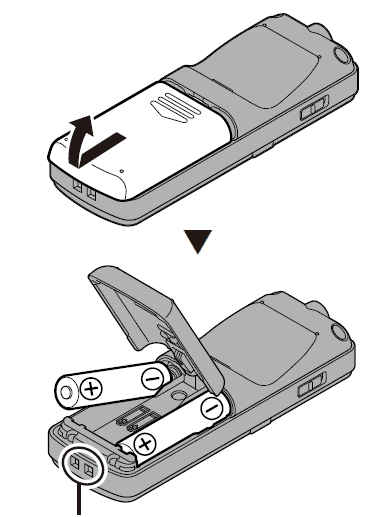

Inserting batteries

Strap hole (Strap is not supplied.)

When appears on the display, replace the batteries as soon as possible. When the batteries are too weak, , [LO] and [bATT] appears on the display and the recorder shuts down.

• Remove the batteries if you are not going to use the recorder for an extended period of time.

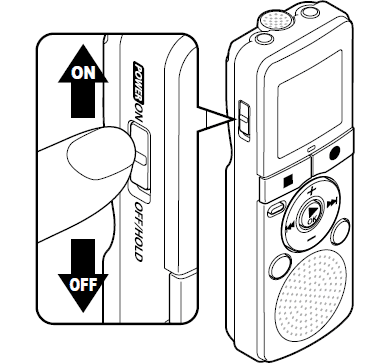

Turning on the power

Slide the POWER switch to the [ON] position.

Turning off the power

While the recorder is in stop mode, slide the POWER switch to the [OFF/ HOLD] position.

Power save mode

If the recorder is on and stops for 5 minutes or longer, the display shuts off and it goes into power save mode. To exit power save mode, press any button.

HOLD

If you slide the POWER switch to the [OFF/HOLD] position, the current conditions will be preserved, and all buttons will be disabled.

Setting time and date [DATE]

If you set the time and date beforehand, the information will be stored automatically when the file is recorded. I his function enables easier file management.

When you install batteries for the first time or each time you replace the batteries, the “hour” indicator will flash. When the “hour” is flashing, conduct the setup from step 4.

1.  While the recorder is during stop mode, press and hold the DISP/MENU button.
2. Press the + or – button to select (DATE).
3. Press the OK button.
   • The “hour” will flash on the display.
4. Press the + or – button to change the setting.
5. Press the OK or button to set.
   • Repeat step 4 and 5 to set “minute”, “year”, “month” and “day”. After the “day” has been set, the recorder’s clock will start working.
   • You can select between 12 and 24 hours display by pressing the DISP/MENU button while setting the hour and minute.
   • You can select the order of the “month”, “day” and “year” by pressing the DISP/MENU button while setting them.
6.  Press the STOP  button to close the menu screen.

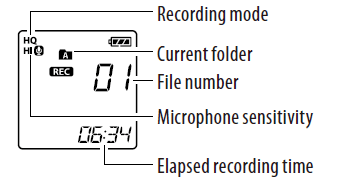

Recording

The recorder provides four folders, (A), (B), (c) and (D). To change the folder selection, press the FOLDER/INDEX button while the recorder is stopped. These four folders can be selectively used to distinguish the kind of recording; for example, Folder (A) might be used to store private information, while Folder (B might be dedicated to store business information.

1. Press the FOLDER/INDEX button to select the desired folder.
   • Newly recorded audio will | be saved as the last file in the selected folder.
2. Press the REC(® ) button to start recording.
   • The recording indicator light will turn on.
   • Turn the microphone in the direction of the source to be
3. Press the STOP () button to stop recording.

Pause

If the recorder is in recording mode and the REC (®) button is pressed, recording pauses. If the REC (®) button is pressed again, recording resumes.

• To ensure recording from the beginning, start recording after you see the display and the recording indicator light turning on.
• If the number of files inside the recording folder reached 200 or the memory becomes full, you will not be able to record any further, and [FULL] will be displayed. Select another folder or delete any unnecessary file before recording.
• When the remaining recording time is less than 60 seconds, the recording indicator light starts flashing. When the recording time is decreasing to 30 or 10 seconds, the light flashes faster.

Recording from external microphones or other devices

External microphones and other devices can be connected and the sound can be recorded. Microphones supported by plug-in power can also be used.

• Do not plug and unplug devices into the recorder’s jack while it is recording.
• The built-in microphone will become inoperable when an external microphone is plugged into the recorder’s MIC jack.

Playback

1. Select the file to be played from the folder.
   • Press the FOLDER/INDEX button to select the folder, and the or button to select the file.
2. Press the OK button to start playback.
3. Press the + or – button to adjust to a comfortable listening volume.
   • The volume can be adjusted within a range from [00] to [30].
4. Press the STOP button at any point to stop playback.

Playback through earphone

An earphone can be connected to the EAR jack of the recorder for listening.

• To avoid ear irritation, insert the earphone after turning down the volume level. When you listen with the earphone during playback, do not raise the volume too much. It may cause hearing impairment and a decrease in hearing ability.

Forwarding and rewinding

While the recorder is during playback mode, press and hold the or 144 button.

• When you release the button the recorder will resume normal playback.
• If there is an index mark in the middle of the file, the recorder will stop once at that position.

Locating the beginning of a file

While the recorder is during stop mode or playback mode, press the button.

• The recorder skips to the beginning of the next file. While the recorder is during playback mode, press the button.
• The recorder skips to the beginning of the current file. While the recorder is during stop mode, press the button.
• The recorder skips to the beginning of the previous file. If the recorder is in the middle of a file, it will return to the beginning of the file. While the recorder is during playback mode, press the button twice.
• The recorder skips to the beginning of the previous file.
• During playback, skipping to the beginning of a file that contains an index mark will make the playback start from the closest index mark position.
• When you try to skip to the beginning of the file during playback, setting the (SKIP) to [ON] will make the recorder forward skip 10 seconds or reverse skip 3 seconds.

Changing the playback speed

1. Press the OK button to start playback.
2. Press the OK button again to open the playback speed adjustment display.
3. Press the + or – button to adjust the playback speed.
   (1.0 PLAY): Playback at normal speed.
   (0.5 PLAY] – [0.9 PLAY): Playback speed slows down.
   (1.1 PLAY) – [2.0 PLAY): Playback speed becomes faster.
4. Press the OK button to complete the setting.
   • If you leave the recorder for 3 seconds, the setting will be  applied and the recorder will return back to the original screen.
   • Even if playback is stopped, the changed playback speed will be retained. The next playback will be at that speed.
   • If you set the noise cancel function to [ON), you will not be able to change the playback speed.

How to begin segment repeat playback: (For VN-7200 only)

1.  Press the OK button to start playback.
2. Press the REC  button at the point you want to start segment repeat playback.
   • [A] will flash on the display.
   • Reaching the end of a file while (A) is still flashing will make that point the end position, and make repeat  playback start.
3. Press the REC(®) button again at the position where you want to end segment repeat playback.
   • [A-b] will appear on the display.
   • The recorder repeatedly plays back the segment until the segment repeat playback is canceled.
   • As in normal playback mode, playback speed can be changed during segment repeat playback as well.

Cancel the segment repeat playback function

To cancel the segment repeat playback, press either STOP (®), REC (®), or the button.

• If you press and hold and rewind past the start position, or press and hold and fast forward past the end position, the segment repeat playback will be canceled.

Erasing

1. Select the file you want to erase.
2. While the recorder is during stop mode, press the ERASE button.
   • File number and (NO] will flash on the display.
3. Press the button to select [YES).
4. Press the OK button.
   • Erasing begins and [ERASE] flashes on the display.

Erasing all files in a folder

1. Select the folder you want to erase.
2. While the recorder is during stop mode, press the ERASE button.
3. Press the ERASE button again.
   • [ALL] and (NO] will flash on the display.
4. Press the button to select [YES].
5. Press the OK button.
   • Erasing begins and (ERASE] flashes on the display.
   • Locked files cannot be erased.
   • If an action is not selected within 8 seconds, the recorder will return to stop mode.
   • It may take over 10 seconds to complete processing. Never remove batteries during this time because data may be corrupted. In addition, carefully check the remaining battery level in order to ensure that the battery will not run out while processing.
   • You cannot delete folders with this recorder.

Setting an index mark

While the recorder is during recording mode or playback mode, press the FOLDER/INDEX button.

• Even after an index mark is placed, recording or playback will continue so you can place index marks in other locations in a similar manner.

Clearing an index mark

While the index number appears for approximately 2 seconds on the display, press the ERASE button.

• Erasing an index mark will make the index number after it move up automatically.
• Up to 16 index marks can be set in a file. If you try to place more than 16 index marks, the (FULL] message will be displayed.
• Index marks cannot be set or erased in a locked file.

LCD display information

While the recorder is during stop mode, pressing and holding the STOP  button will make the display switch information in the following order:

• Current date → Current time → Remaining recording time → Current date …
  While the recorder is during recording mode, pressing the DISP/MENU button will make the display switch information in the following order:
  • Elapsed recording time → Remaining recording time → Elapsed recording time …
  While the recorder is during stop mode or playback mode, pressing the DISP/MENU button will make the display switch information in the following order:
• Count up → Count down → Recording date → Recording time → Count up …

Menu setting method

You can set each menu item as follows.

1. While the recorder is during stop mode, press and hold the DISP/MENU button.
2. Press the + or – button to move to the item you want to set.
3. Press the or button to change the setting.
4. Press the OK or +/- button to set.
5. Press the STOP () button to close the menu screen.

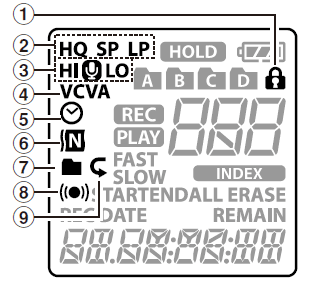

   • The setting menu icons on the  display will turn on

1. File lock
2. Recording mode
3. Microphone sensitivity
4. VCVA
5. Timer recording
6. Noise cancel
7. Continuous playback
8. Alarm playback
9. Repeat playback

• The recorder will stop if you leave it idle for 3 minutes during a menu setup operation, when a selected item is not applied.

Recording mode [MODE]

(HQ): High quality sound recording.
[SP): Standard recording.
(LP): Long-term recording.

• To record a meeting or a lecture clearly, set other than [LP).

Microphone sensitivity [MIC]

[HI]: High recording sensitivity suitable to record conferences and lessons.
[LO]: Standard recording sensitivity suitable for dictation.

• When you would like to clearly record a speaker’s voice, set [MIC) to [LO] and hold recorder’s built-in
  microphone close to the speaker’s mouth (5-10 cm).

Variable Control Voice Actuator [VCVA]

When the microphone senses that sounds have reached a preset threshold volume level, the built-in Variable Control Voice Actuator (VCVA) starts recording automatically, and stops when the volume drops below the threshold level. The VCVA feature extends recording time and conserves memory by stopping recording during silent periods, which helps the playback to be more efficient.

(ON): Enables the VCVA function.
[OFF): Disables this function.

Adjust the start/stop actuation level

If the surrounding noise is loud the starting sensitivity of the VCVA can be adjusted according to the recording situation.

1. Press the REC button to start recording.
   • When the sound volume is lower than the preset threshold sound level, recording automatically stops after approximately 2 seconds, and [STAND-BY flashes on the display. The recording indicator light turns when recording starts and flashes when recording pauses.
2. Press the + or – button to adjust the start/stop actuation level.
   • The VCVA level can be set to 15 different values.
   • The higher the value, the more sensitive the recorder will be to sounds. At the highest value, even the faintest sound will activate recording.
   • The start/stop actuation level also varies according to the selected microphone sensitivity mode.
   • If the starting level is not adjusted within 2 seconds, the display will return to the previous one.
   • To ensure successful recordings, prior testing and adjustment of the start/stop actuation level is recommended.

Timer recording TIMER]

[ON]: Enables the timer recording.
[OFF]: Disables this function.

1. Select [ON] and press the > OK button.
   • The “hour” will flash on the display.
2. Press the + or – button to change the setting.
3. Press the • OK or | button to set.
   • Repeat steps 2 and 3 to set the starting “minute” and the ending “hour” and “minute”.
4. Press the + or – button to select between [ONCE] and [DAILY].
   (ONCE): Records only once at the specified time.
   (DAILY): Records every day at the specified time.
5. Press the OK or button to set.
   • With this function, you can set only the starting and the ending time of recording. For the recording mode, the microphone sensitivity, VCVA and folders settings, the settings selected before the timer recording will be applied.
   • If you set a timer recording that could exceed the remaining time capacity, [FULL] will flash for 2 seconds. The setting will be applied but the recording will be interrupted. Delete any unnecessary mile
   • If the batteries run out while recording based on the timer setting, the recorder will stop recording. Check the battery power before starting the timer recording.

Noise cancel [NOISE-C]

If the recorded audio is difficult to understand because of noisy surroundings, adjust the noise cancel setting level.

[ON]: Noise will be reduced during file playback to achieve a better sound quality.
[OFF): Disables this function.

Continuous playback [ALL PLAY] (For VN-7200 only)

(ON]: Plays file continuously in the current folder until the last file and then stops.
[OFF): Plays file stops after playing back the current file.

Repeat playback [REPEAT] (For VN-7200 only)

(ON): Plays the current file repeatedly.
(OFF): Disables this function.

Skip space [SKIP] (For VN-7200 only)

This function is convenient for quickly skipping to another playback position or to repeat the playback of short phrases.

(ON]: While the recorder is during playback, pressing will make the recorder forward skip 10 seconds, while pressing will make it reverse skip 3 seconds.
[OFF]: The recorder will forward skip or reverse skip a file.

• If there is an index mark or a cue closer than the skip space, the recorder will forward skip/reverse skip to that position.

Alarm playback [ALARM]

You can use the alarm playback function to sound the alarm tone for 5 minutes at the scheduled time. Within these 5 minutes, pressing any button other than the POWER switch will make the recorder playback the preselected file. With the alarm playback function, only one file can be played back. Select a file for the function before setting the time.

[ON): Enables the alarm playback function.
[OFF): Disables this function.

1. Select [ON] and press the > OK button.
   • The “hour” will flash on the display.
2. Press the + or – button to change the setting.
3. Press the OK or button to set.
   • Repeat steps 2 and 3 to set the “minute”.
4. Press the + or – button to select between [ONCE] and [DAILY].
   (ONCE): Alarm playback will be performed only once at the specified time.
   [DAILY): Alarm playback will be performed at the specified time every day.
5. Press the OK or button to set.
   • The alarm tone stops automatically if no button is pressed within 5 minutes after the alarm starts. The file is not played back in this case.
   • If the starting times for timer  recording and alarm playback are set for the same time, timer recording will have priority.

LED [LED]

(ON): LED light will be set.
(OFF): LED light will be can
System sounds [BEEP The recorder beeps to alert button operations or warn errors.
(ON): Enables the beep fun
(OFF]: Disables this function

• If the alarm playback fun been set, the alarm will s the scheduled time even system sounds are disabled.

File lock [LOCK]

Locking a file keeps important data from being accidentally erased, Select a file for the function before locking.

[ON]: Locks the file and prevents it from being erased.
[OFF]: Unlocks the file and allows it to be erased.

Dividing files [DIVIDE] (For VN-7200 only)

Files with large capacities and long recording times can be divided to make them easier to be managed. Stop the file at the position in which you want to divide it and apply the setting.

[YES]: Enables the file division.
[NO]: Cancels this function.

1. Select [YES] and press the > OK button.
   • File division begins and [DIVIDE] flashes on the display.
   • The recorder cannot divide files when the number of files in the folder reached 200.
   • Locked files cannot be divided.
   • Do not remove the battery while dividing a file. This may damage the data.

File move [MOVE]

You can move files recorded in folders (A), (B), (c) and (D) to other folders. The moved file is added to the end of the destination folder. Select a file for the function before moving.

[YES): Enables the file movement.
[NO]: Cancels this function.

1. Select [YES] and press the OK button.
   • Current folder and file number will flash on the display.
2. Press the or  button to select a destination folder.
3. Press the OK button.
   • The destination folder and the number of the moved file appear on the display, and moving is completed.
   • If the destination folder is full (200 files), [FULL) appears on the display, and you cannot move the file to that folder.
   • A file cannot be moved to the same folder.
   • Do not remove the batteries during moving. This may damage the data.

Formatting the recorder (FORMAT)

If you format the recorder, all files will be removed and all function settings will return to defaults except date and time settings. For important recorded content, we recommend you to make a note of it before formatting the recorder.

(YES): Starts formatting the recorder.
[NO]: Cancels this function.

1. Select (YES) and press the » OK button.
   •[NO] will flash on the display.
2. Select (YES) again and press the OK button.
   • Formatting begins and [FORMAT) flashes on the display.
   • [END] appears when formatting ends
   • It may take over 10 seconds to complete processing. Never remove batteries during this time because data may be corrupted. In addition, replace the batteries with new ones in order to ensure that  the batteries will not run out while processing.
   • When the recorder is formatted, all the saved data, including locked files, are erased.

Troubleshooting

Q1: The power cannot be turned on.
A1: • The batteries may be depleted.
• The batteries may be inserted incorrectly. Check © and © before inserting new batteries.
• Are the terminals of the batteries soiled?
If so, clean them with a dry cloth.
Q2: Nothing happens when a button is pressed.
A2: • The POWER switch may be set to the [OFF/HOLD) position. Slide the POWER switch to the [ON) position.
Q3: No sound or quiet sound is heard from the speaker while playing back.
A3: The earphone plug may be plugged into the recorder. The volume may be set to the minimum level.
Q4: Recording is not possible.
A4: By pressing the REC (®) button:
• Check if the display shows (FULL]. Select another folder or delete any unnecessary file before recording. A maximum of 200 files can be recorded within a folder.
Q5: The playback speed is too fast (slow).
A5: The recorder may be set to fast (slow) playback. Playback speed is set to [1.0 PLAY].

Specifications

• Recording medium: Built-in flash memory VN-7200 (2 GB)/VN-7100 (1 GB)
• Input level: – 70 dbv
• Maximum headphone output: 3 mw (at load of 8 (2)
• Speaker: Built-in e 28 mm round dynamic speaker
• MIC jack: o 3.5 mm mini-jack, impedance 2 kg
• EAR jack: o 3.5 mm mini-jack, impedance 80 or more
• Maximum working output: 190 mw (8 0 speaker)
• Overall frequency response

  • HQ mode: 150 Hz to 7.9 kHz
  • SP mode: 300 Hz to 4.7 kHz
  • LP mode: 300 Hz to 2.9 kHz
• Guide to recording times:

  • VN-7200
    HQ mode: Approx. 78 h. 30 min.
    SP mode: Approx. 202 h.
    LP mode: Approx. 1151 h.
  • VN-7100
    HQ mode: Approx. 39 h.
    SP mode: Approx. 100 h.
    LP mode: Approx. 573 h.
• Input power requirement: Two AAA (LR03) batteries
• Guide to battery life

  • During recording mode (Built-in microphone)
    HQ mode: Approx. 68 h.
    SP mode: Approx. 86 h.
    LP mode: Approx. 57 h.
  • During playback mode (Built-in speakers)
    HQ mode: Approx. 20 h.
    SP mode: Approx. 21 h.
    LP mode: Approx. 21 h.
  • (Earphone)
    HQ mode: Approx. 49 h.
    SP mode: Approx. 53 h.
    LP mode: Approx. 57 h.
• External dimensions: 104 (L) mm x 37 (W) mm x 19.1 (T) mm (without protrusions)
  Weight: 66 g (including battery)
• Operating temperature: 0°C – 42°C / 32°F – 107.6°F
• Available recording time may be shorter if many short recordings are made.
• Battery life is measured by Olympus. It varies greatly according to the type of batteries used and the conditions of use.
• Your recorded contents are for your personal use or pleasure only. It is prohibited to record copyrighted material without permission of the copyright holders according to copyright law.
• Specifications and design are subject to change without notice for improvement of performance.

Accessories (optional)

•  Compact zoom microphone
  (unidirectional): ME32
•  Highly sensitive noise-cancellation monaural microphone
  (unidirectional): ME52W
• Tie clip microphone
  (omni-directional): ME15
• Telephone pickup: TP7
• Connecting cord: KA333

For customers in North and South America

USA RFI

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Canadian RFI

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

For more manuals by Olympus visit, ManualsLibraryy

Olympus VN-7200 Digital Voice Recorder-FAQs
