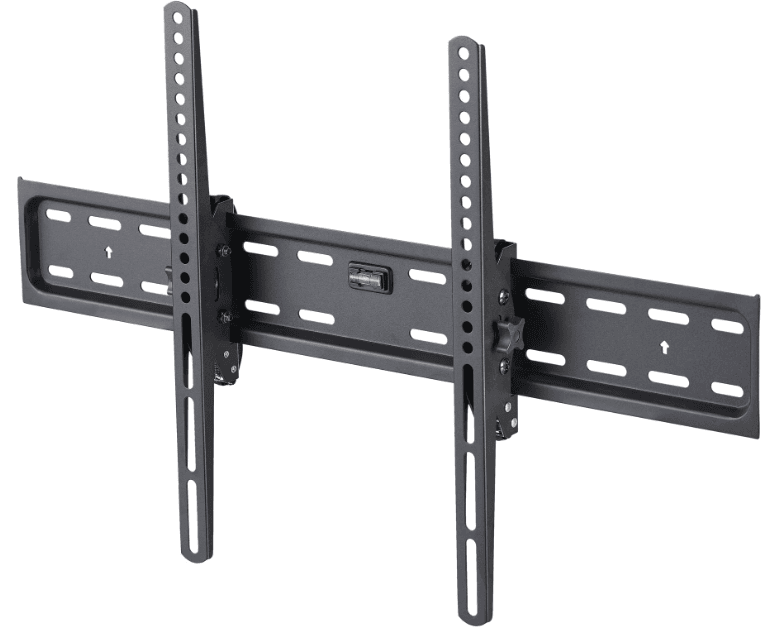

Onn 100010103 Fixed TV Wall Mount Product
IMPORTANT SAFETY INSTRUCTIONS
When using this mounting system, basic precautions should be followed including the following: Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Customer Service. (See Page 9) Use with products heavier than the rated weight (55 kg/120 lbs) may result in instability CAUTION: and injury.
- Mounts must be attached as specified instructions. Improper installation may result in damage or serious injury.
- Use this mounting system only for its intended use as described in these instructions. Do not use attachments that are not recommended by the manufacturer.
- Safety gear and proper tools must be used.
- Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
- This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
IMPORTANT
Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, please contact customer service (See page 9 ) for replacement.
DANGER – To reduce the risk of electrical shock:
- Always unplug the monitor and connected components before cleaning this mounting system.
- Unplug the monitor and connected components from the outlet before putting on or taking off parts.
- Route cords and cables as shown in the installation instructions.

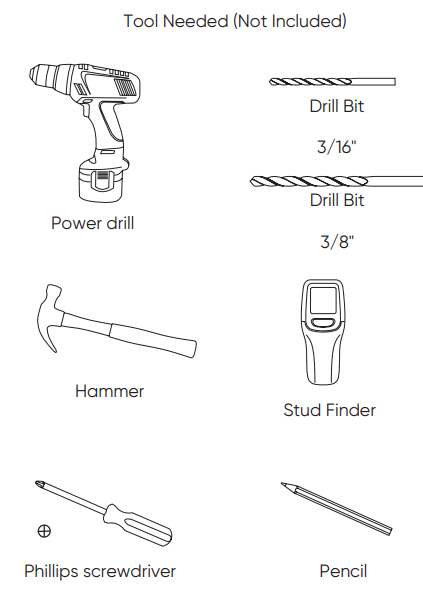

TV Wall Mount Hardware

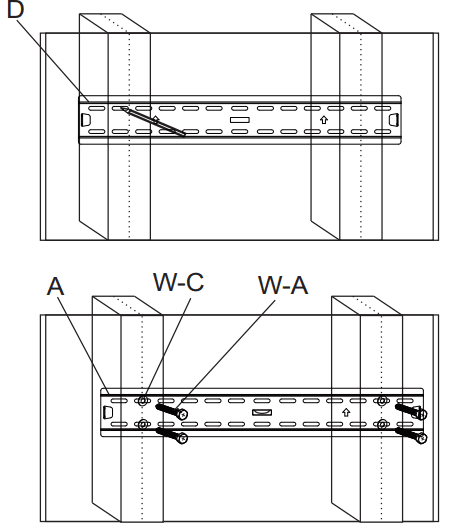

- Wood Stud installation requires a minimum 2×4 inch wood stud with 3/8 inch thick drywall. Locate studs with a stud finder. Hold the paper template (D) against the wall to mark two holes. Check the level with the bubble level and drill holes with a 3/16″ (4.5mm) drill bit to a depth of 2.2″ (55mm). Attach wall plate (A) with two bolts (W-A) and washers (W-C) using a Phillips screwdriver

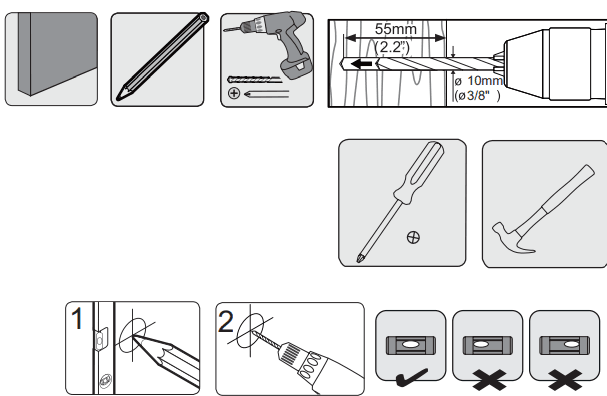

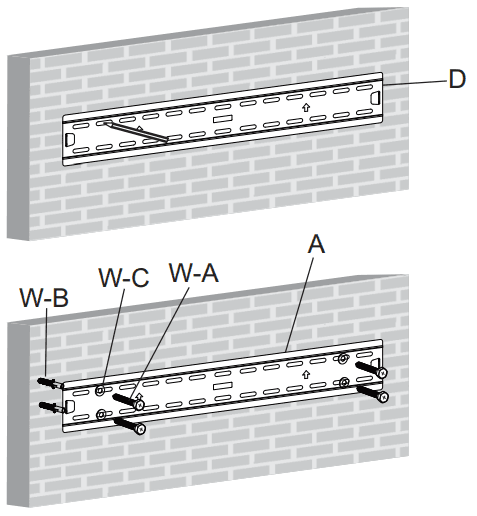

- Concrete wall installation requires a minimum of 8-inch thick solid concrete. Hold the paper template (D) against the wall to mark four holes. Check the level with the bubble level and drill holes with a 3/8″ (10mm) drill bit to a depth of 2.2″ (55mm). Tap four wall anchors (W-B) into the wall using a hammer. Attach wall plate (A) with four bolts (W-A) and washer (W-C) using a Phillips screwdriver.
- With a Phillips screwdriver, attach the left TV bracket (B) and right TV bracket (C) to the back of the TV where shown. Choose the appropriate bolts, washers, and spacers for your TV. Make sure that the pull straps are nearest to the left (B) or right (C) edges of the TV respectively.
- TWO PEOPLE must hang the TV with the TV bracket (B and C) on the wall plate (A). The latch shown below will click when the TV is properly locked into place.

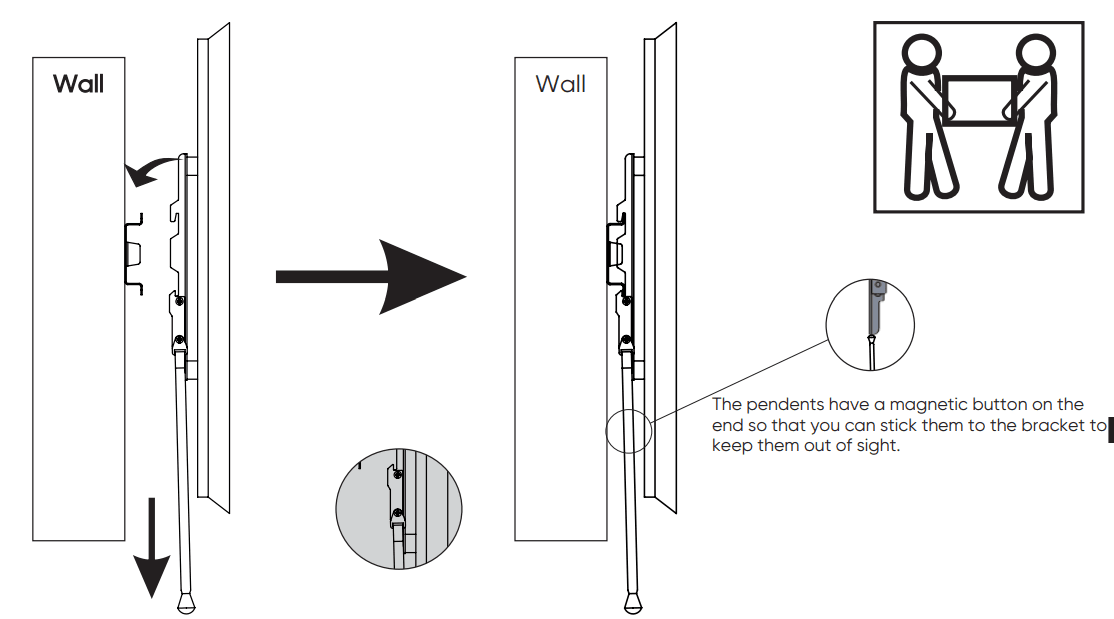

- TWO PEOPLE are needed to remove your TV from the wall. While one person holds the TV, the second person pulls down on both release straps, unlocking the TV. TWO PEOPLE must hold and then remove the TV from the wall by first lifting up.
Product Warranty
Thank you for your purchase. This Limited Warranty covers any defects in material or workmanship for purchases made in the U.S.A. and Canada and excludes claims from conditions, malfunctions, or damage not resulting from defects in material or workmanship. The warranty duration is one year.
Keep your original proof of purchase (store receipt). If after inspection you find the product is defective, damaged, or missing parts, DO NOT return it to the store. Please contact customer service at 1-888-516-2630 every day, 7 am-9 pm CST.
Please Keep this instruction Manual for future reference.
For more manuals by Onn, visit ManualsLibraryy
Onn 100010103 Fixed TV Wall Mount Product-FAQs
What is a fixed TV wall mount?
A fixed TV wall mount is designed to hold your TV flush against the wall. It’s simple to install, space-efficient, and one of the most affordable mounting options.
Will any TV wall mount work with my TV?
Most TVs have a standard VESA pattern for mounting holes, making them compatible with any mount rated for the TV’s size and weight. Always check your TV’s specifications before purchasing a mount.
What screws are needed for mounting a TV?
The screw size depends on the TV’s size:
1. M4 for TVs 19–22 inches
2. M6 for TVs 30–40 inches
3. M8 for TVs 43–88 inches
Can I mount a TV using a screwdriver?
Yes, but using a power drill is recommended as it makes the process faster and easier. A carbide-tipped masonry bit is ideal for drilling pilot holes into drywall for mounting screws.
How many watts does an Onn 32-inch TV use?
A 32-inch LED TV typically consumes 30–55 watts, while an LCD model may use 50–85 watts.
How is TV screen size measured?
TV screen size is measured diagonally from one corner of the screen to the opposite corner, and the size is listed in inches.
How do I slide my TV on the wall mount?
To adjust your TV on the mount, gently slide it along the wall-mounted bracket using light finger pressure. Built-in stops prevent the TV from sliding off the ends of the mount.
What is a TV wall mount, and why use one?
A TV wall mount allows you to fix your TV to the wall instead of placing it on a surface. This saves counter space, leaving room for devices like soundbars or gaming consoles, or maintaining a clean, uncluttered look.
What are the types of TV wall mounting?
There are two primary types of TV mounts:
1. Fixed mounts: Keep the TV stationary and close to the wall.
2. Adjustable mounts: Allow tilting or swiveling for better viewing angles.
