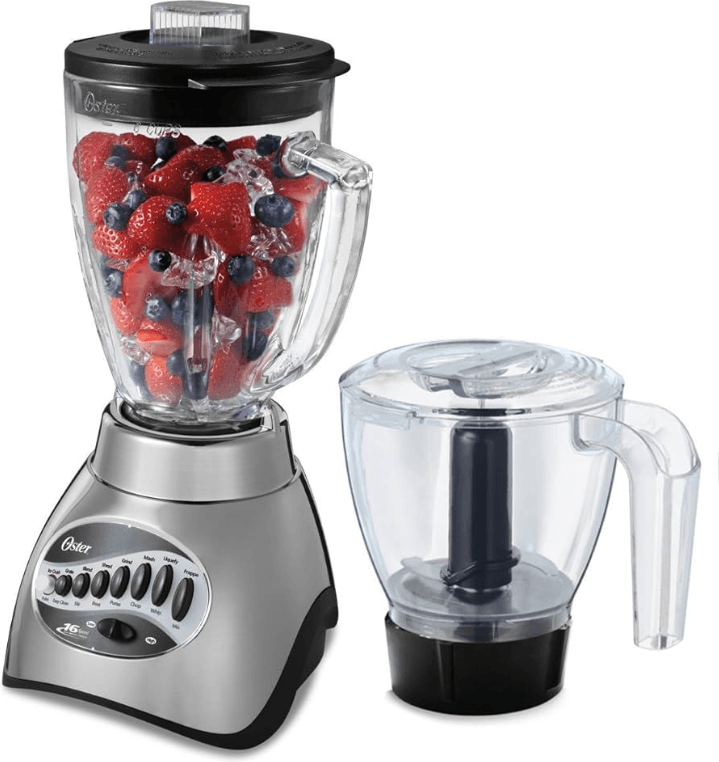

Oster Classic Series 16-Speed Blender
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USE
- Unplug the cord from the outlet when not in use or before cleaning.
- To protect against the risk of electrical shock, do not immerse the cord, plug, or motor base in water or any other liquids.
- Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
- Never leave an appliance unattended when in use.
- Close supervision is necessary when using near children.
- Avoid contact with moving parts. Keep hands and utensils out of the jar while blending to prevent personal injury or damage to the blender. A rubber spatula may be used only when the blender is not running.
- The blade is sharp. Handle with care.
- Always put the lid on the jar before operating the blender.
- When blending hot liquids, beware of steam. Remove the jar lid food chute from the lid to allow steam to escape.
- Do not blend boiling liquids in the blender.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or is damaged in any manner. Return the appliance to the nearest Authorized Sunbeam Appliance Service center for examination, repair, or electrical or mechanical adjustment.
- Do not use outdoors or for commercial purposes; this appliance is for household use only.
- Use this appliance for its intended use as described in this manual. Do not use attachments that are not recommended by the manufacturer; they may cause injury.
- Always operate on a flat surface.
- Unplug the blender when it is not in use, before taking off or putting on parts, and before cleaning.
- The use of attachments not made by OSTER®, including canning or ordinary jars and processing assembly parts, is not recommended by Sunbeam Products, Inc., and may cause injury to persons.
This Product Is for Household Use Only
The maximum rating marked on the product is based on the attachment that draws the greatest load. Other attachments may draw less power.
Power Cord Instructions
Please follow the instructions below to ensure the safe use of the power cord.
- This appliance is equipped with a polarized plug. This type of plug has one blade that is wider than the other. This plug will fit in a polarized outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.
- You may use an extension cord, if necessary, but be certain to follow these guidelines:
- The marked electrical rating of the extension cord must be at least 120/127 volts, 60 Hz, 10A.
- The extension must be arranged so that it will not drape over the countertop or tabletop, will not be within the reach of children, and will not be tripped over.
- Do not pull, twist, or otherwise abuse the power cord.
SAVE THESE INSTRUCTIONS
Learning About Your Blender

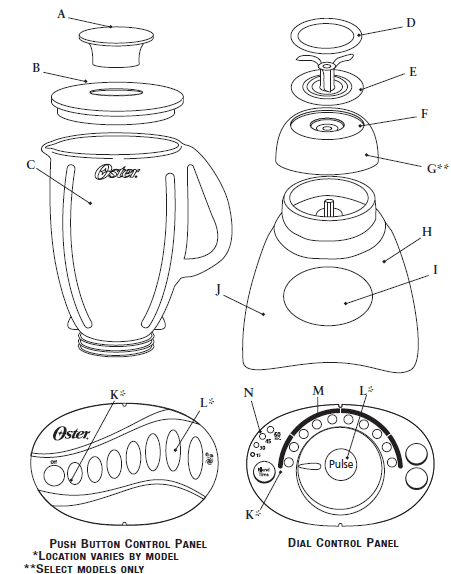

Features of Your Blender
- A. Feeder Cap for adding ingredients while blending
- B. Leak-Proof Lid
- C. Jar – Your Oster Blender includes one of the following:
- 5-6 Cup Dishwasher Safe/Scratch Resistant Glass Jar
- 6-Cup Break-Resistant Plastic Jar
- 8-Cup Dishwasher Safe Glass Party Pitcher
- 5-Cup Double Walled-Insulated Thermal Jar – keeps frozen drinks, smoothies and milkshakes cold for hours
- D. Sealing Ring for tight seal
- E. Ice Crush Blade pulverizes ice for smooth frozen drinks.
- F. Threaded Bottom Disc
- G. Collar for stability from countertop to refrigerator to table (select models only)
- H. Powerful Motor with ALL-METAL DRIVE for extra durability
- I. Control Panel
- J. Convenient Cord Storage
- K. Easy-Clean Feature – quickly cleans jars in between batches
- L. Pulse for precise blending control
- M. Food and drink selections for perfect results – controls allow you to keep your blender set at your favorite food/drink selection
- N. Auto Blend™ Timer (select models only)
Using Your Blender
Clean the blender according to the instructions in the “Cleaning and Storing Your Blender” section.
Jar Assembly:

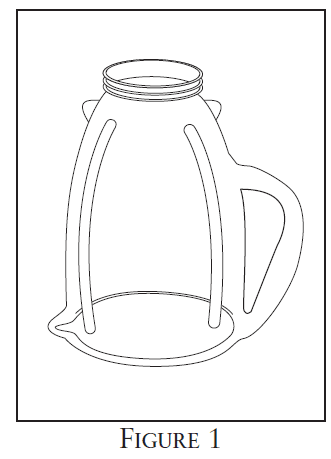

- Turn the jar upside down so the small opening is at the top. (Figure 1)

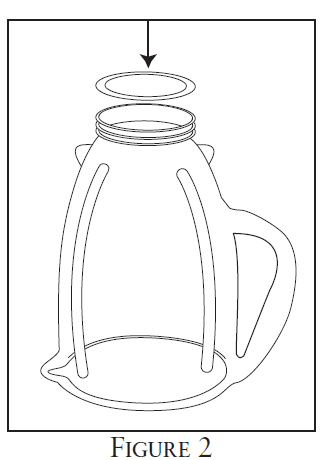

- Place the sealing ring over the jar opening. (Figure 2)

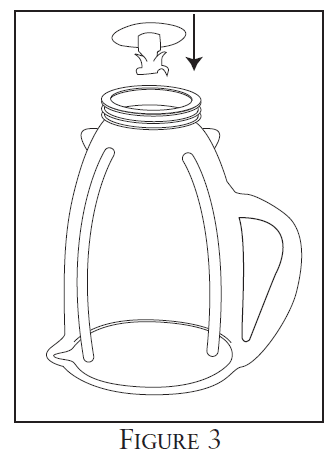

- Place the blade into the jar. (Figure 3)

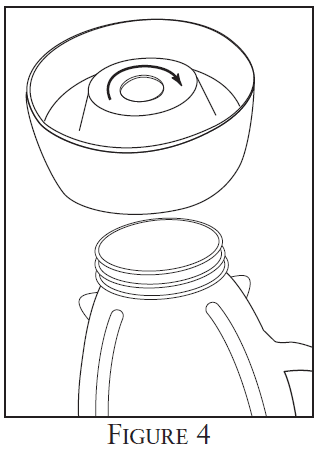

- Snap the threaded bottom disc and collar together. Place the collar over the blade and jar. (Note: If there are slots on top of the collar, line them up with notches on the jar.) Place the collar on the jar and turn the threaded bottom disc clockwise to tighten. (Figure 4)

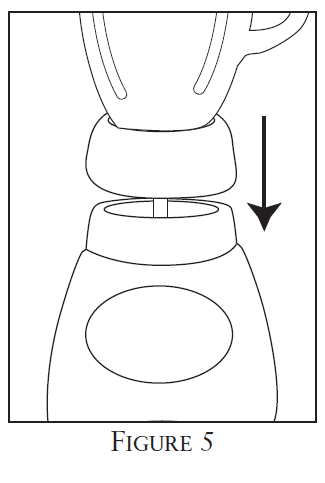

- Place the jar assembly onto the base. (Figure 5)
- Place ingredients into the jar.

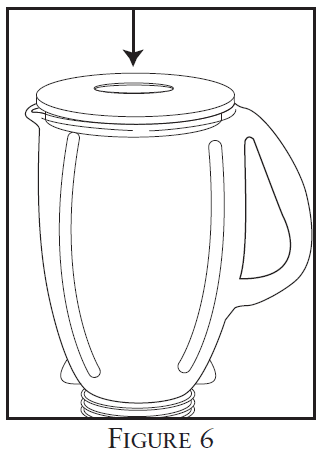

- Place the lid with the feeder cap on the jar.
- Plug the power cord into a 120-volt AC electrical outlet.

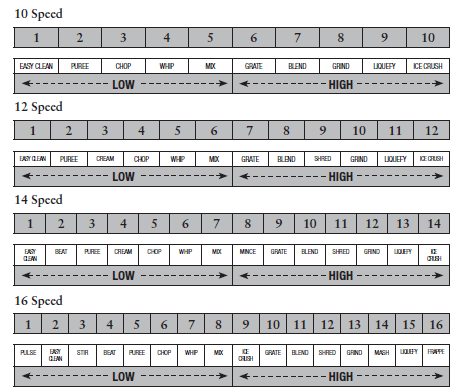

Push Button Models
Slide switch to HIGH or LOW (If your model does not have a slide switch, push the HIGH or LOW button.) Push the desired speed and blend ingredients to the desired consistency. Push the OFF to stop the blender and turn blender off. To use PULSE, select HIGH or LOW. Push PULSE and hold down for the desired length of time. Release PULSE and allow the blade to stop. Repeat cycle as desired.
Dial Models Without Timer
Turn the dial to the desired food/drink selection. Press ON and blend ingredients to desired consistency. Press OFF to stop the motor and turn the blender off. Note: Food/drink selection can be changed during blending by turning the dial to the desired selection. To use PULSE, turn the dial to the desired food/drink selection. Press PULSE and hold down for the desired length of time. Release and allow the blade to stop. Repeat cycle as desired.
Dial Models With Timer
PRESS the POWER TO TURN THE BLENDER ON. The blender is set to the food/drink selection identified by a blinking indicator light. Turn the dial to change the food/drink selection. Press START and blend ingredients to the desired consistency. Press STOP to stop the motor. (Pressing POWER stops the motor and turns the blender off.)
NOTE: Food/drink selection can be changed during blending by turning the dial to the desired selection.
NOTE: This blender is programmed to turn the power off automatically if not used for several minutes.
To use PULSE, turn the dial to the desired food/drink selection. Press PULSE and hold down for the desired length of time. Release and allow the blade to stop. Repeat cycle as desired. To use Auto Blend™ Timer, press BLEND TIME until the desired length of blending time (15, 30, 45, 60 seconds) is illuminated. Turn the dial to the desired food/drink selection. Press START. Blender will automatically stop when the selected time has elapsed. To stop the blender before the elapsed time, press STOP. To use Blender without a timer, press BLEND TIME until no lights are illuminated.
Blending Tip
- Put liquids in the jar first, unless a recipe says otherwise
- Crushing ice: Crush 6 ice cubes or approximately 2 cups of ice at a time.
- This blender has been designed to gently process foods when operating at low speeds. If blades do not rotate during operation, simply choose a higher speed.
- Do not remove the lid while in use. Remove the feeder cap to add smaller ingredients. (Figure 7)
- Cut all firm fruits and vegetables, cooked meats, fish, and seafood into pieces no larger than 1/2 inch (1.8 cm) to 1 inch (2.5 cm). Cut all kinds of cheeses into pieces no larger than 1/2 inch (1.8 cm).
- This blender will not mash potatoes, whip egg whites or substitute dairy toppings, mix stiff dough, or grind raw meat.
Processing Foods in Blender
Cleaning and Storing Your Blender
IMPORTANT: UNPLUG BEFORE CLEANING THE BASE and DO NOT IMMERSE THE BLENDER BASE IN WATER OR ANY OTHER LIQUIDS. Use a damp, soft sponge with mild detergent to clean the outside of the blender base. All parts except for the blender base are dishwasher safe. Collar and threaded bottom disc are top rack dishwasher safe ONLY. The collar and threaded bottom disc can be separated for cleaning. Hold the collar with both hands and press down on top of the disc with your thumbs. Place the sealing ring in the bottom basket of the dishwasher. You can also wash the parts in warm, soapy water. Rinse well and dry.
Easy Clean
Pour 3 cups of warm water in the blender jar. Add 1 – 2 drops of liquid dishwashing detergent. Select Easy Clean. Blend detergent for 10 –15 seconds. Empty the jar of soapy water into the sink. Rinse jar thoroughly with clean water.
Note: Easy Clean is not a substitute for the regular cleaning described above. It is especially important to disassemble and thoroughly clean your blender when processing milk, dairy products, meats, seafood, and eggs.
Storing Your Blender
After cleaning, reassemble the blade to the jar with the sealing ring and collar. Store the blender with the cover ajar to prevent container odor.
Recipies
For fun and creative recipes for your new Oster® blender, please visit www.oster.com. Here you will find everything from the perfect Breakfast Smoothie to creamy Soups, Sauces, and a host of Oster® signature Frozen Drinks. For the perfect recipe for any occasion, turn on your creativity with Oster®!
Ginger Peach Smoothie
Strawberry Smoothie
3-Year Satisfaction Guarantee
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of three (3) years from the date of purchase, this product will be free from defects in material and workmanship. JCS, at the Consumer’s sole option, will repair or replace this product or any component of the product found to be defective during the guarantee period. This guarantee is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain the satisfaction guarantee performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify, or in any way change the terms and conditions of this guarantee.
All Metal Drive Ten (10) Year Limited Warranty
JCS also warrants that for a period of ten (10) years from the date of purchase, the All Metal Drive base unit metal coupling will be free from defects in material and workmanship. JCS, at its option, will repair or replace the metal drive stud component of the All Metal Drive coupling if found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, a replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty. This warranty does not cover damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes, and tornadoes. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify, or in any way change the terms and conditions of this limited warranty.
What are the limits on JCS’s liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above limited warranty. JCS disclaims all other warranties, conditions, or representations, express, implied, statutory, or otherwise. JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party. Some provinces, states, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state, or jurisdiction to jurisdiction.
How to Obtain Satisfaction Guarantee and/or Limited Warranty Service
In the U.S.A.
If you have any questions regarding this guarantee or limited warranty or would like to obtain guarantee or limited warranty service, please call 1-800-334-0759, and a convenient service center address will be provided to you.
In Canada
If you have any questions regarding this guarantee or limited warranty or would like to obtain guarantee or limited warranty service, please call 1-800-667-8623, and a convenient service center address will be provided to you.
In the U.S.A., this guarantee and limited warranty are offered by Sunbeam Products, Inc., doing business as Jarden Consumer Solutions, located in Boca Raton, Florida 33431. In Canada, this guarantee and limited warranty is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write to the Consumer Service Department. PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE. For inquiries regarding recycling and proper disposal of this product, please contact your local waste management facility.
