OPERATING INSTRUCTIONS

Automatic Bread Maker

Important Information

• Do not use the appliance outdoors, in rooms of high humidity, or use excessive force on the parts as illustrated on the right to avoid malfunction or deformation.
• Do not use a knife or any other sharp tool to remove residues.
• Please do not drop the appliance to avoid damaging it.
• Do not store any ingredients or bread in the bread pan.

Parts Names and Instructions

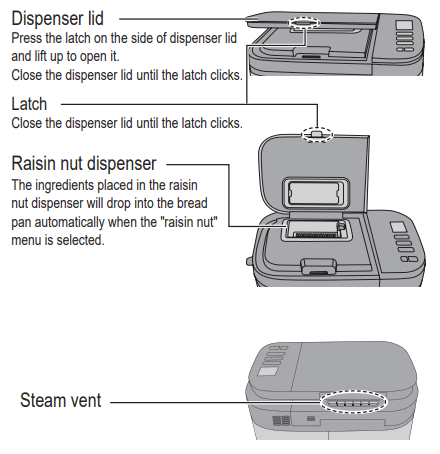

Main Unit

Accessories

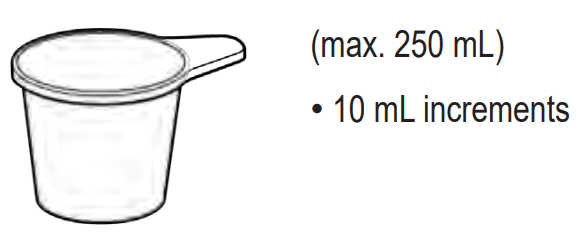

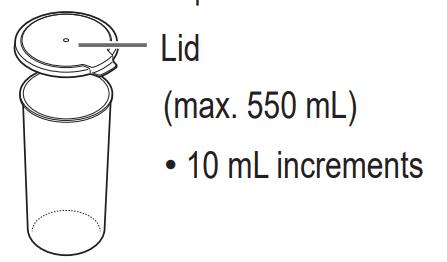

Sourdough cup
To measure out liquids or make a sourdough starter.

• 10 mL increments (max. 550 m).

• Measuring Cup

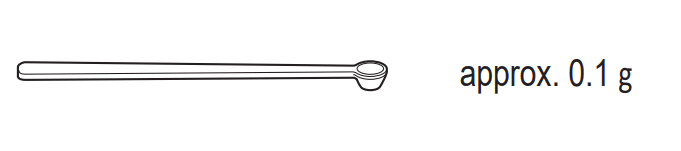

Sourdough starter spoon
To measure out sourdough starter yeast.

• approx. 0.1g

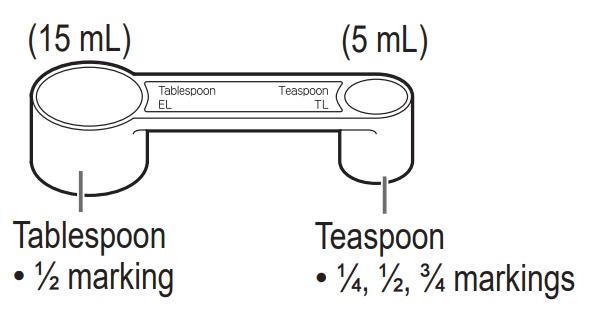

Measuring spoon
To measure out sugar, salt, instant dry yeast, etc.

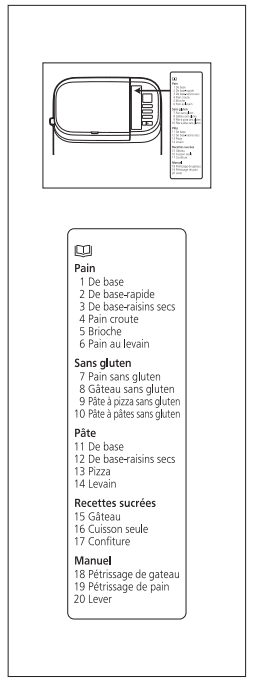

• Menu label

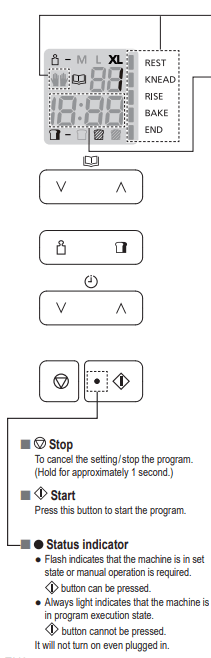

Control Panel and Display

The picture shows all words and symbols, but only those relevant will be displayed during the operation.

Operation status
Displayed for the current stage of the program, except: Indicate doing manual operation.
(See P. EN10 – EN11 for the available menu.)

Time showing

• Time remaining until ready.
• The menu requires some manual steps,the  display will show the remaining time until starting its process after pressing the button.

Menu

• Press or once to be a setting mode.
• Press or again to change the Menu number.

(To advance more quickly, hold the button.) (See P. EN10 – EN11 for menu number.).

Size
Press this button to choose a size. (See P. EN10 – EN11 for the available menu.)

Crust
Press this button to choose the crust shape. (See P. EN10 – EN11 for the available menu.)

Timer
Set delay timer (time until bread is ready).
For available menu, can be set up to 13 hours (except for menu sourdough only set up to 9 hours). (See P. EN10 – EN11) e.g.: It is 9:00 PM now, and you want the bread to be ready at 6:30 the next.

● Setting time for Sweet Menus:

• Press this button to increase the time.
• Press this button to decrease the time.
  (To advance more quickly, press this button once then hold it.)
• Menu “Cake” Pressing the button once will advance the additional baking time by 1 minute.
• Menu “Bake Only” Pressing the button once will advance the baking time including additional baking time by 1 minute.
• Menu “Jam” Pressing the button once will advance the cooking time by 10 minutes but additional cooking time will be by 1 minute.

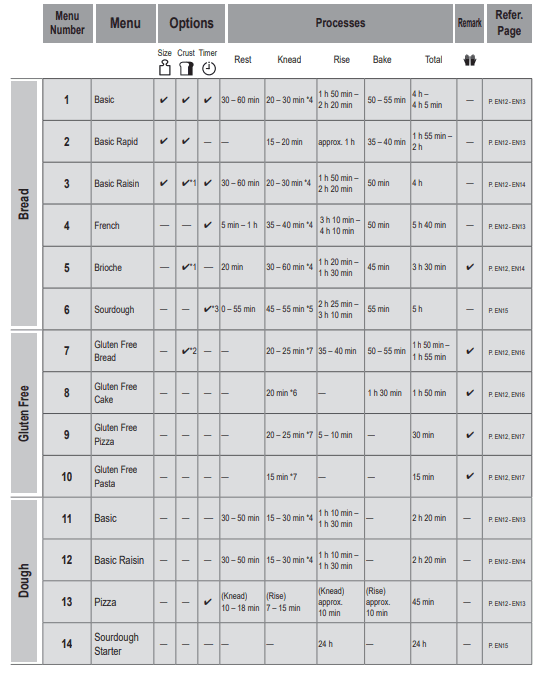

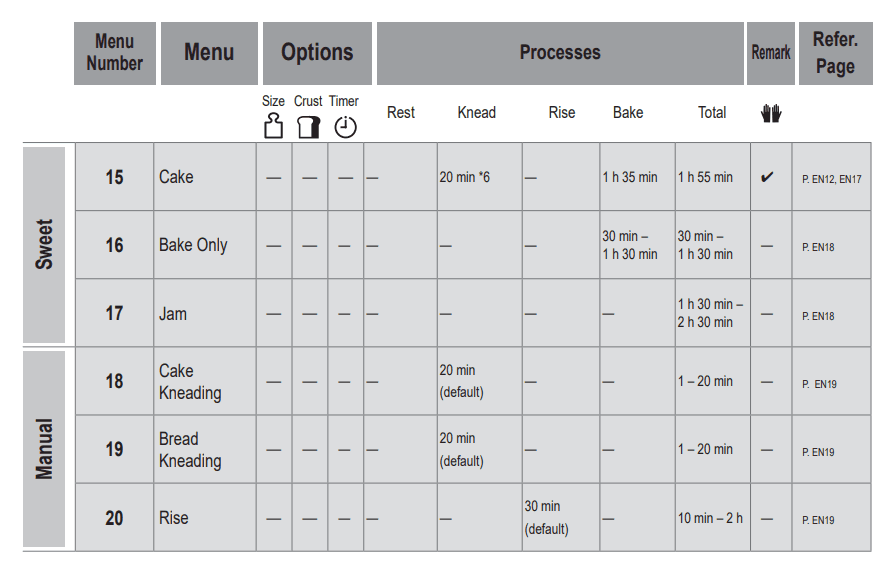

Menu Charts and Baking Options

Function Availability and Time Required

• The machine stops or moves during process based on the operating program.
• Time required for each process will differ according to room temperature.
• *1 Only “Light” or “Medium” are available.
• *2 Only “Medium” or “Dark” are available.
• *3 Can be set up to 9 hours.
• *4 There is a period of rise during the knead period.
• *5 There is a period of rest during the knead period.
• *6 There is a period of scraping or molding during the knead period.
• *7 There is a period of scrape off the flour.

Handling Instructions

Before Use

• For the first time use, remove packing material and clean the machine.
• Clean the machine when you have not used it for a long time.

Preparations

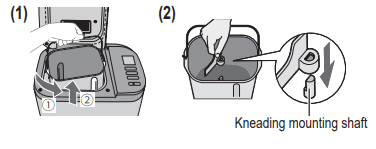

1. Open the lid, remove the bread pan (1), and set the kneading blade into the kneading mounting shaft.
   • Check around the shaft and inside the kneading blade and ensure that they are clean.
2. Prepare the ingredients with exact measurements according to the recipe.

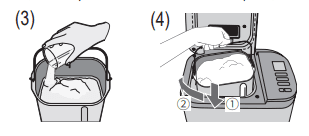

3. Place the measured ingredients into the bread pan in the order listed in the recipes.
   • • For bread and dough menus, dry yeast should be placed first.
     • Place dry yeast away from the kneading blade and kneading mounting shaft. If some of the dry yeast gets into it, the bread may not rise well.
   • Place dry ingredients over the dry yeast. It must be kept separate from any liquid until mixing commences.
     • Pour the liquid into the edge of the bread pan’s sidewall to avoid splashing.
     • Wipe off any moisture and flour around the bread pan, and return it to the main unit. Close the lid.
     • Add additional ingredients to the raisin nut dispenser for available menus.
     • For optimum results, do not open the lid unless the menu requires it, as it affects bread quality.
4. Plug the machine into 120 V outlet.

Sourdough

STAGE 1 Making Sourdough Starter
Preparations

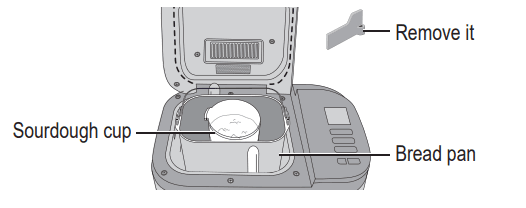

• Mix all the ingredients well in the sourdough cup. (Remove the kneading blade)
• Put the lid on the sourdough cup.
• Place the sourdough cup in the bread pan.
• Set the bread pan into the main unit, and plug the machine into the socket.

1. Select menu 14
2. Pressbutton to start.

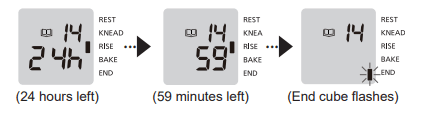

   • The display shows the remaining time until the program is complete.
3. Pressbutton and remove the sourdough cup immediately when machine beeps 8 times and the cube near END flashes.
   1. When you do not use it immediately, store it in the refrigerator, but use up within 1 week.

STAGE 2 Baking Sourdough
Preparations

• Set the kneading blade into the bread pan.
• Pour a cup of sourdough starter into the bread pan.
• Place the ingredients in the bread pan in the following order: strong white bread flour → salt → dry yeast (keep away from the salt) → water (keep away from the dry yeast, pour water around
  the strong white bread flour).
• Set the bread pan into the main unit, and plug the machine into the socket.

1. Select menu 6
2. Pressbutton to start.
   • The display shows the remaining time until the program is complete.
3. Press thebutton and remove bread when the machine beeps 8 times and the cube near END flashes.
   Tips: Timer is available for baking sourdough bread (up to 9 hours).

To make or store sourdough starter without failure.

• Do not select the wrong menu.
• Do not take out the sourdough cup until the program is complete.
• Do not mix the new sourdough starter with the old one.
• If the sourdough starter is made well, it smells sour and like alcohol.
• When the room temperature is over 30 °C, the sourdough starter goes bad, and the bread does not turn out well.

Gluten-Free Information

Making gluten-free bread is very different from the normal way of producing bread.
It is very important if you are making gluten free bread for health reasons that you consult your doctor and follow the guidelines below.

• • This program has been developed especially for certain gluten free ingredients, therefore using your own mix may not produce such good results.
• Gluten-free bread cannot rise as much as traditional bread. It will be of a denser consistency and lighter color than normal bread.
• When “gluten-free is selected, the details for each recipe must be followed carefully. (Otherwise, the bread may not turn out well.) There are two gluten-free - free baking mixtures: mixtures with low content of gluten and mixtures that do not consist of wheat and contain no gluten. If you have to pick one out using this baking program, please consult your doctor beforehand.
• The baking results and the read’s appearance may differ according to the type of mix. Occasionally, bread may have some flour remaining on the sides. Wheat-free mixes can produce more variable results.
• Wait for the bread to cool before slicing it for better performance.
• The bread should be stored in a cool, dry place and used within 2 days. If you will not be able to use up all the bread within that time,e it can be put into freezer bags, in convenient-sized portions, and frozen.

Warning for the users who use this program for health reasons: When using the gluten-free program, make sure to consult your doctor or the Coeliac Association and only use the ingredients that are suitable for your health conditions. Panasonic will not be responsible for any consequences resulting from ingredients that have been used without professional consultation. It is very important to avoid cross-contamination with flours that contain gluten if bread is being made for dietary reasons. Particular attention must be paid to the cleaning of the bread pan and kneading blade as well as any utensils that are used. You must also ensure that the yeast used contains no gluten.

Recipes

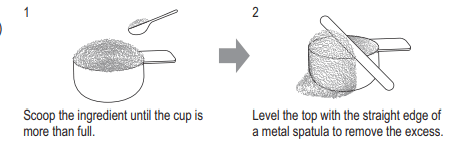

Measure the ingredients accurately. Accurate measurement is essential in achieving good baking results. Weighing the ingredients would be more accurate than measuring them in cups. This is why in this book’s recipes, many ingredients are given in weight as well as in cup/spoon measurements. The only ingredients that may be appropriate in measuring by volume, that is, by cups and spoons, are liquids and very small quantities of dry ingredients, such as the yeast and spices. These are difficult to weigh by a kitchen scale. Even in such instances, measure the amount accurately by scooping the ingredients in the measuring cup or the spoon of the desired size until the measure is more than full. Level the top with the straight edge of a metal spatula to remove the excess. Do not tap the bottom of the cup or spoon on the table to hold another scoop.

French

French

Menu 4 (5 h 40 min)

Pain de Campagne

Menu 4 (5 h 40 min)

Brioche

Basic Brioche
Menu 5 (3 h 30 min)

Panettone
Menu 5 (3 h 30 min)

Cleaning & Care

Before cleaning, unplug the machine and allow it to cool down.

• To avoid damaging the machine.
  • Do not use anything abrasive. (cleansers, scouring pads etc)
  • Do not wash any part of the machine in the dishwasher.
  • Do not use benzine, thinners, alcohol, or bleach.
  • After rinsing the washable parts, wipe with cloth. Always keep all parts clean and dry.

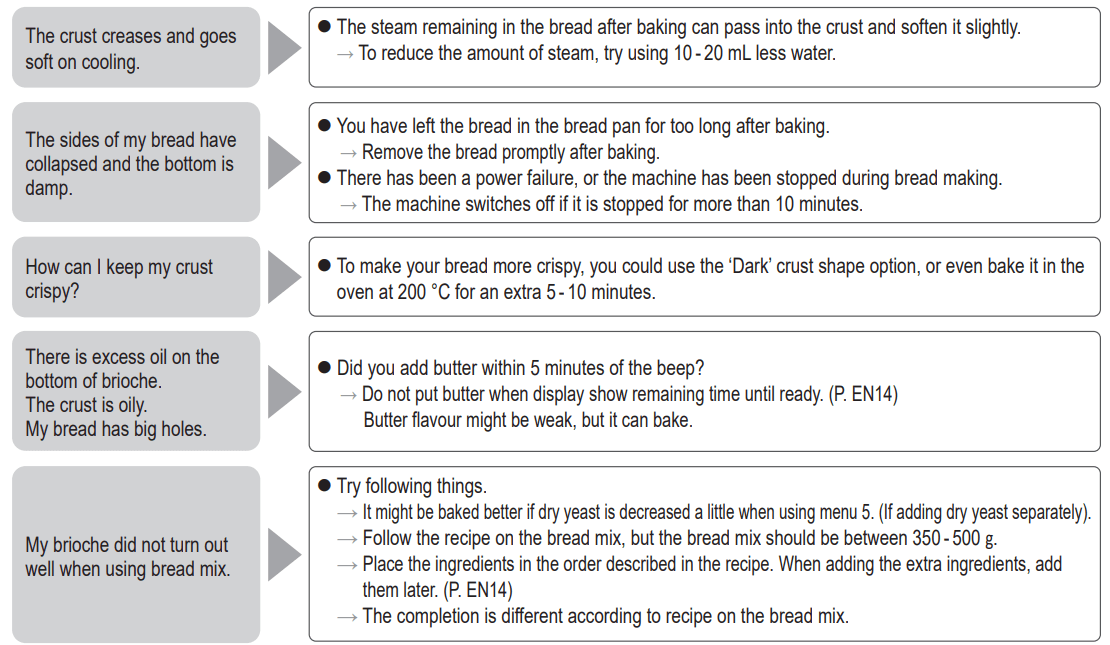

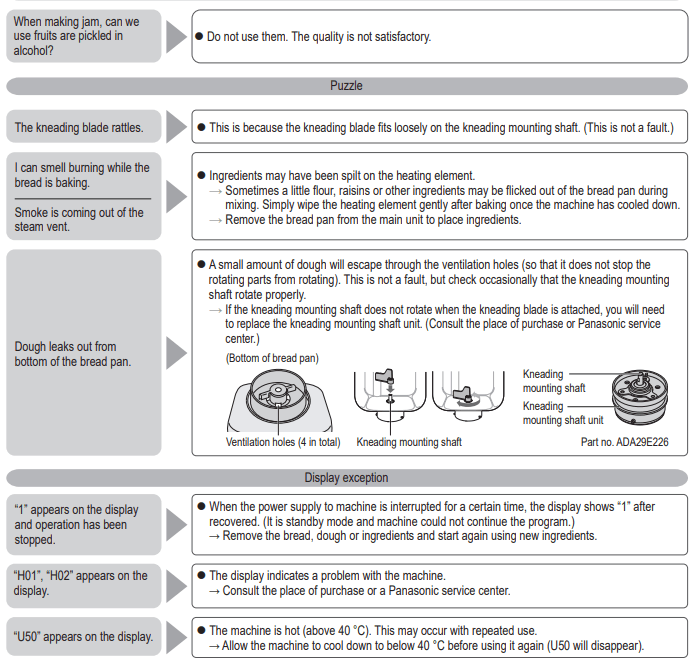

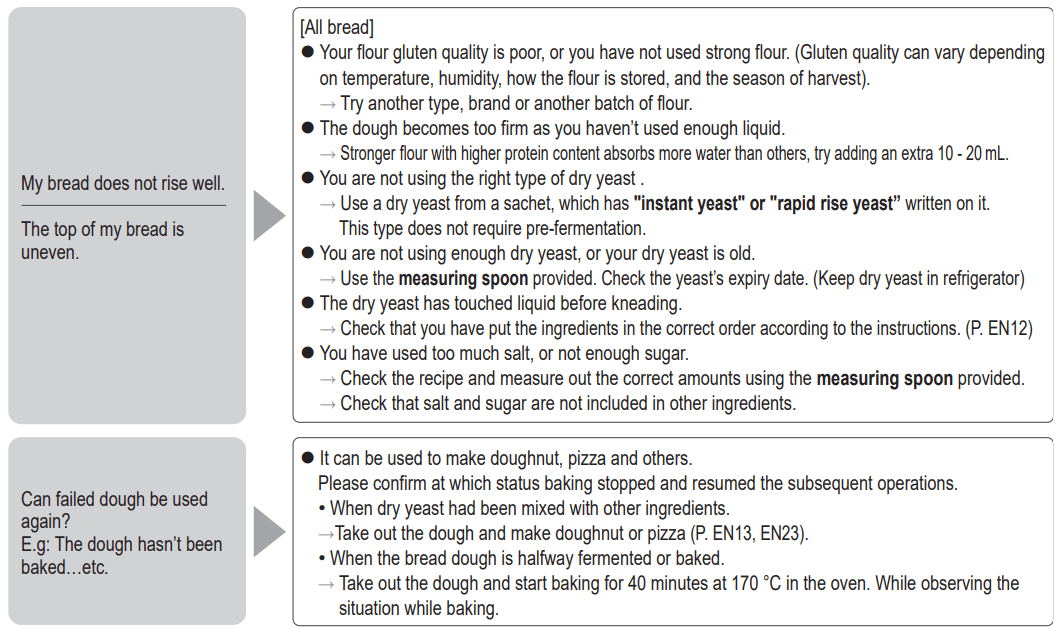

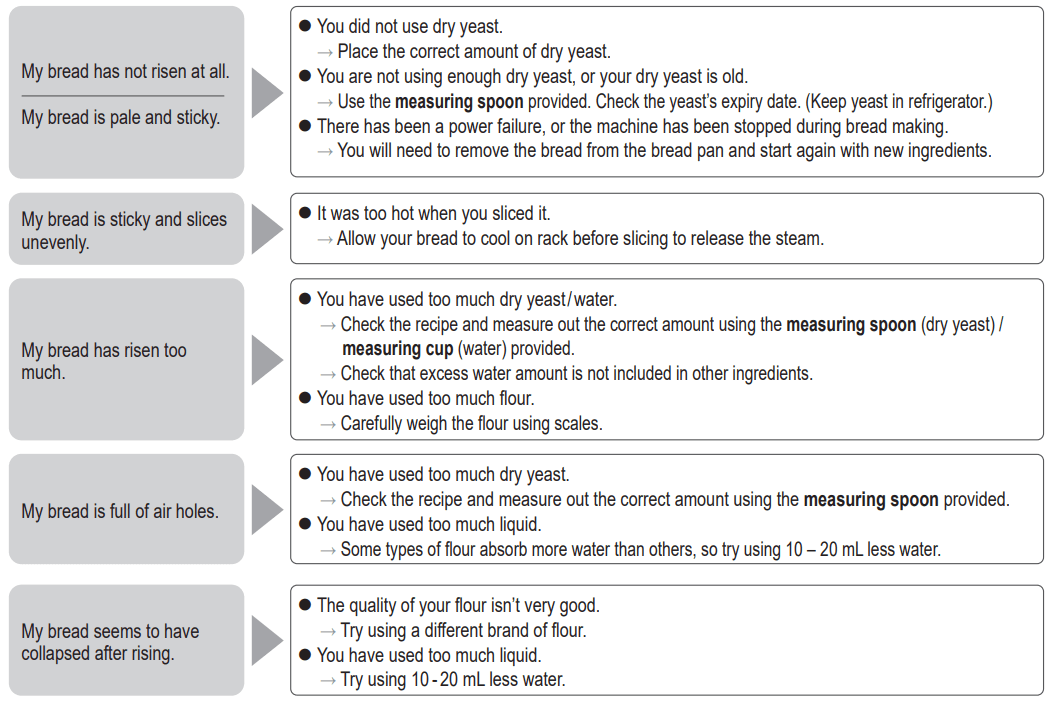

TROUBLESHOOTING

Before calling for service, please check through this section.

Contact Information

For product information and operational assistance:

• In USA contact: Directly Online: shop.panasonic.com/support
• In CANADA, contact: Directly Online: www.panasonic.ca

Additional bread pans and kneading blades can be bought via the following:

• In USA contact: Directly Online: shop.panasonic.com/support
•  In CANADA, contact: Directly Online: www.panasonic.ca

For defective product exchange within the warranty period, please contact the original dealer or our Customer Care Center.

Specifications
