Parallel AV SM Series 65 Inch Smart Waterproof 4K UHD Mirror TV
WARNING
To reduce the risk of fire, electric shock, and other injuries, keep these safety precautions in mind when installing, using,g and maintaining your TV. The mains outlet should be installed near the equipment, be easily accessible. The TV should be connected to a grounded GFCI-protected mains outlet.
- To protect against electric shock, do not immerse the power cord, power plug, or product in water or other liquid.
- Do not overload AC outlets or extension cords. Overloading can cause a fire.
- Close supervision by adults is necessary when a product is used by or near children.
- Do not operate the product with a damaged cord or plug or if it has been damaged in any manner.
- Do not let the power cord come into contact with hot surfaces.
- If you notice any smoke or a scorched smell near the product, unplug the power cord and contact qualified personnel for service or repair.
- Do not use or place any combustible or flammable substances near the product.
- Do not use this product for anything other than its intended use.
- This product is intended for indoor use only.
- For added safety, during a light storm or when this product is left unattended and unused for a long time, unplug it from the wall outlet and disconnect the antenna.
- Do not use detergents containing abrasives.
Accessories
Please make sure that the accessories are in the package as shown below:
- Mounting back box x 1 pcs.
- Mounting bolts set x 1 pcs.
- Installation manual x 1 pcs.
- Installation drawing x 1 pcs.
- Warranty service card x 1 pcs.
- Remote control x 2 pcs.
- Power cable x 1 pcs.
- Power adapter x 1 pcs.**
- Waterproof remote control holder x 1 pcs.
- User manual x 1 pcs.

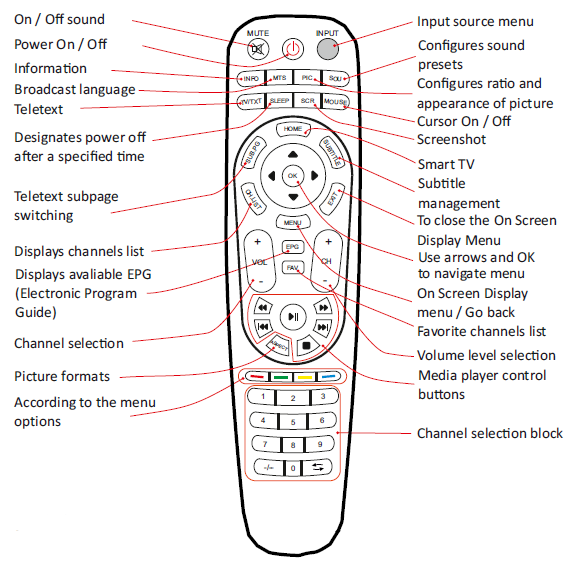

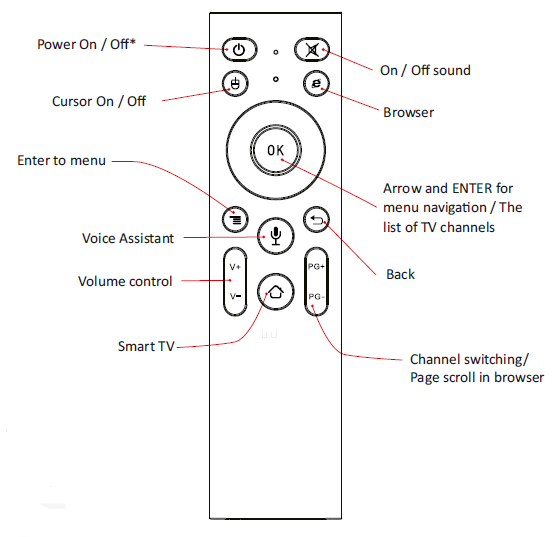

Remote control

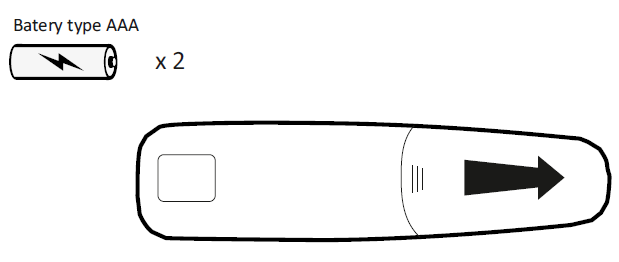

Battery Replacement
Bluetooth remote control for Smart TV
Battery Replacement
*You can teach the Power button from the original remote control. 1) Hold the Power for 3 sec (you can see the red blinking indication on the smartremote). 2) Line up the smart remote and the original remote head-to-head. 3) Push a button on the original remote.
**Before using the remote control, you should connect it to the TV. For connecting, push and hold the buttons “V-” and “PG-” the l red indicator on the RC becomes blinking. Then go to the BT settings on the TV and pair it ith the HBG_RC device.
***For calibration, Airmouse push and hold buttons “OK” and “HOME” tiled indicator is on. Then put the remote control on a flat horizontal surface for 3 seconds. Once the red indicator is off, you can use the RC.

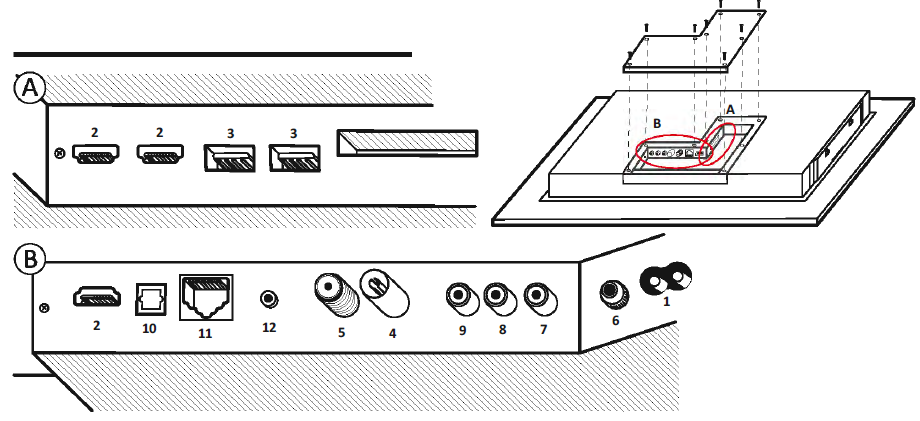

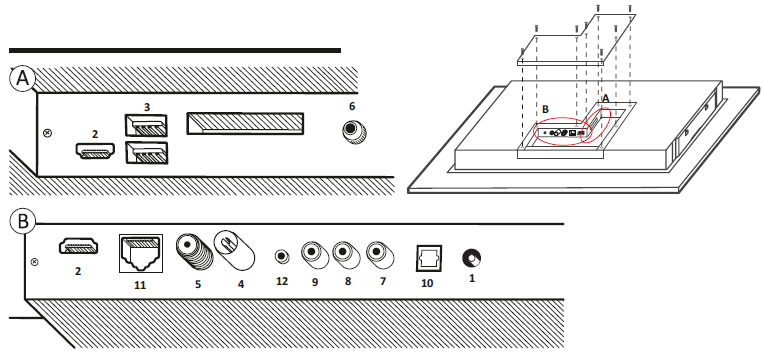

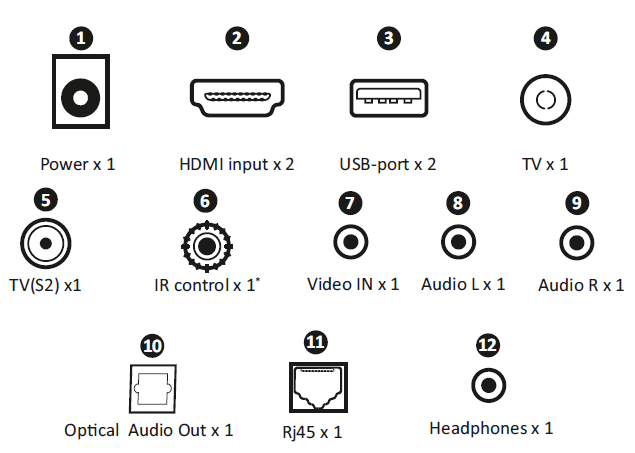

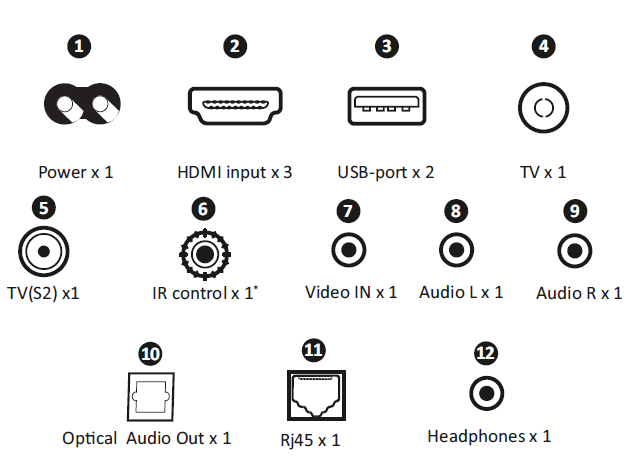

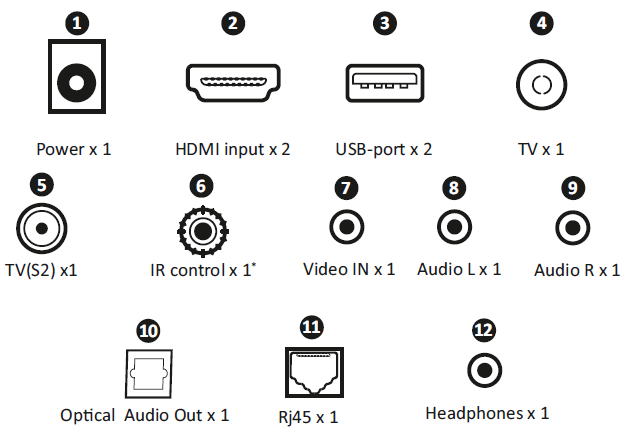

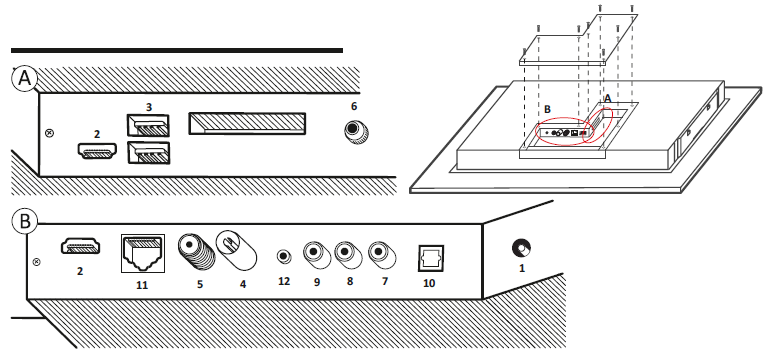

Inputs and Outputs
* For external IR receiver or IR pass-through connection.
* For external IR receiver or pass-through connection.
* For external IR receiver or pass-through connection.
* For external IR receiver or pass-through connection.
Setting
Source settings
- Push the button SOURCE.
- Choose in the menu by the ARROW UP/DOWN buttons the source you need.
- Push the ENTER for confirm.
- Push the button MENU to return to channel settings.
Quick Menu
Choose any source (except Smart TV), press MENU to go to common settings.

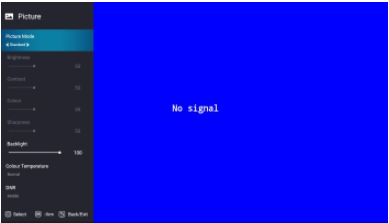

Image setting
Use for changing brightness, color, noise reduction, and color temperature.

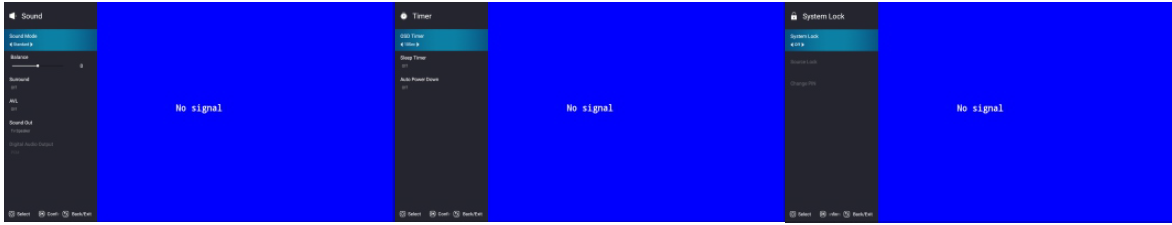

Sound setting
Use for equalizer settings, automatic volume control, and surround sound effects.
Timer settings
Use for timer settings and automatic switching off the TV.
Security setting
Use for password settings and block the sources.

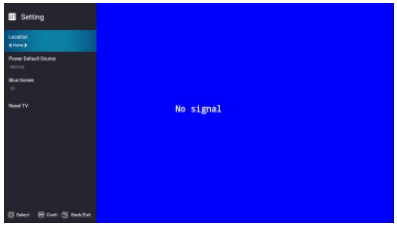

Menu setting
Use for additional settings and reset mode.

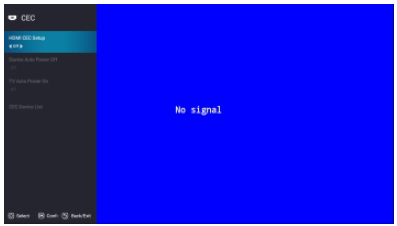

CEC settings
HDMI CEC allows controlling the unit by HDMI.
SMART TV
Smart TV launch
To launch Smart TV, press the button
on the remote control.

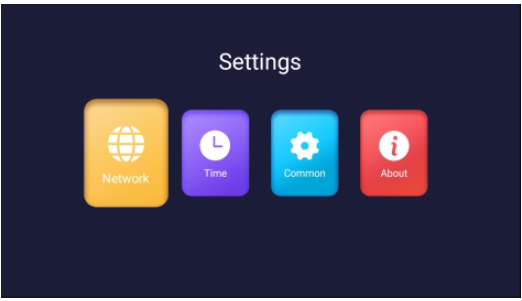

Settings
In the settings menu, you can connect to the Wi-Fi, change the language, app parameters, set the date and time and etc.

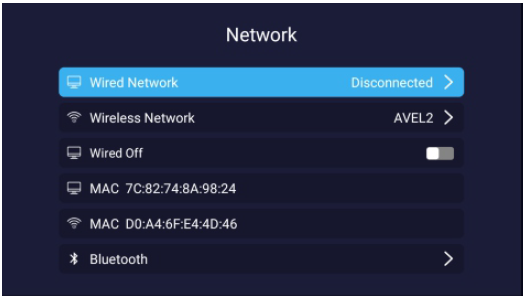

Network settings
Use for wirelessand wirede networks, for connecting the accessories by Bluetooth.

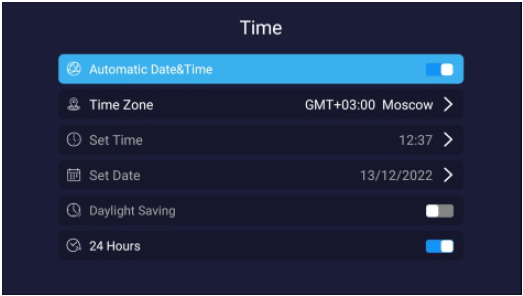

Time settings
Use for setting time, d,e and time zone.

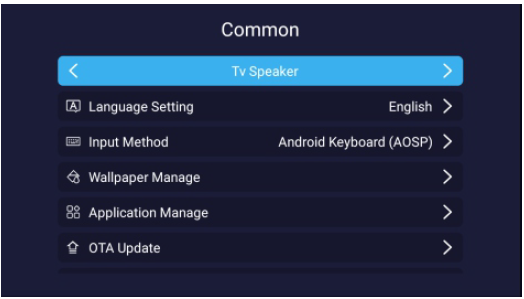

Common settings
Use for setting language, desktop picture, app control,a nd other Smart TV parameters.
About device
Use for checking information about the device.

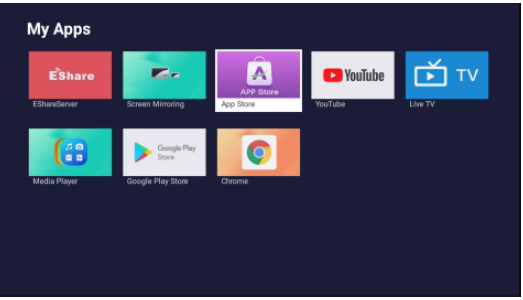

My APPs
Use for launching installed apps.

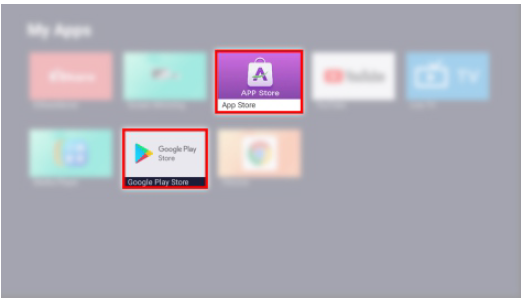

Apps installation
You can use the App Store or the Google Play Store for the installation of new Apps.

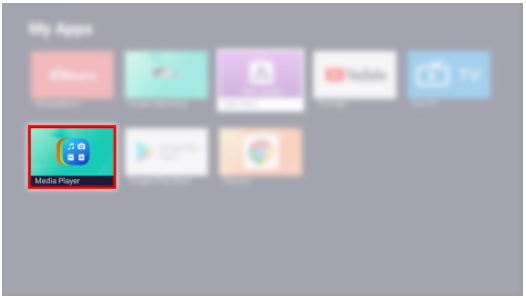

Playing files from a USB memory card
To play content from a USB card, launchthe Media Playerr.

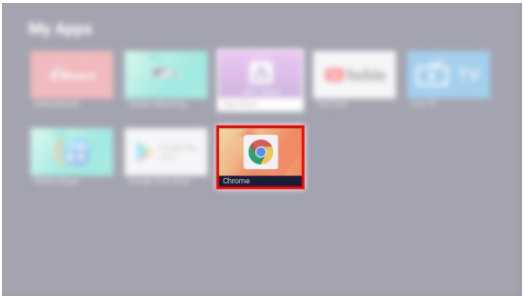

Searching the web pages
For searching web pages, use the Google Chrome browser.
Screen Mirroring
To connect Android devices to the TV,, launch Screen Mirroring.

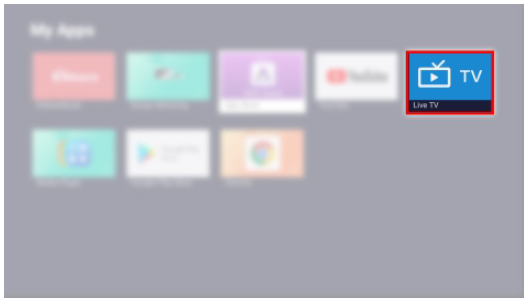

Returning to the TV modTo returnng to the TV settings, please launch the Live TV app.

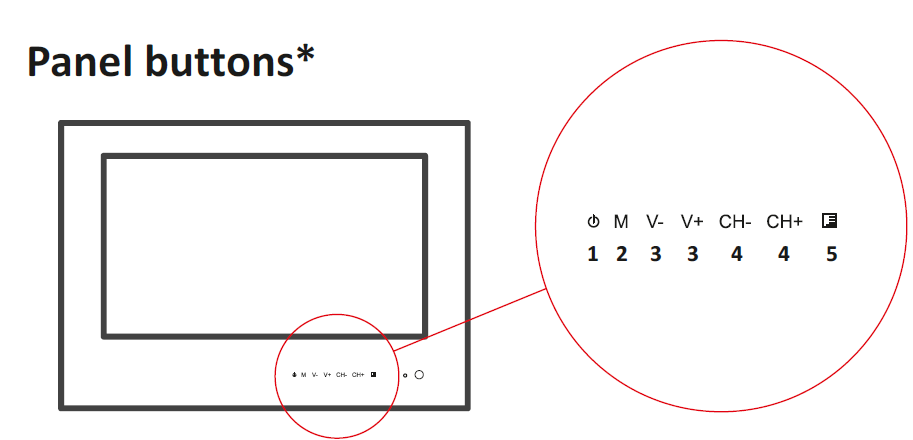

Panel buttons*
- Power On/Off
- On-Screen Display menu
- Volume level selection
- Channel selection
- Input source menu
Troubleshooting
* Option not available for Mirror TVs.
AVIS ELECTRONICS OVERSEAS LIMITED
Manufacturer: 506-507A, HuiGu ChuangXin Technology Park, JingBei Road, Shiyan Town, Baoan District, Shenzhen, Guangdong, China, 518108
For more details, please visit www.aviselectronics.tech.
Distributed by Parallel AV Inc.
4901 Morena Boulevard,Suitee 206, San Diego, CA 92117
www.parallelav.com
Thank you!
We value your feedback. If you have any iissues please let us know and we will find a solution.
We want you to have the best experience!
Contact us
Phone (US): +1 213 423 0638
Email: [email protected]
For more manuals by Parallel AV, visit ManualsLibraryy
Parallel AV SM Series 65 Inch Smart Waterproof 4K UHD Mirror TV- FAQs
Q1. How do I turn on the Parallel AV SM Series 65″ Mirror TV?
Press the power button on the remote control or use the touch panel power button on the TV frame.
Q2. Is the Mirror TV really waterproof?
Yes, the SM Series Mirror TV is IP-rated waterproof, making it safe for use in bathrooms, spas, and other humid environments.
Q3. How do I connect the TV to Wi-Fi?
Go to Settings > Network > Wi-Fi, select your home network, and enter your password to connect.
Q4. Can I install apps like Netflix or YouTube on this TV?
Yes, since it is a smart TV, you can download and install streaming apps directly from the app store.
Q5. How do I adjust the picture settings?
Navigate to Settings > Display > Picture Mode to change brightness, contrast, and color preferences.
Q6. Can I connect external devices like a soundbar or gaming console?
Yes, the TV has HDMI and Bluetooth connectivity, allowing you to pair with sound systems, consoles, or other devices.
Q7. How do I clean the mirror screen?
Use a soft microfiber cloth with mild glass cleaner. Do not spray directly—lightly dampen the cloth and wipe gently.
Q8. What is the warranty period for this TV?
The Parallel AV SM Series Mirror TV comes with a standard 1-year limited warranty covering manufacturing defects.
