Petlibro PLAF107 Space Automatic Smart Pet Feeder
IN THE BOX
Automatic Pet Feeder
User Manual
Stainless Steel Bowl
Power Cable
Bowl Tray
Power Adapter

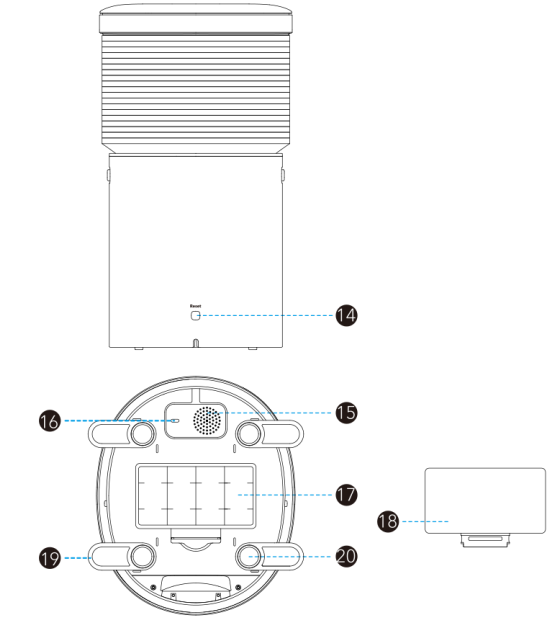

PRODUCT OVERVIEW
- Lid Release Button
- Lid
- Silicone Strip
- Food Tank
- Vane
- Rotor
- Rotor Cover
- Status Indicator
- Food Tank Lock Switch
- Air Pumping Button
- Body
- Stainless Steel Bowl
- Bowl Tray
- Reset Button
- Speaker
- Power Port
- Battery Compartment
- Battery Compartment Cover
- Foot
- Non-slip Pad

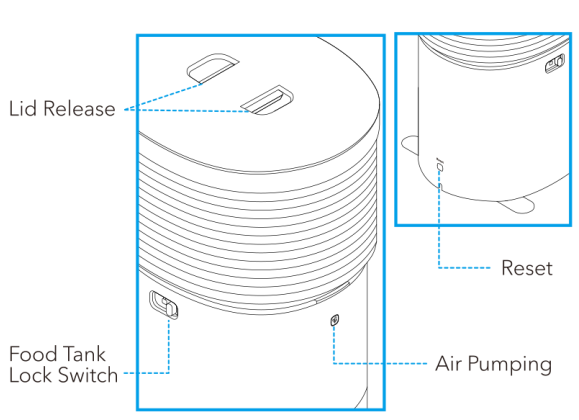

Buttons

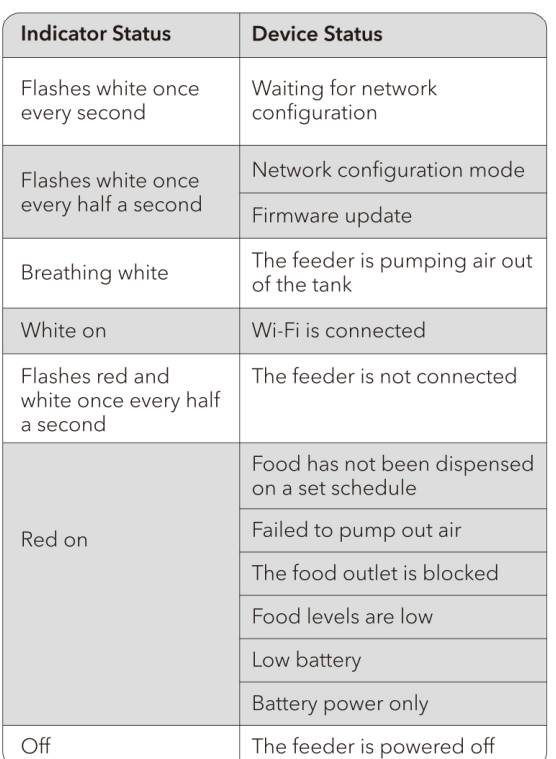

Indicator Status
GETTING STARTED

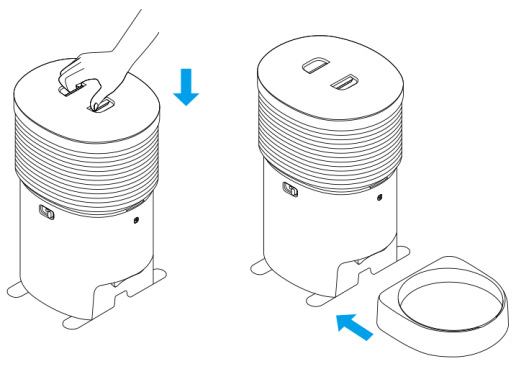

Installation
- Push the button and remove the lid.

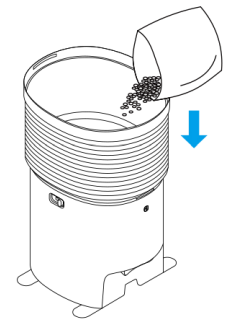

- Add dry pet food to the food tank.
- Replace the lid and push the button to make sure the lid is securely locked.
- Install the stainless steel bowl and bowl tray.

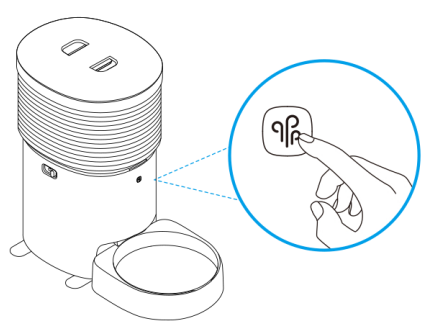

- Press the button to pump air out of the tank.
Notes
- If the lid is not securely locked, the feeder can’t successfully pump air out of the tank.

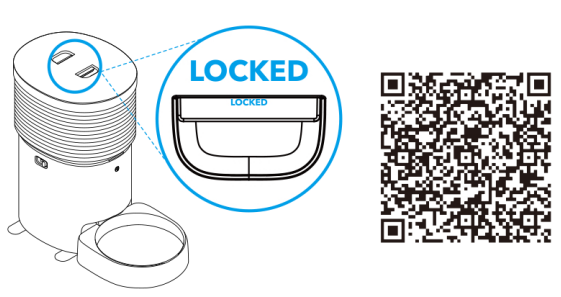

- Please make sure the two “LOCKED” markings on the button are clearly seen without being blocked after installing the lid. If the markings are blocked, manually push the button again.
- Add dry pet food before pressing the button
- After the air in the food tank is pumped out, if you don’t push the button first, you can’t open the lid.

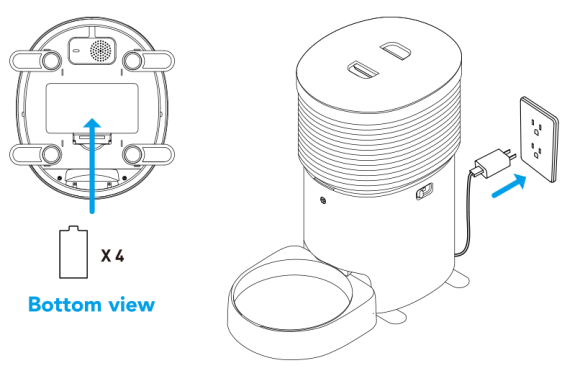

Power on
Install four D alkaline batteries into the battery compartment. And connect the feeder to a wall outlet with the power adapter and power cable.
Power off
Unplug the cable from the outlet and remove the batteries.
Battery Power Mode
In the event of a power outage, the feeder will automatically switch to the Battery Power Mode. To ensure that the feeder can still dispense food on schedule, it’s strongly recommended to install backup batteries.

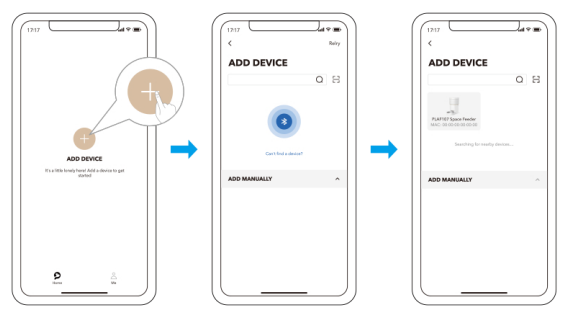

APP CONTROL
- Scan the QR code or search in your device’s app store to download and install the PETLIBRO app.
- Follow the instructions to configure the network.

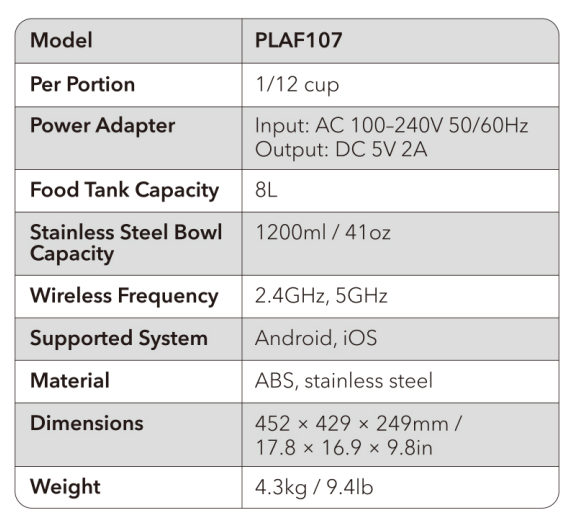

SPECIFICATIONS
SAFETY INSTRUCTIONS
- Use the feeder in a dry place.
- Use the feeder on a level surface.
- Dispose of all packaging materials properly. Some items may be packed in plastic bags; these bags could cause suffocation. Keep them away from children and pets.
- Do not use the feeder with pets that are not able to reach the food bowl or with any physical disability.
- Do not immerse the base part in water at any time, as it may damage electronic components.
- Do not use the feeder outdoors. Check its operation frequently to be sure it is operating properly.
- Do not disassemble the feeder other than as instructed in this user manual.
- Only use accessories recommended or sold by the manufacturer. The use of accessories not recommended or sold by the manufacturer may cause an unsafe condition.
- Do not modify the feeder.
- Examine the feeder after installation. Do not plug in if there is water on the power cable or plug.
- To avoid tripping, always position the power cable out of the way of foot traffic.
- Do not install or store the feeder where it will be exposed to weather or temperatures below 0°C (32°F).
- Do not use the feeder without adding pet food first.
- Power off the feeder when it’s not in use.
