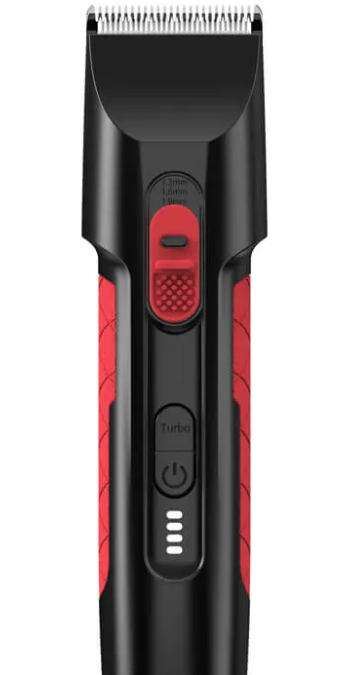

Petwant ECO2 Pet Hair Grooming Trimmer

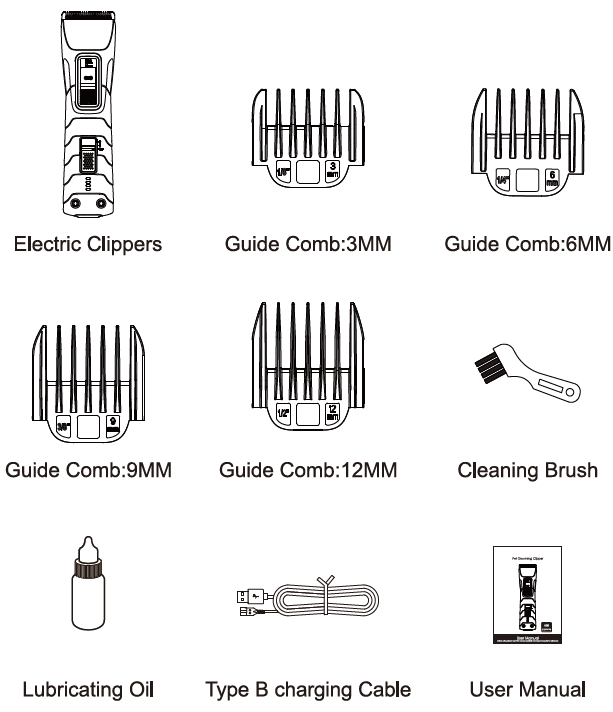

Package Contents

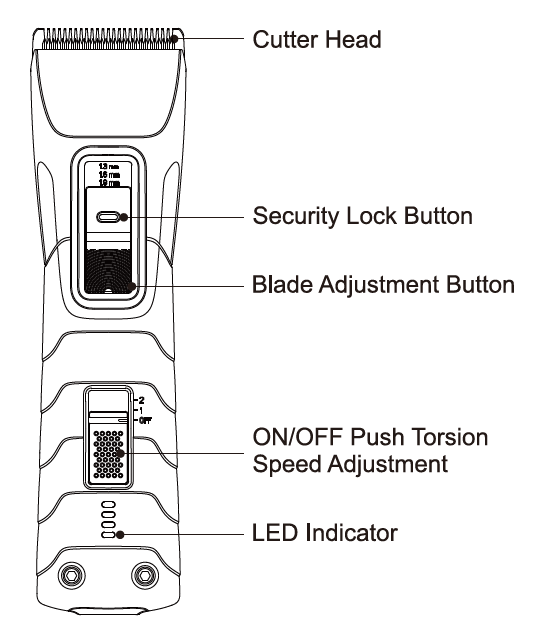

Product Diagram

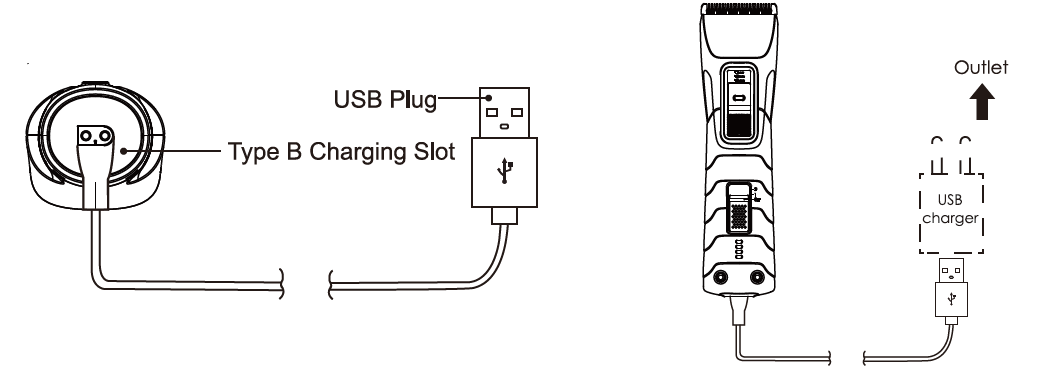

Charging Method
To charge your device, follow these steps:
- Connect your device to the USB cable that comes with it.
- Plug into one of these three power sources:
Wall power outlet
Plug your USB charging cable into a USB power adapter, then plug the adapter into the wall.
Computer
Plug your charging cable into a USB 2.0 or 3.0 port on a computer that’s on and not in sleep mode. Don’t use the USB ports on your keyboard.
Power accessory
Plug your cable into a powered USB hub, docking station, or other Apple-certified accessory.
- Put the connecting plug into the clipper slot.
- Put the adapter into the electrical outlet after confirming the clipper is switched off.

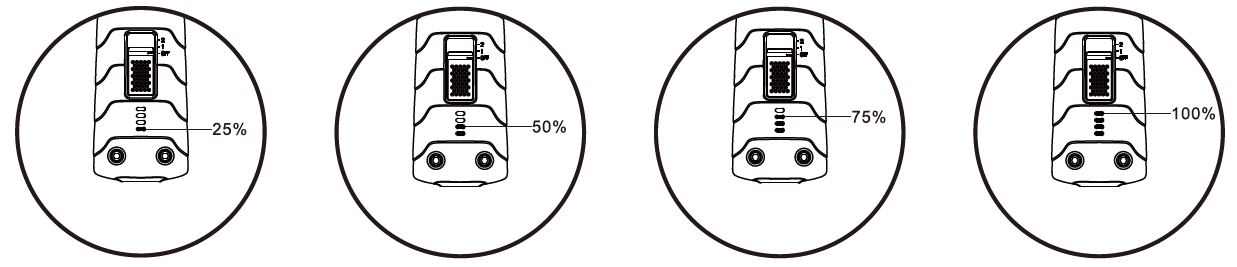

- The indicator lights will light up one by one during charging. When all 4 indicators are on, it means that the product is fully charged.

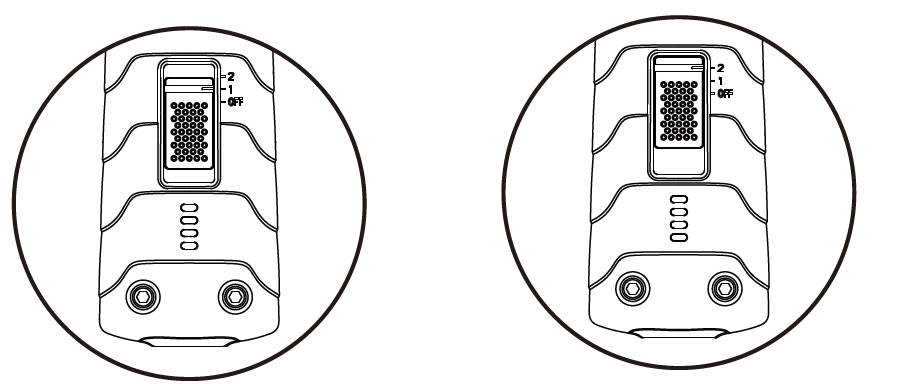

How to turn on/off the clippers
ON/OFF Push Torsion: Push upwards, the machine is turned on to a low speed, and then push the electric scissors upwards to increase the speed. Push down one space to return to low speed, push down one by one to shut down.
How to adjust the cutter head blade length
- Push upward to decrease the cutter head blade length.
- Press and hold the lock key button and then push downward to increase the cutter head blade length.
Note: The cutter head blade adjustment can help you get 4 different hair lengths: 1.0 mm, 1.3mm, 1.6mm, 1.9mm.
How to attach and remove the limit comb
Attach: Hold the electric clipper, buckle the limit comb from top to bottom, and install it in the right place when you hear a chuckle.
Remove: Hold the electric clippers and push out the limit comb from bottom to top.
Note: The guide combs are also designed to accommodate different hair lengths. Choose the long-size guide comb if you want to leave long hair. Choose the short-size guide comb if you want to leave short hair.
How to remove and attach the cutter head

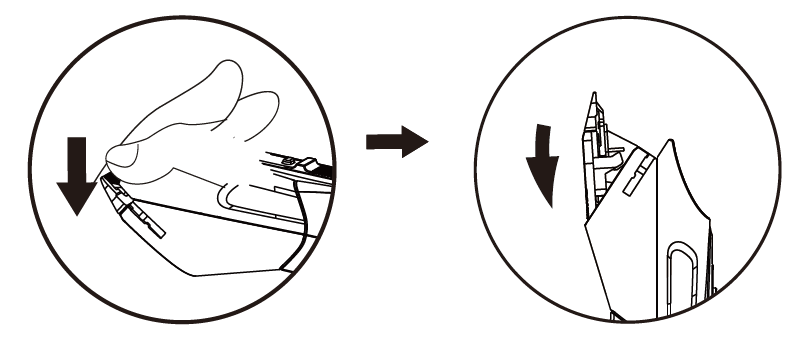

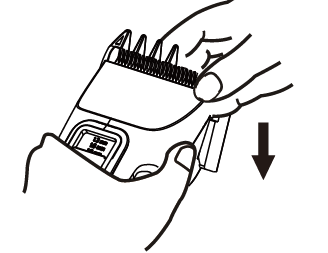

- Remove the cutter head
Use your thumb to press down the edge of the blade to remove the blade.

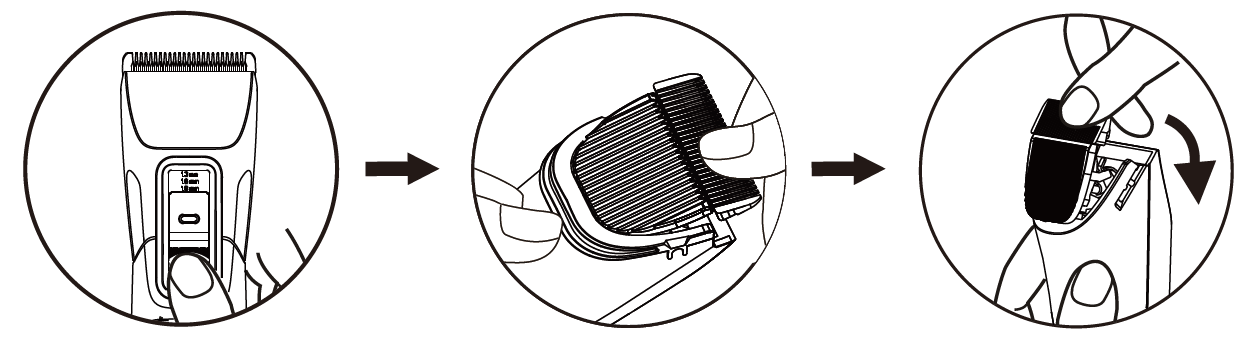

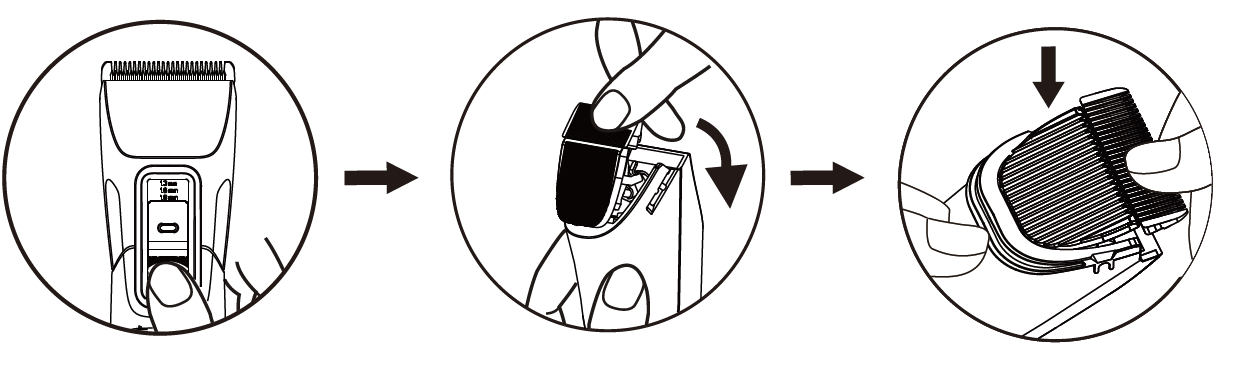

- Attach the cutter head
- Press the lock key down and then push the adjustment button to the lowest position.
- Replace the blade. You will hear a clicking sound when done correctly

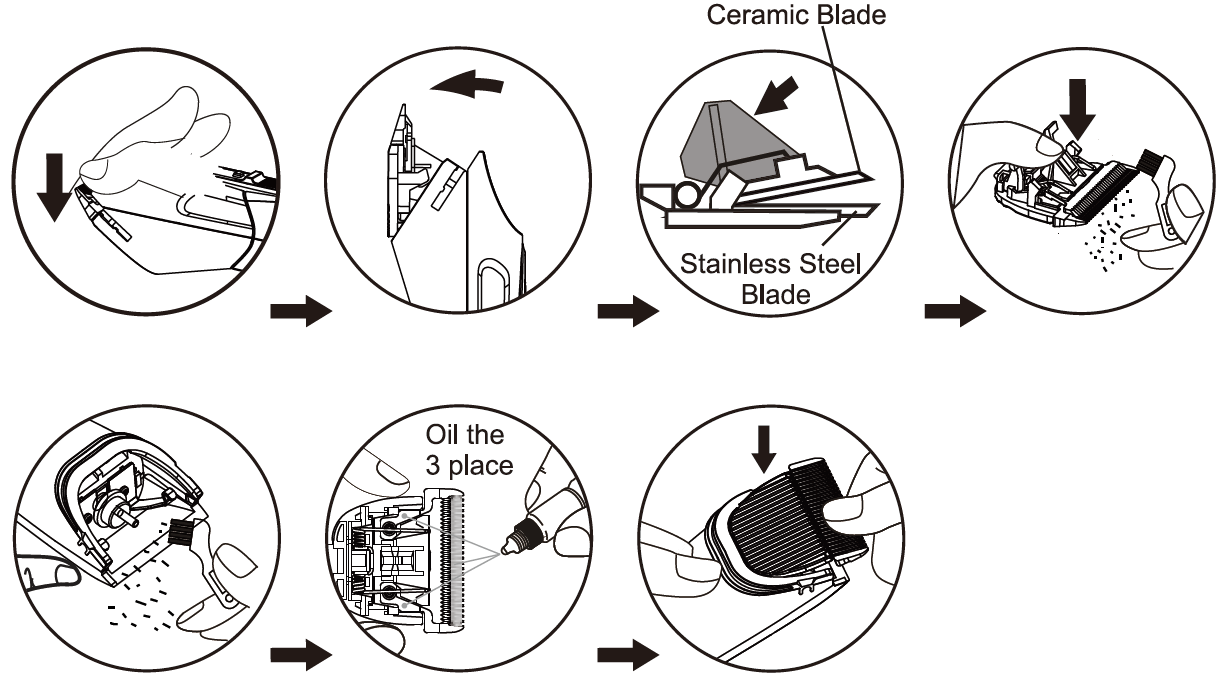

Cutter And Maintenance
- Before removing the blade, make sure you have switched off the clipper. Use your thumb to remove the blade as shown above.
- Use the brush to remove any remaining hair between the upper blade and the lower blade. Please do not take apart the spring of the blade in case it breaks down.
- Use the brush to remove any remaining hair from the clipper.
- After cleaning the blade, add some lubricant between the upper blade and the lower blade. Otherwise, the blade’s edge may go dull, make a weird noise, give out heat, and lower the performance.
- Oiling the clipper blades 3 times before every use and after cleaning can keep the clipper in a good working condition and avoid corrosion.
- Replace the blade. You will hear a clicking sound when done correctly.
Before using the clipper
Familiarising yourself with the clipper
Hold the clipper 4 in your hand to determine the most comfortable grip that will give you the best control for clipping.
CLIPPING TIPS FOR ALL BREEDS OF DOGS
Before clipping your dog for the first time, switch on the clipper for a short time near the animal so ii gets used to the noise. if clipping for the first time, the clipping process will be slow. Try to move with the dog when clipping. After a few grooming sessions, you will develop your own comfortable style, and grooming will get faster. Take your time and use lots of encouragement and affection. Dogs know when you are in a hurry and will get nervous, making grooming more difficult.

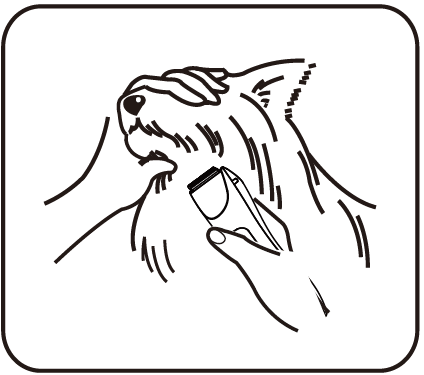

CLIPPING & TRIMMING DOGS
The first time you cut hair, cut only a small amount until you have become accustomed to how long each guide comb leaves the hair. Ensure that you regularly remove trimmed hair from the blades, clean and oil the blades during clipping.
Shave Pets
- Cleaning and drying the dog.
- Use a steel comb to comb the knotted hair.
- Cut the knotted and longer hair.
- Repair with electric clippers.
Questions And Answers
- Q: Can you deal with messy hair?
A: It is recommended to cut the messy, longer, and thicker hair of pets with scissors first and then use electric clippers to trim them. - Q: Will the blade become dull?
A: The cutter head needs to be cleaned regularly with dripping oil, which can reduce the bluntness of the cutter head and increase the service life of the blade. - Q: Is the electric clipper quiet enough?
A: The noise is less than or equal to 65D8. - Q: Is the clipper waterproof?
A: The cutter head part is waterproof and can be cleaned under water. But the body part is not waterproof. Please wipe with a damp towel or cloth instead of washing under water directly. - Q: Is the electric scissors head detachable?
A: Yes, the electric scissors head can be disassembled and installed. Follow the instruction manual to remove and install the cutter head correctly.
Troubleshooting
Q: Why can’t the cutter head be installed back?
A: Please confirm that the adjustment button is at the position of 1.9mm, and the cutter head is installed as shown in the picture. The installation will fail if you do not follow the steps correctly. Please follow the instructions on page 6 to install the cutter head.

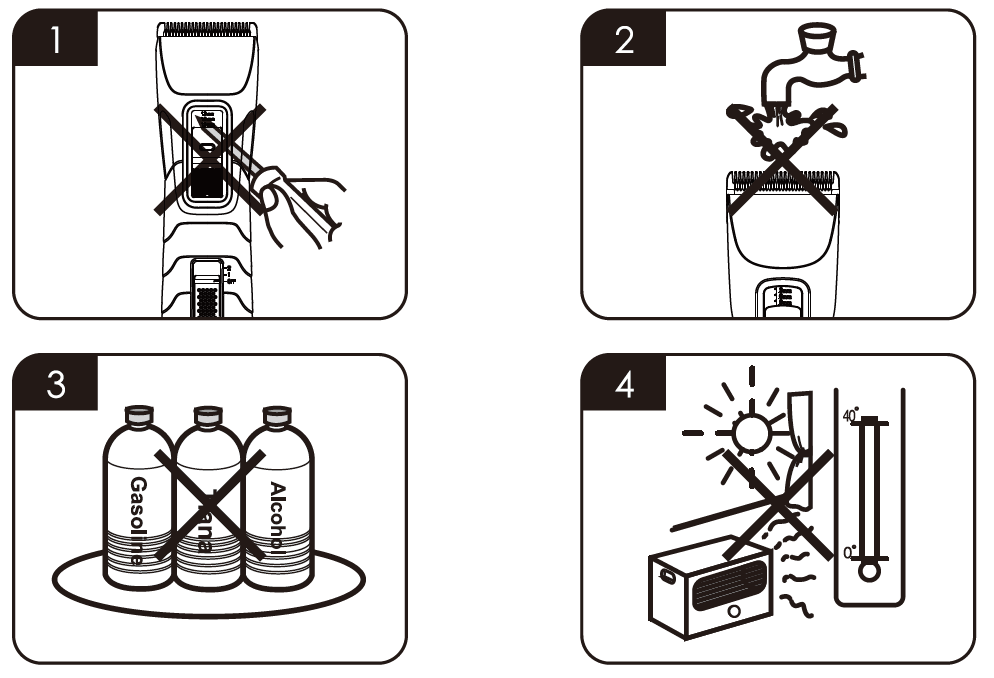

Cautions
- Please do not disassemble the product without authorization.
- Do not use any corrosives such as alcohol, gasoline, etc. to clean the device.
- Avoid charging ii above 40 °C and below 0 °C.
- The first charge should not be less than 3 hours. After 3 to 4 full charge and discharge cycles, the battery capacity will reach its best condition.
- It is normal that the product may slightly heat up during use and charging.
Warranty And Repair Information
If a defect happens during regular operation, users can take the warranty card to enjoy a one-year free warranty at the shop where they purchased it. (Battery warranty period: 6 months, from the date of purchase; cutter heads and accessories are excluded) Charges for the following conditions during the warranty period.
- Defect caused by improper use.
- Defect caused by improper repair and modification
- Defects caused by natural disasters
- Defective and damage caused by man-made collision or falling.
- Defect caused by failure to observe the precautions in this manual.
Please show the warranty card and purchase invoice when this product needs to be repaired.
Not Included In The Warranty
Any second-hand or resold products are not covered under warranty. Any defective products caused by artificial damage will not be replaced, and no refunds will be provided after 7 days from the date of purchase. For equipment purchased from authorized dealers, any replacement or refund within 7 days, please contact the dealer directly. If more than 7 days, please send it to us for repair. We are not responsible for repair and replacement costs caused by improper maintenance by users. If the equipment is changed or an unauthorized person damages the unit while attempting repair work, the warranty is invalid. We reserve the right to find any damaged parts or accessories during replacement and repair.
For more manuals by Petwant, visit ManualsLibraryy
Petwant ECO2 Pet Hair Grooming Trimmer-FAQs
How do I reset the Petwant ECO2 trimmer?
Press and hold the power button for about 5 seconds until you hear a sound. This will restore the trimmer to its factory settings.
How do I assemble the trimmer before first use?
Attach the trimming head firmly, slide on the guide comb (if needed), and ensure the battery is charged before starting.
Why is my trimmer not turning on?
Check if the battery is charged or if the charging cable is properly connected to a working power outlet. Try using another device in the same outlet to confirm power.
How often should I groom my pet with this trimmer?
For most pets, trimming every 2–4 weeks is enough. However, pets with fast-growing or thick coats may need more frequent grooming.
Can this trimmer be used on both dogs and cats?
Yes, the ECO2 is designed for safe use on both dogs and cats with different coat types.
Can I wash the blades of the trimmer?
Yes, the blades are detachable and washable. Make sure to dry them completely before reattaching to avoid rusting.
How do I know when the trimmer needs charging?
The indicator light will flash or turn red when the battery is low. Charge fully before next use.
What should I do if the trimmer pulls hair instead of cutting smoothly?
This usually means the blades need cleaning or oiling. Remove fur buildup, wash and dry the blades, then apply a drop of blade oil.
