Philips Avent Bottle Warmer User Manual

Philips Avent Bottle Warmer

Important

Read this user manual carefully before you use the bottle warmer and save it for future reference.

Danger

• Do not immerse the cord, plug or appliance in water or other liquid.

Warning

• Only use the appliance indoors.
• Do not let the mains cord hang over the edge of a table or worktop. Excess cord can be stored in the base of the bottle warmer.
• Keep the mains cord away from hot surfaces.
• Only connect the appliance to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.
• Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
• If you need to use an extension cord, make sure it is an earthed extension cord with a rating of at least 13 amperes.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Do not place the appliance on or near a hot gas or electric cooker, or in a heated oven.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children.
• This appliance can be used by children aged from 3 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 3 years.
• Children shall not play with the appliance.
• Do not spill water on the mains plug.
• Only use the appliance as described in the user manual to avoid potential injury due to misuse.
• Do not preheat the appliance.
• Always place a fully assembled bottle with cap in the bottle warmer before you add water.
• Make sure you add water before you switch on the bottle warmer.
• Hot water can cause serious burns. Be careful when the bottle warmer contains hot water.
• The accessible surfaces of the appliance may become hot during use and are subject to residual heat after use.
• Do not move the appliance when it contains hot water.
• When the food or milk has reached the required temperature, remove the bottle or container from the bottle warmer. If you leave food or milk in the bottle warmer, the temperature of the food or milk increases.
• Always check the food temperature before you feed your child. Gently swirl the bottle and check by sprinkling a few drops on the inside of your wrist.

Caution

• This appliance is intended to be used in household and similar applications such as farm houses, bed and breakfast type environments, staff kitchen areas in shops, offices and other working environments, and by clients in hotels, motels and other residential type environments.
• Unplug the appliance when it is not in use.
• The surface of the heating element is subject to residual heat after use.
• Let the appliance cool down before you clean it.
• Follow the descaling instructions to avoid irreparable damage.
• Do not try to open or repair the appliance yourself. You can contact the Philips Consumer Care Center in your country (see www.philips.com/support).
• The food should not be heated for too long. The production date code YYWW is located in the cord storage compartment in the base of the bottle warmer.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Introduction

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your product at www.philips.com/welcome. With this bottle warmer, you can safely warm all Philips Avent feeding bottles and milk/baby food in containers and other baby food jars.

Note: Philips Avent breast milk bags and Philips Avent 60 ml bottles cannot be used in this bottle warmer.

Using the bottle warmer

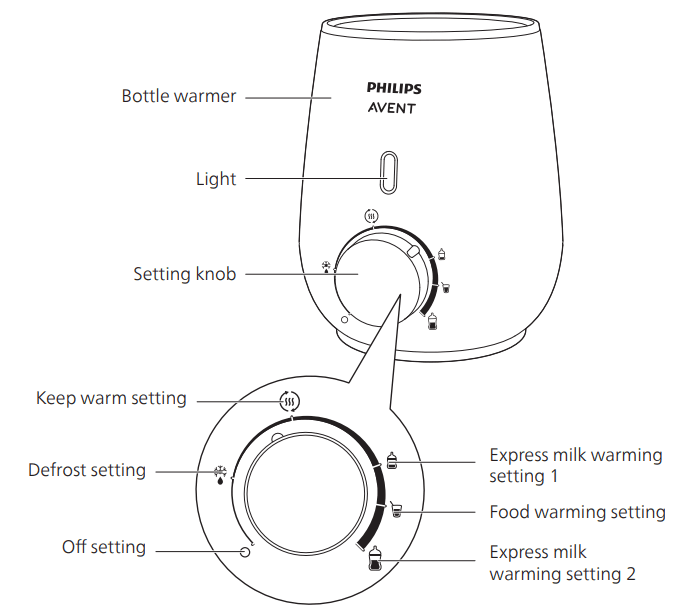

Product overview

Explanation of settings

	The bottle warmer is switched off and the light is off. In every other setting, the appliance is switched on and the light is lit.
	Select this setting when you want to quickly warm a bottle of milk at room temperature (22 °C) with a content from 60 ml to 330 ml or at cold temperature (5 °C) with a content from 60 ml to 240 ml. The bottle has to be taken out immediately after warming to the right temperature, otherwise, the milk will be overheated.
	Select this setting when you want to quickly warm a bottle of milk at a cold temperature (5° C) with a content from 270 ml to 330 ml. The bottle has to be taken out immediately after warming to the right temperature, otherwise, the milk will be overheated.
	Select this setting when you want to warm a container/jar of baby food.
	This setting warms milk at a slower speed and then keeps it warm.
	Defrost a bottle/container of milk/baby food to a liquid state. No Warming occurs.

Using the bottle warmer with the express milk warming setting

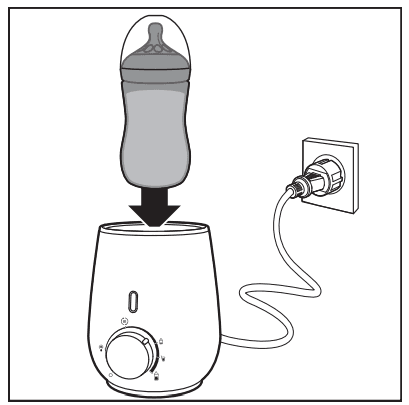

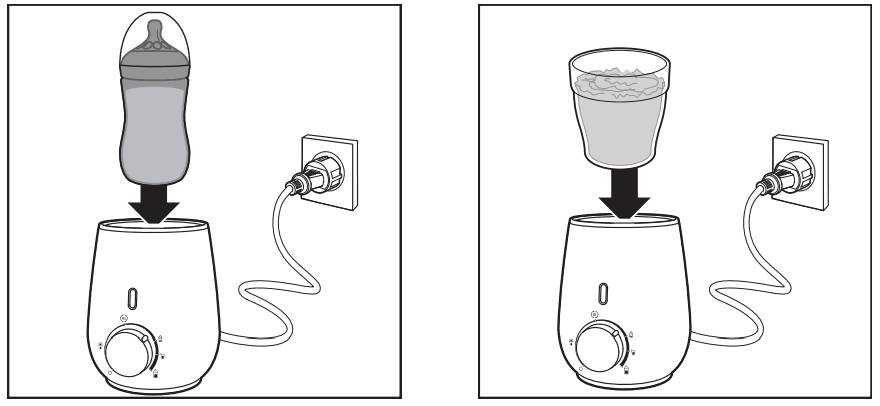

1. Put the mains plug in the wall socket. Place a bottle in the bottle warmer.

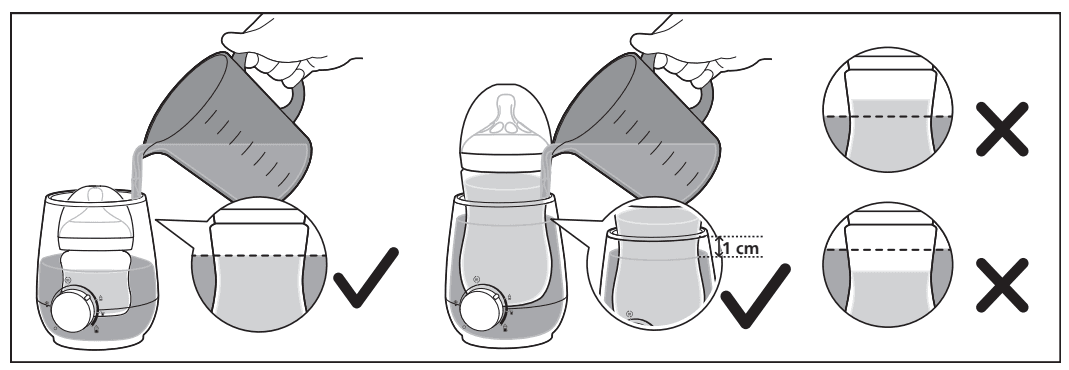

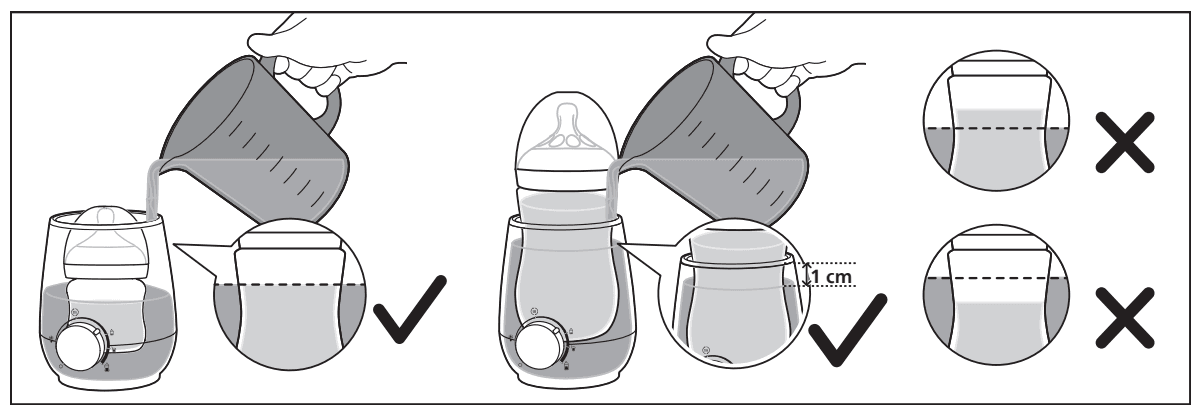

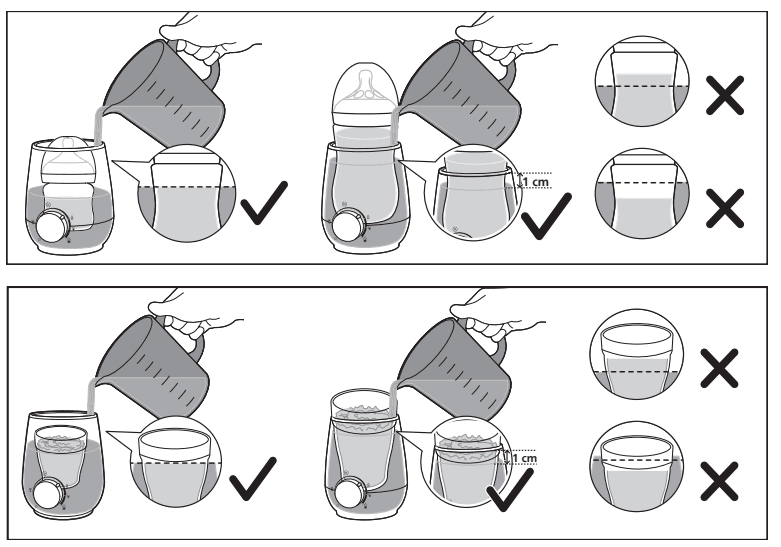

2. Fill the bottle warmer with drinking water up to the level of the milk in the bottle. In case of large amounts of milk, the maximum level of water is approximately 1 cm below the top of the bottle warmer. An accurate water level ensures correct warming performance.

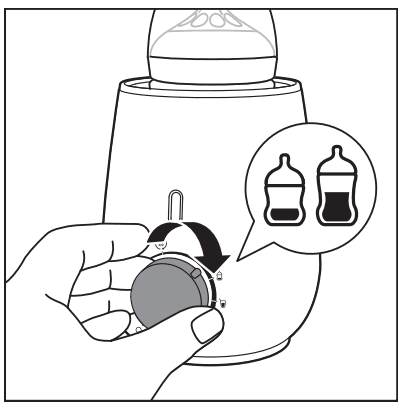

3. Select the desired setting based on the milk volume. See the express warming reference table at the end of this chapter to check how long the milk needs to be warmed in the selected setting.

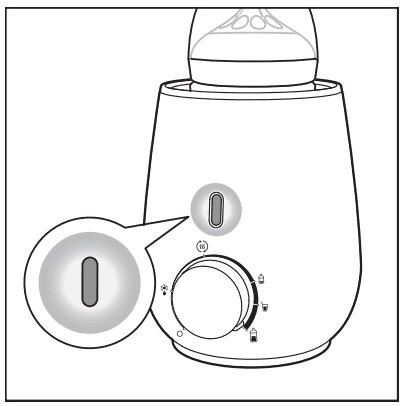

4. The orange light goes on when you select a setting. This indicates that the bottle warmer is on.

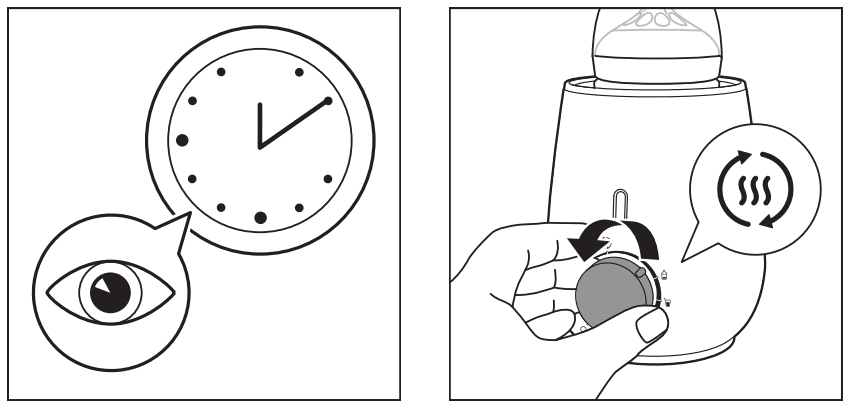

5. Check the express warming reference table for the time required to warm the milk. After the time indicated in the express warming reference table has passed, remove the bottle for feeding or turn the knob to “Keep Warm” to keep milk warm at the right temperature.

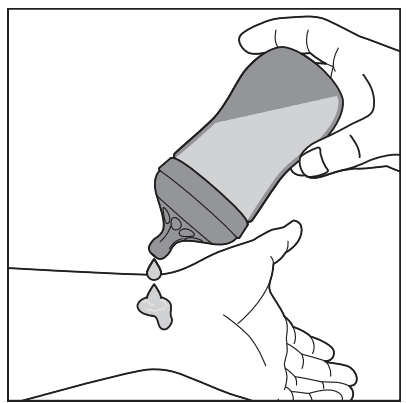

6. Always check the temperature before you feed your baby. Gently shake the bottle or milk storage container and check the temperature of the milk by sprinkling a few drops on the inside of your wrist.

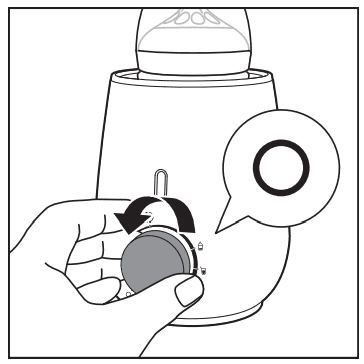

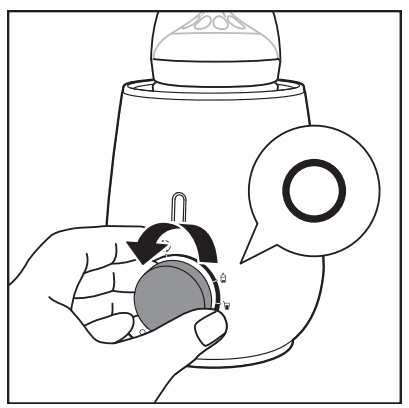

7. Turn the knob back to the ‘off’ position.

Express a warming reference table

ml
	22°C	5°C	5°C
60 – <150 ml	2 – 3 min	5 – 6 min	–
150 – <210 ml	3 – 4min	6 – 7 min	–
210 – <270 ml	4 – 5min	7 – 9 min	–
270 – 330 ml	5 – 6 min	–	8 – 10 min

Using the bottle warmer to warm baby food

1. Follow the same steps as indicated in the previous chapter.

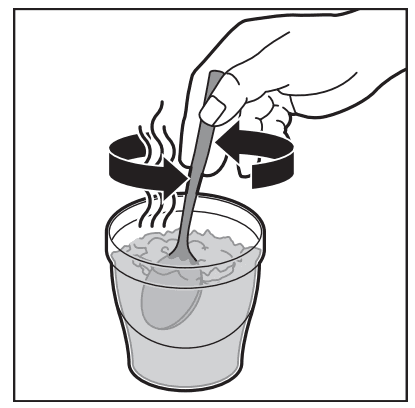

2. Make sure to stir the baby food during warming as it does not circulate automatically. Be careful not to burn your fingers when holding the container/jar while stirring.After warming test the baby food with a spoon to ensure it is not too hot. If the baby food is not warm enough, put the container back into the bottle warmer and warm the baby food until it has the desired temperature.

Using the keep warm setting to warm milk

1. Put the mains plug in the wall socket. Place the bottle or container in the bottle warmer.

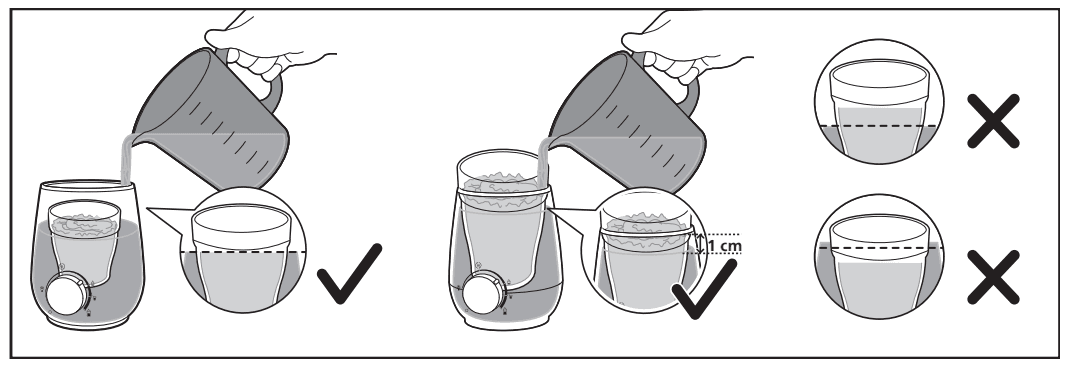

2. Fill the bottle warmer with drinking water up to the level of the milk in the bottle/container. In case of large amounts of milk, the maximum level of water is approximately 1 cm below the top of the bottle warmer.

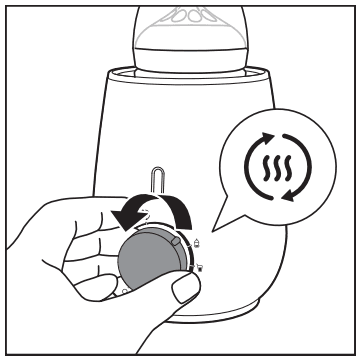

3. Select the position of keep warm.At this setting, you can warm your milk at a slow pace and keep it warm at the right end temperature. E.g., to warm a bottle of 120 ml milk starting from room temperature, it will take 15-20 minutes. The warming time may be longer or shorter depending on the milk volumes and starting temperature.
4. Turn the knob back to the ‘off’ position when the bottle/container is removed from the bottle warmer.

Using the bottle warmer with defrost setting

1. Put the appliance plug in the wall outlet. Place the bottle or container in the bottle warmer.
2. Fill the bottle warmer with drinking water up to the level of the milk/baby food in the bottle/container. In case of large amounts of milk/baby food, the maximum level of water is approximately 1 cm below the top of the bottle warmer.

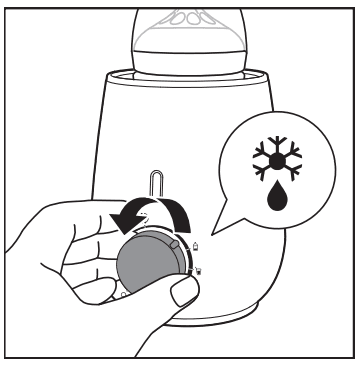

3. Select the position of defrost.At this setting, your frozen milk/baby food can be defrosted to a liquid state. For frozen milk, check the warming reference table for the expected defrost timings. After your milk is defrosted, choose the express warming setting or the keep warm setting to warm your milk. Please refer to the previous chapters for usage instructions. Consider the start temperature of your milk around fridge temperature for the warming timings as a rough guideline.


   	ml	hours
   	60 – 90 ml	1-1�5
   	120 – 150 ml	1�5-2
   	180 – 210 ml	1�5-2�5

4. You may also defrost baby food in the Philips Avent food container with this setting. After your baby food is defrosted, choose the food warming setting to warm it. Please refer to the previous chapter for usage instructions.

Cleaning and descaling

Cleaning

1. After each use, unplug the bottle warmer and let it cool down.
2. Remove the water from the bottle warmer for hygienic reasons.

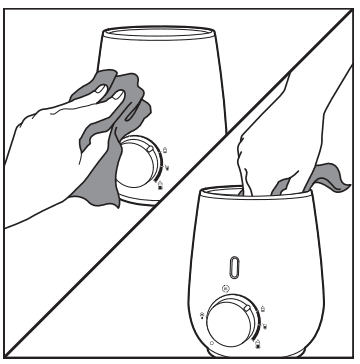

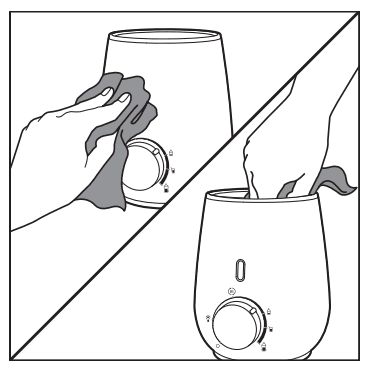

3. Wipe the outside and inside of the bottle warmer with a moist cloth.
   • Do not use abrasive, antibacterial cleaning agents, chemical solvents or sharp tools to clean the bottle warmer.

Descaling

It is recommended to descale the bottle warmer every four weeks to ensure it works efficiently.

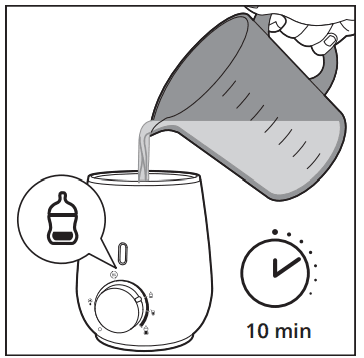

1. Mix 50 ml of white vinegar with 100 ml of cold water to descale the bottle warmer. Switch on the bottle warmer, select the express milk warming setting 1 and let the appliance operate for 10 minutes. Leave the solution in the bottle warmer until all scale has dissolved.

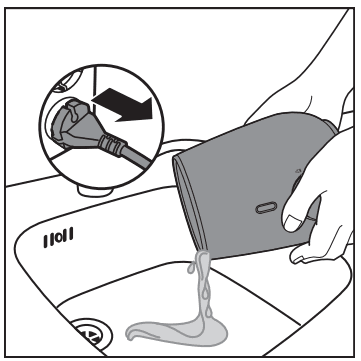

2. Unplug the bottle warmer before you empty it.

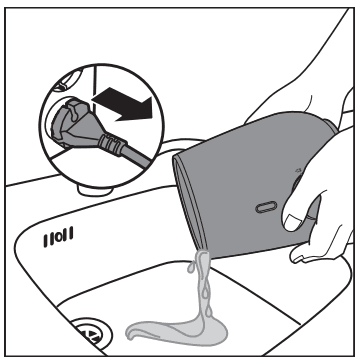

3. Empty the bottle warmer and rinse its inside thoroughly. If you still see traces of scale after rinsing, repeat the descaling procedure.

Recycling

This symbol means that electrical products shall not be disposed of with normal household waste. Follow your country’s rules for the separate collection of electrical products.

Support

For all product support, such as frequently asked questions, please visit www.philips.com/support.

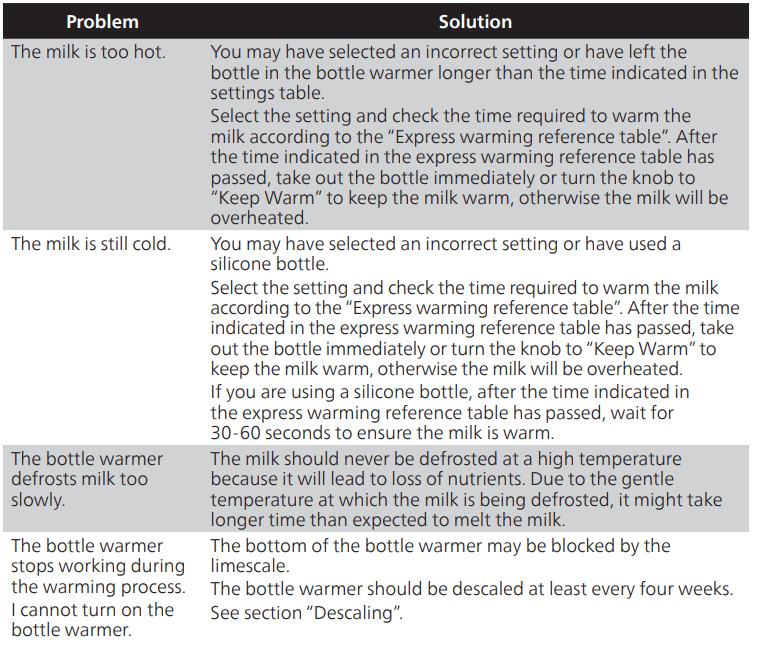

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to resolve the problem with the information below, contact the Consumer Care Center in your country.
