Philips HD9650 Series Premium Airfryer XXL User Manual

Philips HD9650 Series Premium Airfryer XXL

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse the cord, plugs, or appliance in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children or invalids. Children should be supervised by a responsible person to ensure they do not play with the appliance.
5. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. For assistance in the U.S. and Canada only, call 1-866-309-8817.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not block any ventilation openings. Install according to the manufacturer’s instructions.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Plug the cord into the wall outlet. To disconnect, turn the power On/Off button to “Off”, then remove the plug from the wall outlet.
14. Do not use the appliance for anything other than its intended use.
15. Use extreme caution when removing the pan, fat reducer, or basket and disposing of hot grease.
16. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
17. Use only on a properly grounded outlet.
18. A short power supply (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
19. Extension cords may be used if care is exercised in their use. If an extension cord is used:
    • The marked electrical rating of the cord must be as great as the rating of the appliance.
    • The cord should be arranged so that it will not drape over the edge of the counter or tabletop where it could be pulled by children or tripped over unintentionally.
    • If the appliance is of grounded type, the extension cord should be a grounded-type 3-wire cord.
20. Oversized foods or oversized metal utensils must not be inserted into the appliance as they may create a fire or risk of electric shock.
21. A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
22. Do not place any of the following materials in the appliance: paper, cardboard, non-heat-resistant plastic, and the like.
23. If you are using baking or parchment paper to avoid food from sticking to the mesh basket, never put the paper in without placing the food you are cooking on top of the paper. Otherwise, the lightweight baking paper could be lifted by the air ventilation and touch the heater.
24. Immediately unplug the appliance if you see dark smoke coming out of it. Wait for the smoke emission to stop before pulling the pan out of the appliance.
25. Use on a flat, stable, heat-resistant surface away from water or any heat source.
26. Do not leave the appliance unattended while it is operating.
27. This appliance operates at high temperatures, which may cause burns. Do not touch hot surfaces, parts, or the inside of the appliance while it is operating. Let the appliance cool down completely before you handle or clean it.
28. During hot air frying, hot steam is released through the hot air outlet openings. Keep your hands and face away from the steam and air outlet openings.
29. Avoid contact with moving parts.
30. This appliance works with hot air only; food is not fried in oil or fat! Never fill the pan with fat or oil.
31. This product is for household use only.
32. Never use the air fryer without the pan, basket, or fat reducer in place.
33. Do not use the plug in or near a power outlet that contains an electric air freshener to prevent damage to the plug.
34. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, posing a risk of electric shock.
35. Do not store any materials, other than the manufacturer’s recommended accessories, in this oven (Airfryer) when not in use.

SAVE THESE INSTRUCTIONS

Consuming raw or undercooked meats, poultry, seafood, shellfish, or eggs may increase your risk of foodborne illness.

Make sure ingredients prepared in this appliance come out golden-yellow instead of dark brown.

Remove burnt remnants. For the best results, do not fry fresh potatoes at a temperature above 180°C/350°F or beyond golden-yellow.

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Philips Airfryer XXL uses hot air to fry your favorite food with little or no added oil. It is built to fry as crispy as deep fried with an minimum amount of fat.
By combining a powerful heater and motor with new Twin TurboStar technology, the hot air in the Airfryer XXL swirls fast, like a tornado, throughout the entire cooking basket. This extracts fat from food and captures it all in the fat reducer at the bottom of the Airfryer.
Fat released from the food is captured in one place at the bottom of the pan for easy disposal and cleaning.
You can now enjoy perfectly cooked fried food – crispy on the outside, tender on the inside – Fry, grill, roast, and bake to prepare a variety of tasty dishes in a healthy, fast, and easy way.

For more inspiration, recipes, and information about the Airfryer, visit www.philips.com/kitchen or download the free Airfryer App for IOS® or Android™.

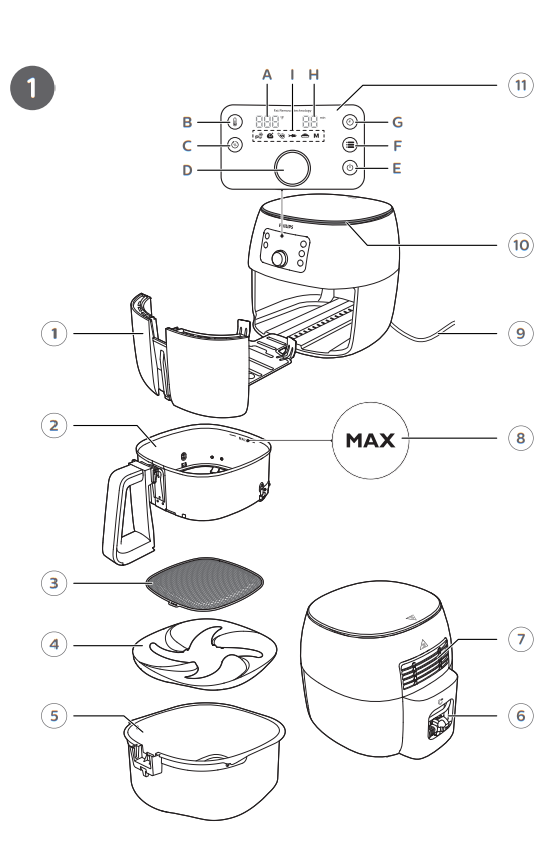

General description (Fig. 1)

1. Drawer
2. Basket with removable mesh bottom
3. Removable mesh bottom
4. Fat reducer
5. Pan
6. Cord storage compartment
7. Air outlets
8. MAX indication
9. Power cord
10. Air inlet
11. Control panel
    • A. Temperature indication
    • B. Temperature button
    • C. Keep warm button
    • D. QuickControl dial
    • E. Power On/Off button
    • F. Preset button
    • G. Timer button
    • H. Time indication
    • I Presets: French fries/frozen snacks, chicken, meat, fish, baki, ng, and man.ual

Before first use

1. Remove all packing material.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the appliance before first use (see chapter ‘Cleaning”).

Preparing for use

Placing the removable mesh bottom and fat reducer

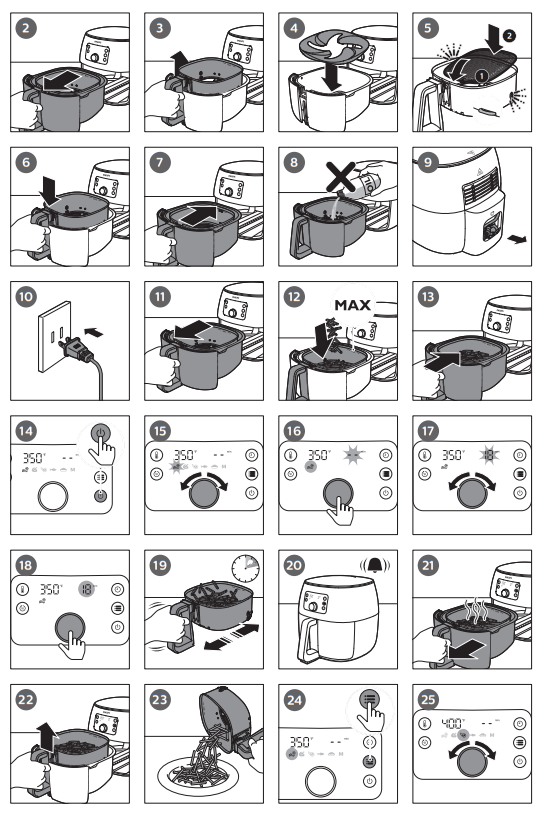

1. Open the drawer by pulling the handle. (Fig. 2)
2. Remove the basket by lifting the handle. (Fig. 3)
3. Place the fat reducer into the pan. (Fig. 4)
4. Insert the removable mesh bottom into the slot on the right bottom side of the basket. Push the mesh bottom down until it locks into position (“click” on both sides). (Fig. 5)
5. Put the basket in the pan. (Fig. 6)
6. Slide the drawer back into the Airfryer by the handle. (Fig. 7)

Note

Never use the pan without the fat reducer and the basket in it.

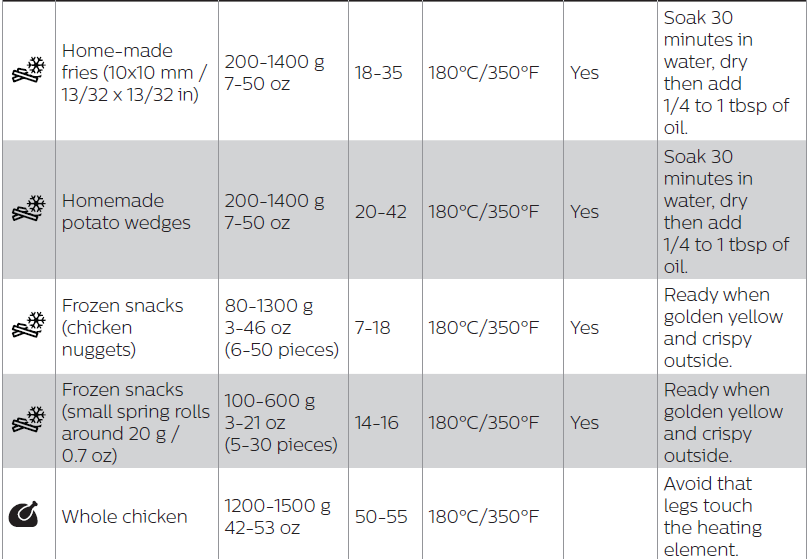

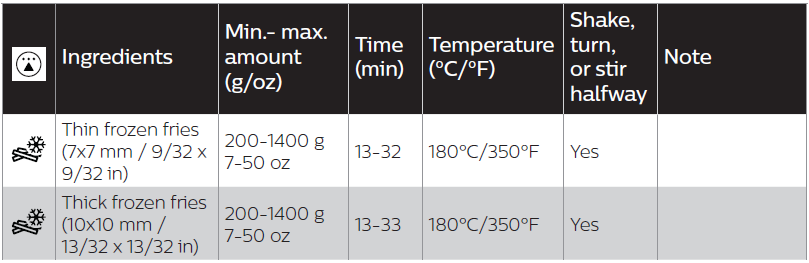

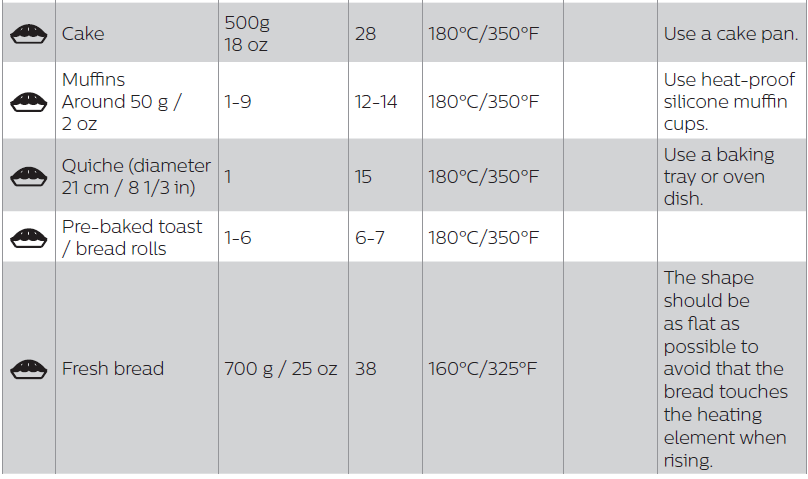

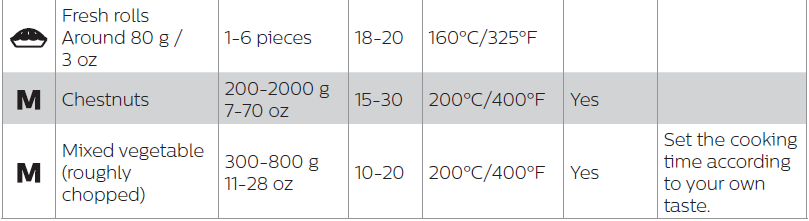

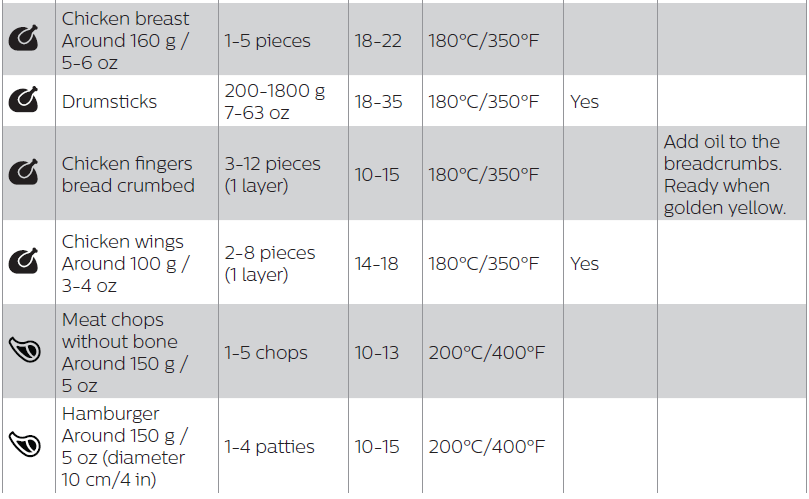

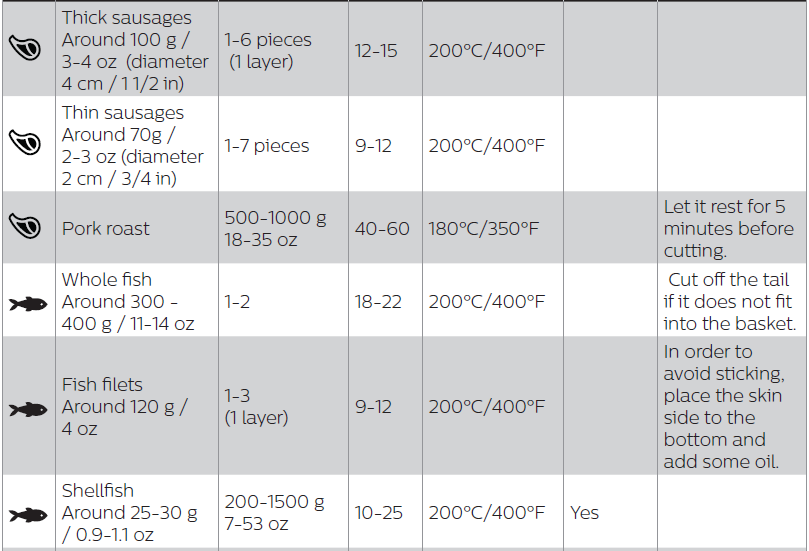

Food table

The table below helps you select the basic settings for the types of food you want to prepare.

Note

• Keep in mind that these settings are suggestions. As ingredients differ in origin, size, shape as well and brand, we cannot guarantee the best setting for your ingredients.
• When preparing a larger amount of food (e.g, fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients in the basket 2 to 3 times in order to achieve a consistent result.

Using the appliance

Airfrying

Caution

• This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat, or any other liquid. (Fig. 8)
• Do not touch hot surfaces. Use handles or knobs. Handle the hot pan and fat reducer with oven-safe gloves.
• This appliance is for household use only.
• This appliance may produce some smoke when you use it for the first time. This is normal.
• Preheating of the appliance is not necessary.

1. Place the appliance on a stable, horizontal, level,l, and heat-resistant surface. Make sure the drawer can be opened completely.
   Note
   • Do not put anything on top or the sides of the appliance. This could disrupt the airflow and affect the frying result.
2. Pull the power cord out of the cord storage compartment at the back of the appliance. (Fig. 9)
3. Put the plug in the wall outlet. (Fig. 10)
4. Open the drawer by pulling the handle. (Fig. 11)
5. Put the ingredients in the basket. (Fig. 12).
   Note
   • The Airfryer can prepare a large range of ingredients. Consult the ‘Food table’ for the right quantities and approximate cooking times.
   • Do not exceed the amount indicated in the ‘Food table’ section or overfill the basket beyond the ‘MAX’ indication, as this could affect the quality of the result.
   • If you want to prepare different ingredients at the same time, make sure you check the suggested cooking time required for the different ingredients before you start to cook them simultaneously.
6. Slide the drawer back into the Airfryer by the handle. (Fig. 13)
   Caution
   • Never use the pan without the fat reducer or basket in it. If you heat the appliance without the basket, use oven gloves to open the drawer. The edges and inside of the drawer become very hot.
   • Do not touch the pan, fat reducer, or basket during and for some time after use, as they get very hot.
7. Press the Power On/Off () button to switch on the appliance. (Fig. 14)
8. To change the preset, turn the QuickControl dial to the desired setting. (Fig. 15)
   » To confirm the selected preset, push the QuickControl dial. The cooking time indication blinks on the screen. (Fig. 16)
   Note
   • After the cooking has started, press the preset button if you want to exit one preset and change to another one (see page 15 – ‘Changing to another preset during cooking’).
9. To change the cooking time, turn the QuickControl dial to the desired setting. (Fig. 17)
   » To confirm the selected cooking time, push the QuickControl dial. (Fig. 18)
   Note
   • Refer to the food table with basic cooking settings for different types of food.
10. The appliance starts cooking after the cooking time has been confirmed.
    Tip
    • To pause the cooking process, push the QuickControl dial. To resume the cooking process, push the QuickControl dial again.
      Note
    • If you do not set the required cooking time within 30 minutes, the appliance automatically shuts off for safety reasons.
    • If “- -” is selected as the time indication, the appliance goes into preheating mode.
    • Some ingredients require shaking or turning halfway through the cooking time (see ‘Food table’). To shake the ingredients, press the QuickControl dial to pause cooking, open the drawer, lift the basket out of the pan, and shake it over the sink (Fig. 19). Then slide the pan with the basket back into the applianc, and press the QuickControl dial to resume cooking.
    • If you set the timer to half the cooking time, when you hear the timer beep, it is time to shake or turn the ingredients. Be sure to reset the timer to the remaining cooking time.
11. When you hear the timer bell, the set preparation time has elapsed. (Fig. 20)
12. Open the drawer by pulling the handle and check if the ingredients are ready. (Fig. 21)
    Note
    • If the ingredients are not ready yet, simply slide the drawer back into the Airfryer by the handle and add a few extra minutes to the set time.
13. To remove small ingredients (e.g., fries), lift the basket out of the pan by the handle. (Fig. 22)
    Caution
    • After the cooking process, the pan, the fat reducer, the basket, the interior housing, and the ingredients are hot. Depending on the type of ingredients in the Airfryer, steam may escape from the pan.
14. Empty the basket contents into a bowl or onto a plate. Always remove the basket from the pan to empty contents, as hot oil may be at the bottom of the pan. (Fig. 23)
    Note
    • To remove large or fragile ingredients, use a pair of tongs to lift them out.
    • Excess oil or rendered fat from the ingredients is collected on the bottom of the pan below the fat reducer.
    • Depending on the type of ingredients cooking, you may want to carefully pour off any excess oil or rendered fat from the pan after each batch or before shaking or replacing the basket in the pan. Place the basket on a heat-resistant surface. Wearing oven-safe gloves, lift the pan off the tracks and place it on a heat-resistant surface. Carefully remove the fat reducer from the pan using rubber-tipped tongs. Pour off excess oil or rendered fat. Return the fat reducer to the pan, the pan to the drawer, and the basket to the pan.
      When a batch of ingredients is ready, the Airfryer is instantly ready for preparing another batch.

Note

• Repeat steps 1 to 14 if you want to prepare another batch.

Changing to another preset during cooking

1. Press the preset () button. (Fig. 24)
2. Turn the QuickControl dial to select another preset. (Fig. 25)
3. To confirm the selected preset, push the QuickControl dial. The cooking time indication blinks on the screen. (Fig. 26)

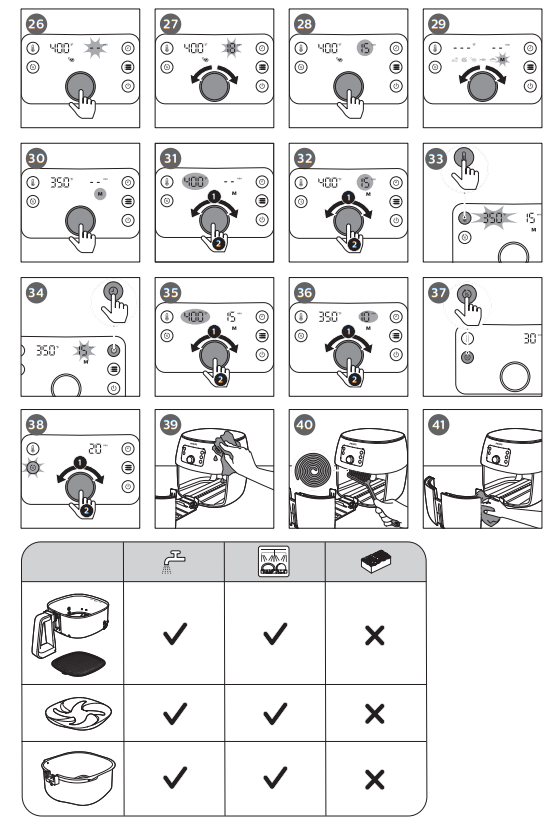

4. To change the cooking time, turn the QuickControl dial. (Fig. 27)
   » To confirm the selected cooking time, push the QuickControl dial. (Fig. 28)

Using the manual mode

1. Press the preset () button. (Fig. 24)
2. Turn the QuickControl dial to select the manual mode (M). (Fig. 29)
3. Push the QuickControl dial to enter the manual mode. (Fig. 30)
   » The default temperature is 350°F/180°C.
4. To change the temperature, turn the QuickControl dial.
   » To confirm the temperature, push the QuickControl dial. (Fig. 31)
5. After the temperature is confirmed, the time indication “–” starts blinking.
6. To change the cooking time, turn the QuickControl dial.
   » To confirm the cooking time, push the QuickControl dial. (Fig. 32)

Changing the cooking temperature or time at any time

1. Press the temperature or timer button (Fig. 33/34).
2. To change the cooking temperature or time, turn the QuickControl dial.
   » To confirm the cooking temperature or time, push the QuickControl dial or the temperature/timer button again. (Fig. 35/36)
   Note
   • If you do not press the QuickControl dial or the temperature/timer button to confirm the changes, they will be automatically confirmed after 10 seconds.

Choosing the keep warm mode

1. Press the keep warm button (you can activate the keep warm mode at any time). (Fig. 37)
   • The keep warm button lights up with a pulsing effect.
   • The keep warm timer is set to 30 minutes. To change the keep warm time (1-30 min), press the timer button , turn the QuickControl dial, and then push it to confirm (Fig. 38). You cannot adjust the keep warm temperature.
2. To pause the keep warm mode, push the QuickControl dial. To resume the keep warm mode, push the QuickControl dial again.
3. To exit the keep warm mode, press one of the following buttons: preset button, temperature button, or On/Off button.
   Tip
   • If food like French fries loses too much crispness during the keep warm mode, either shorten the keep warm time by switching off the appliance earlier or crisp them up for 2-3 minutes at a temperature of 350°F/180°C.

Note

• If you activate the keep warm mode during cooking (the keep warm button lights up with a pulsing effect), the appliance will keep your food warm for 30 minutes after the cooking time has elapsed.
• During the keep warm mode, the fan and heater inside the appliance turn on from time to time.
• The keep warm mode is designed to keep your dish warm immediately after it is cooked in the Airfryer. It is not meant for reheating.

Making homemade fries

To make great homemade fries in the Airfryer:

• Choose a potato variety suitable for making fries, e.g., fresh russet potatoes.
• It is best to air fry the fries in portions of up to 1000 grams / 35 oz for an even result. Larger fries tend to be less crispy than smaller fries.
• Shake the basket 2-3 times during the airfrying process.

1. Peel the potatoes and cut into sticks (8×8 mm / 5/16 x 5/16 in thick).
2. Soak the potato sticks in a bowl of water for at least 30 minutes.
3. Empty the bowl and dry the potato sticks with a dish towel or paper towel.
4. Pour a half tablespoon of cooking oil into the bowl, put the sticks in the bowl, and mix until the sticks are coated with oil.
5. Remove the sticks from the bowl with your fingers or a slotted kitchen utensil so that excess oil remains in the bowl.
   Note
   • Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess oil from going into the pan.
6. Put the sticks in the basket.
7. Fry the potato sticks and shake the basket halfway through the airfrying process. Shake 2-3 times if you prepare more than 500g/17.6 oz of fries.
   Note
   • Consult the chapter “Food table” for the right quantities and cooking times.

Cleaning

Warning

• Let the basket, pan, fat reducer, and the inside of the appliance cool down completely before you start cleaning.
• Remove the fat reducer from the pan using rubber-tipped tongs. Do NOT remove using your fingers as hot fat or oil collects under the fat reducer.
• The pan, basket, fat reducer, and inside of the appliance have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaningmaterialss as this may damage the non-stick coating.

Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use to prevent smoke.

1. Press the power On/Off () button to switch off the appliance, remove the plug from the wall outlet, and let the appliance cool down.
   Tip
   • Remove the pan and basket to let the Airfryer cool down more quickly.
2. Remove the fat reducer from the pan using rubber-tipped tongs. Dispose of rendered fat or oil from the bottom of the pan.
3. Clean the pan, basket, and fat reducer in a dishwasher. You can also clean them with hot water, dishwashing liquid, and a non-abrasive sponge (see ‘cleaning table’).
   Tip
   • If food residues stick to the pan, fat reducer, or basket, you can soak them in hot water and dishwashing liquid for 10-15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the pan, fat reduce, or basket, and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser.
   • If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element.
4. Wipe the outside of the appliance with a moist cloth. (Fig. 39)
   Note
   • Make sure no moisture remains on the control panel. Dry the control panel with a cloth after you have cleaned it.
5. Clean the heating element with a cleaning brush to remove any food residues. (Fig. 40)
6. Clean the inside of the appliance with hot water and a non-abrasive sponge. (Fig. 41)

This appliance has no other user-serviceable parts. For assistance in the U.S. or Canada only, call 1-866-309-8817.

Storage

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry before you store the appliance.
3. Insert the cord into the cord storage compartment.

Note

• Always hold the Airfryer horizontally when you carry it. Make sure that you also hold the drawer on the front part of the appliance, as it can slide out of the appliance if accidentally tilted downwards. This can lead to damage to the drawer.
• Always make sure that the removable parts of the Airfryer, e.g., the removable mesh bottom, etc., are fixed before you carry and/or store it.

Disposal

Your product is designed and manufactured with high-quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com

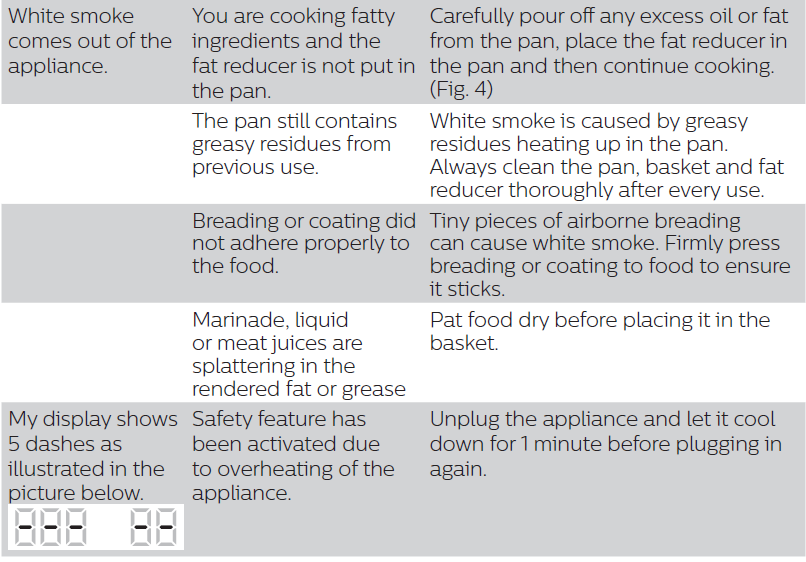

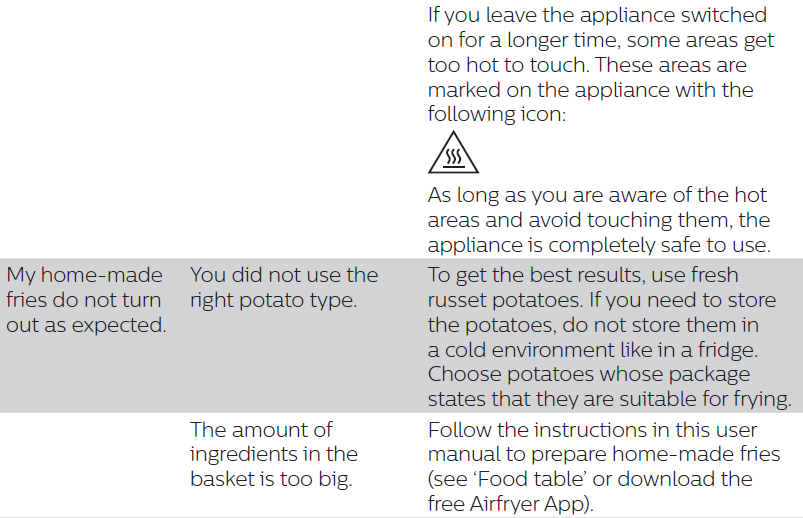

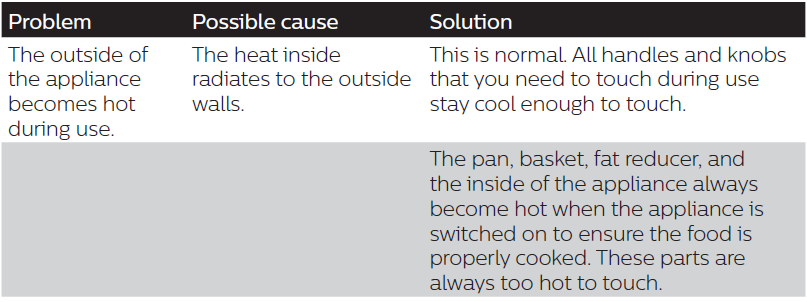

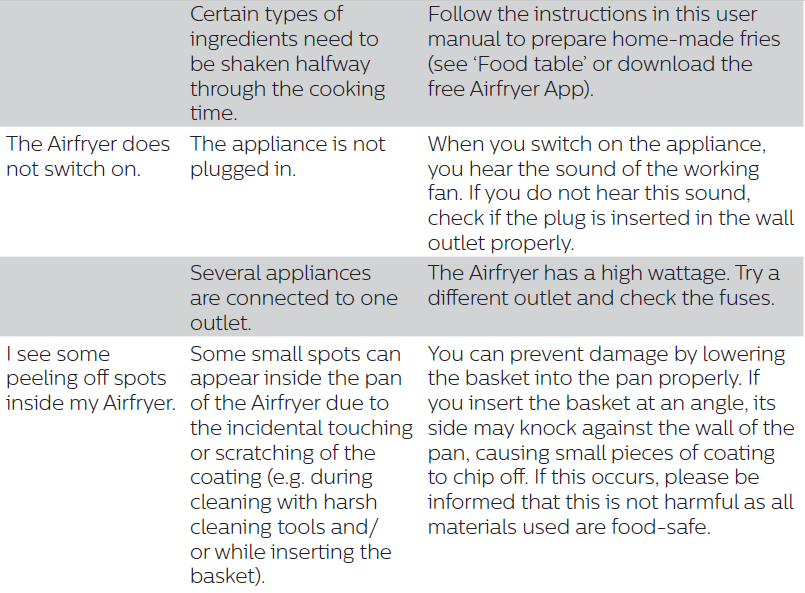

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support, or in the US or Canada only call 1-866-309-8817 for assistance.

Warranty

If you need information, support, or if you have a problem, please visit www.philips.com/support or, in the US or Canada only, call 1-866-309-8817 for assistance.

One-year limited warranty

Philips warrants that this product shall be free from defects in material, workmanship, and assembly, under normal use, by the specifications and warnings, for one year from the date of purchase. This warranty extends only to the original purchaser of the product and is not transferable. To exercise your rights under this warranty, you must provide proof of purchase in the form of an original sales receipt that shows the product name and the date of purchase. For customer support or to obtain warranty service, please visit our website www.philips.com/support. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. Philips’ liability is limited to repair or, at its sole option, replacement of the product. Incidental, special, and consequential damages are disclaimed where permitted by law. This warranty gives you specific legal rights. You may also have other rights that vary from state to state, province to province, or country to country.

In the U.S. only

Manufactured for:
Philips Personal Health
A division of Philips North America LLC
P.O. Box 10313, Stamford, CT 06904
United States of America

Canada only

Manufactured for:
Philips Electronics Ltd.
281 Hillmount Road
Markham, ON L6C 2S3

For support, please visit www.philips.com/support
PHILIPS and Philips Shield are registered trademarks of Koninklijke Philips N.V.
©2019 Philips North America LLC.
All Rights Reserved.

This symbol on the product’s nameplate means it is listed by Underwriters Laboratories, Inc.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries.
Android is a trademark of Google Inc.

For more manuals by Philips, visit ManualsLibraryy

Philips HD9650 Series Premium Airfryer XXL- FAQs
