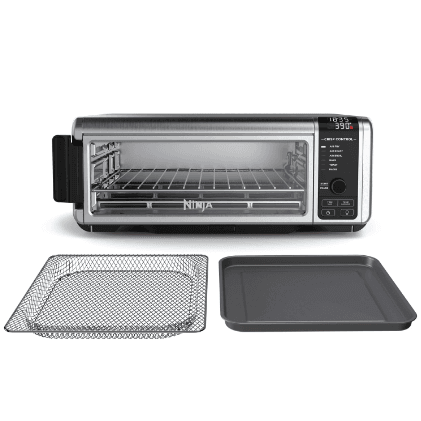

Ninja SP201 Digital Air Fry Pro Countertop 8-in-1 Oven User Manual

Ninja SP201 Digital Air Fry Pro Countertop 8-in-1 Oven

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE SAVE THESE INSTRUCTIONS

WARNING

Read all instructions before using the oven and its accessories.
To eliminate a choking hazard for young children, discard all packaging materials immediately upon unpacking.
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Take inventory of all contents to ensure you have all the parts needed to properly and safely operate your oven.
NEVER leave the oven unattended while in use.
NEVER use the outlet below the counter.
DO NOT let cords hang over edges of tables or counters or touch hot surfaces, including stoves and other heating ovens.
Keep the appliance and its cord out of reach of children. Do not allow the appliance to be used by children. Close supervision is necessary when used near children.
DO NOT use an extension cord. A short power-supply cord is used to reduce the risk of children grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord.
DO NOT place the appliance on hot surfaces, near hot gas or electric burners, in a heated oven, or on a stovetop.
DO NOT place any object directly onto the heating elements and DO NOT cover the crumb tray or any part of the oven with metal foil. This will cause the oven to overheat or cause a fire.
To protect against electrical shock DO NOT immerse cord, plugs, or main unit housing in water or other liquid.
DO NOT insert anything in the intake and ventilation slots, and do not obstruct them.
DO NOT use accessories and attachments not recommended or sold by SharkNinja.
DO NOT place items on top of the surface while the unit is operating except for authorized, recommended Ninja accessories.

PARTS

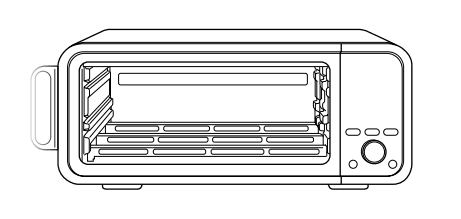

Main Unit
The attached power cord is not shown.

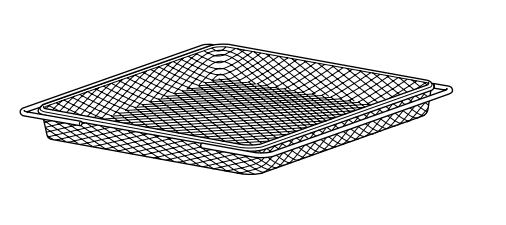

Air Fry Basket
Use in the top rail position for Air Fry and Dehydrate. Hand-wash recommended.
NOTE: Dehydrate and Reheat are not included with all models.

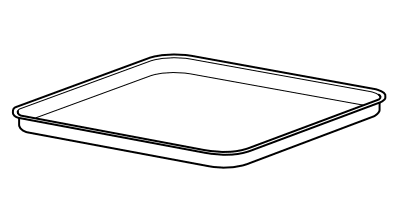

Sheet Pan

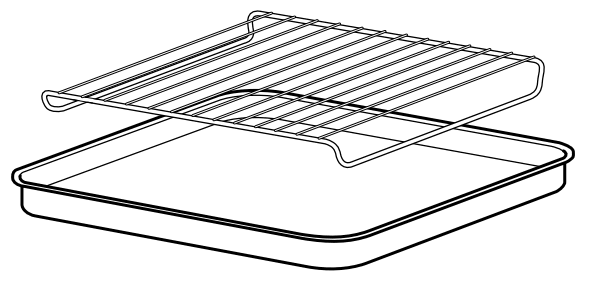

Always place it on top of the wire rack. Hand-wash recommended.

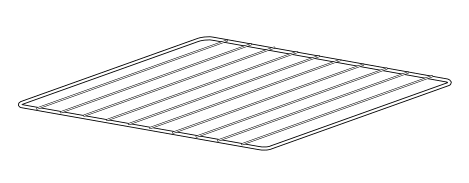

Wire Rack
Slide into the bottom rails for Toast and Bagel. Hand-wash recommended.

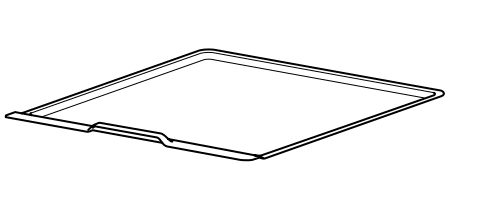

Removable Crumb Tray
Always place it below the bottom heating element. Hand-wash only.
TIP: There is a hook on the left side of the bottom rails of the oven. This mechanism is designed to stabilize the wire rack when pulling out of oven partially.

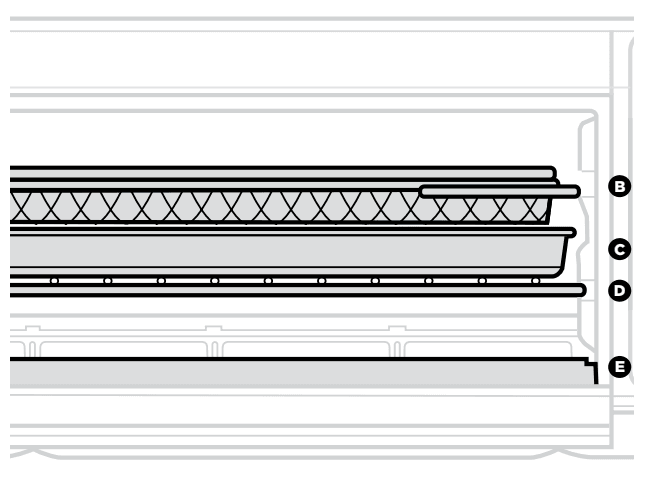

ACCESSORY STORAGE PLACEMENT

BEFORE FIRST USE

Remove and discard any packaging material, promotional labels, and tape from the unit.
Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.
Wash the air fry basket, sheet pan, wire rack, and removable crumb tray in warm, soapy water, then rinse and dry them thoroughly with a non-abrasive sponge. DO NOT place the sheet pan in the dishwasher.
NEVER submerge the main unit in water or place it in the dishwasher.

We recommend placing the wire rack, sheet pan, and air fry basket inside the oven and running it on Air Fry at 450˚F for 20 minutes without adding food. Make sure the area is well-ventilated. This removes any packaging residue and odor traces that may be present. This is completely safe and not detrimental to the performance of the oven

NOTE: For longest use, we recommend hand-washing the accessories. The air fry basket and wire rack can be put in the dishwasher, but this may cause them to wear more quickly over time.

USING THE CONTROL PANEL

FUNCTIONS

AIR FRY: Make fast, extra-crispy foods—such as chicken wings, French fries, and chicken nuggets—with little to no added oil.
BROIL: Broils meat and fish and evenly browns the tops of casseroles.
AIR ROAST: Achieve a crispy outside and perfectly cooked inside for full-sized sheet pan meals, thicker proteins, and roasted veggies.
BAKE: Evenly bakes cookies, brownies, cakes, and more.
TOAST: Evenly toasts up to 9 slices of bread to your perfect level of darkness.
BAGEL: Perfectly toast up to 6 bagel halves when they’re placed cut-side up on the wire rack.
REHEAT: Heat leftovers without over cooking.
DEHYDRATE: Dehydrates meats, fruits, and vegetables for healthy snacks.

NOTE: The Dehydrate and Reheat functions are not included on all models.

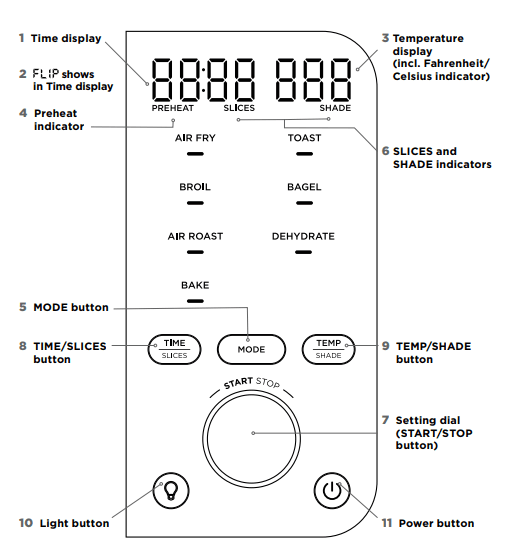

CONTROL PANEL DISPLAY & OPERATING BUTTONS

Time display: Shows the cook time. The time will count down when cooking is in progress.
FLIP will appear on the time display when the unit is cool enough to flip up for storage or cleaning.
Temperature display: Shows the cooking temperature. NOTE: Time and temperature will always default to the cook time and temperature that was set the last time the oven was in use. On first use, the default time and temperature should be adjusted for your cook cycle. Refer to the Inspiration Guide to learn more about the best cook times and temperatures.
PREHEAT: Illuminates when the unit is preheating.
MODE button: Press to enable selection of a cooking function, then rotate the dial to cycle through. Press the MODE button again to confirm the selection.
SLICES and SHADE will illuminate when using the Toast or Bagel function.
Setting dial (START/STOP button): Push to start or pause cooking.
TIME/SLICES button: To select a cook time, press the TIME/SLICES button, then use the dial to adjust the time. Press TIME/SLICES button again to confirm. When using the Toast or Bagel function, this button will adjust the number of slices instead of the time. If cooking for 1 hour or less, the clock will count down by minutes and seconds. If cooking for more than 1 hour, the clock will count down by hours and minutes.
TEMP/SHADE button: To adjust temperature, press the TEMP/SHADE button and use the dial to adjust the temperature. Press TEMP/SHADE button again to confirm. When using the Toast or Bagel function, this button will adjust the darkness (SHADE) level instead of the temperature.
(Light) button: Press to turn the oven’s interior light on and off. The light will automatically turn on when 1 minute of cook time remains.
(Power) button: Press to turn the unit on and off.

USING YOUR FOODI® DIGITAL PRO AIR FRY OVEN

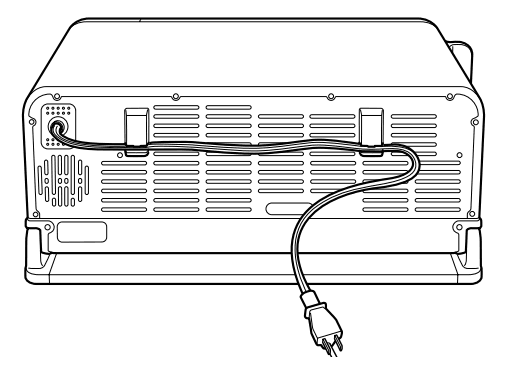

POWER CORD MANAGEMENT

Our cord-management system is designed so it will not interfere with the oven’s flip-away functionality.

Option 1 Outlet on the left

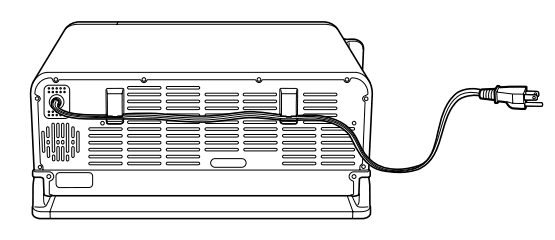

Option 2 Outlet behind the oven

HOW TO REDUCE SMOKE

When cooking greasy, drippy foods with the Air Fry Basket, place the sheet pan on a wire rack on the bottom rails to catch the drippings.

The unit may produce smoke when cooking on a hotter setting than what is recommended. Avoid exceeding 400°F when using oils to limit smoke.

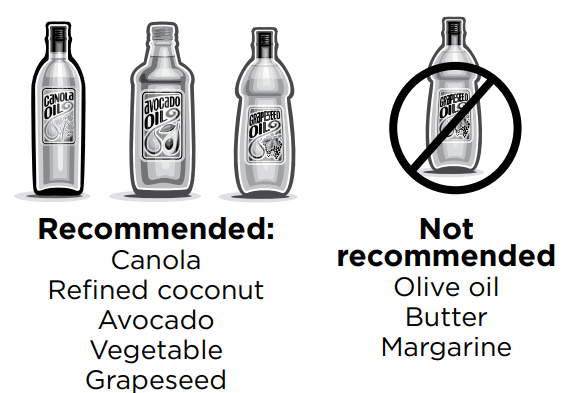

When using cooking spray, DO NOT spray it on the interior side walls or heating elements of the unit. Cooking spray may reduce the life of the product.

USING THE COOKING FUNCTIONS

To turn on the unit, plug the power cord into the wall, flip the oven down into the cooking position, and press the button.

Air Fry

To select the function, press MODE, then turn the dial until AIR FRY illuminates. The default time and temperature settings will be displayed.
Press the TIME/SLICES button and use the dial to select your time up to 1 hour. Time will adjust in 1-minute increments under 1 hour. To set the time, press the TIME/SLICES button again.
Press the TEMP/SHADE button and use the dial to select a temperature between 250˚F and 450˚F. The temperature will adjust in 5-degree increments. To set the temperature, press the TEMP/SHADE button again.
Press the setting dial to begin preheating..
Place ingredients in the air fry basket. If ingredients are fatty, oily, or marinated, Place the basket on the top rails and the sheet pan and wire rack on the bottom rails.

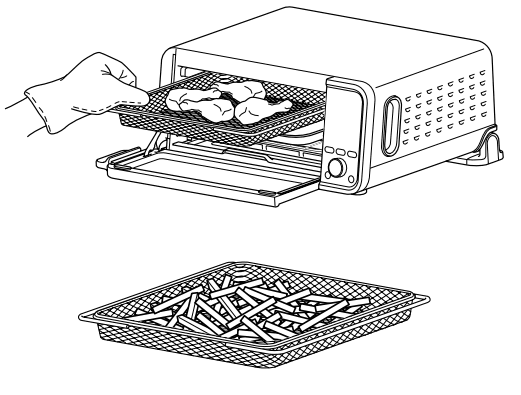

Use the air fry basket for dry ingredientsUse the air fry basket with a sheet pan underneath for fatty, oily, or marinated ingredients. When using the sheet pan underneath, you may need to flip food over halfway through cooking for more even cooking.
When the unit beeps to signify it has preheated, immediately slide the basket into the upper rails of the oven. If also using the sheet pan, slide the sheet pan on wire rack into the bottom rails.

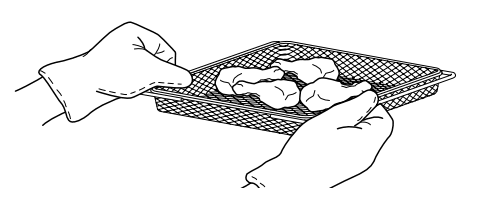

For more even browning and crispiness, Flip ingredients using non-metal tongs or spatula halfway through cooking cycle.
When the cook time is complete, the unit will beep, and “END HOT” will appear on the display.

Broil

To select the function, press the MODE button, then turn the dial until BROIL illuminates. The default time and temperature settings will display.
Press the TIME/SLICES button and use the dial to select your time up to 30 minutes. Time will adjust in 30-second increments. To set the time, press the TIME/SLICES button again.
Press the TEMP/SHADE button and use the dial to select either HI (450°F) or LO (400°F). To set the temperature, press the TEMP/SHADE button again.

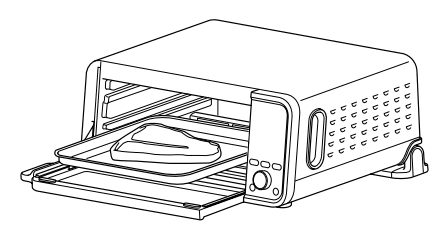

Place the ingredients on the sheet pan. Place the sheet pan on the wire rack on the bottom rails. Close the oven door. Press the setting dial to begin cooking.

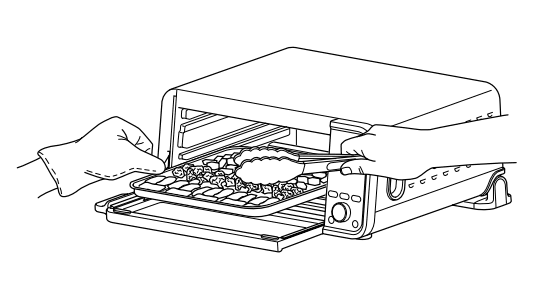

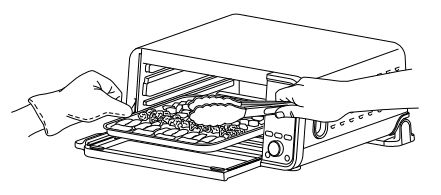

During cooking, you can open the oven door to check on or flip ingredients.
When the cook time is complete, the unit will beep, and “END HOT” will appear on the display.

Air Roast

To select the function, press the MODE button, then turn the dial repeatedly until AIR ROAST illuminates. The default time and temperature settings will be displayed.
Press the TIME/SLICES button and use the dial to select your time up to 2 hours. Time will adjust in 1-minute increments under 1 hour and 5-minute increments over 1 hour. To set the time, press the TIME/SLICES button again.
Press the TEMP/SHADE button and use the dial to select a temperature between 250°F and 450°F. The temperature will adjust in 5-degree increments. To set the temperature, press the TEMP/SHADE button again.
Press the setting dial to begin preheating. Place the ingredients on the sheet pan.
During cooking, you can open the oven door to check on or flip ingredients.
When the cook time is complete, the unit will beep, and “END HOT” will appear on the display.

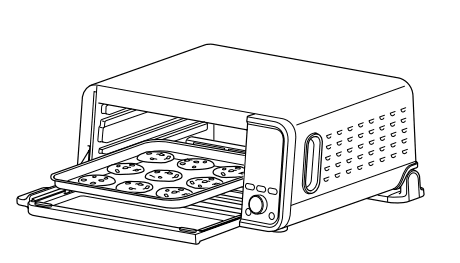

Bake

To select the function, press the MODE button, then turn the dial until BAKE illuminates. The default time and temperature settings will display.
Press the TIME/SLICES button and use the dial to select your time up to 2 hours. Time will adjust in 1-minute increments under 1 hour and 5-minute increments over 1 hour. To set the time, press the TIME/SLICES button again.
Press the TEMP/SHADE button and use the dial to select a temperature between250°F and 450°F. The temperature will adjust in 5-degree increments. To set the temperature, press the TEMP/SHADE button again.
Press the setting dial to begin preheating.
Place ingredients on the Sheet Pan. When the unit beeps to signify it has preheated, immediately place the sheet pan on the wire rack into the bottom rails. Close the oven door.
During cooking, you can open the oven door to check on or flip ingredients.
When the cook time is complete, the unit will beep, and “END HOT” will appear on the display

Toast

To select the function, press the MODE button, then turn the dial until TOAST illuminates. The default amount of slices and shade will be displayed.
Press the TIME/SLICES button and use the dial to select the number of bread slices. You may toast up to 9 slices at once. To set the number of slices, press the TIME/SLICES button again.
Press the TEMP/SHADE button and use the dial to select a shade level. To set the shade level, press the TEMP/SHADE button again

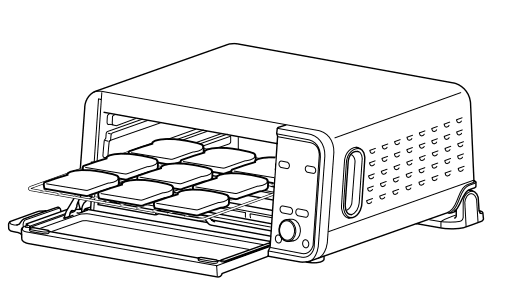

Place bread slices on the wire rack into the middle rails. Close the oven door and press the setting dial to begin cooking. You do not need to flip the slices during cooking.
When the cook time is complete, the unit will beep, and “END HOT” will appear on the display.

Bagel

To select the function, press the MODE button, then turn the dial until the BAGEL illuminates. The default number of slices and shade level will be displayed.
Press the TIME/SLICES button and use the dial to select the number of slices. You may toast up to 6 bagel halves at once. To set the number of slices, press the TIME/SLICES button again.
Press the TEMP/SHADE button and use the dial to select a shade level. To set the shade level, press the TEMP/ SHADE button again.

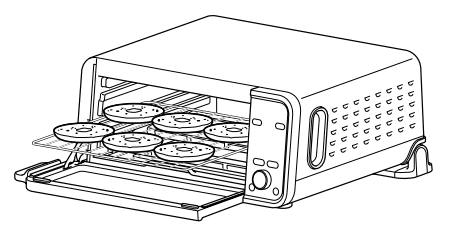

Place bagel slices, cut-side up, on the wire rack into the middle rails. Close the oven door and press the setting dial to begin cooking. You do not need to flip the slices during cooking.
When the cook time is complete, the unit will beep, and “END HOT” will appear on the display.

CLEANING, MAINTENANCE, & STORAGE

EVERYDAY CLEANING

The unit should be cleaned thoroughly after every use.

Unplug the unit from the outlet and allow it to cool down before cleaning.

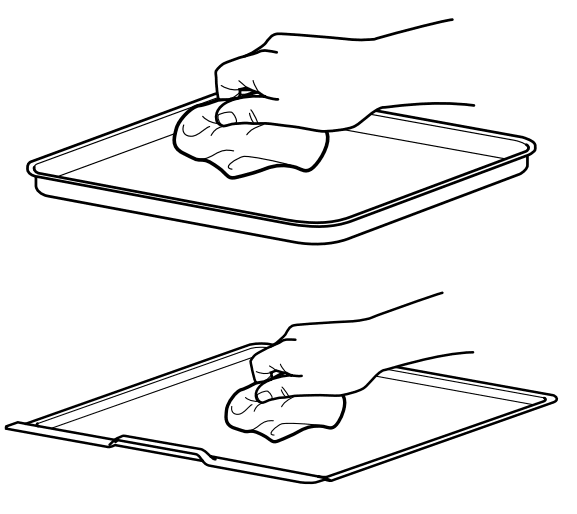

Empty the crumb tray by sliding it out of the oven when the oven is in the flipped-down position. Clean accessories after each use. Accessories are hand-wash the accessories. The air fry basket and wire rack can be put in the dishwasher, but they may wear more quickly over time. DO NOT place the sheet pan in the dishwasher.

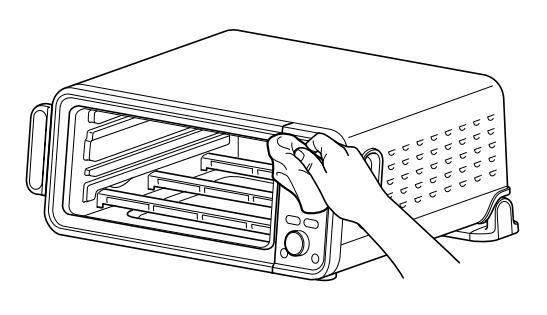

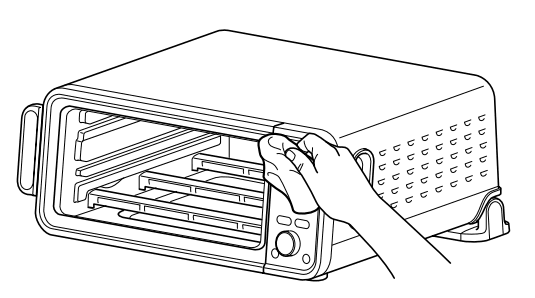

To clean the exterior of the main unit and the control panel, wipe them clean with a damp cloth. A non-abrasive liquid cleanser or mild spray solution may be used. Apply the cleanser to the sponge, not the oven surface, before cleaning.

DEEP CLEANING

Allow the unit to cool down, then unplug the unit from the outlet before cleaning.

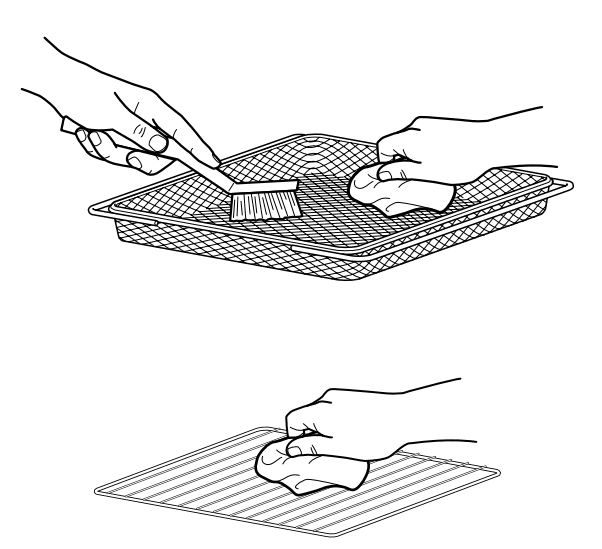

Remove all accessories from the unit, including the crumb tray, and wash them separately. Use a non-abrasive cleaning brush to wash the air fry basket more thoroughly. Soak accessories overnight in hot, soapy water. The air fry basket and wire rack can be put in the dishwasher, but they may wear more quickly over time.
Use warm, soapy water and a soft cloth to wash the oven’s interior. DO NOT use abrasive cleaners, scrubbing brushes, or chemical cleaners, as they will damage the oven. NOTE: NEVER put the main unit in the dishwasher or immerse it in water or any other liquid.
To prolong the use of accessories, hand-wash them with warm, soapy water.
Thoroughly dry all parts before placing them back in the oven.

ACCESSORIES FOR PURCHASE

We offer a suite of accessories custom-made for your Ninja® Foodi® Digital Air Fry Oven Pro.

Visit ninjaaccessories.com to expand your capabilities and take your cooking to the next level.

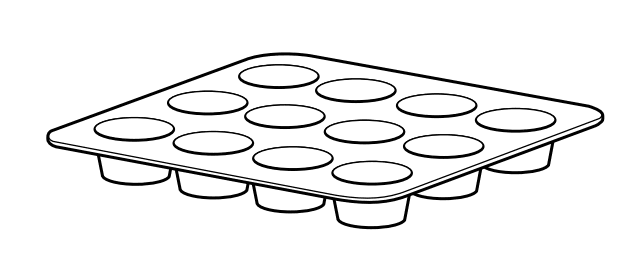

Egg Bite/Muffin Tray
Broiling Rack

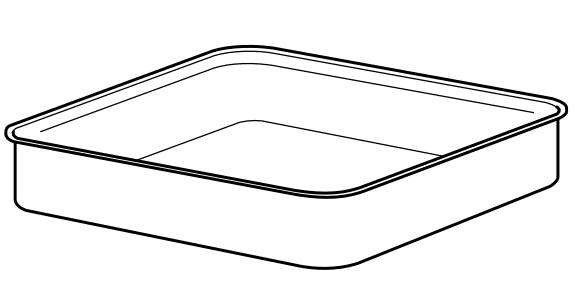

2″ Casserole Dish

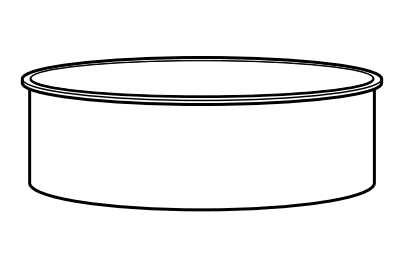

Multi-Purpose Pan

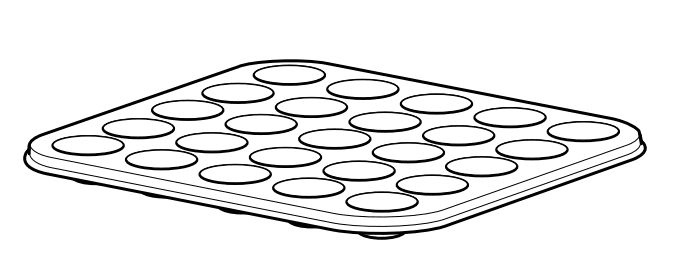

Mini Morsel Tray

TROUBLESHOOTING

ERROR MESSAGES

“Er0,” “Er1,” “Er2,” “Er3,” “Er4,” “Er5,” “Er6,” or “Er7” Power off the unit and call Customer Service at 1-877-646-5288. So we may better assist you, please register your product online at registeryourninja.com and have the product on hand when you call.

REPLACEMENT PARTS

To order additional parts and accessories, visit ninjaaccessories.com or contact Customer Service at 1-877-646-5288. So we may better assist you, please register your product online at registeryourninja.com and have the product on hand when you call.

ONE (1) YEAR LIMITED WARRANTY

The One (1) Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable.
SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of one (1) year from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in the Owner’s Guide, subject to the following conditions and exclusions:

What is covered by this warranty?

The original unit and/or non-wearable parts deemed defective, at SharkNinja’s sole discretion, will be repaired or replaced up to one (1) year from the original purchase date.
In the event a replacement unit is issued, the warranty coverage ends six (6) months following the receipt date of the replacement unit or the remainder of the existing warranty, whichever is later. SharkNinja reserves the right to replace the unit with one of equal or greater value.

How to get service

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit ninjakitchen.com/support for product care and maintenance self-help. Our Customer Service Specialists are also available at 1-877-646-5288 to assist with product support and warranty service options, including the possibility of upgrading to our VIP warranty service options for select product categories.

So we may better assist you, please register your product online at registeryourninja.com and have the product on hand when you call. SharkNinja will cover the cost for the customer to send in the unit to us for repair or replacement. A fee of $20.95 (subject to change) will be charged when SharkNinja ships the repaired or replacement unit.
