Philips X5206 Bluetooth Party Speaker User Manual

Philips X5206 Bluetooth Party Speaker

Important

Safety

Warning

• Never remove the casing of this device.
• Never lubricate any part of this device.
• Never place this device on other electrical equipment.
• Keep this device away from direct sunlight, naked flames, or heat.
• Never look into the laser beam inside this device.
• Ensure that you always have easy access to the power cord, plug, or adapter to disconnect this device from the power sourcee.
• Do not use this apparatus near water.
• Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.
• When a cart is used, use it with caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Battery usage caution―To prevent battery leakagewh whichh may result in bodily injury, property damage, or damage to the remote control:
  • Install the battery correctly, + and – as marked on the remote control.
  • Do not mix batteries (old and new or carbon and alkaline, etc.).
  • Remove the battery when the remote control is not used for a long time.
• The battery shall not be exposed to excessive heat, such as sunshine, rain or the like.
• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g., liquid-filled objects, lighted candles).
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

FCC information

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced speaker/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Your party speaker

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/support.

What’s in the box

Check and identify the contents of your package:

• Main unit
• AC power cord
• Quick start guide
• Safety sheet
• Warranty card

Overview of the main unit

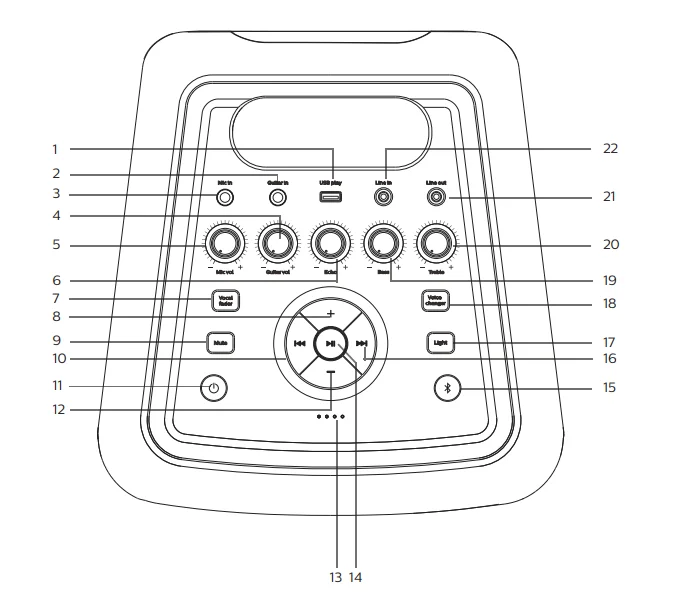

Top panel

1. USB play
2. Guitar in
3. Mic in
4. Guitar vol
5. Mic vol
6. Echo
7. Vocal fader
8. Volume +
9. Mute
10. Previous
11. Standby (red indicator)
12. Volume –
13. Battery level indicator
14. Play/Pause
15. Bluetooth (blue indicator)
16. Next
17. Light
18. Voice changer
19. Bass
20. Treble
21. Line out
22. Line in

Rear panel

1. Trolley
2. AC power socket

Basic playback

•  Press and hold for 3 seconds to switch on/o the unit.
• Press to checthe k the battery level in the power-on status.
• Press repeatedly to switch between the vocal fader on and the vocal fader off.
•  Turn the Bass knob to adjust the bass level.
•  Turn the Treble knob to adjust the treble level.
•  Press repeatedly to switch among voice tones: voice1/voice2/ voice3/voice4/voice off.
• Press repeatedly to switch the light mode of the speaker light.
  Press and hold to switch on/off the strobe light.
•  Press to skip to the next track.
•  Press to return to the previous track.
•  Press to increase the volume.
•  Press to decrease the volume.
• Press to enter the Bluetooth mode. Press and hold to disconnect the Bluetooth connection.
•  Press to temporarily pause a playback; press it again to resume the playback.
•  Switch to mute on or mute off.
• Turn to adjust the microphone volume.
• Turn to adjust the microphone echo.
•  Insert a USB storage device for audio playback.
• Turn the Guitar volume knob to adjust the volume of the guitar (if connected).
•  Microphone input.
•  Guitar input.
•  Connect an external device via the Line in jack to play audio.
• Output audio to an external device via the Line Out jack.

Get started

CAUTION

• Use of controls or adjustments or performance of procedures other than herein may result in hazardous laser exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus.

Write the numbers here:

Model No.
Serial No.

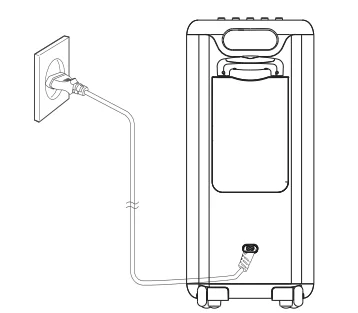

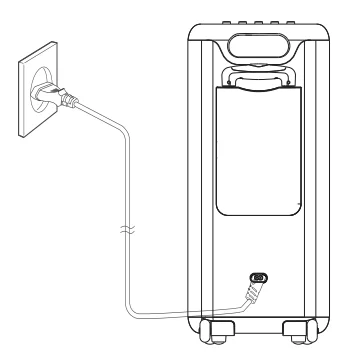

Connect power

CAUTION:

• Risk of product damage! Make sure that the power supply voltage corresponds to the voltage printed on the back or the underside of the product.
• Risk of electric shock! When you unplug the power cord, always pull the plug from the socket. Never pull the cord.

Note:

• Before connecting to AC power, make sure that you have completed all other connections. Connect the AC power cord to the AC in socket on the rear panel of the unit.

Then plug the other end of the AC power cord into a power outlet.

The power cord quantity and plug type vary by region

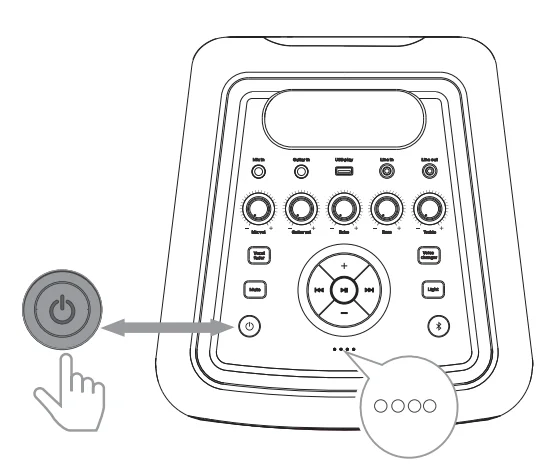

Power on

Press

• Press and hold for 3 seconds to switch on/off the party speaker.

Note: The party speaker will always enter Bluetooth pairing mode every time you turn it on.

Adjust bass and treb. le

T Turn the Bass knob to adjust the bass level. Turn clockwise to increase the bass level, and turn anti-clockwise to decrease the bass level. Turn the Treble knob to adjust the treble level. Turn clockwise to increase the level, and turn anti-clockwise to decrease the level.

Charge the built-in battery.

• Plug the AC power cord to charge the built-in battery. The battery indicators blink in different ways to indicate the charging status.

Note: The four indicators on the unit will go out in 15 seconds after the battery is fully charged.

• The speaker is designed with a smart battery check feature for your convenience.

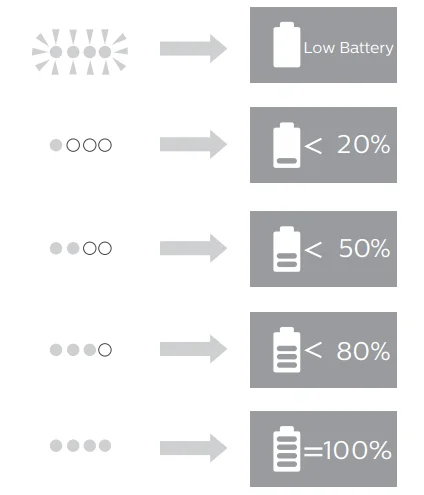

• Press the button to show the current battery level on the LED indicators of the unit in power-on mode while the unit is not being charged.

• 4 LED white light up=approx. 100% full
• 3 LED white light up=approx. 80% full
• 2 LED white light up=approx. 50% full
• 1 LED white light up=approx. 20% full (indicating charging is needed)

Note: When the battery level is low, all battery LED indicators will blink simultaneously, and anprompt tone is heard.

Change the light effect. ect

Turn the decorative light on o..r off

1. In power on press, press the Light button repeatedly to switch among different light modes of thee theer light.

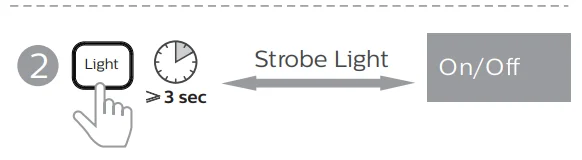

2. In power on mode, press and hold the Light button for 3 seconds to switch on/o the strobe light.

Play audio through Bluetooth..

The product can stream music from your Bluetooth device to the system through Bluetooth.

Connect a device

Note:

• Before pairing a device with this product, read its user manual for Bluetooth compatibility.
• The product can memorize a maximum of eight paired devices. The ninth paired device will replace ththe first oneene.
• Any obstacle between this product and a Bluetooth device can reduce the operational range. Keep away from any other electronic device that may cause interference.
• The operational range between this product and a Bluetooth device is approximately 10 meters (30 feet).

Connect a device automatically..

1. Press and hold the button for 3 seconds to switch on the party speaker. The unit automatically enters Bluetooth pairing mode, and the blue backlight of the button and the blue speaker light blink to remind you to connect with a Bluetooth device.
2. On your Bluetooth device, enable Bluetooth and search for Bluetooth devices that can be paired.
3. Select [Philips TAX5206] displayed on your device for pairing. After a successful connection, the blue backlight of the button remains solid.

Connect a device manually..

1. When the party speaker is in USB or Line in source, short-press press button to switch to Bluetooth source and enter pairing mode. The blue backlight of the button and the blue speaker light blink to remind you to connect with a Bluetooth device.
2. On your Bluetooth device, enable Bluetooth and search for Bluetooth devices that can be paired.
3. Select [Philips TAX5206] displayed on your device for pairing. After a successful connection, the blue backlight of the button remains solid.

Disconnect a device

1. Press & hold the button on the party speaker for 3 seconds to disconnect from the current device.
2. The blue backlight of the button and the blue speaker light blink to remind you to connect with a Bluetooth device.

Note:

• Before connecting another Bluetooth device, disconnect the current device first.
• Press & hold the button on the unit for 8 seconds to disconnect the current device and clear out the Bluetooth pairing information.
• When the Bluetooth device is beyond the valid Bluetooth distance, the unit will disconnect automatically from the device.

Play audio through USB

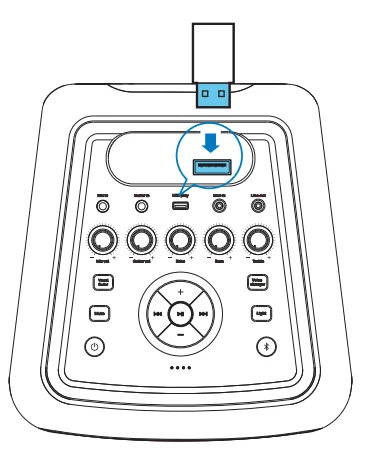

Play from a USB storage device

Note:

• Make sure that the USB device contains playable audio ccontent innsupported formats. Supported formats: MP3, WAV, WMA, FLAC. FLAC format audio only supports not over 16bit anddd aada 1M code rate.
  The unit supports max 128G USB and file formatsFAT16/FAT32/exFAT.
• If the USB device is not recognized and unreadable or the audio content in the USB is unplayable, the party speaker will be automatically switched to Bluetooth source.

1. Press and hold the button for 3 seconds to switch on the party speaker,  er and then you will hear a prompt tone.
2. Insert the USB plug of the device into the USB slot.
3. The blue backlight of the button will go off, and the party speaker will automatically be switched to USB source.
4. Playback song automatically.

Note: You need to re-insert the USB plug into the slot if you want to switch back to USB from the other sources.

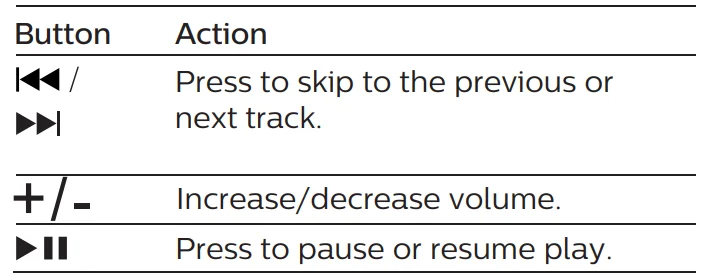

Control play

In USB mode, follow the instructions below to control play.

Adjust volume

During play, press the +/- button on the party speaker to increase or decrease volume.

The green speaker light will change accordingly to indicate the volume adjustment.

USB playability information

Compatible USB devices

• USB flash memory (USB 2.0 )
• USB flash players (USB 2.0)
• Memory cards (requires an additional card reader to work with this unit)

Supported formats

• USB or memory file format: FAT16, FAT32, exFAT (sector size: 512 bytes )
• Audio format: MP3, WAV, WMA, FLAC.
• Directory nesting up to a maximum of 8 levels
• Max supports 128G USB

Supported MP3 formats

• Maximum No. of titles: 999 (depending on file name length)
• Maximum No. of albums: 64
• Supported sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz
• Supported bit-rates: 32-384 (kbps) variable bit rates

Play audio through the Line in

Listen to an external device

With this product, you can listen to an external audio device such as an MP3 player.

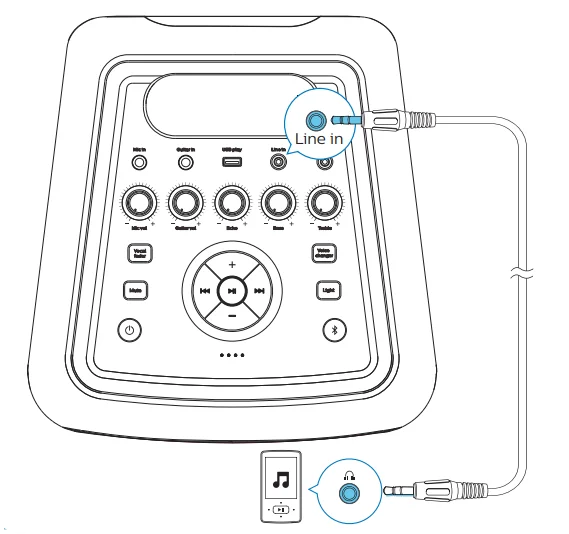

Play from an MP3 pla…..yer

1. Press anholdld the button for 3 seconds to switch on the par ,   speakerr and then you will hear a prompt tone.
2. Connect an audio input cable (not supplied) with a 3.5mm connector on both ends to:
   • The Line ithe n the name of the product.
   • The headphone jack on the MP3 player.
3. The blue backlight button will go off, and the party speaker will be automatically switched tto theline-sourceee.
4. Play audio on the MP3 player (refer to its user manual).


Note: You need to re-insert the audio input cable into the Line in jack if you want to switch back to Line in from the other sources.

Line out

This unit has a line-out jack. You can output the analog stereo audio signals to external devices such as an active speaker. Connect an audio cable (not supplied) to the Line out jack on the top panel of the unit and the line in jack of the external device, and the unit will output audio automatically to the external device.

Sing through the microphone..

Adjust the microphone volume.

Connect a microphone (not supplied) into the Mic in jack of the unit, and adjust the microphone volume by turning the Mic vol knob.

Now, enjoy the karaoke singing!

Adjust echo

Adjust the microphone echo level to your desired level by turning the Echo knob on the top panel.

Vocal fader

Press the Vocal fader button on the top panel to switch between vocal fader on and vocal fader o.

Voice changer

Press the Voice changer button on the panel to switch among different voice tones: voice1/voice2/voice3/voice4 voice o.

Guitar in

Adjust guitar volume

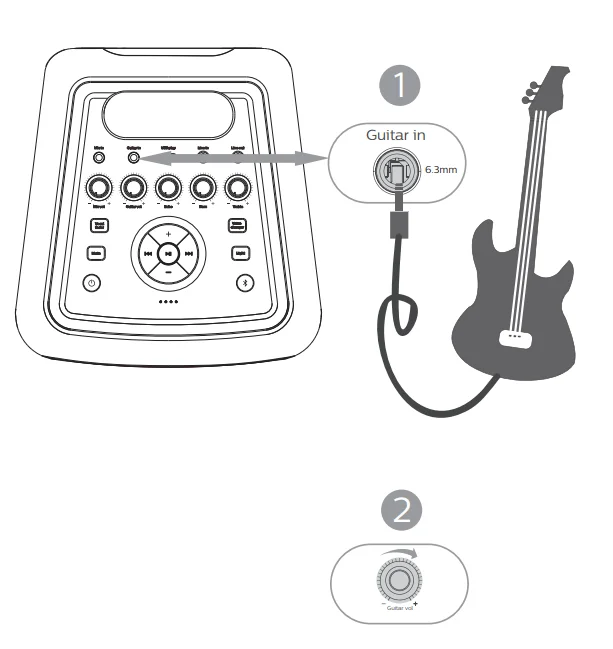

You can connect a guitar to this party speaker directly through the Guitar in jack on the top panel.

1. Use a 6.3mm (1/4″) guitar connector (not supplied) to connect your guitar to the Guitar in jack.
2. The volume of your connected guitar can be controlled by the Guitar vol knob on the top panel.

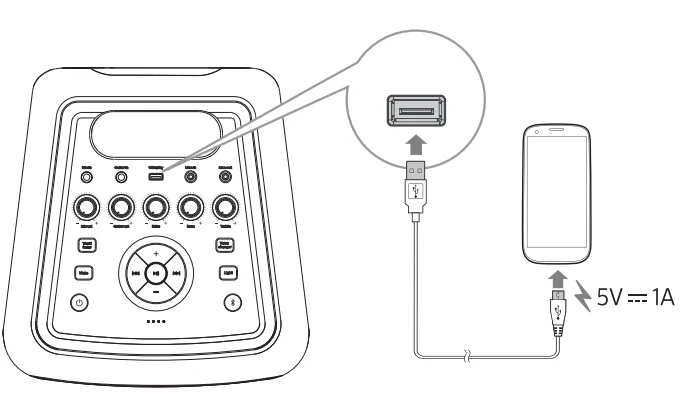

USB charging

Charge an external dev..ice..

With this party speaker, you can charge your external devices, such as your cell phone.

1. Connect your cell phone to the party speaker via a USB cable (not supplied).
2. Connect the party speaker to power.

Once the cell phone is recognized, the charging starts.

Note:

USB charging only supports outward charging of 5V, 1A. It does not support charging of devices with largecurrentsen, such as iPads, etc.

Product information

Specifications

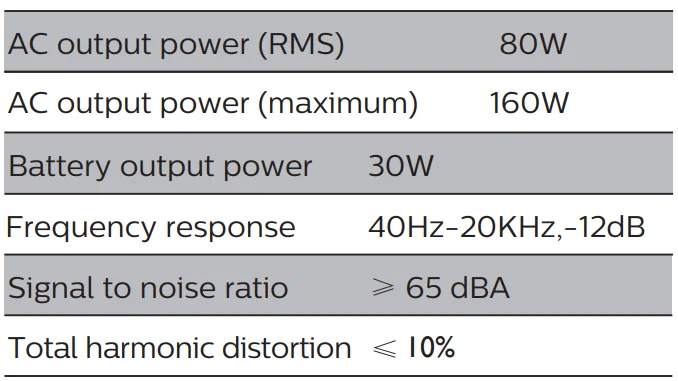

Amplier

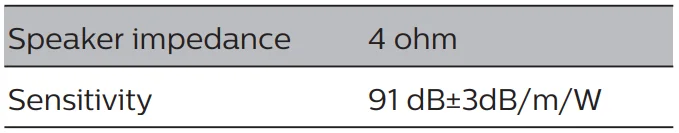

Speaker

USB

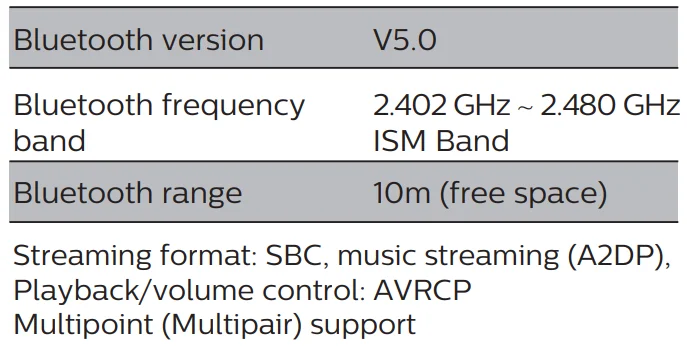

Bluetooth

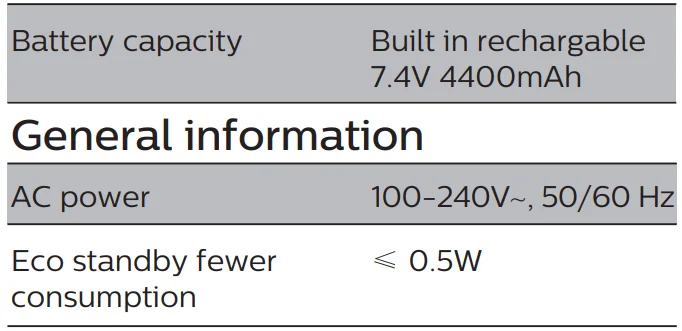

Battery

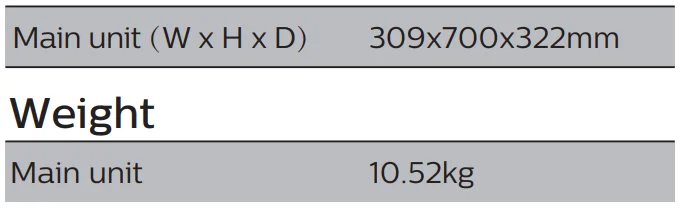

Dimensions

Maintenance

Clean the cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, aammoniaor abrasives.

Troubleshooting

CAUTION: Never remove the casing of this unit.

To keep the Warranty valid, never try to repair the system yourself.

If you encounter problems when using this unit, check the following points before requesting service. If the problem remains unsolved, go to the Philips website (www.philips.com/support).

When you contact Philips, ensure that your unit is nearby and the model number and serial number are available.

No power

• Make sure that the AC power plug of the unit is connected properly.
• Make sure that there is power at the AC outlet.
• To save power, the unit switches to standby automatically 15 minutes after a play reaches the end and no control is operated.

No sound

• Adjust the volume.

No response from the unit

• Disconnect and reconnect the AC power plug, then turn on the unit again.

Cannot display files in the USB device

• The number of folders or files in the USB device has exceeded a certain limit. This phenomenon is not a malfunction.
• The formats of these files are not supported.

USB device not supported

• The USB device is incompatible with the unit. Try another one.

About the Bluetooth device

The audio quality is poor after connecting with a Bluetooth-enabled device

• The Bluetooth reception is poor. Move the device closer to this product or remove any obstacle between them.

Cannot connect to the device

• The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.
• This product is already connected with another Bluetooth-enabled device. Disconnect that device and then try again.

The paired device connects and disconnects constantly

• The Bluetooth reception is poor. Move the device closer to this product or remove any obstacle between them.
• For some devices, Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of this product.

Notice

Declaration of conformity

Any changes or modifications made to this device that are not expressly approved by MMD Hong Kong Holding Limited may void the user’s authority to operate the equipment.

This product complies with the radio interference requirements of the European Community.

Hereby, MMD Hong Kong Holding Limited declares that the product complies with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations SI 2017 No 1206. You can find the Declaration of Conformity on www.philips.com/support.

For more manuals by Philips, visit ManualsLibraryy

Philips X5206 Bluetooth Party Speaker- FAQs
