Polaroid PBT3023 Wireless Tower Speaker

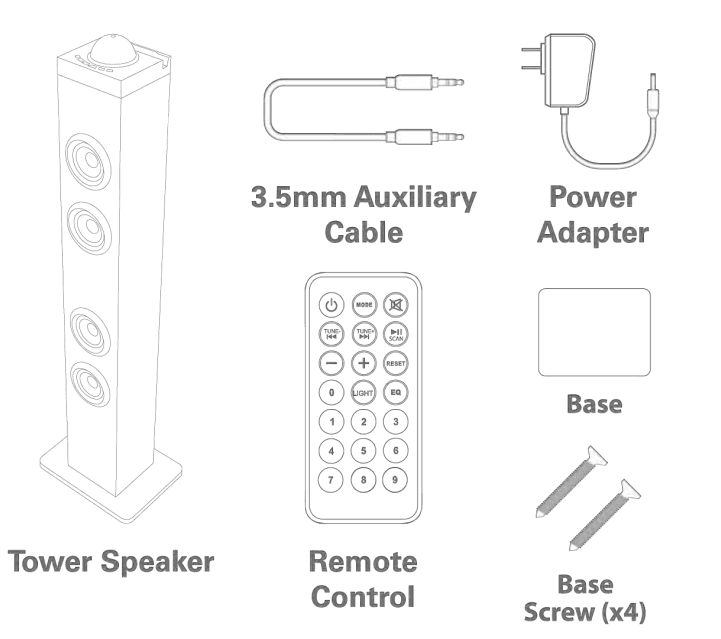

In The Box

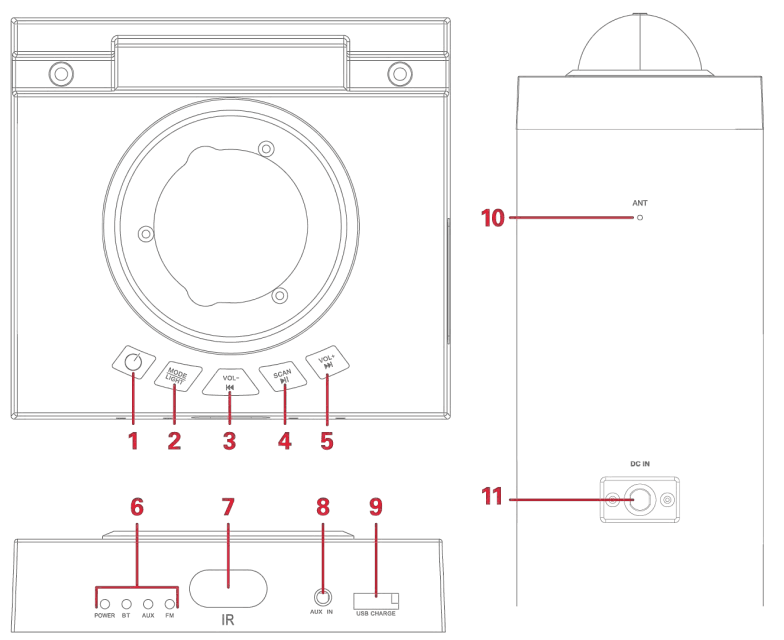

Location of Controls
(Top of Speaker)
- POWER Button: (Quick Press) Power ON/OFF
- [MODE/LIGHT] Button: (Long Press) Turn disco light ON/OFF (Quick Press) Change input mode
- [VOL-/14] Button: (Long Press) Decrease volume (Quick Press) Skip to the previous song, Tune down FM station
- [SCAN/»I1] Button: (Long Press) Scan and save FM radio stations (Quick Press) Play/pause playback
- [VOL+/»] Button: (Long Press) Increase volume (Quick Press) Skip to next song, Tune up FM station
- (Front of Speaker) LED Indicators: e POWER LED
- Power indicator BT LED
- Bluetooth indicator ® AUX LED
- Auxiliary input indicator FM LED
- FM radio indicator
- Infrared Sensor
- 3.5mm Auxiliary Input Jac
- USB Device Charging Port
- (Back of Speaker) Radio Antenna Cable
- DC Power Jack

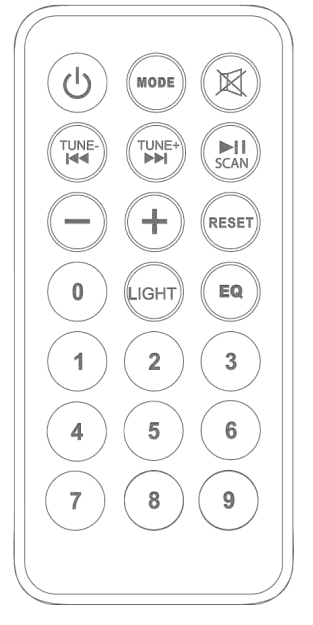

(Remote Control)
- [MODE] Button: Change input mode
- POWER Button: Power ON/OFF
Button:
Button:(FM Radio Mode)
- Long Press – Scan down FM station
- Quick Press -Tune down the FM station (Bluetooth Mode) Skip to the previous song
Button:
Button:(FM Radio Mode)
- Long Press – Scan up FM station
- Quick Press – Tune-up FM station
(Bluetooth Mode) Skip to the next track
- [ – ] Button: Decrease volume
- [ +] Button: Increase volume
- [LIGHT] Button: Turn on lights
- MUTE Button: Mute/unmute volume
Button:
Button:(FM Radio Mode) Scan and save FM radio stations
(Bluetooth Mode) Play/pause playback
- [RESET] Button: Reset to factory settings
- [EQ] Button: Equalizer
- Numeric Buttons
Setting Up the Speaker
Installing the Base
Remove the speaker and its contents from the packaging. Carefully turn the speaker upside down and lay the base piece on them bottom of the speaker. Using a screwdriver (not included), insert and screw the base screws.
Powering the Speaker
Insert the pin of the supplied power adapter into the power jack on the back of the speaker. The power LED indicator will turn GREEN.
Installing/Replacing the Remote Control Batteries
To replace or install the remote control battery, push and slide the battery door out from the remote control. Replace the battery with a new CR2025 battery with the positive (+) polarity facing up.
NOTE: There is a protective plastic tab inserted into the battery door of the remote control. When using it for the first time, gently pull the protection tab extending out of the remote control’s battery door.
Connecting to the speaker
Pairing to the Speaker
- Quick press the [M1 button to power the speaker ON. If the speaker is not already in Bluetooth mode, switch it to Bluetooth mode by pressing the [MODE/LIGHT] button. Once the speaker is in Bluetooth mode, the Bluetooth LED indicator will flash GREEN.
- Set your mobile device to search for Bluetooth devices. When your mobile device finds the speaker, select PBT3023 from the list of found devices.
- Once successfully paired, a tone will be heard and the Bluetooth LED indicator will slowly flash GREEN.
Using the Speaker with a Wired Device
Insert one of the 3.5mm connectors of the supplied 3.5mm auxiliary cable into the auxiliary input jack on the side of the speaker. Insert the other end of the 3.5mm auxiliary cable into the headphone jack of your media-playing device. Press the [MODE] button to switch to AUX mode, the AUX LED indicator will turn GREEN. All media playback is controlled through the connected device.
Using the speaker
Powering ON/OFF
- Quick press the POWER button on the speaker to power the speaker ON/OFF
- Quick press the POWER button on the remote control to enter/leave standby mode.
Volume Adjustment
- To increase volume, press the
button on the speaker or the [+] on the remote control. To decrease volume, press the
button on the speaker or the [-] button on the remote control. - Press the MUTE button on the remote control to mute/unmute the speaker.
- Quick press the [EQ] button on the remote control to cycle through the different preset equalizer modes.
button on the speaker or the [-] button on the remote control.Changing Modes
- Quick press the [MODE/LIGHT] button on the speaker or the [MODE] remote control to change between Bluetooth, auxiliary, and FM radio input modes.
Using the Disco Light
- Long press the [MODE/LIGHT] button on the speaker or the [LIGHT] button on the remote control to turn the disco light ON/OFF.
Playing Music
To enjoy music wirelessly on your speaker, make sure you are paired to a Bluetooth-enabled device. For more on pairing your device to the speaker, please consult the Pairing the Speaker section of the user manual. Once paired, you can control the media playback and volume adjustment with the controls on your paired device.
- To pause/resume media playback, quickly press the
button on the speaker or remote control. - To skip to the previous track, quickly press the
button on the speaker or thebutton on the remote control. - To skip to the next track, quickly press the
button on the speaker or the
button on the remote control.
button on the speaker or remote control.
button on the speaker or the
button on the remote control.If you are playing music on your speaker via the 3.5mm auxiliary input jack, music playback is controlled via your connected device. Volume adjustment can be controlled with the speaker, but it is recommended that the volume on your device is at its maximum level. For more on using the 3.5mm auxiliary input jack, please consult the Using with a Wired Device section of this user manual.
Using the FM Radio
Once powered ON, press the [MODE/LIGHT] button on the speaker or the [MODE] button on the remote control until the speaker switches to FM radio mode. The FM LED indicator will turn GREEN.
Scanning Stations
- Long press thebutton on the speaker or quick press the button on the remote control while in FM radio mode to have the speaker scan for FM radio stations. The speaker will scan for all nearby stations with a strong enough signal strength and save them as presets.
- Jump directly to the saved stations using the number buttons on the remote control.
- Skip through frequencies by quickly pressing the
and
buttons on the speaker or the
and
buttons on the remote control. - Long press the
and
buttons on the remote control to
scan through saved stations.
NOTE: For best results, extend the FM antenna cable on the back of the speaker toward an open window or an area with a direct line of sight toward the sky.
Charging USB Devices
Once the speaker is powered ON, USB devices can be charged via the USB Device Charging Port on the front of the speaker. Plug a USB charging cable (not included) into the USB Device Charging Port and attach the other end of the cable to the charging port on your USB device.
NOTE: The USB Device Charging Port is used ONLY for charging devices. Music or files cannot be played or transferred to the speaker.
Legal information
READ THIS CAREFULLY AND SAVE FOR FUTURE REFERENCE
This device complies with part 16 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 16 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
Rain/Moisture Warning
- Do not expose the unit to extreme temperatures (heat or cold), open flames, humid conditions, or wet conditions.
- Do not submerge in water.
- Do not open this product or attempt to repair the unit yourself should it not be working.
Warranty Information
This product as supplied and distributed new by AIT, Inc. (“AIT”) to the original consumer purchaser is warranted by AIT against defects in material and workmanship for a period of one year from your date of purchase (“Warranty”). In the unlikely event that this product is defective, or does not perform properly, you may within one year from your original date of purchase return it to the authorized service center for repair or exchange.
TO OBTAIN WARRANTY SERVICE:
- Call the Customer Support number located below, or go to our website portal to receive an SRO number.
- Provide proof of the date of purchase within the package (dated bill of sale).
- Prepay all shipping costs to the authorized service center, and remember to insure your return.
- Include a return shipping address (no PO. Boxes), a telephone contact number, and the defective unit ‘within the package.
- Describe the defect or reason you are returning the product.
Your product will be repaired or replaced, at our option, for the same or similar model of equal value if examination by the service center determines this product is defective. Products received damaged as a result of shipping, will require you to file a claim with the carrier.
