PowerLocus P2 Kids Wireless Headphones User Manual

PowerLocus P2 Kids Wireless Headphones

Table of Contents

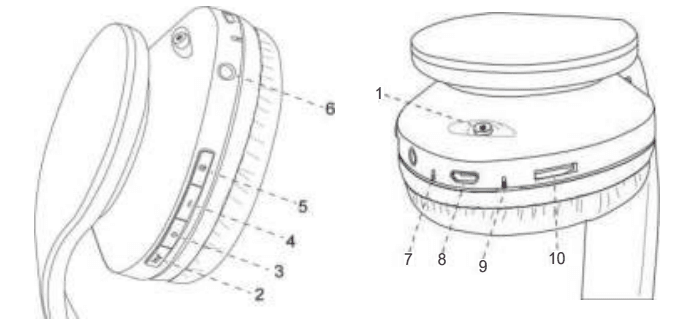

PRODUCT INDICATION

Power on /off,
play/pause, answer/end calls, reject call, last number redial
Volume up (Short Press)
Next song (Long Press)
Volume down (Short Press)
Last song (Long Press)
Multi-function button(pairing,auto search radio)
Headset jack
LED indicator
USB-C charging port
Microphone
Micro SD/TF card slot

Specifications

Bluetooth Version: V5.3
Working Distance Range: 10M
Frequency Range: 20Hz-20kHz
Audio Drivers: Φ40mm
Charging Voltage: DC 5V
Charging Time: About 1.5 Hours
Talking/Music Time: About 20 Hours (50% Volume)
Impedance: 32 Ohms
Weight: 175g/0.39 lbs

POWER ON/OFF THE HEADSET

POWER ON: Slide the switch right, and the blue and red indicator light will flash(the headset said:the wireless is ready to pair ).
POWER OFF: Slide the switch, and the blue indicator light will go off.

PAIR TO YOUR MOBILE PHONE OR OTHER PRODUCTS

Slide the switch right and the blue and red indicator light will flash(the headset said:the wireless is ready to pair ).
Turn on the Bluetooth function of your phone or other products.
Search for the Bluetooth devices and select”P2 Princess” (Enter the code ‘0000’ if needed)
If paring is successful, the blue light indicator starts flashing(the headset said:the wireless is connected successfully).
Please make sure the headphones are working before pairing.
It will connect to the pre-phone automatically when it turns on(Please make sure the Bluetooth function of your phone is working)
If the pairing is not successful, please switch off the headfirstly, and then re-pair again.

MP3/FM

In power-on mode, insert the TF card, short-press press M button, and MP3 will play automatically.
If not have a TF card, short-press press M button, the FM radio will play automatically.
(1) In power-on mode, short-press the M button, FM radio will play automatically. (2) Long press the Play/Pause button to auto search all radio stations, (3) wait for 40 seconds to 1 minute for the stations to be memorized, (4) then long press + or—, you will listen to any radio station you like..
If you are listening to FM radio, short press M button, it will be converted to the Bluetooth mode.And auto connected to your phone or other products.

ANSWER/END CALLS, REJECT CALL, LAST NUMBER REDIAL

(In the Bluetooth mode)

When there is a call, a short press button can answer the call. After the call, press the button can hang up. If the other side hangs up,no need to press the button.
reject call: long press #/C button about 2-3sec.
Last number redial: press the fast button 2 times
When the phone call comes in or you answer the call, if the Bluetooth headphones are playing music, the music will pause automatically and enter the waiting state. After hanging up, the music will continue to play automatically.

CHARGING THE HEADSET

Insert USB charging cable into USB port which have support 5V power (such as ACIDC USB adapter or PC USB port). When the red light is on, the headset is in charging. When the red light will be off, the headset is fully charged. It takes about 2-2.5 hours to charge the headset fully.
The battery is rechargeable.Low-Voltage alert:When the alert tone ‘low battery’ sounds and the indicator turns into red indicate that the battery has run out, need to be charged as soon as possible. First time charging : please be sure the battery has been charged fully before use.

WIRED HEADPHONE FUNCTION

For any mode of headphone, you can connect one side of 3.5 stereo sound supply extension line to headphone audio jack,the another side connect to Audio jack(such as mobile phone, computer, lpad etc). Then you will hear songs from other devices.

Switch Mode – 85dB / 94dB

To change the volume sensitivity, hold the + and – buttons at the same time till you hear the voice prompt “85dB” or “94dB”

HOW TO RESET THE HEADPHONES?

Hold both Buttons for 4-7 seconds to reset the Bluetooth and enter pairing mode again.

Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help

NOTE: This device and its antenna(s) must not be co-located or operate in conjunction with any other antenna or transmitter.

The device has been evaluated to meet the general RF exposure requirements.

ISED Canada Statement

This device contains licence-exempt transmitters/receivers that comply with Innovation, Science and Economic Development Canada’s llicence-exemptRSS RSS RSS RSS RSS RSS (s). Operation is subject to the following two conditions:

This device may not cause interference and
This device must accept any interference, including interference that may cause undesired operation of the device.

Radiation Exposure: This equipment complies with Canadian radiation

Exposure limits are set forth for an uncontrolled environment to maintain compliance with IC’s RF Exposure guidelines. This equipment should be installed and operated at a minimum distance of Omm the radiator to your body. This device and its antenna(s) must not be co-located or operate in conjunction with any other antenna or transmitter.

To find out more about the UK Declaration of Conformity, please visit: https://powerlocus.com/doc-uk-p2kids

This symbol on a product means that the product is covered by European Directive 2012/19/EU. Electrical products should not be disposed of with household waste. Please recycle them at the collection points provided for this purpose. Contact the local authorities or your dealer for recycling advice. Proper disposal of old appliances helps preserve the environment and health.

Safety Instructions

Please charge the headphones before first use.
Please charge at least once every 3 months to keep the battery in good condition.
To protect your hearing, please do not use the headphones long time with too high volume.
Do NOT expose the headphones to temperatures
Protect from shocks and drops
Do NOT try to open the product
Do NOT expose to moisture, rain, or liquids
