PowerLocus P2 Over Ear Bluetooth Headphones User Manual

PowerLocus P2 Over Ear Bluetooth Headphones

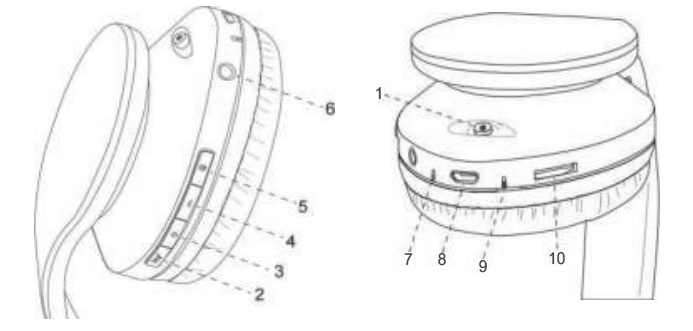

PRODUCT INDICATION

Power on /off,
play/pause, answer/end calls, reject call, last number redial
Volume up (Short Press)
Next song (Long Press)
Volume down (Short Press)
Last song (Long Press)
Multi-function button(pairing,auto search radio)
Headset jack
LED indicator
USB-C charging port
Microphone
Micro SD/TF card slot

Specifications

Bluetooth Version: V5.3
Working Distance Range: 10M
Frequency Range: 20Hz-20kHz
Audio Drivers: 40mm
Charging Voltage: DC 5V
Charging Time: About 1.5 Hours
Talking/Music Time: About 20 Hours (50% Volume)
Impedance: 32 Ohms
Weight: 175g/0.39 lbs
Volume Sensitivity: 100+/-3dB
Bluetooth Specification Power Class 1
Frequency band:2.402- 2.480GHzz
Operating frequency2402- 2480MHzHz
Rated power consumption: 120 mW
Maximum output power dBm
Operating Temperature: 0°C to 45 °C

POWER ON/OFF THE HEADSET

POWER ON: Slide the switch right, and the blue and red indicator light will flash(the headset said:the wireless is ready to pair ).
POWER OFF: Slide the switch, and the blue indicator light will go off.

PAIR TO YOUR MOBILE PHONE OR OTHER PRODUCTS

Slide the switch right and the blue and red indicator light will flash(the headset said:the wireless is ready to pair ).
Turn on the Bluetooth function of your phone or other products.
Search for the Bluetooth devices and select”P2 Princess” (Enter the code ‘0000’ if needed)
If paring is successful, the blue light indicator starts flashing(the headset said:the wireless is connected successfully).
Please make sure the headphones are working before pairing.
It will connect to the pre-phone automatically when it turns on(Please make sure the Bluetooth function of your phone is working)
If the pairing is not successful, please switch off the headfirstly, and then re-pair again.

EQ Modes (Bass, Rock, Pop, Vocal Mode)

In powered-on mode, click the M button to switch between the modes – Rock, Bass, Pop, and Vocal.

MP3/FM

In power-on mode, insert the TF card, short-press press M button, and MP3 will play automatically.
If not have a TF card, short-press press M button, the FM radio will play automatically.
(1) In power-on mode, short-press the M button, FM radio will play automatically. (2) Long press the Play/Pause button to auto search all radio stations, (3) wait for 40 seconds to 1 minute for the stations to be memorized, (4) then long press + or—, you will listen to any radio station you like..
If you are listening to FM radio, short press M button, it will be converted to the Bluetooth mode.And auto connected to your phone or other products.

ANSWER/END CALLS, REJECT CALL, LAST NUMBER REDIAL

(In the Bluetooth mode)

When there is a call, a short press button can answer the call. After the call, press the button can hang up. If the other side hangs up,no need to press the button.
reject call: long press #/C button about 2-3sec.
Last number redial: press the fast button 2 times
When the phone call comes in or you answer the call, if the Bluetooth headphones are playing music, the music will pause automatically and enter the waiting state. After hanging up, the music will continue to play automatically.

CHARGING THE HEADSET

Insert USB charging cable into USB port which have support 5V power (such as ACIDC USB adapter or PC USB port). When the red light is on, the headset is in charging. When the red light will be off, the headset is fully charged. It takes about 2-2.5 hours to charge the headset fully.
The battery is rechargeable.Low-Voltage alert:When the alert tone ‘low battery’ sounds and the indicator turns into red indicate that the battery has run out, need to be charged as soon as possible. First time charging : please be sure the battery has been charged fully before use.

WIRED HEADPHONE FUNCTION

For any mode of headphone, you can connect one side of 3.5 stereo sound supply extension line to headphone audio jack,the another side connect to Audio jack(such as mobile phone, computer, lpad etc). Then you will hear songs from other devices.

HOW TO RESET THE HEADPHONES?

Hold both Buttons for 4-7 seconds to reset the Bluetooth and enter pairing mode again.

Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help

NOTE: This device and its antenna(s) must not be co-located or operate in conjunction with any other antenna or transmitter.

The device has been evaluated to meet the general RF exposure requirements.

ISED Canada Statement

This device contains license-exempt transmitters/receivers that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS (s). Operation is subject to the following two conditions:

This device may not cause interference and
This device must accept any interference, including interference that may cause undesired operation of the device.

Radiation Exposure: This equipment complies with Canadian radiation

Exposure limits are set forth for an uncontrolled environment to maintain compliance with IC’s RF Exposure guidelines. This equipment should be installed and operated at a minimum distance of Omm the radiator to your body. This device and its antenna(s) must not be co-located or operate in conjunction with any other antenna or transmitter.

Hereby, GL GRUP-2015 LTD declares that this equipment complies with the UK relevant statutory requirements. To find out more about the UK Declaration of Conformity, please visit: https://powerlocus.com/doc-uk-p2kids

Safety Precautions

Please DO NOT use adapters more than DC5V 1A! Please use the original cable supplied with the package, as different cables could harm the product and void its warranty.
Do not use the unit while walking, driving, or cycling. Doing so may cause traffic accidents.
Do not use in hazardous areas unless the surrounding sound can be heard.
The unit is not waterproof. If water or foreign matter enters the unit, it may result in fire or electric shock. If water or foreign matter enters the unit, stop use immediately and contact PowerLocus.
In particular, be careful in the following cases:
- When using the unit near a sink or liquid container. Be careful that the unit does not fall into a sink or container filled with water.r
- When using the unit in the rain or snow, in humid conditions. If you touch the unit with wet hands or put the unit in the pocket of a damp article of clothing, the unit may get wet.
Never insert the USB plug when the headphone or charging cable is wet. If the USB plug is inserted while the unit or charging cable is wet, a short circuit may occur due to liquid (tap water, seawater, soft drink, etc.) or foreign matter on the unit or charging cable, and cause abnormal heat generation or malfunction.

Attention – Magnetic Fields

Magnetic fields are being generated by this product that could cause interference with cardiac pacemakers, implanted defibrillators (ICDs,s), and other implants. Please always maintain at least 10cm/3.94 inch distance between the headphone and the pacemaker, implanted defibrilators (ICDs), and other implants. Check with your doctor before use if you are fitted with a medical device such as a pacemaker or a programmable shunt!

Safety Precautions for the Batteries

Do not expose the batteries (battery pack or batteries installed) to excessive heat, such as sunshine, fire, or the like, for a long time.
Do not subject the batteries to extreme low temperature conditions that may result in overheating and thermal runaway.
Do not dismantle, open, or shred secondary cells or batteries. In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
Secondary cells and batteries need to be charged before use. Always refer to the manufacturer’s instructions or product manual for proper charging instructions. Always dispose of properly.
Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other countries with separate collection systems)

This symbol on a product means that the product is covered by European Directive 2012/19/EU. Electrical products should not be disposed of with household waste. Please recycle them at the collection points provided for this purpose. Contact the local authorities or your dealer for recycling advice. Proper disposal of old appliances helps preserve the environment and health.

Safety Instructions

Please charge the headphones before first use.
Please charge at least once every 3 months to keep the battery in good condition.
To protect your hearing, please do not use the headphones long time with too high volume.
Do NOT expose the headphones to temperatures
Protect from shocks and drops
Do NOT try to open the product
Do NOT expose to moisture, rain, or liquids
