Powr-Flite PS530-W22-UC Self-Propelled Scrubber User Manual

Powr-Flite PS530-W22-UC Self-Propelled Scrubber

GROUNDING INSTRUCTIONS

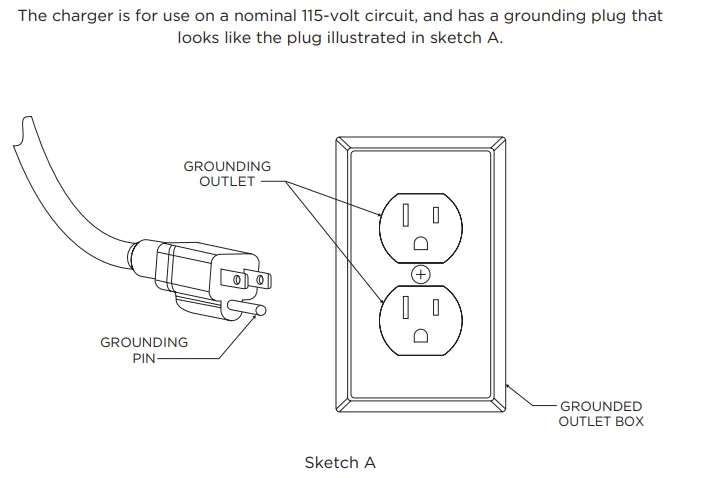

The charger must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This charger is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

IMPORTANT SAFETY INSTRUCTIONS

Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert, and knowing how your unit works. To reduce the risk of personal injury or damage to your unit, use only as indicated in this manual.

IMPORTANT: This machine must only be used for the manufacturer’s approved application as described in this manual. The machine must be unpacked and assembled in accordance with these instructions. Only genuine accessories and spare parts provided with the machine or those approved by the manufacturer should be used. The use of other accessories may impair the safety of the machine. All repairs must be performed by a qualified service agent.

WARNING:

• DO NOT modify the machine from its original design.
• Operators must be fully trained in the use of the machine in accordance with these instructions and be able to perform regular user maintenance as outlined in this manual.
• Operators should be physically capable of maneuvering, transporting, and operating the machine.
• Operators should be able to recognize unusual operation of the machine and report any problems.
• This machine is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given instruction concerning use of the machine and are under supervision by a person responsible for their safety.
• Keep children and unauthorized persons away from the machine when in use. DO NOT use the machine as a toy.
• DO NOT use a charger with a damaged cord or plug. If the appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, contact an authorized service center for service.
• DO NOT use in an explosive environment.
• The machine must be stored in an indoor space.
• Use the battery only with the charger supplied.
• The Battery and charger have no serviceable parts and cannot be repaired. Replace only with battery and/or charger part numbers shown in this manual.
• CAUTION – If it is suspected that there is hazardous dust or flammable/corrosive material, stop cleaning the area immediately and consult your supervisor.
• DO NOT use to clean up any burning or lighted materials such as cigarettes, matches, ashes, or other combustible objects.
• Only use the machine on firm, level surfaces. DO NOT use the machine on a gradient or slope of more than 2%.
• CAUTION – should not be used or stored outdoors or on uneven surfaces. Protect from rain. Do not charge the unit outdoors.
• Take care when using this machine near the top of stairs to avoid loss of balance.
• DO NOT cover the machine when in use.
• DO NOT leave the machine running unattended.
• Keep hair, loose clothing, hands, feet, and all other parts of the body away from openings and moving parts. Do not put your hands under the base, as rotating parts can cause injury.
• DO NOT put any object into openings. DO NOT use with any opening blocked. Keep free of dust, debris, and anything that may reduce airflow.
• DO NOT use volatile or combustible solvents (e.g., diesel, petrol, PA, trichloromethane) nor any corrosive, toxic, or highly irritant substance to wash floors, even if diluted. In the event of accidental contact with any such substances (e.g., due to spills), follow the decontamination procedures in force at the user site. If in any doubt about the condition of the machine, contact Powr-Flite or the dealer/agent who supplied the machine.
• DO NOT leave the machine unattended when plugged in. Switch off when not in use and before changing brushes or attempting any maintenance or adjustment.
• DO NOT pull or carry the charger by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners.
• DO NOT use water that exceeds 122°F (50°C). Using water above this temperature will void the tank warranty.
• DO NOT run the machine over the cord. Keep the cord away from heated surfaces.
• DO NOT unplug by pulling on the cord. To unplug, grasp the plug, not the cord. Do not handle the plug or the machine with wet hands. Turn off all controls before unplugging.
• Connect only to a properly grounded outlet. See grounding instructions.
• DO NOT handle the charger, including the charger plug and terminals, with wet hands.
• DO NOT use cleaning solutions with a pH below 4 or above 10 to prevent damage to sensitive components.
• The machine must be kept clean and in good condition. If any parts are damaged, they shall only be replaced by an approved part by the manufacturer, its service agent, or a similar qualified person in order to avoid a hazard.
• Only replace the power cord with the original OEM equipment.
• DO NOT open, crush, expose to heat above 212°F (100°C), or incinerate the battery even if it is severely damaged.
• DO NOT use to pick up wash detergent, kerosene, broken glass, needles, wet dust, sewage, etc.
• DO NOT use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• DO NOT use without filters in place.
• Prevent unintentional starting. Ensure the switch is in the off position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing an appliance that has the switch on invites accidents.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of accidentally starting the appliance.
• Recharge only with the charger specified by the manufacturer.

CLEANING AGENTS

• When using cleaning and care agents, the manufacturer’s danger warnings must be followed, and proper PPE must be worn per the manufacturer’s instructions.
• Only use low-foaming, non-combustible cleaning agents which DO NOT contain generally health-hazardous substances.
• Please ensure that after use, any chemical residue is rinsed out with clean water.

OPERATOR GUIDELINES

Let the machine do the work. Grip the handle as lightly as possible.

• Wear suitable footwear to avoid slipping.
• Wear suitable clothing to keep dry.
• Do not smoke when using the machine.
• Do not use excessive foaming or highly corrosive cleaning solutions. If operating on a flooded floor, ensure that the water depth does not exceed 6 mm (1/4 inch).

TECHNICAL SPECS

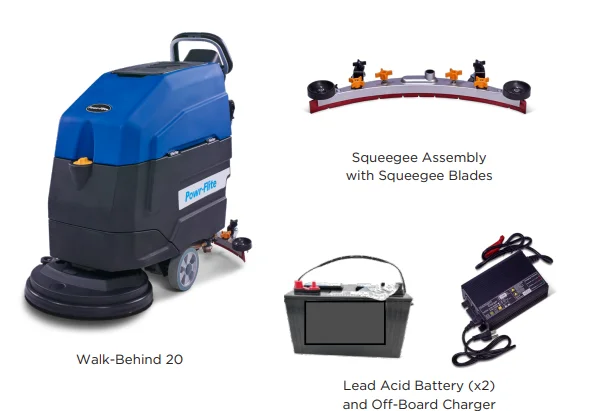

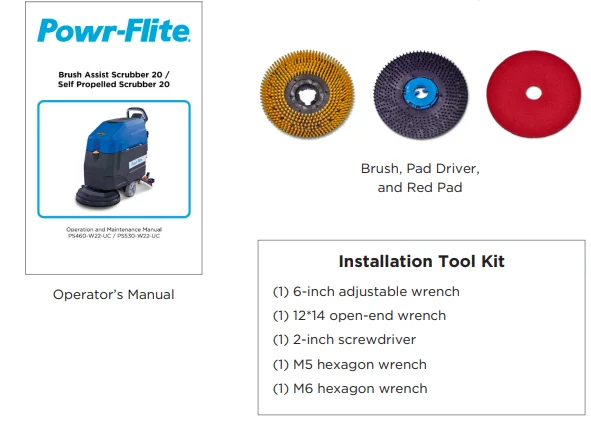

WHAT’S INCLUDED IN THE CARTON

PRODUCT INTRODUCTION

Applicable scenarios

This equipment can be used in a variety of scenarios, suitable for commercial and industrial use, such as hotels, schools, hospitals, factories, supermarkets, office buildings, etc.; for epoxy floors, PVC floors, terrazzo, wear-resistant floors, tile cement floors, wooden floors, VCT floors, rubber floors, can be used to clean different floors according to the brushes of different materials, and there are various choices.

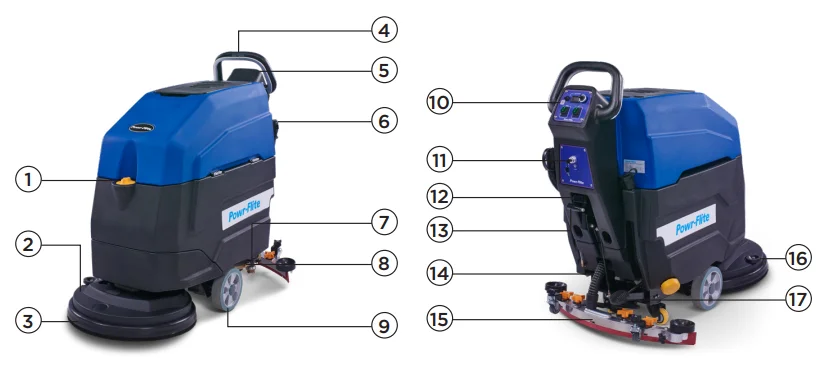

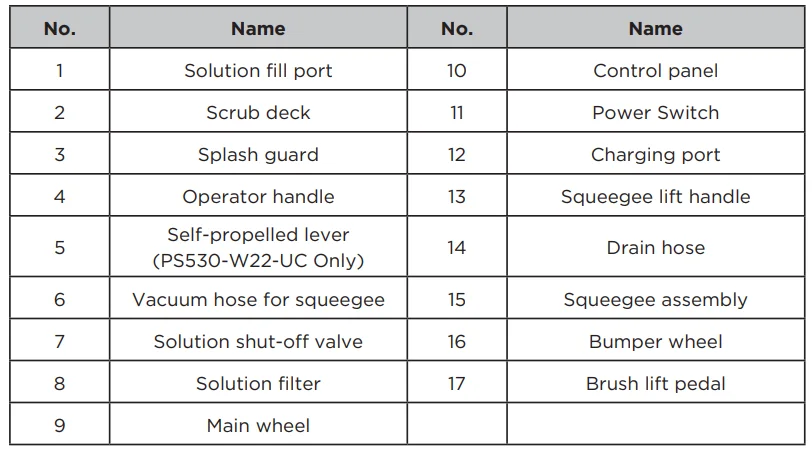

Device overview

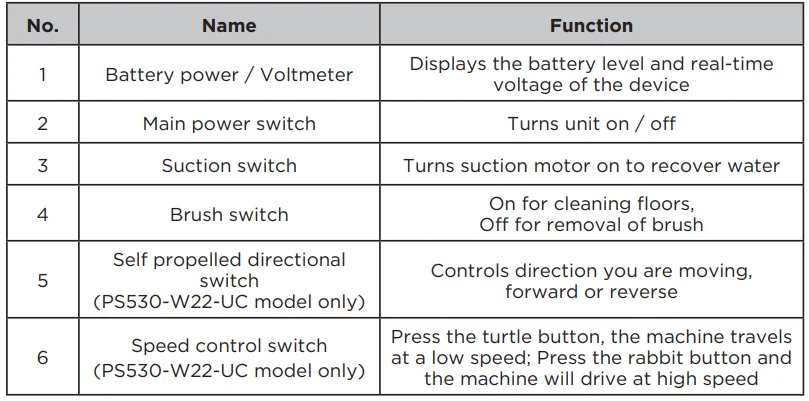

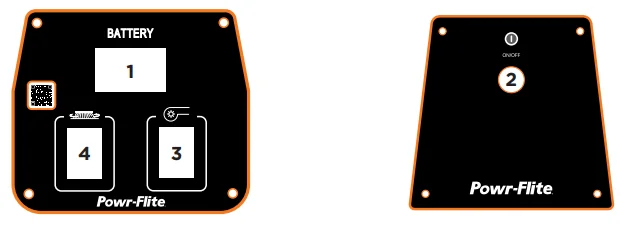

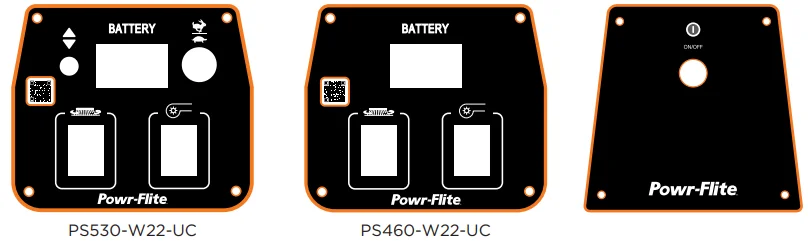

Control panel and buttons PS460-W22-UC

Control panel and buttons PS530-W22-UC

OPERATION

Preparation

Choose the appropriate detergent as well as the most suitable concentration. Defoamer should also be used to eliminate foam in the recovery tank and extend the service life of the suction motor. Add detergent into the front solution fill port first, then add clean water. If you need to use tap water, you can insert the tap water pipe into the water inlet on the front of the machine. Pay attention to the water level to avoid overflows.

Start of Cleaning

Before starting work, we recommend that you sweep the ground manually to remove large debris. This will help boost your working efficiency and protect the machine. Turn on the switch to see the current voltage of the batteries on the display. If the battery voltage is low, charge the batteries immediately before using the machine.

During the Cleaning Process

1. Install either the pad driver or the brush.
2. Lower scrub deck.
3. Turn on the main power key switch.
4. Turn on the brush motor switch.
5. Lower the squeegee assembly.
6. Turn on the suction motor.
7. Open the solution valve.
8. Set the self-propelled directional switch to the forward position (PS530-W22-UC only).
9. Using the speed control knob, set the speed to the desired level (PS530-W22-UC only).

Note: When the float is engaged, the suction stops recovering the solution. When this happens, stop the machine immediately and do the following checks. Check whether the recovery tank is full. If it is full, empty the recovery tank. If the recovery tank is not full, check the vacuum hoses for blockage. If blocked, remove the obstruction/clean the hose. If foam is present, add a defoamer to the recovery tank.

OPERATION PRECAUTIONS / MAINTENANCE

Operation precautions

• Avoid stopping in the same place for a long period of time. This can damage the floor.
• When cleaning an epoxy floor, it is recommended to use a cleaning pad to avoid excess wear on the epoxy floor.
• The clean water tank should be kept clean to avoid blockage in the water valve.
• When the clean water tank is empty, be sure to empty the dirty water tank before refilling the clean water tank.
• For chemicals being used in the machine, be sure to use the recommended mixture rate to match the soil level of what is being cleaned. To avoid damage in vacuum motor, always add defoamer to the recovery tank.
• After each shift, be sure to fully clean the recovery tank and wipe down the machine.
• During cold-weather operation, be sure to fully drain the clean water tank to avoid damage to the valves caused by the water freezing.

Emptying Dirty Water Tank

Please follow all local regulations regarding the disposal of dirty water and chemicals.

• Turn off the main power supply to ensure that the machine is off.
• Open the drain hose cover and drain dirty water.
• Rinse the recovery tank out with clean water.
• If the machine will not be used for a long period of time, make sure to store the machine with the tanks empty and dry, and the battery terminal disconnected.

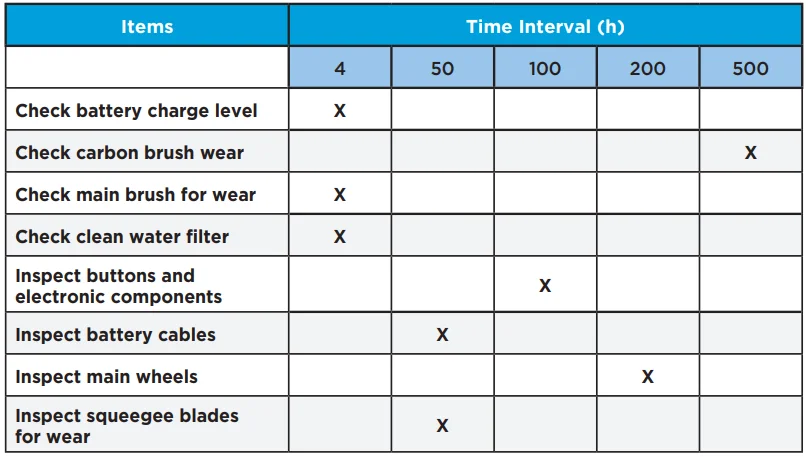

Regular Maintenance

Replacement of the brush and/or pad driver

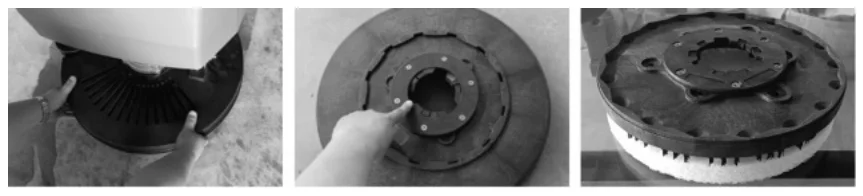

To install the brush and/or pad driver, ensure the clutch plate is aligned with the driver motor coupling. Press the brush plate motor button, and the plate will be installed automatically with the rotation of the motor. The brush plate can also be installed manually. For inexperienced users, it is recommended to install the brush plate manually.

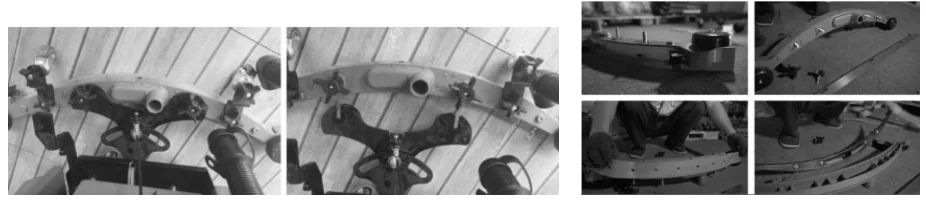

Replacement and maintenance of the squeegee

The squeegee is an important part of the machine and will gradually wear due to its friction with the ground. When the water suction efficiency is reduced, do the following checks.

• Check whether there are foreign objects in the plastic scraper.
• Check whether the joint of the squeegee and the hose is blocked.
• Check whether the angle between the scraper and the ground is appropriate (the angle can be adjusted through the universal wheels of the squeegee).
• Check whether the squeegee is seriously worn.

Both sides of the squeegee can be used for water suction; if both sides are seriously worn, the squeegee should be replaced. If the machine is used in a heavily oily environment, please purchase the specific oil-resistant squeegee.

1. Turn off the main switch and remove the ignition key.
2. Lower the squeegee assembly to the floor and remove the vacuum hose from the assembly.
3. Loosen the two orange plastic wing nuts to remove the squeegee assembly.
4. Unclamp the squeegee bracket to remove the front and rear strips.
5. Install new squeegee blades and/or flip current blades and align the holes in the blades to the protrusions on the bracket.
6. Place the squeegee metal retaining bracket onto the blades and clamp it in place with the locking lever.
7. Place the squeegee assembly back onto the mounting bracket, securing with the two orange plastic wing nuts.

Maintenance of the Batteries

• Check the battery cables and connections for wear and replace them when necessary.
• The battery terminals should be kept clean and dry.

Charging the Batteries

1. Bring the machine to a level surface.
2. Ensure the machine is in a well-ventilated area.
3. Make sure both the solution and recovery tanks are empty.
4. Lift the recovery tank, locking it into the open position.
5. Plug in the connector of the battery charger to the batteries to be charged.
6. Plug the battery charger into the wall outlet.
7. Normal charge time is 6 to 10 hours for a full charge.

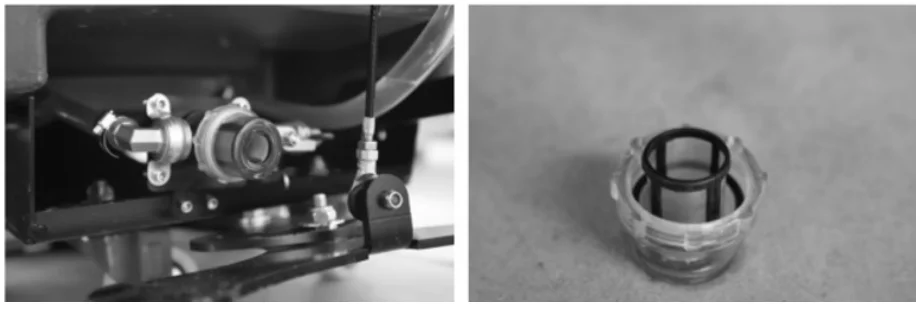

Filter Maintenance and Disassembly

1. Before checking the filter, ensure that the solution valve is in the off position.
2. Remove the clear filter cap and inspect the filter.
3. Clean and/or replace if needed.
4. Reinstall the filter cap and turn the solution valve to the on position.

Storage Maintenance of the Machine

1. Empty the recovery tank and wipe the surface of the machine with a dry cloth.
2. Lift the brush/pad driver off the floor, along with the squeegee.
3. Store the machine in a dry indoor place without the presence of flames, chemical substances, flammable gases, or liquids.

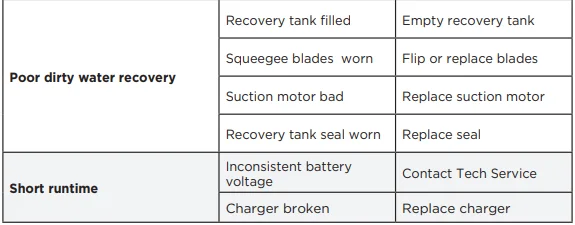

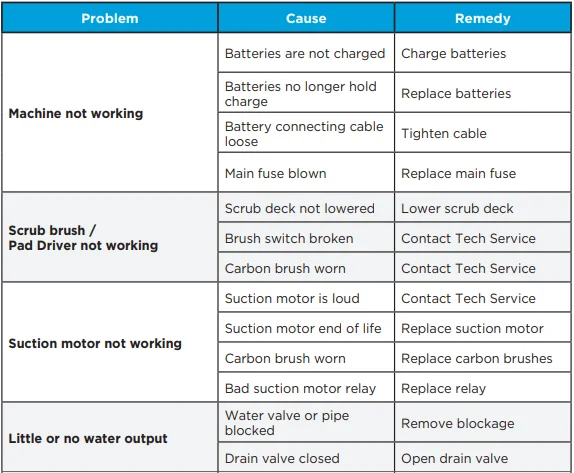

TROUBLESHOOTING
