Powr-Flite Wet/Dry Vacuum PF25

IMPORTANT SAFETY PRECAUTIONS

WARNING!: To reduce the risk of fire, electric shock, or injury

FOR DRY UNITS
Electric shock could occur if used on wet surfaces. DO NOT expose to rain. Store Indoors
FOR WET UNITS
To avoid electric shock, DO NOT expose to rain. Store Indoors. Electric shock could occur if the power nozzle is used on wet surfaces.

When using this electric vacuum/blower, basic precautions should always be followed, including the following:

DO NOT leave the unit when plugged in. Unplug from the outlet when not in use and before servicing.
DO NOT allow the unit to be used as a toy. Close attention is necessary when used around or near children.
Use only as described in this manual. Use only the manufacturer’s recommended attachments.
DO NOT use with a damaged cord or plug. If the unit is not working properly because it has been dropped, dropped into water, left outdoors, or damaged in any way, contact a service center of Powr-Flite®.
DO NOT pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. DO NOT run the unit over the cord. Keep the cord away from heated surfaces.
DO NOT unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
DO NOT handle the plug or appliance with wet hands.
DO NOT put any objects into openings. DO NOT use with any opening blocked: keep free of dust, lint, hair, or anything that may reduce air flow.
Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
DO NOT pick up anything that is smoking or burning, such as cigarettes, matches, or hot ashes.
DO NOT use without a dust bag and/or filters in place for dry operation, and a wet adapter for wet operation.
Turn off all controls before unplugging.
Use extra care when cleaning the stairs.
DO NOT use them to pick up flammable or combustible liquids such as gasoline, or use them in areas where they may be present.
DO NOT use where oxygen or anesthetics are used.
DO NOT use an extension cord unless necessary. If an extension cord is used, then the wire size must be #14 or larger and should not exceed 50 ft. in length. The extension cord must be a three-wire type to ensure grounding protection.
Replace damaged or worn parts immediately with genuine original equipment parts to maintain safety.
This unit must be connected to a properly grounded outlet only. See grounding instruction. If your vacuum//blower has an outlet for a motorized power ozzle, always turn it off before connecting or disconnecting the motorized nozzle.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

DANGER: Improper use of the grounding plug can result in a risk of electric shock.

GROUNDING INSTRUCTIONS

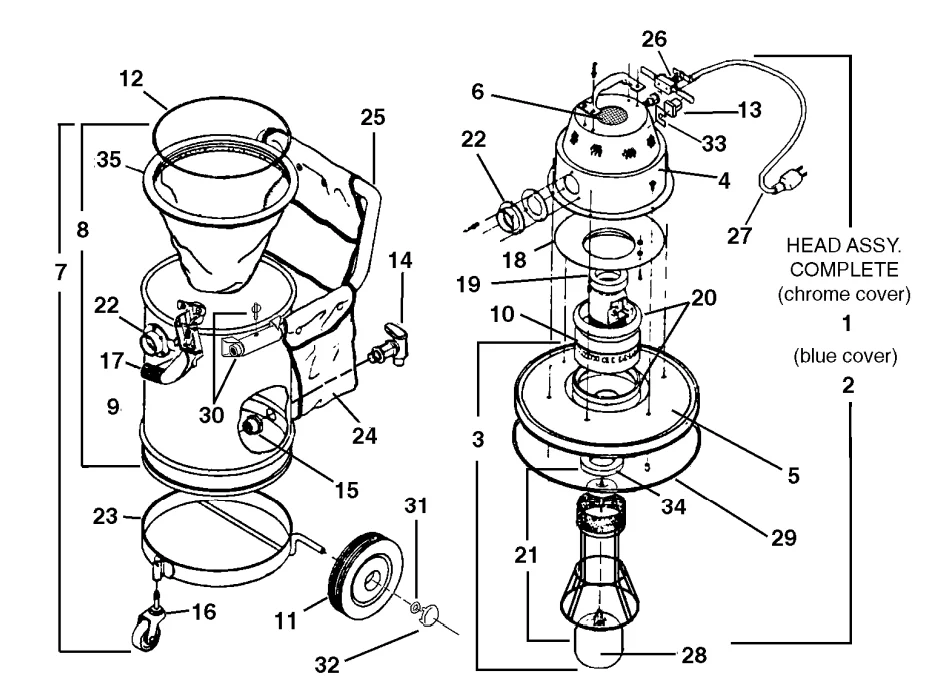

CAN ASSEMBLIES

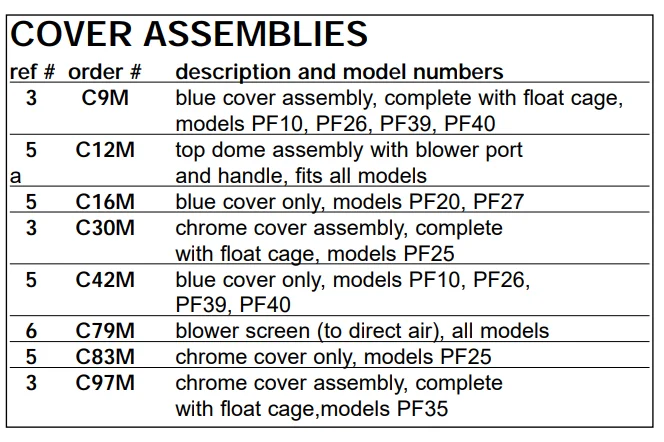

COVER ASSEMBLIES

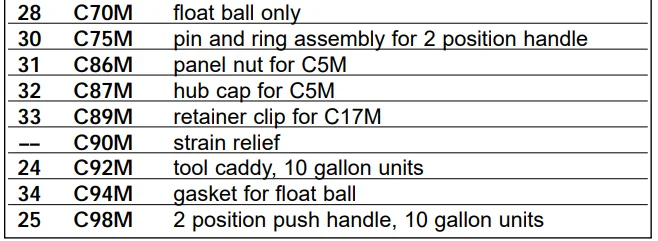

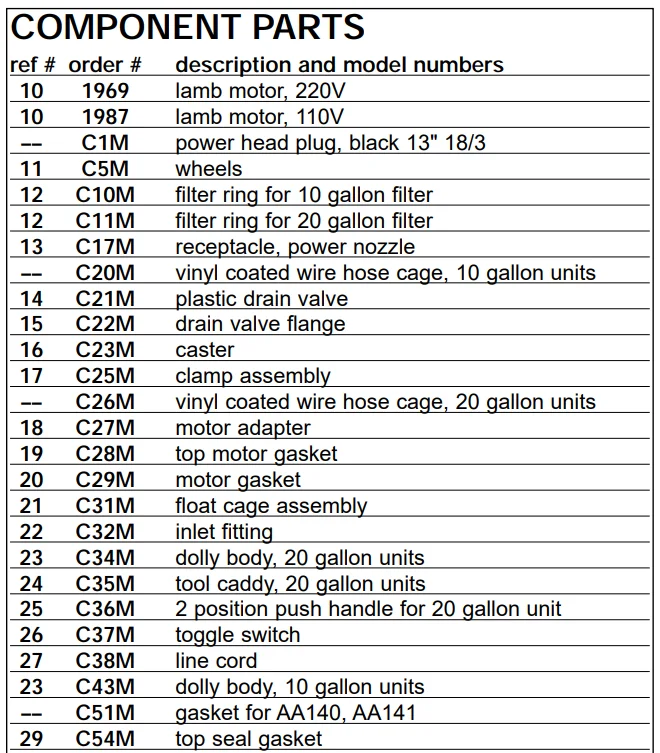

COMPONENT PARTS

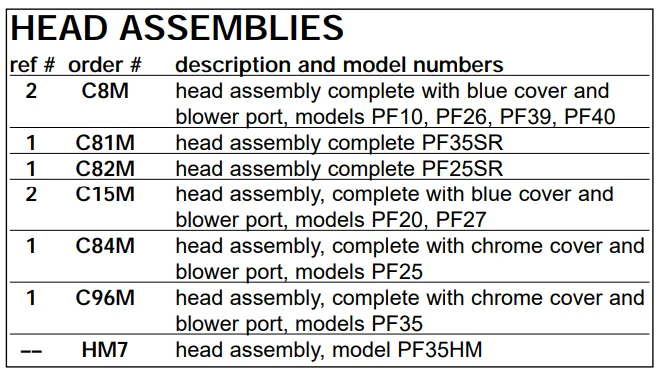

HEAD ASSEMBLIES

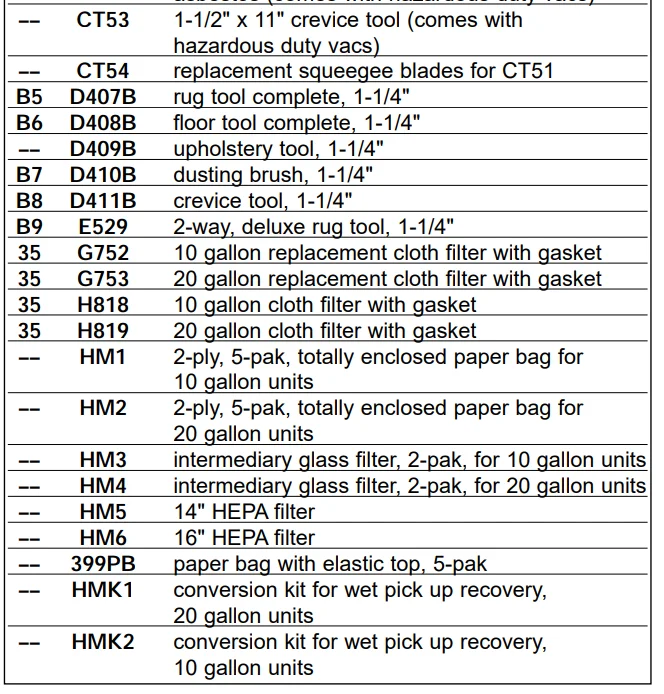

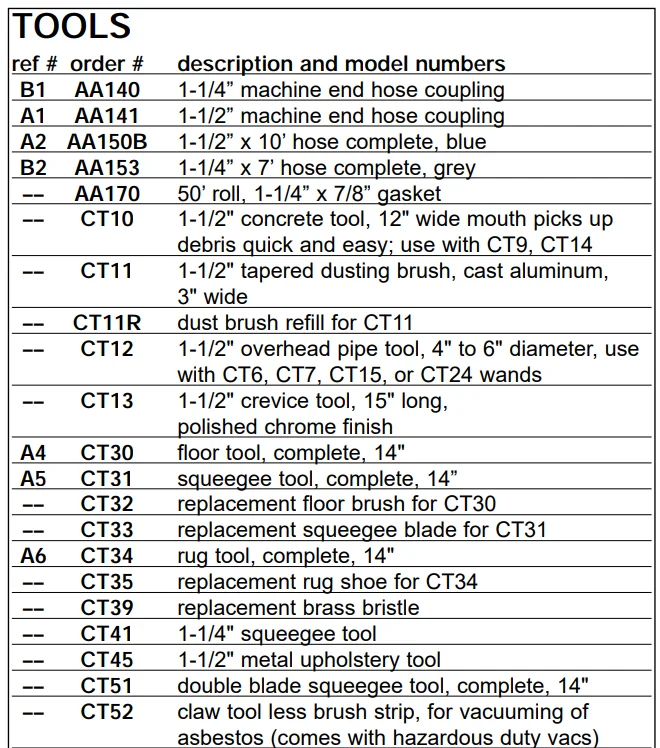

TOOLS

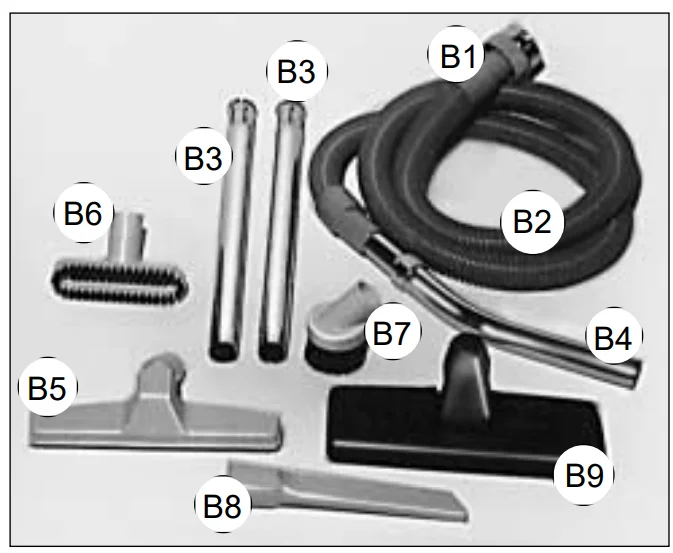

TK2

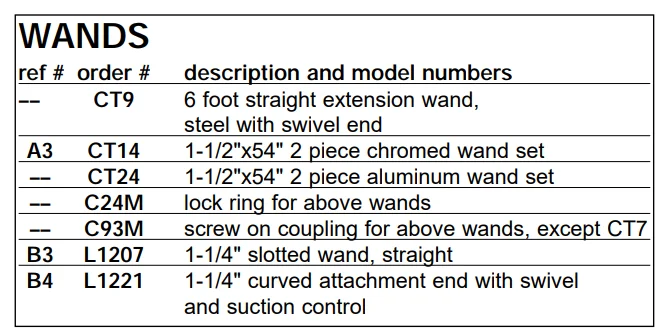

WANDS

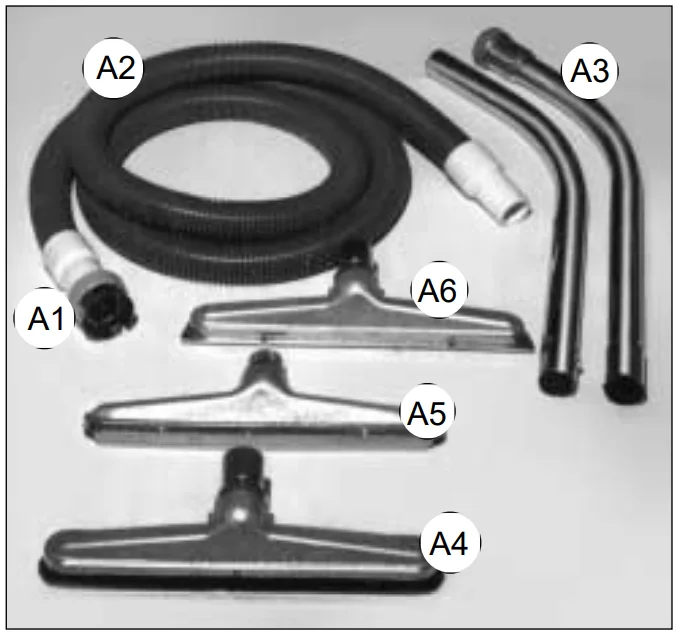

TK4

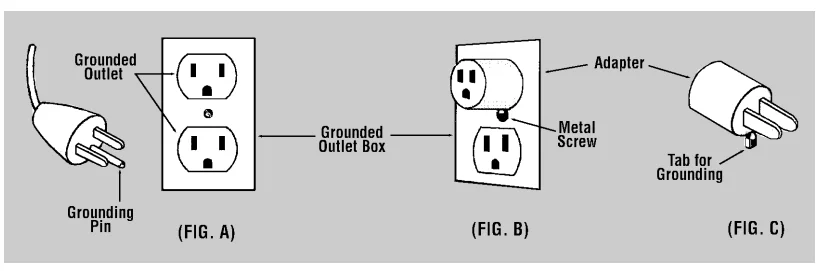

GROUNDING METHODS

This vacuum/blower must be properly grounded. If it should malfunction or break down, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If repair or replacement of the cord or plug is necessary, DO NOT connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without stripes is the grounding wire. This unit is for use on a nominal 120-volt circuit and has a grounded plug that looks like the plug illustrated in (Fig. A). A temporary adapter that looks like the adapter illustrated in (Fig. B&C) may be used to connect the plug to a 2-pole receptacle, as shown in (Fig. B), if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (Fig. A) can be installed by a qualified electrician. The green color rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

WARNING! Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

ASSEMBLY INSTRUCTIONS

VACUUM ASSEMBLY

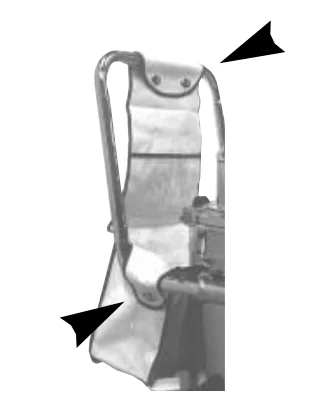

TOOL CADDY

Attaches to the top of the handle facing the tank.
Snap closures over the top handle and Closures on each side of the handle.

HANDLE

On 20-gallon units, this vacuum is shipped with the handle in storage position and must be moved to operating position. On 10-gallon units, the handle is shipped off and must be attached.

Firmly grasp the speed pin on each side of the handle and pull up and out.
Pulling the handle slowly away from the tank, align the front handle holes with the holes in the handle bracket.
Insert speed pins through the holes on both sides to lock the handle in place. Attach the tool caddy.

TOOLS & ATTACHMENT INSTALLATION & ASSEMBLY

HOSE CADDY

Standard equipment on 20-gallon units.
Shipped assembled.
Mounted to the motor head with three tank-mounted clamps.

HOSE AND SWIVEL CONNECTOR

The hose and swivel connector are pre-assembled at the factory. To attach the swivel connector to the intake fitting on the vacuum tank:

Line up the slots in the swivel connector with the retaining rivets on the intake.
Insert the swivel connector and twist clockwise until the ivets reset against the slot end.

TO ASSEMBLE WAND

The two-piece wand requires assembly.

Align the button lock of the upper wand section with the opening for the button lock in the lower wand section.
Push sections together until the lock is accomplished. To attach the hose to the wand, slide the free end of the hose onto the grooved end of the upper wand.

TO ASSEMBLE TOOLS

Turn the wand nut counterclockwise approximately four complete turns.
Insert the tool into the wand and the coupling.
While holding the tool in place, turn the nut clockwise until the wand nut is fully locked.

REMOVAL OF LIQUIDS

REMOVAL OF LIQUID FROM VACUUM TANK

Tanks without drain valves

Disengage hold-down clamps on the tank.
Remove the motor head and wet pick-up adapter, and carefully place them to one side.
Pour liquid from the tank into a suitable drain.

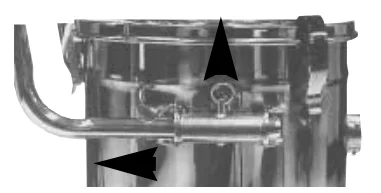

Tanks with drain valves

Center the drain valve over the drain in the floor.
To open the drain, turn the valve counterclockwise and continue turning until the desired flow is reached.
To close, make sure there are no obstructions that will prevent the valve from sealing, then turn the valve clockwise until it is fully closed and sealed

PAPER AND CLOTH FILTERS

FILTER INSTALLATION AND REMOVAL

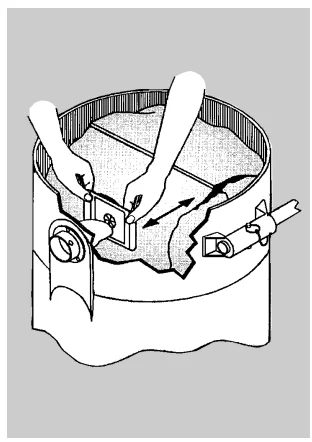

To install paper and cloth filters

Expand filter bag pleats, then grasp scored ends of cardboard and pull forward completely onto inlet tube as close to tank wall as possible.
Position the cloth filter assembly on the tank, then place the motor head on the tank and close the clamps.

To remove the loaded filter bag

Remove the motor head and cloth filter assembly, and lay the cleaner on its side with the inlet tube on top.
Pull the bag out of the tank using care not to puncture the bag with the inlet tube.
Re-seal the cardboard flap that covered the filter bag opening.
Install a fresh new bag.

MAINTENANCE GUIDE

Loss of Suction

CAUSE:

Full paper filter bag.
Dry filter assembly clogged.
Clogged hose or wand.
The tank rim is dented.
Loose or broken fan.
Motor not working.
Float not functioning.
Gasket worn.

SOLUTION:

Replace the paper filter bag.
Clean cloth filter.
Remove obstruction.
Replace the tank.
Contact the manufacturer of the service center.
Contact the manufacturer or service center.
Check to see if the ball on the rod moves freely or if the tank is full.
Replace the gasket.

The motor is not running

CAUSE:

Broken switch.
Defective power cord.
Defective motor.
Blown fuse or tripped circuit breaker at the power source.

SOLUTION:

Contact the manufacturer or the service center.
Contact the manufacturer or the service center.
Contact the manufacturer or the service center.
Contact the manufacturer or service center.

Dust is blowing from the unit when running

CAUSE:

Full paper filter bag.
The paper filter bag is not installed properly or is off the inlet tube.
The cloth filter bag is dirty.
The cloth or paper filter bag is torn.
The paper bag is not installed.

SOLUTION:

Replace the filter bag.
Reinstall or replace the paper filter bag properly.
Clean the cloth filter bag.
Replace the filter bag.
Install the paper filter bag.

Water is blowing from the unit when running

CAUSE:

The tank is full of liquid.
Sudsy or foamy liquid is being picked up.

SOLUTION:

Empty tank.
Add defoamer to the tank.

WARRANTY

The manufacturer warrants to the original purchaser that the products manufactured are free from defects of workmanship and material, provided such goods are installed, operated, and maintained in accordance with written manuals or other instructions for a period of 1 year from the date of purchase. In case you, as our customer, meet any trouble with your machine, contact your Powr-Flite representative, who will be happy to be of service to you and will take care of the warranty settlement.

NOTE: Alterations and changes made to the machine without the written approval of the manufacturer and the use of unapproved spare parts will not be covered by warranty.

For more manuals by Powr-Flite, visit ManualsLibraryy

Powr-Flite Wet/Dry Vacuum PF25-FAQs

What are the main specifications of the Powr-Flite Wet/Dry Vacuum PF25?

The PF25 is a heavy-duty 20-gallon wet/dry vacuum built for industrial environments. It features a 2.5 peak horsepower motor, 94 CFM airflow, 84″ water lift, and a 15-gallon recovery capacity. It comes with a 30 ft power cord, a permanent cloth filter, and oversized 8″ non-scuff wheels, making it capable of handling large jobs efficiently.

Can the PF25 handle both wet and dry debris effectively?

Yes — the PF25 is designed for both wet liquid pick-up and dry debris collection. Its by-pass motor design allows moist or dirty air to bypass the motor for safe wet pick-up, while a permanent cloth filter supports dry vacuuming. A float cage helps prevent liquid from reaching the motor when the tank is full.

What kind of construction and durability features does the PF25 have?

This model is built for longevity with a 20 gauge heavy-duty stainless steel tank and double-sealed motor bearings that keep moisture and dirt out — the primary causes of motor wear. Reinforced steel dolly and oversized wheels make it rugged enough for commercial jobs, even on stairs or uneven surfaces.

What accessories are included with the PF25?

Although this model weighs around 75 lbs, its reinforced all-steel dolly and 8″ non-scuff rear wheels make it easier to transport around a facility or job site. It’s designed for steady maneuverability across floors, thresholds, and stairs without sacrificing stability.

How portable is the PF25 for job-site use?

Is the PF25 suitable for commercial or industrial environments?

Absolutely. The PF25 is rated for constant industrial vacuuming, with construction and performance specs that make it well-suited for construction clean-up, warehouse maintenance, and other professional environments that demand durable equipment.

How does the PF25 compare to smaller or larger Powr-Flite wet/dry vac models?

Compared to smaller units, the PF25 offers greater capacity, heavier build quality, and more suction power for industrial jobs. Larger dual-motor models provide even higher airflow and water lift for very large spaces but at a higher cost — the PF25 strikes a balance between capability, durability, and value.

Can I use this vacuum with additional Powr-Flite accessories?

Yes. The PF25 has an external power plug and bayonet-style vacuum intake that support optional accessories such as Powr-Flite’s power nozzle and other compatible cleaning tools, which can expand its versatility for specific tasks.

What kind of warranty coverage comes with the PF25?

The PF25 includes a standard 1-year warranty covering motor, parts, and labor. This ensures support for most manufacturing defects and early-life issues, but always confirm warranty terms with your seller, as they may vary slightly by region or distributor.
