Pyle PLINTBL7 Double DIN Car Stereo Receiver User Guide

Pyle PLINTBL7 Double DIN Car Stereo Receiver

System Installation:

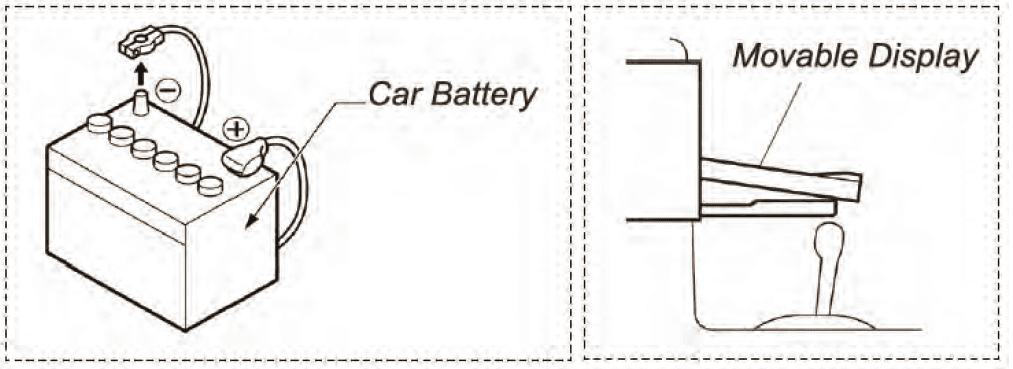

• Before starting: To prevent short circuits, be sure to disconnect the battery terminal before starting.

Installation Guide

Caution:

1. Consult your vehicle dealership before making any modifications to your car’s body (ex. Drilling holes)
2. Use included screws in installation. Improper operation may damage the machine or cause accidents.

Do not install the unit in any area where:

• It may obstruct the steering wheel and gearshift lever operations
• It may obstruct the operation of safety devices such as airbags
• It may obstruct visibility

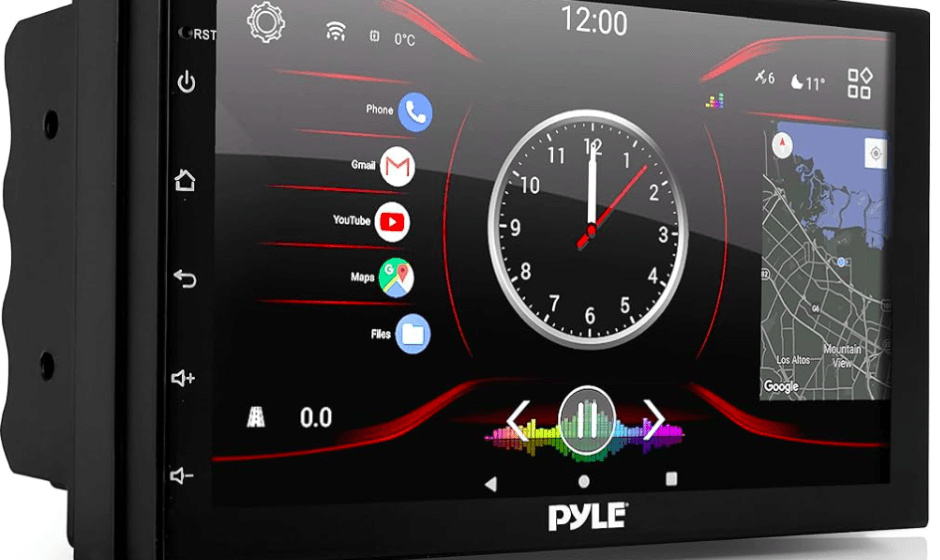

Front Panel and Buttons

Button & Feature Layout

• RST Use a pin to insert into reset port to trigger unit reset. (Hold for 20 secs. to reset)
• Hold to power up.
• Home
• Return
• Volume up
• Volume down

Turning Power On

1. Turn on the engine key to the “ACC” or “ON” position
2. Press and hold the power button for 3 seconds
   • When the engine key is turned to the off position, the unit Status Bar is turned off (on the top of the radio screen and app screen) you can swipe down for more.

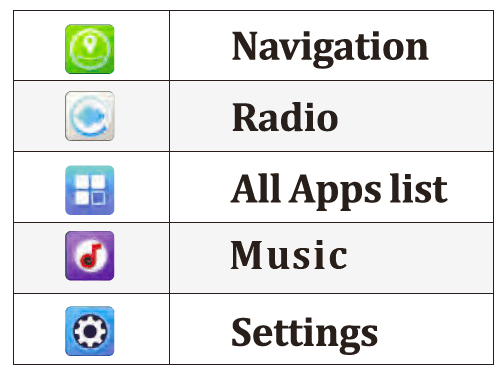

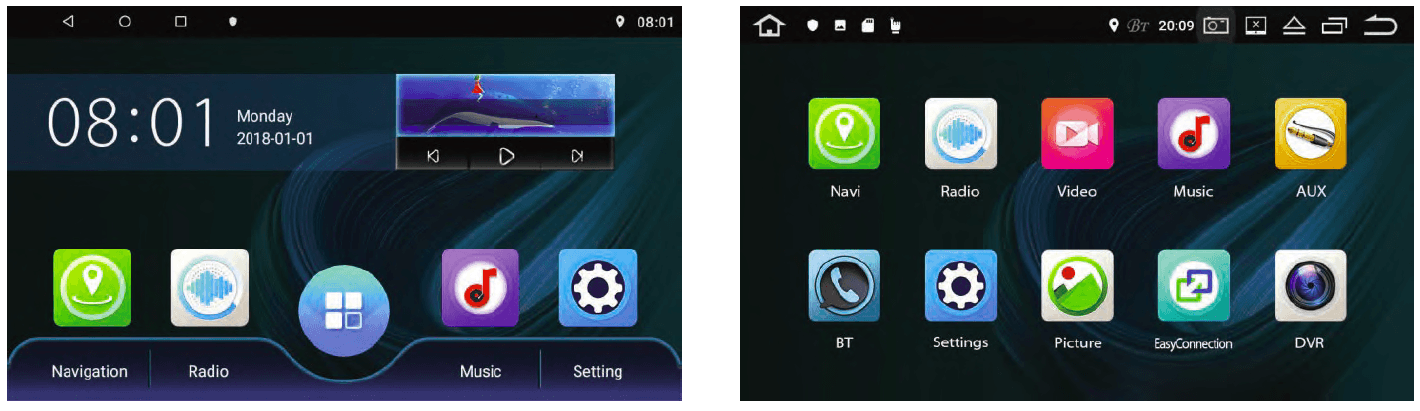

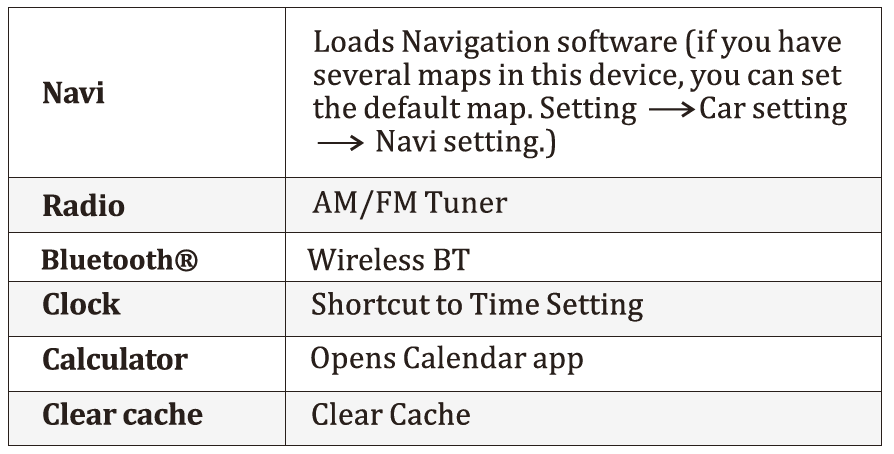

App Screen – Interface Layout

Swipe UP/DOWN to access more apps

Navigation

• Click the main interface “navigation” to enter the navigation interface. If the memory card does not have map data, it will prompt download and enter the map management interface after confirming.

Local Music

• Click the main interface “music” to enter the local music interface. This operation is valid when the unit has an SD card or USB interface and the corresponding media less

Online music

• Click on the main interface “online music” to enter the online music interface. Need to connect to the internet.

Video playback

• Click “Video Player” to enter the video player interface (supports 1080P HD video). This operation is valid when the unit has an SD card or USB interface and the corresponding media files. Click the “All icon” to switch between All/SD/U Disk/File Browser. When the video file is read, the system automatically plays the file that has not been played the last time the video player is opened again
• Calendar
• Displays the day, month, and year. Use forward and back arrows the view past or future months. Selected dates are highlighted in blue.

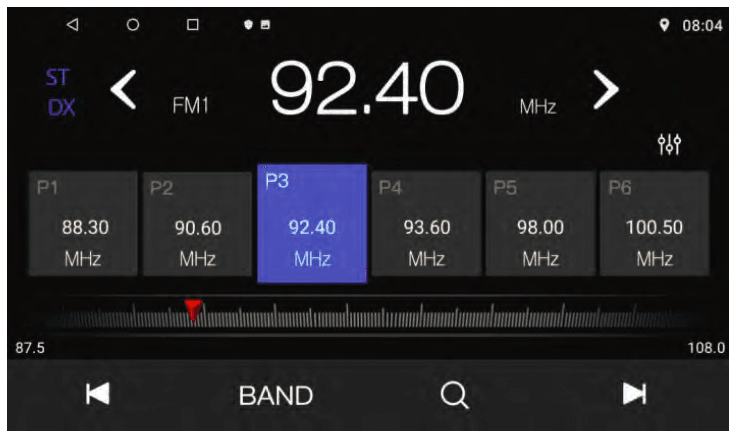

• Radio
• Click the main interface “radio” to enter the local radio Clicking icon description interface (FM / AM band can store 40 effective platforms each)
• Click to search channel backward then stop when find a clear channel.
• BAND to switch between mode FM1/FM 2
• Search for radio station
• Click to search channel forwards then stop when find a strong and clear channel.
• Forward tuning radio
• Backward tuning radio
• Locate and DX
• Audio settings

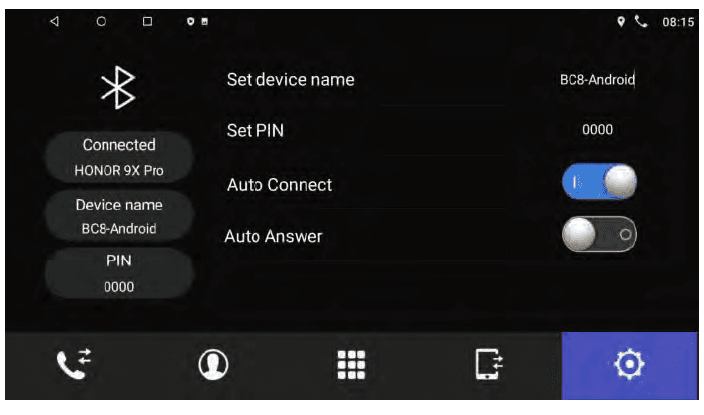

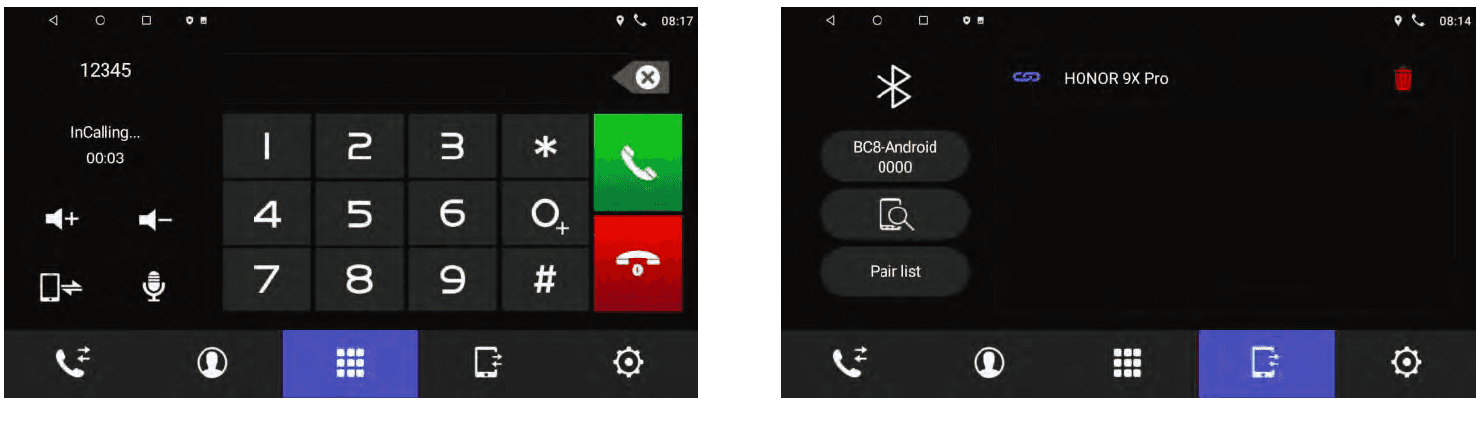

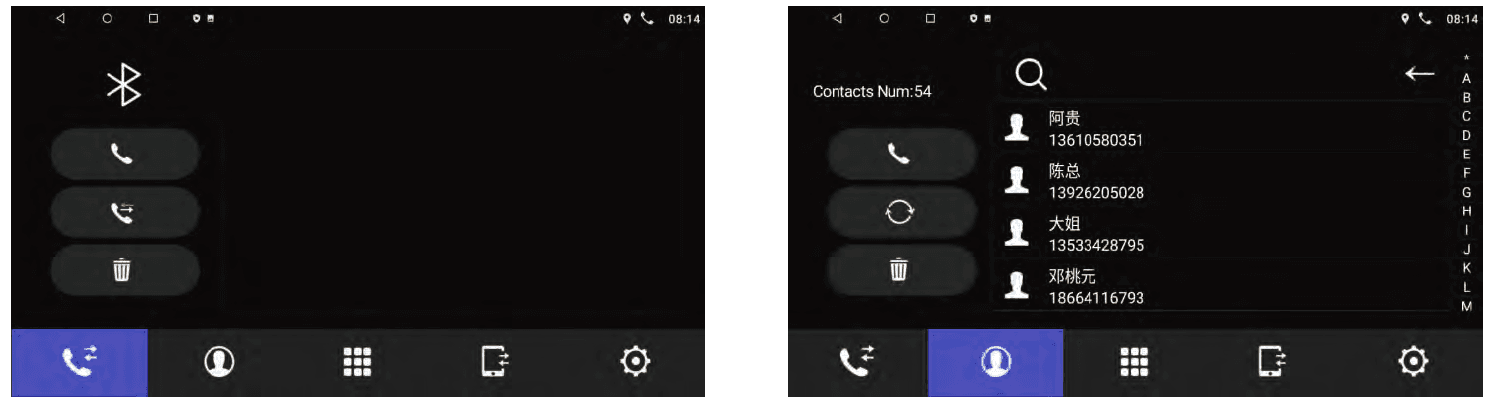

Wireless BT

• Click the main interface “Bluetooth®” to enter the Wireless BT connection interface.
• When the BT is not connected: Enter the Wireless BT interface, there is no BT connection device displayed. Click the Wireless BT interface, such as the dial key, and you will be prompted “Please connect HFP.”

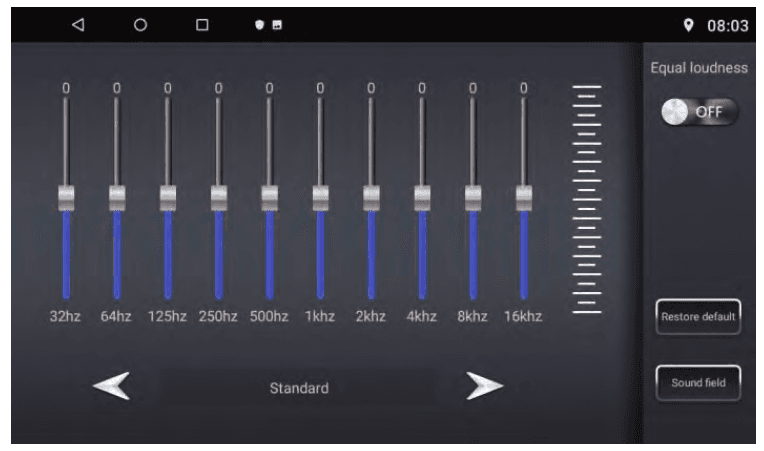

EQ – Equalizer

Phone Link APP

• For the detailed operation instructions for Phone Link, please follow the instructions on the actual unit.
• Third-Party Apps
• For detailed operation instructions for a certain 3rd party App, such as Google map, YouTube, etc., please contact your 3rd party App provider for further service.

Steering wheel learning

Steering wheel learning steps are as follows:

1. Press any key on the steering wheel, the interface will display “Please long-press and hold a direction key”, pressing the steering wheel button for a certain period of time will lead to failure.
2. Click on the screen to access the docking function
3. Press the corresponding function button on the steering wheel. Follow the steps 1 – 3 until all control buttons on the steering wheel is finished

The realization of this feature:

1. For non-bus control of the original car steering wheel.
2. The original car steering wheel keys need to be voltage input control.
   • Brightness setting: Click the “+” or “ – ” icon to adjust the value.
   • Volume settings: Slide the button directly to adjust the media volume and call volume

Memory Clean

• Cleaning up memory speeds up the system.
• Desktop wallpaper
• According to your personal preference, you can go from “wallpaper” to “dynamic wallpaper” The “gallery” sets the wallpaper as prompted
• Reset
  Reset Network: This will reset all network settings, including (WLAN, Mobile Data Network, Wireless BT) Restore factory settings: This will restore the system to factory settings and clear all data in your device’s memory.
• Time setting
• Determining the date and time automatically can be turned on, optionally using the network or provided by GPS. If you need to adjust the time manually, it needs to be switched off, click directly to mobilize the time or date. Determining the time zone automatically can also be opened. It can be manually adjusted after switching off. It can also open or close the 24-hour system.

Troubleshooting

Q: The unit doesn’t power up.

• A: Use a multimeter to check for 12v+ to red and yellow wires. Check for proper Ground on the Black wire.

Q: My video does not play.

• A: Attach the “PARK” wire to the parking brake. When this wire is grounded the video will play (Grounding trigger of the parking brake)

Q: The reverse camera does not come up on the screen.

• A: Attach “BACK UP CAMERA” wire to reverse tail light 12v+ (Make sure the camera is sending video signal)

Q: Can I set up steering wheel control?

• A: Key 1 and Key 2 wires need to be wired to your vehicle’s steering wheel column

Q: The time I set is not saved after the device reboot.

• A: Are other settings saved? If not: Check that the yellow memory wire is attached to a 12v+ constant
• A: Turn off GPS auto update Go to radio settings > Set Time > switch off auto-update

Q: How do I set the time?

• A: System setting, set time

Q: How do I turn up the GPS instruction volume (I Can’t hear it over music)

• A: Change GPS sound settings Go to Navi > Settings > Sounds > Set GPS voice level to max > Set radio volume to min (Adjust accordingly)

Q: Where can I download firmware updates?

• A: This unit’s hardware does not allow it to be updated with new OS or firmware.

Q: My BT microphone is not working as expected.

• A: Check that nothing is covering the microphone port. Check to see if closer proximity to the mic affects its pickup Check that the phone connection is good Make sure the call recipient has speaker volume set to an appropriate level Check that the mic is not picking up too much background noise
• Note: The built-in mic cannot be changed, replaced, or upgraded

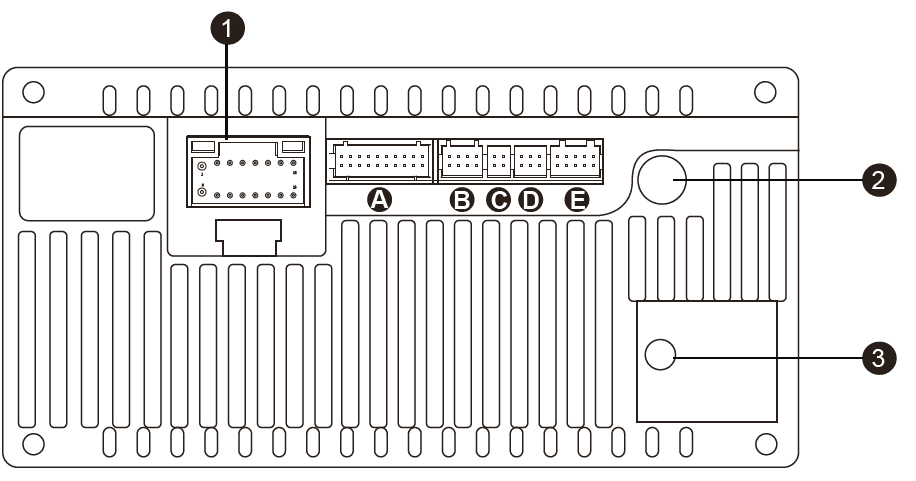

Wiring – Back Panel:

1. For power cable
2. For radio antenna
3. For GPS antenna

1. For power cable

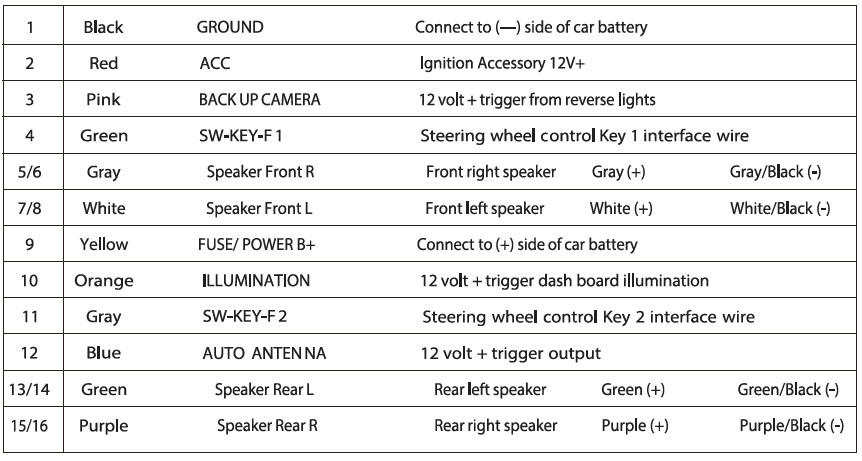

WIRING
