Pyle PS65ACT Portable Bluetooth PA Speaker System
SAFETY INSTRUCTION
- Please read the user manual carefully before use and retain it for future reference.
- The power supply must match the demand of the device with a reliable ground wire.
- All covering signals should have complied with the demand of the device.
- The device should be located far away from high temperatures, moisture, and powerful electromagnetic fields.
- Max operating temperature is 113°F.
- No naked flame sources, such as lighted candles, shall be placed on the product.
- Clean only with a dry cloth – The appliance should be cleaned only as recommended by the manufacturer.
- When not in use, unplug the unit from the mains.
- To establish a safe level:
- Start your volume control at a low setting.
- Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
- Only use suitable means of transportation if you want to move the speaker.
Note:
- Once the WIRELESS BT devices are paired, there is no need to pair them again.
- If the speaker is connected via a BT device but does not play with sound, please turn off nearby devices and only leave one device to reconnect with the speaker.
- When inserting the USB/SD Card, make sure the direction you selected is correct. Never insert violently to avoid damaging the USB/SD Card or the unit. If it doesn’t work, please check if the direction is correct.
- Turn off and pull out the USB/SD before turning off the speaker.

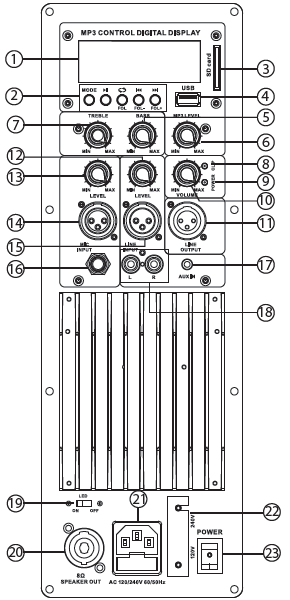

CONTROLS AND CONNECTIONS
- LCD screen
- MP3 Control: MODE: USB/SD/BT/FM converter, Play/Pause, FOL: Long press 3 seconds to enter the folder option function mode (press the previous/next songs button to choose the folder), Repeat one/Repeat all/Random, Previous Song – Press and\ hold for fast rewind, Next Song – Press and hold for fast forward
- SD card input
- USB input
- Bass control for low frequencies
- MP3 level control
- Treble control for high frequencies
- Clip LED indicator
- Power LED indicator
- Volume control
- XLR line output
- Line input level control
- Mic input level control
- XLR microphone input
- XLR line input
- 6.35mm microphone input
- 3.5mm line input
- RCA phone (R+L) line input
- LED switch(ON/OFF)
- Speaker out 8 Ohm
- Fused IEC mains inlet
- 120V/240V switch
- Main power switch
Wireless BT Connectivity:
- Wireless Music Streaming Ability
- Quick & Hassle-Free Device Pairing
- Works with all of Your Favorite Wireless BT-enabled devices (Smartphones, Tablets, Laptops, Computers, etc.)
- Wireless BT Network Name: ‘PYLE SPEAKER’
- Wireless BT Version: 4.1
Features:
- 3-Way Active Sound Speaker System with Built-in Amplifier
- Built-in Wireless Bluetooth Streaming
- USB/SD Card/FM Radio/RCA/Microphone Inputs
- Colorful Dual LED Flashing Light with Beating
- Speaker Box with RGB Light and LED Screen
- Portable Handle Speaker
- Adjustable Height of Tripod Stand
- Rubber Pads for Better Stability
- Two Black Heavy-Duty Telescoping Stands
- Adjustable Height Speaker Stands
- A system with Precise Treble, Bass Knob Woofer
- Easy Mobility and Easy Set-up
- Ergonomically Shaped Side Handle for Easy Carrying
- Sturdy and Durable Construction

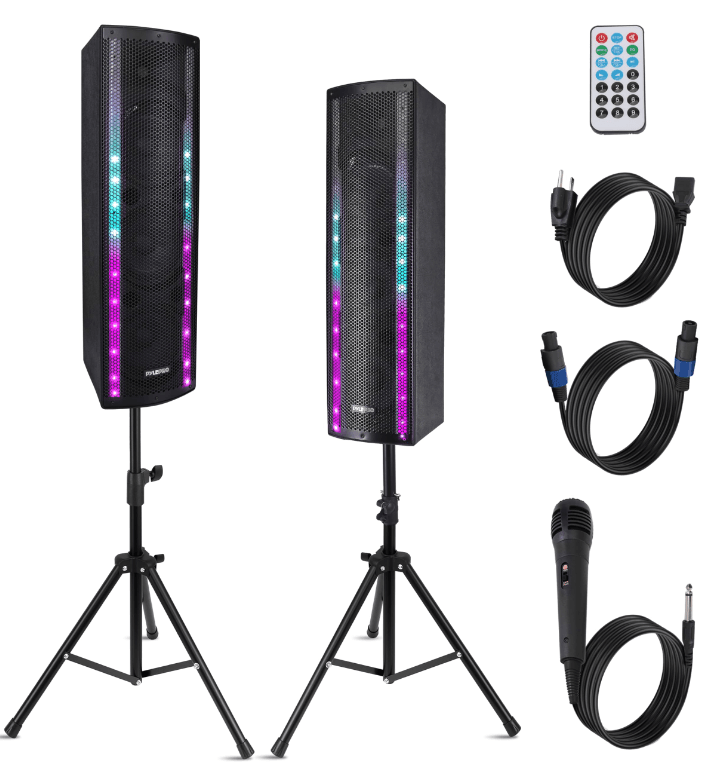

What’s in the Box:
- Combo Speaker System
- Remote Control
- 4.9 ft. Power Cable
- Tripod Stands
- 4 Pins SpeakOn Cable
Technical Specs:
- System: Active 3-way full range
- Woofer: 3 x 6.5”
- Tweeter: 1”
- Power Output: 200W
- Construction Material: Polypropylene
- Frequency Range: 60Hz – 18Khz
- Mic Input Level: < 5 mV
- Line Input/ Output Level: 250mV
- Connector: XLR/6.35mm/RCA
- Sensitivity: 92 dB
- Impedance: 8 Ohms
- Voltage:120V/240V
- Tripod Stands Height without Speakers: 28.7’’ x 55’’ -inches
- Power Cable Length: 4.9 ft.
- Adjustable Height with Stands: 4.5ft to 5.5 ft
- Tripod Stand Weight Capacity: 66lbs
- Battery Operated Remote Control Requires 3V Lithium Cell (CR2025)
- Speaker Dimensions (L x W x H): 16.9″ x 10.6″ x 32.3″ -inches
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: [email protected]
For more Manuals by Pyle, visit ManualsLibraryy
Pyle PS65ACT Portable Bluetooth PA Speaker System-FAQs
How do I connect my Pyle PS65ACT to Bluetooth?
Turn on the speaker (power button).
Enable Bluetooth on your phone/device.
Select “PyleUSA” from the Bluetooth list.
If prompted for a PIN, enter “0000”.
What’s the Bluetooth range of the PS65ACT?
Up to 30 feet (10 meters) under ideal conditions.
Can I pair multiple PS65ACT speakers together?
No, this model does not support multi-speaker pairing (e.g., Party Mode).
How long does it take to fully charge the speaker?
Approximately 5 hours for a full charge.
How do I know when the speaker is fully charged?
The red charging light turns off or changes color (varies by model).
Check the battery indicator (if available) on the speaker or paired device.
Can I use the speaker while charging?
Yes, connect a mic (wired or compatible wireless) and play music via Bluetooth/AUX.
What’s the max power output?
220W peak power for loud, clear sound.
Does the PS65ACT have a built-in microphone?
Yes, it includes a wired microphone (some models may offer wireless mic support).
