Pyramid 2022SX 3-Way Speakers System
Features
- Mini Box Speaker
- Bass Reflex Cabinets
- 24 Oz Magnet Structure
- 4.45 cm/1.75″ Wide Dispersion Cone Midrange
- 2.54 cm/1″ Super Dome Tweeter
- 200 Watts Rated Power
- Frequency Response: 70-21 kHz
- 4 Ohm Impedance
- Complete Mounting Kit & Wires
- Dimensions: 13.34 x 9.53 x 9.53 cm / 5.25 x 3.75 x 3.75 inches
Installation

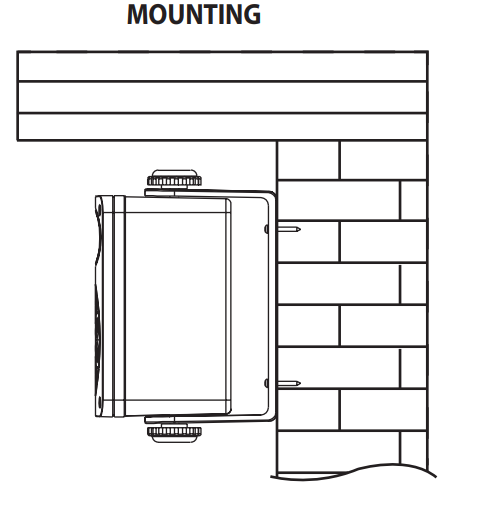

Mounting the Bracket
- Remove the bracket knobs and the bracket from the speaker.
- Hold the bracket up to the mounting surface. “PYRAMID” can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits through the large circular wire hole in the bracket. Align the bracket to be square with the surrounding surface (use a level for accuracy).
- Mark the locations of the three shaped screw holes. Use all of the holes.
- Drill pilot holes into the mounting surface.
- Gently pull the speaker wire through the wire hole in the center of the mounting bracket. Align the bracket so that the holes all line up.
- Use your hardware to attach the bracket to the mounting surface.
Final Adjustments
- After checking that the speaker is in phase and works correctly, angle the speaker for the best sound.
- Hand-tighten the bracket knobs only. Power tools may over-tighten the knob and strip the threads of the insert.
- Check that the entire installation is safe and secure.
Connecting Your Speakers
- First, turn your amplifier off to avoid damage that may result from accidental shortening of the speaker’s leads.

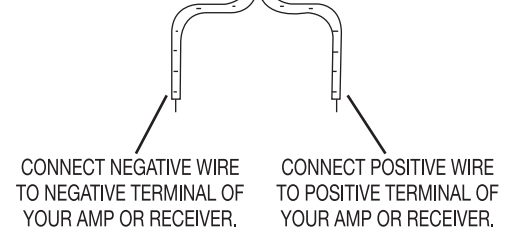

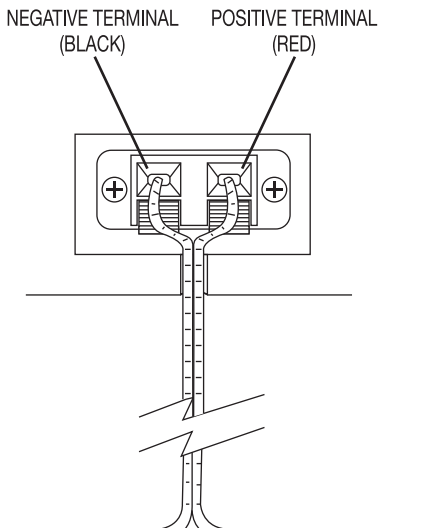

- Correct phase polarity is critical for proper stereo imaging and bass performance. The red (+) terminal on your amplifier or receiver must be connected to the red (+) terminal on your speaker; the same applies to the black (-) terminal.
- Connect one loudspeaker at a time to ensure proper connection of left and right channels. Make sure all wires are firmly fastened.
- If you notice a high level of bass or central image focus, double-check your connections for proper polarity.
California Prop 65 Warning
WARNING: This product can expose you to chemicals, which are known to the state of California to cause cancer, birth defects, and other reproductive harm. Do not ingest.
For more info, go to: www.P65warnings.ca.gov
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
For More Manuals By Pyramid, Visit ManualsLibraryy.
Pyramid 2022SX 3-Way Speakers System-FAQs
Q1. How does a 3-way speaker work?
A 3-way speaker divides sound into three frequency ranges—bass, midrange, and treble—sending each to a dedicated driver for clearer and more balanced audio.
Q2. What are the benefits of 3-way speakers?
They deliver deeper bass, cleaner midrange, and sharper highs compared to 2-way speakers, with reduced distortion and better overall sound quality.
Q3. Who makes Pyramid speakers?
Pyramid speakers are part of the Pyramid Car and Pro Audio brand, which is currently owned by Pyle Audio.
Q4. Do 3-way speakers need a subwoofer?
Not always. They already have a low-frequency driver, but adding a subwoofer can enhance bass depth and impact, especially in larger rooms or vehicles.
Q5. What are the main components of a speaker?
Speakers generally consist of three parts: drivers (woofers, tweeters, midrange), a crossover to split frequencies, and an enclosure for housing.
Q6. What is the difference between coaxial and component speakers?
Coaxial speakers combine multiple drivers in one unit for easy installation, while component speakers separate them for better sound precision and quality.
Q7. Do 3-way speakers produce more bass than 2-way speakers?
Yes, because of the dedicated woofer, they provide fuller and more powerful bass while still maintaining clear mids and highs.
Q8. What does RMS mean in speakers?
RMS (Root Mean Square) is the continuous power a speaker can handle safely, ensuring consistent performance without damage.
