QFX PBX-311 Portable Rechargable TWS Speaker
QUICK START GUIDE

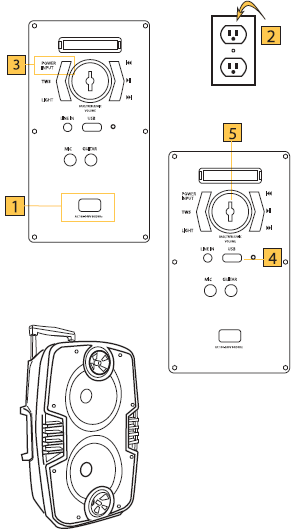

STEP SETUP GUIDE
- Step 1: Find the AC power cord to the PBX-311 located on the back panel of the unit.
- Step 2: Find a power outlet (AC 120V /60Hz) and connect the AC cord to the socket to supply the unit with power.
- Step 3: Move to the top of part of the panel and press and hold the POWER INPUT button. The unit should turn on and begin charging.
- Step 4: Insert a USB flash drive in the USB port located below the big knob. The PBX-311 will automatically begin playing the .mp3 content.
- Step 5: Use the Big Knob to adjust the Master Volume to your taste. Press the Big Knob to enter sub menus such as as EQ, Mic, Vol, Guitar VOL, Echo, etc.
- Step 6: Press the Forward and Rewind keys to move to the next track or the previous track. If in FM mode, these keys will change the radio station.
BLUETOOTH
Bluetooth Mode:
Use the MODE button to enable Bluetooth on the PBX-311. Open the Bluetooth settings on your mobile device and search for QFX PBX-311. Select the option to pair both devices together. You can now sit back and enjoy the music from your favorite app. You won’t need reconnect the Bluetooth again when switching through modes.
FM RADIO:
FM Radio:
Frequency-modulated stations operate in a frequency band extending from 87.8 MHz to 108 MHz. Use the MODE button to select the FM mode. In FM mode, press the Play/Pause button to scan available frequencies in the area. Extend the telescoping antenna to enhance reception.
TWS CONNECTION:
TWS Wireless Bluetooth Connection:
Enable Bluetooth mode on both speakers. Press the TWS button for 3 seconds on one of the speakers to sync both units (they must be the same make and model to function). On your mobile device under the Bluetooth menu, search for PBX-311 and connect. Open your favorite music app and enjoy True Wireless Stereo. To exit TWS, press and hold the TWS button.
CAUTION
IMPORTANT SAFETY MEASURES
Before using this machine, please read all the safety and operating instructions. These safety and operating instructions should be kept in a condition of consultation.
- Electric Power Supply Line: Keep the power cord safe from being trampled on, pressed on by heavy objects, or pierced. Make sure that the cord has ample space to rest on the ground and is not stressed. DO NOT pull or drag the power supply line.
- Ventilation: This unit must be set in a ventilated space. DO NOT cover the vents on the back panel for any reason. If placed alongside a wall, distance the unit a minimum of 10cm to allow air flow. DO NOT surface that might restrict good air flow.
- Dismantling: DO NOT dismantle or open the unit. This is a high-powered unit that can cause serious harm if tampered with. DO NOT Open.
- Smoke: Please unplug the power supply cord from the wall outlet immediately if unusual smoke appears and contact customer support.
WARNING!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER ON THIS SPEAKER. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN
To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not store or operate this product near any liquids, heat sources such as radiators, heat registers, or under extreme weather conditions. Clean only with a dry cloth.
Users should exhibit extra safety when the WARNING or CAUTION symbol appears in this instruction manual and follow all precautions as they are stated.

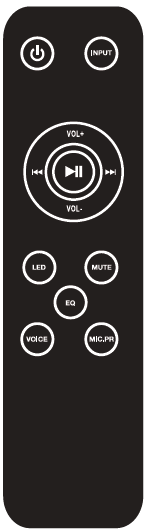

REMOTE CONTROL & TWS
- Stand By: Enable standby mode.
- Rewind: Select the previous track or FM channel.
- LED: Select light modes.
- Forward: Select next track or FM channel.
- Mute: Mute the Volume.
- Play/Pause: Play or pause the current track.
- EQ: Toggle through EQ presets (Pop, Jazz, Rock, Classical).
- VOL+: Increase the master volume.
- Voice: Change Voice quality.
- VOL-: Decrease the master volume.
- Mic. PR: Microphone Priority over music playback.
- Input: Toggle through input modes, USB/LINE/BT/FM RADIO.
4-WAY TWS: BLUETOOTH, USB, AUX, FM RADIO
TWS CONNECTION
TWS connection: TWS Connection is only for two speakers of the same make and model.
- Enable Bluetooth mode on both speakers.
- Press the TWS button on one of the speakers to sync both units together (they must be the same make and model to function).
- On your mobile device under the Bluetooth menu, search for PBX-311 and connect.
- Open your favorite music app and enjoy True Wireless Stereo.
- To exit TWS, press and hold the TWS button.

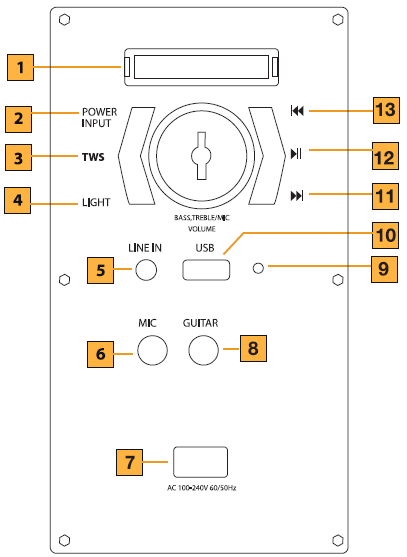

BASIC OPERATION
- Display: Mode Information displayed.
- POWER INPUT: Turn on the unit. Select the input mode.
- TWS: Press for TWS sync.
- Light: Select LED light modes.
- LINE IN: Insert a 3.5mm (TRS) from an external audio device for playback.
- MIC: Insert a 6.35mm (TS or TRS) microphone cable.
- AC POWER: 100- 240V, 60/50Hz.
- GUITAR: Insert a 6.35 (TS) instrument cable.
- Charge Status: Battery status. RED = Charging. GREEN = Full.
- USB: Insert a USB to playback .mp3 music.
- Forward: Next track or FM station.
- Play/Pause/TWS: Play or pause the current track. Press and hold for TWS sync.
- Rewind: Previous track or FM station.
POWER/INPUT:
Press and hold the POWER/INPUT button for about 3 seconds to power ON the unit. Press and hold the POWER/INPUT button for about 3 seconds to turn OFF the unit. During working state, press the POWER/INPUT button to select the modes. The sequence is USB (when a USB device is connected), LINE, BT, FM.
Big Knob:
Turn the “Big Knob” to increase and decrease the volume. Press the “Big Knob” to enter the Bass and Treble volume settings.
PREVIOUS/NEXT:
Press to switch the song and or radio station in FM Mode.
PLAY/PAUSE:
Play or pause the current track. During FM state, press PLAY/PAUSE to automatically search the radio and save.
Light:
The unit has an LED light brightness adjust function. Press LIGHT to choose the desired effect.
USB:
Playback MP3 music from an external USB flash drive.
SPEAKER PRO APP
To control the device via your phone, please download and install the app ” Speaker Pro “. Open the App “Speaker Pro” on your phone and choose from the 7 settings page:
- Bluetooth Music Play: Music app playback
- USB: USB MP3 Playback
- Light: Adjust LED light settings
- FM Radio: Select Stations
- Bluetooth: Select Bluetooth device
- Line: mute
- Sound: Equalize music
Bluetooth Music play
Press the button to enter the Bluetooth Music play page. Press “Pick songs to play” to choose the song you want to play from your music app. Press “Done” to return to the Bluetooth Music play page. You can use the controllers on the app to navigate.
USB
When inserting a USB into the speaker, press the button to enter the USB Card play page. To choose a song and play music on the USB card, press “Play”. Use the bottom functions to operate pause, play, backward, forward & volume adjustments. Press “List” to return to the USB list page. Press “Back” to return to the main page.
Light
Control colours, brightness, and colour change mode. Press the button to enter into Light Control page. You can choose a color from the wheel or a color mode to customize your LED light. To go back to the main page, press “<” in the left corner.
FM Radio
Press the button to enter FM radio mode. Press SCAN to automatically scan stations.
Press Reverse and Forward for radio manual station scan, UP and DOWN, Top and bottom for Trimming. Turn the TUNER button to sweep through stations. Radio frequency between 87.SMHz-108.0MHz.
Bluetooth connection
Press the button to enter into Bluetooth Control connection page, then click PBX-311 to connect to the speaker.
Line: – mute.
Press to enter the Line input page. Press to mute music, press to unmute playback. Press “Back” to the main page.
Equalizer regulation
Press the button to enter the Sound page. Press MUSIC to adjust the volume, bass, and treble on the speaker. There are 4 preset EQ modes to choose from: Pop, Classical, Jazz, or Rock. You can also press G-EQ to access the graphic equalizer to set up your preferred equalizer specification.
FM OPERATION
Press the Power/Input button to switch to FM mode, Press the PLAY/PAUSE button to automatically scan radio station. By pressing PREVIOUS or NEXT you can select a previous or next station. Press 0-9 from remote to choose the FM stored station.
BLUETOOTH
Press the POWER/INPUT button on the back panel to select Bluetooth mode. Simultaneously open the Bluetooth settings on your phone, tablet, or mobile device and select PBX-311. The unit and device will then connect via Bluetooth. To control the device via your phone, tablet, etc., please download the App “Speaker Pro”.
Once the unit and device are connected via Bluetooth, open the “Speaker Pro” App on your mobile device and press the Bluetooth button. This will enable you to control the following five modes: Music, Light, USB Card, Bluetooth, and Equalizer. To cancel the app, press the exit button.
SPECIFICATIONS
Power: 40W
Frequency Response: 55Hz-20KHz
Power supply: AC 100- 240V 60/50Hz
