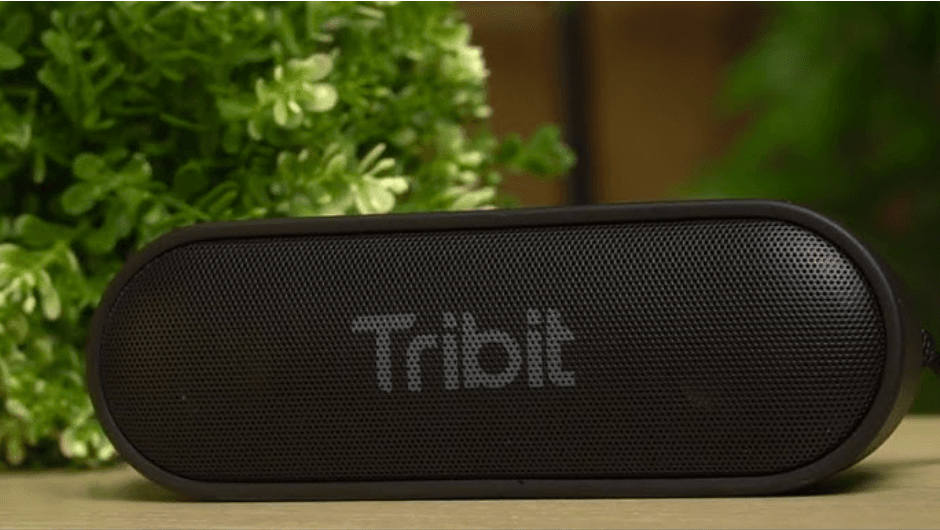

Tribit TS-BTS20 XSound Go Bluetooth Speaker
Safety Instructions
- Avoid dropping.
- Do not disassemble.
- Avoid extreme temperatures.
- Do not use the device outdoors during thunderstorms.
- Do not use any corrosive cleaner/oil to clean
Specification
- Bluetooth version: V5,0
- Support: A2DP, AVRCP, HFP, HSP
- Output power: 2 x 8W
- Frequency band: 2.402GHz-2.480GHz
- Maximum transmission power: = 20dBm
- Battery: (3.7V 4400mAh)/16.28Wh
- Battery charge time: 5 hour
- Input: DC5V/1A
- Dimension: 175 x 59 x 56 (mm)
- Weight: 380g

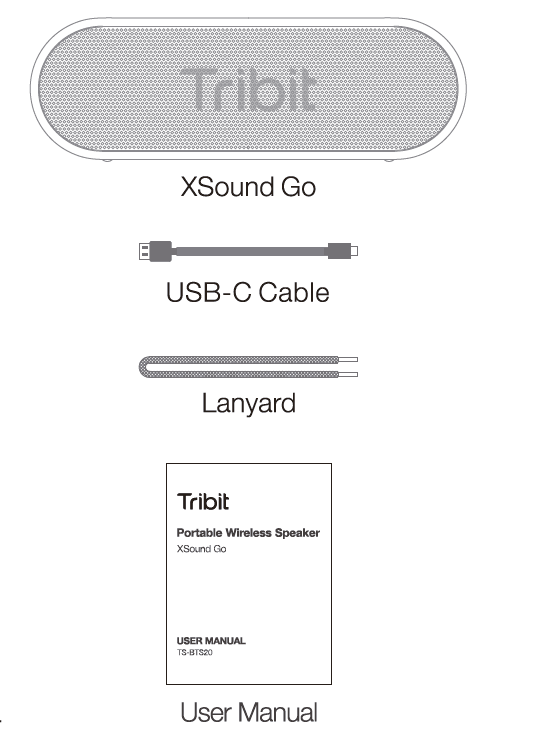

What’s in the box

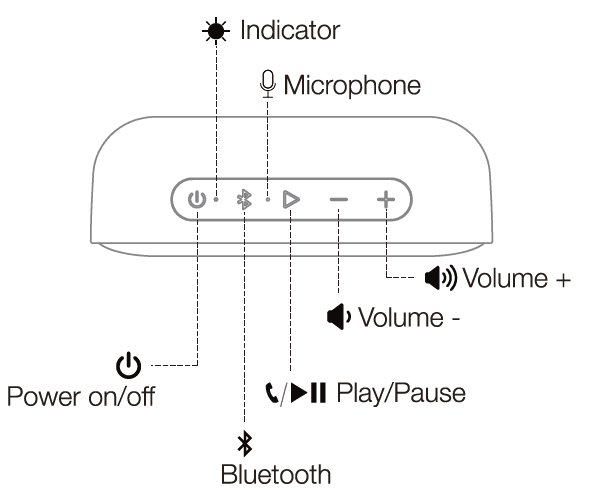

Overview buttons & Indicators

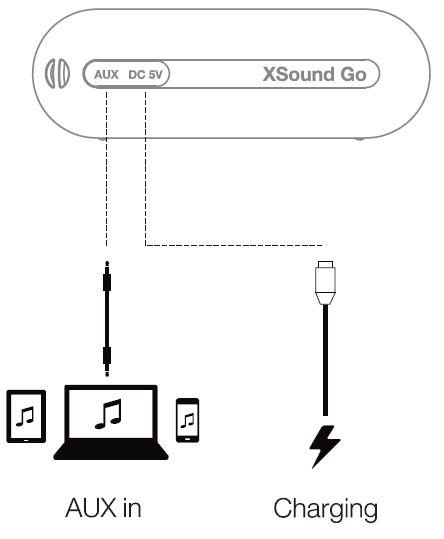

Connections

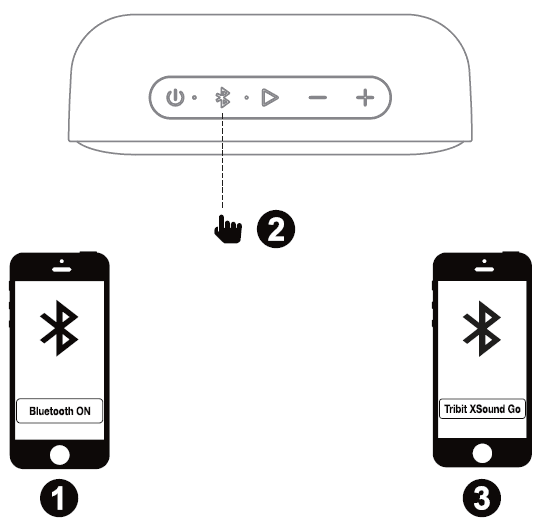

Bluetooth connection
- Note: It is not recommended to use the USB socket of a laptop or desktop computer to charge the product, too low a voltage may cause the product to fail to charge

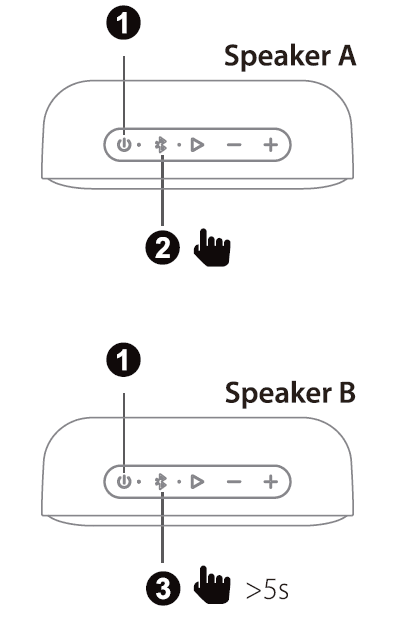

Stereo Mode
- Make sure both speakers are on
- Press
on one of the speakers to enter the pairing state. - Press
on the other speaker for 5s, then release the button to enter Stereo pairing when you hear the “Stereo mode”. When you hear “Left channel” on the left speaker and “Right channel’ on the right speaker, the “Stereo mode” is on.

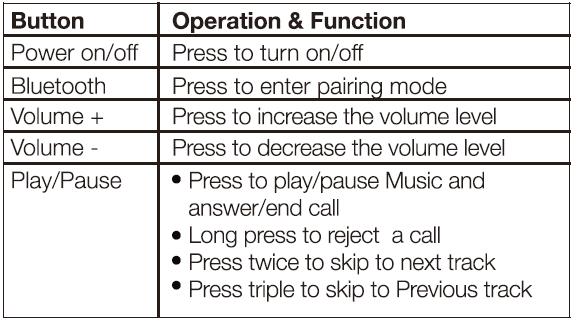

on one of the speakers to enter the pairing state.Buttons

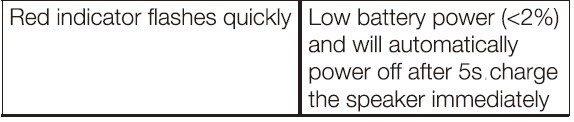

Indicator
Reset
- If this speaker has some problem, you can try to Press and hold the “Volume +” and “Volume -* buttons simultaneously for 5 seconds to reset, and then pair again (delete the old pairing in your device).
FCC Statement
- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
- (1)This device may not cause harmful interference
- (2) This device must accept any interference received, including interference that may cause undesired operation.
IC Caution
This device complies with Industry Canada license-exempt RSS standard(s).| Operation is subject to the following two conditions:
- (1) This device may not cause interference, and
- (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Customer Service
- An 18-month Warranty
- For more services and information, please Email support@tribit.com
For more manuals by Tribit, visit ManualsLibraryy
Tribit TS-BTS20 XSound Go Bluetooth Speaker-FAQs
Do Bluetooth Speakers Need Wi-Fi?
No, Bluetooth speakers don’t need Wi-Fi to function, making them highly portable. Wi-Fi speakers can offer better sound quality but require a Wi-Fi connection.
Are Bluetooth Speakers Completely Wireless?
Bluetooth speakers connect wirelessly for audio but usually require a power cable unless they have a built-in battery.
Does the Tribit XSound Go Support an App?
Yes, the latest version of the Tribit XSound Go supports the Tribit app, giving you more control over sound settings
What Are the Limitations of Bluetooth Speakers?
Bluetooth speakers have a range limit, typically around 30 feet, beyond which the connection can become unstable.
Do All Speakers Need a Receiver?
No, powered speakers have built-in amplification and don’t need a separate receiver, unlike passive speakers.
Can I Use My Tribit Speaker While It’s Charging?
Yes, you can use a Bluetooth speaker while it’s charging without any issues.
How Long Does the Battery Last on a Tribit Speaker?
The battery life of the Tribit MaxSound Plus, for example, can last up to 20 hours on a full charge.
Do Bluetooth Speakers Work in Stereo?
Yes, some Bluetooth speakers support stereo mode, but not all. Regular Bluetooth stereo speakers often need a wire to connect the two speakers, while True Wireless Stereo (TWS) speakers don’t need any wires
Do Stereo Speakers Need Power?
Yes, all speakers need a power source. Powered speakers have built-in amplifiers, while passive speakers need an external amp or receiver.
How Long Does It Take to Charge the Tribit XSound Go?
It takes about 5 hours to fully charge. Once charged, the indicator light will turn off.
How Do I Know When My Tribit Speaker is Fully Charged?
When charging, a red light appears. It turns blue when fully charged.
Does the Tribit XSound Go Have a Microphone?
Yes, it has a built-in microphone for hands-free calls
What’s the Difference Between Bluetooth and Wi-Fi Speakers?
Bluetooth speakers are portable and ideal for on-the-go use. Wi-Fi speakers offer better sound quality and are suited for home use.
Can Devices Connect to My Bluetooth Speaker Without Permission?
No, devices require permission to connect. However, leaving Bluetooth on and open may make it vulnerable to certain attacks like “bluesnarfing.”
What Should I Do If My Bluetooth Speaker Isn’t Working?
First, ensure both devices are in pairing mode and within range. If issues persist, reset the connection or consult the user manual.
