Raider RD-F2 Stage Stainless Steel 50cm Fan

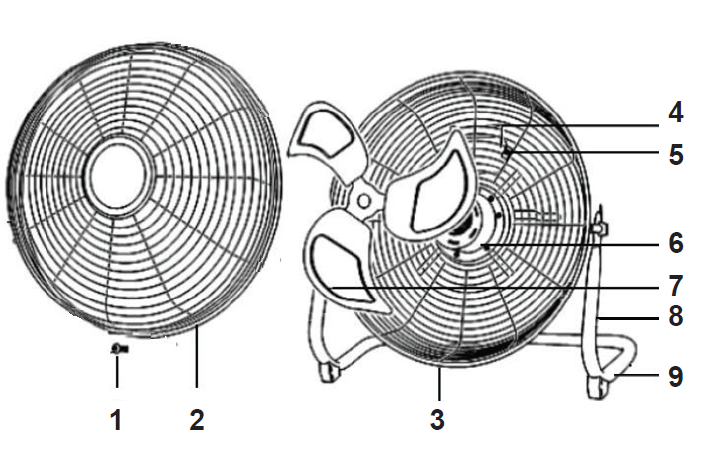

ITEMS SHOWN

1. Safety Screw
2. Front Grill
3. Rear Grill
4. Handle
5. Switch Box
6. Motor
7. Blade
8. Metal Tube
9. Metal Base

Dear Users,

Congratulations on purchasing a machine from the fastest-growing power, gas, and air tool brand – RAIDER. When properly installed and operated, RAIDERs are safe and reliable machines, and working with them will give you real pleasure. For your convenience, an excellent service network with 45 service stations throughout the country has been built.

Before using this machine, please read this „Instruction Manual“ carefully. In the interest of your safety and in order to ensure proper use, read these instructions carefully, including the recommendations and warnings therein. To avoid unnecessary mistakes and accidents, these instructions must remain available for future reference by all who will use the machine. If you sell it to a new owner, the „Instructions for Use“ must be handed over with it, so that the new user can familiarize themselves with the relevant safety measures and operating instructions.

„Euromaster Import Export“ Ltd. is an authorized representative of the manufacturer and owner of the RAIDER trademark. The address of the company‘s management is Sofia 1231, 246 Lomsko Shose Blvd., phone 0700 44 155, www.euromasterbg.com; e-mail: [email protected].

Since 2006, the company has introduced the ISO 9001:2008 quality management system with the scope of the certification: Trade, import, export, and service of professional and hobby electric, pneumatic, and mechanical tools and general hardware. The certificate is issued by Moody International Certification Ltd, England.

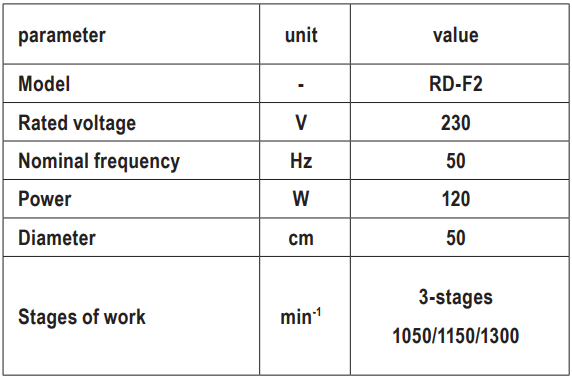

TECHNICAL DATA

SAFETY WARNING

Please read this instruction manual carefully before assembling or using the appliance, and keep it for future reference.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

1. To reduce the risk of electric shock, do not immerse or expose this device to rain, moisture, or other liquids.
2. To avoid electric shock, do not open the case, and service should be performed by qualified personnel only.
3. Make sure the fan is not placed near curtains or other objects that can be sucked into the fan. Never place or operate the device where it may be exposed to:
   • Heat sources such as radiators, heaters, stoves, or other products that produce heat
   • Direct sunlight
   • Excessive dust
   • Mechanical vibration or impact
   • Lack of ventilation
   • Uneven surfaces
4. The fan should not be exposed to drops or splashes, and objects filled with liquids, such as vases, should not be placed on the product.
5. Ventilation must not be obstructed by covering the ventilation openings. Slots and openings for ventilation are provided to ensure reliable operation of the product and to protect it from overheating. Do not use with blocked openings; keep away from dust, moss, hair, and anything that can reduce air flow.
6. Place the fan on a stable, flat, dry surface when operating to avoid overturning.
7. Connect only to a properly grounded electrical outlet, AC 220-240V~50Hz.
8. Do not operate the fan in the presence of explosive and/or flammable fumes. Do not place the fan near an open flame, cooking, or other heating appliance.
9. Do not operate the fan with a damaged cord or plug, after a malfunction, or if it has been dropped or damaged in any way.
10. Do not operate without fan grills in place. Do not use if the grid becomes damaged or loose.
11. Do not place the fan near an open window. Rain splashing on the fan can cause an electric shock hazard.
12. Do not allow the power cord to hang over the edge of a table or counter or touch hot surfaces.
13. Do not insert fingers or allow foreign objects to enter the grill openings, as this may cause injury or damage to the appliance.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
15. WARNING: Children must be supervised to ensure that they do not play with the appliance.
16. Turn off the fan and unplug it when not in use, when moving the fan from one place to another, and before cleaning.
17. To disconnect, grasp the plug and pull it out of the outlet. Never pull on the cord.
18. Unplug and unplug when not in use before assembling or disassembling a part, and before cleaning. To avoid tripping hazards, coil the cord securely.
19. Do not place this appliance on floors that may be marked or damaged by the appliance’s vibration.
20. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Do not attempt to repair, disassemble, or modify the unit yourself. There are no user-serviceable parts inside.

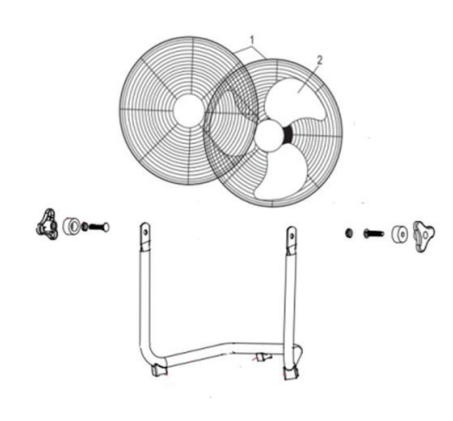

ASSEMBLY INSTRUCTIONS

1. Remove the fan from the packaging.
2. Place the two mounting tubes over the mounting screws at both ends of the fan body.
3. Place the mounting screws on the stand.
4. Tighten the outer nuts to the fan mount.
   NOTE: When installing the control box, ensure that the cables are routed to the outside of the base.

WORKING WITH THE DEVICE

1. Place the fan on a flat and dry surface.
2. Plug the fan into a suitable outlet. Select the desired speed setting by turning the speed control knob. There are 4 settings – 0 (off), 1 (low), 2 (medium), and 3 (high).
3. To adjust the tilt angle of the fan head by slightly pressing the guard.
   Caution: The fan must always be off when making this adjustment.
4. Turn the speed control knob to “0” and unplug the fan after use.
   Warning: Never touch the blade with your hand or other objects when the fan is running.

CARE AND CLEANING

• Always unplug the fan before cleaning.
• Avoid contact with the moving parts of the fan.
• Use only a soft, damp cloth to clean the fan.
• DO NOT immerse the fan in water and never allow water to drip into the motor housing.
• Never spray the device with liquids or immerse it in water or any other liquid.
• DO NOT use gasoline, paint thinner, or other chemicals to clean the fan.
• Make sure the fan is disconnected from the mains before removing the grille.
• Clean the fan blade and grills with a soft, damp cloth.
  CAUTION: The fan blade may have sharp edges. Work with extreme care.
• Store the fan in its original box or cover it to protect it from dust in a dry place if it will not be used for a long period of time.

Environmental protection.

In order to protect the environment, the power tools, accessories, and packaging must undergo appropriate processing for the reuse of the raw materials contained in them. Do not dispose of power tools with household waste! According to the EU Directive 2012/19/EC on waste electrical and electronic equipment and the approval as a national law, power tools that can no longer be used must be collected separately and undergo appropriate processing to recover their contents and scrap.

EXPLODED VIEW

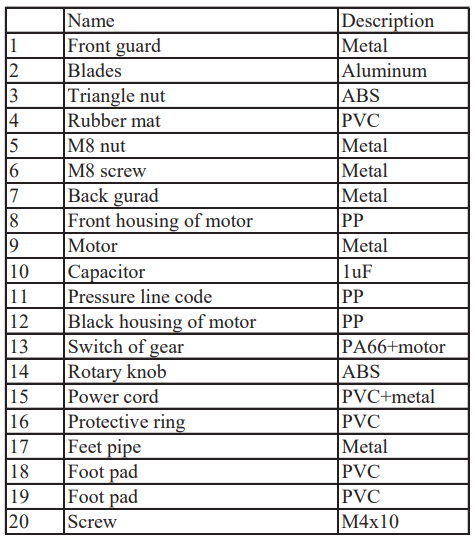

SPARE PART LIST
