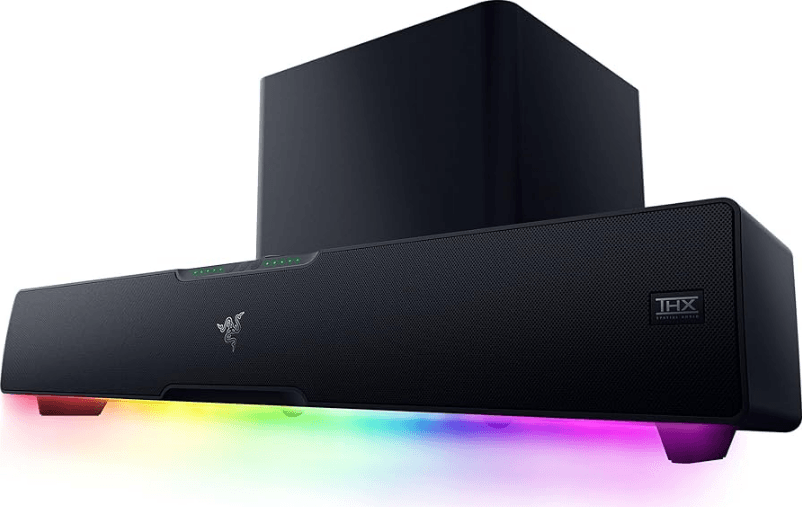

Razer Leviathan V2 Multi-Driver PC Soundbar
WHAT’S INSIDE / WHAT’S NEEDED

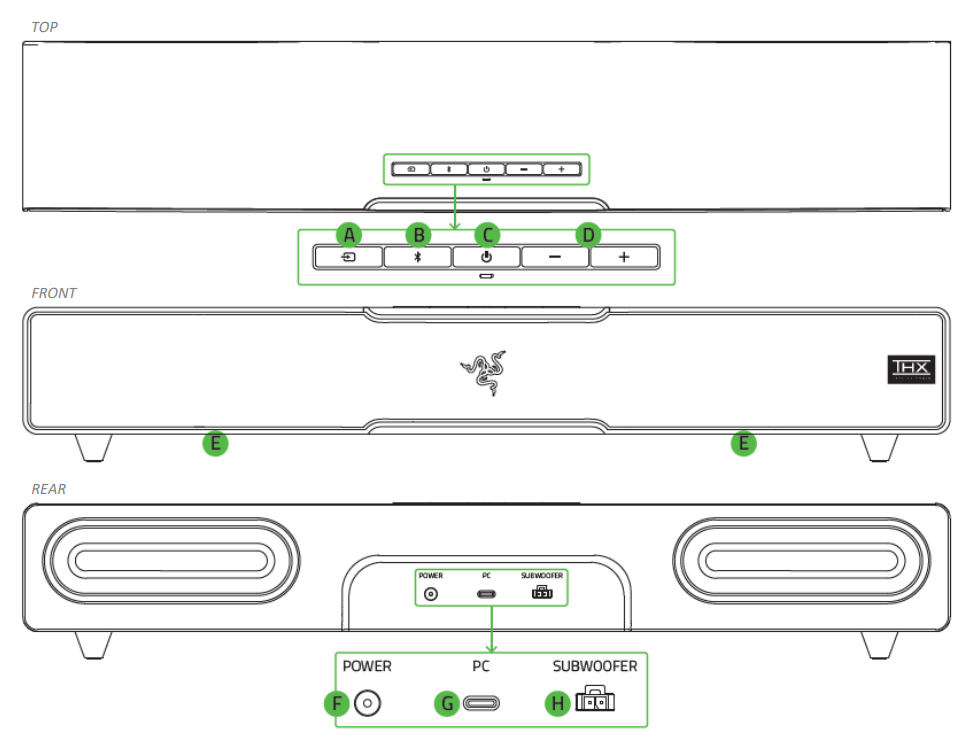

WHAT’S INSIDE
- Razer Leviathan V2
- A: Source button
- B: Bluetooth button
- C: Power button
- D: Volume control buttons
- E: Soundbar lighting Powered by Razer ChromaTM RGB
- F: Power port
- : Type-C port
- H :Subwoofer output port

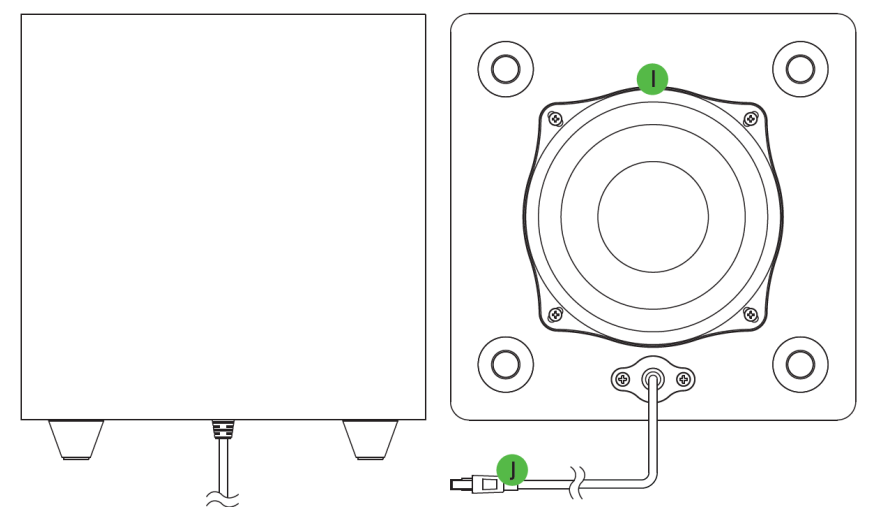

Subwoofer
- I: Rear-facing bass port
- J: Subwoofer connector
Type-C to Type-A cable
Detachable feet for soundbar angle adjustment

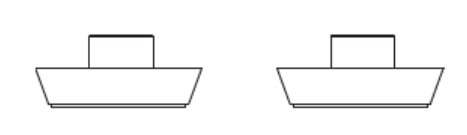

Flat feet (pre-installed)

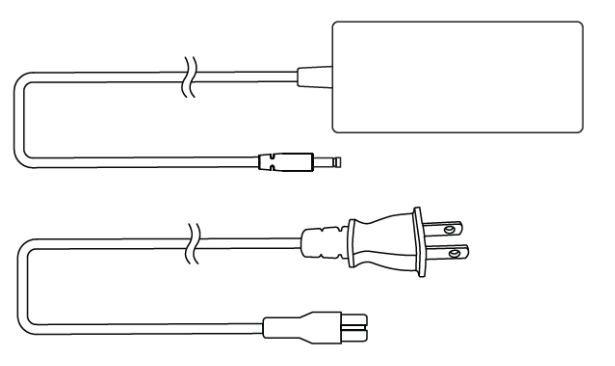

Power adapter + regional power cord
Important Product Information Guide
WHAT’S NEEDED
Product requirements
- USB-A port OR
- Devices with Bluetooth 5.0 connectivity
Razer Synapse requirements
- Windows® 10 64-bit (or higher)
- Internet connection for software installation
Razer Audio / Razer Chroma RGB app requirements
- iOS 12 / Android 8.1 Oreo (or higher) device with Bluetooth 5.0 connectivity
- Internet connection for app installation
LET’S GET YOU COVERED

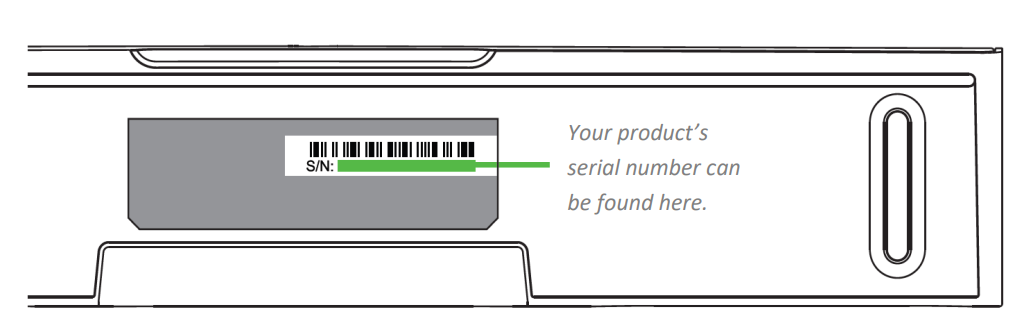

You’ve got a great device in your hands, complete with a 1-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
TECHNICAL SPECIFICATIONS
- Razer Chroma™ RGB (18 zones)
- THX® Spatial Audio (PC based via Razer Synapse)
- Bluetooth 5.2 (60 ms low latency)
- USB audio input
- Wired subwoofer
- Razer Audio app
- Razer Chroma RGB app
- Custom 10-band EQ
- Raised feet on the soundbar
- 500 mm length to sit beneath the monitor
- Headphone quick toggle
- Frequency Response: 45 Hz – 20 kHz
- Input Power: External 65 W power adapter
- Power: 65 W
- Driver Size – Diameters (mm)
- Full Range Drivers: 2 x 2.0 x 4.0″ / 48 x 95 mm
- Tweeter Drivers: 2 x 0.75″ / 20 mm
- Passive Radiator Drivers: 2 x 1.7 x 5.3″ / 43 x 135 mm
- Down-Firing Subwoofer: 1 x 5.5″ / 140 mm
- Driver Type: Full-range drivers, tweeter drivers, passive radiator, and subwoofer driver
- Weight
- Soundbar: 3.08 lbs / 1.4 kg
- Subwoofer: 6.61 lbs / 3.0 kg
- Dimensions
- Soundbar: 19.7 x 3.6 x 3.3” / 500 x 91.3 x 84 mm
- Subwoofer: 8.67 x 8.67 x 9.5” / 220 x 220 x 241.5 mm
- Compatibility
- Bluetooth connection
- USB connection to PC
GETTING STARTED
SETTING IT UP
- Position the soundbar and subwoofer on a flat and stable surface as required in your setup.

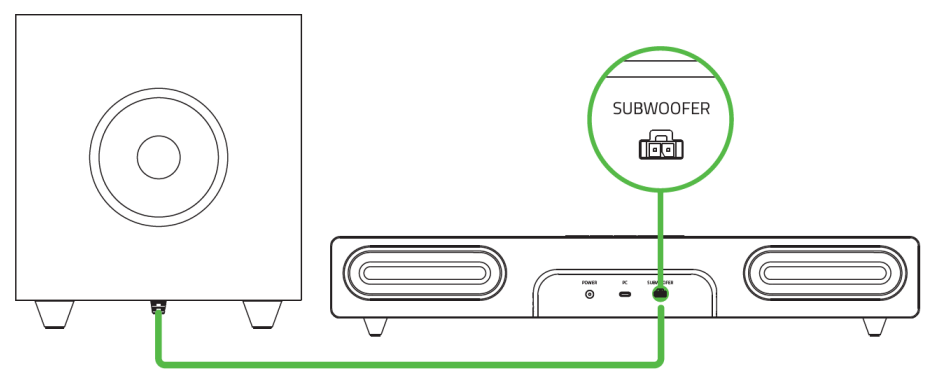

- Connect the subwoofer to the subwoofer output port on the soundbar.

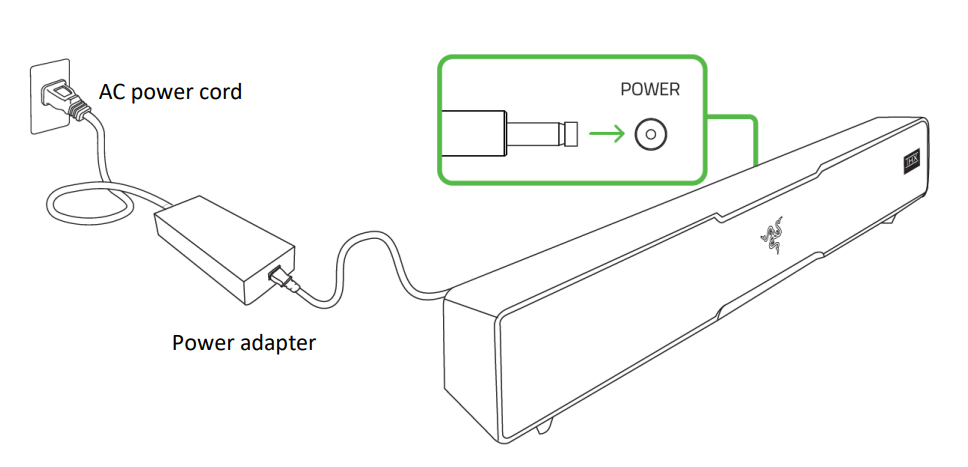

- With the appropriate power cord connected to the power adapter, insert its AC plug into a power outlet, and then connect it to the power port of the Razer Leviathan V2.
CONNECTING YOUR SOUNDBAR
To a PC via PC mode

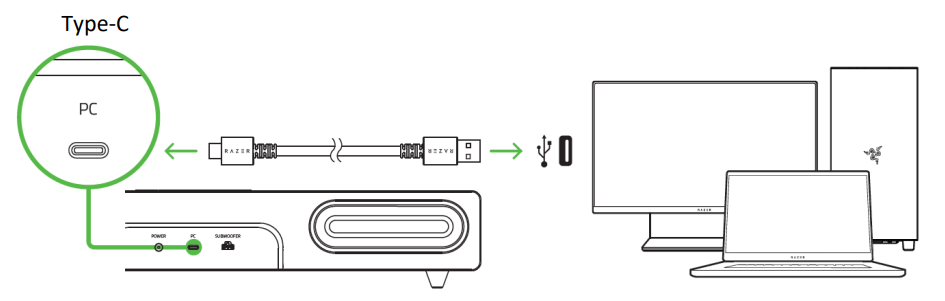

- Connect the soundbar to any of the USB-A ports on your PC using the included Type-C to Type-A cable.

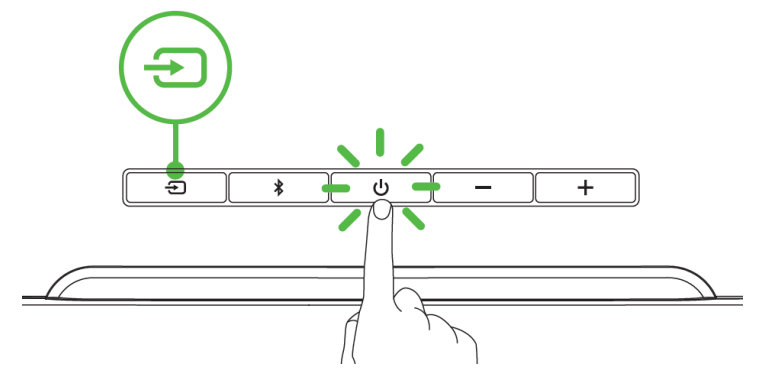

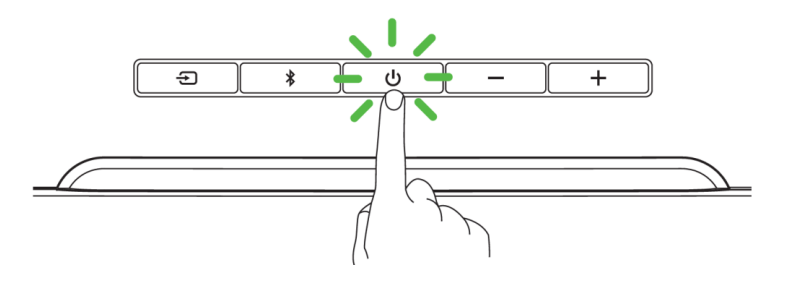

- Press the Power button to turn on the soundbar. The Power button and Source button will light up green to show that the soundbar is on and in PC mode.

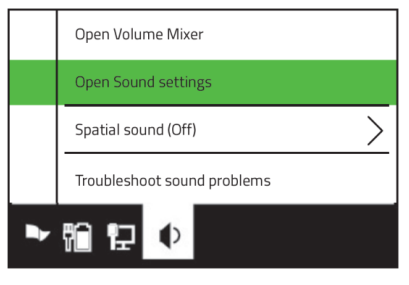

- On your PC, right-click on the sound icon in the system tray, and then select Open Sound settings.
- On the Sound window, set Razer Leviathan V2 as the default Output device.
To other devices via Bluetooth mode
- Press the Power button to turn on the soundbar. The Power button will light up to show that the soundbar is on.

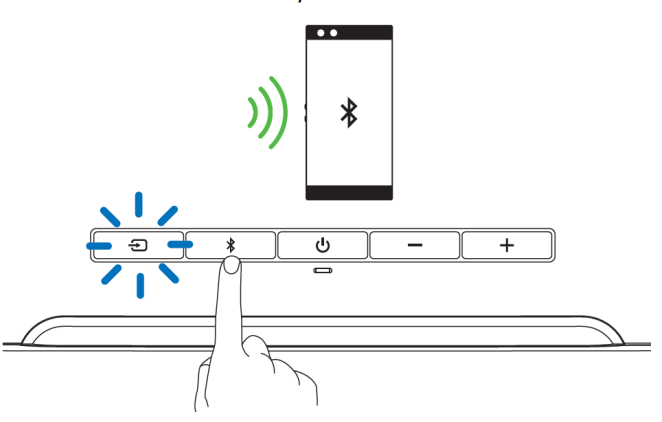

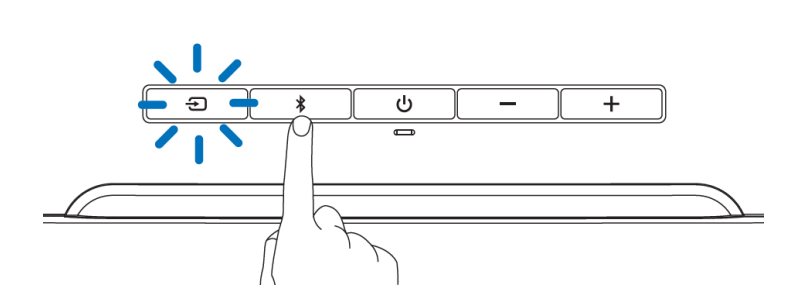

- Press the Bluetooth button to switch to Bluetooth mode. The Source button will blink blue to indicate that the soundbar is in pairing mode.
- Activate Bluetooth on your device and select Razer Leviathan V2 from the list of devices found.
- Wait until both devices are connected. The Source button will change to static blue, indicating that the soundbar is now connected to your device.
The Razer Leviathan V2 is now ready for use in Bluetooth mode.
USING THE SOUNDBAR
POWER BUTTON

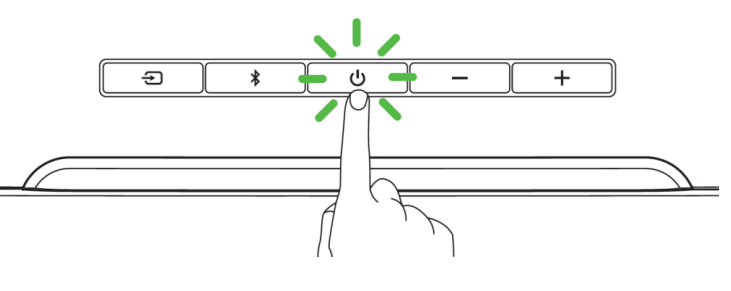

Press the Power button to turn on or off the soundbar. The Power button will light up to show that the soundbar is on.

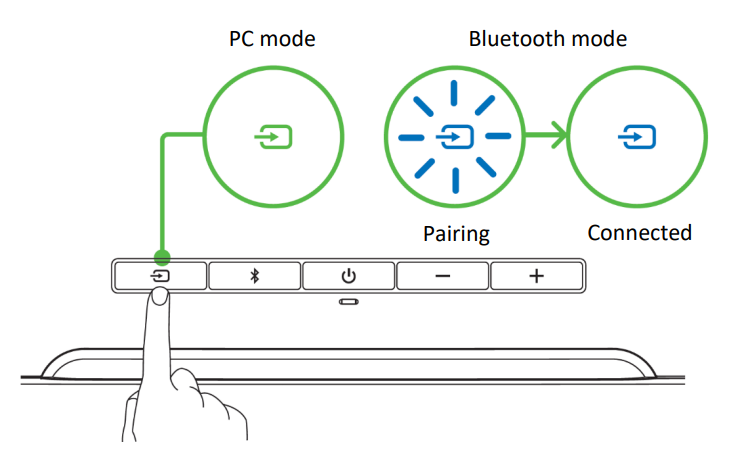

SOURCE BUTTON
While powered on, press the Source button to switch between PC mode and Bluetooth mode.
BLUETOOTH BUTTON
Switch to Bluetooth Mode
While powered on and in PC mode, press the Bluetooth button to switch to Bluetooth mode and reconnect the soundbar to the last known device. The Source button will light up in static blue to indicate that the soundbar is now connected to your device.

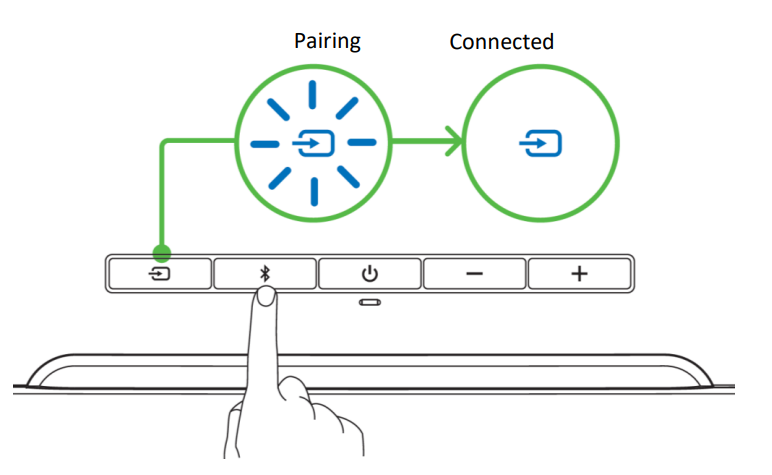

Activate pairing mode

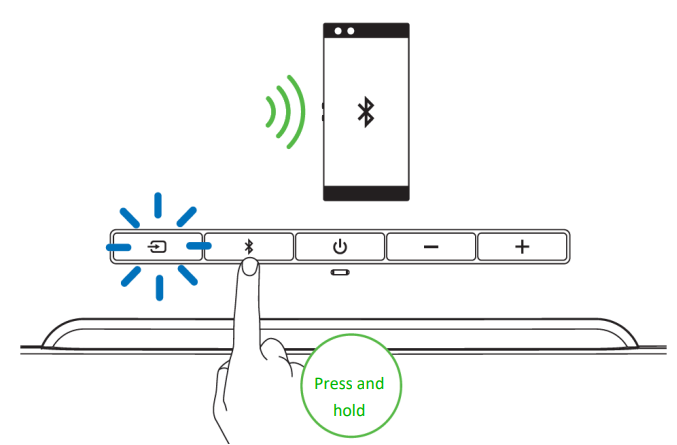

Activate pairing mode if you want to pair the soundbar to a different device. While powered on and in Bluetooth mode, press the Bluetooth button for 6 seconds to activate pairing mode. A distinct tone will help notify you that the soundbar is now in pairing mode. Follow your device’s instructions and select “Razer Leviathan V2” from the list of found devices. The Source button will briefly change to static blue to indicate that the soundbar is now connected to your device.
VOLUME CONTROL BUTTONS

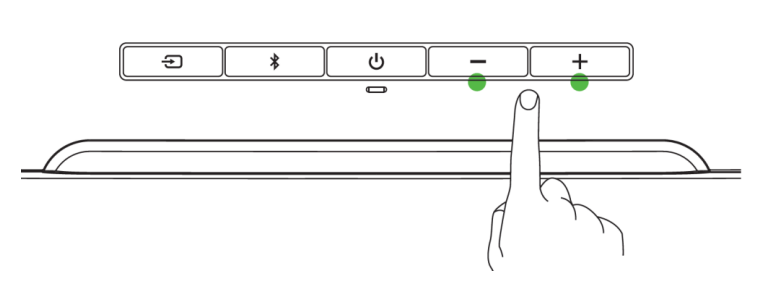

Press the volume control buttons to increase or decrease the volume of the current source mode.

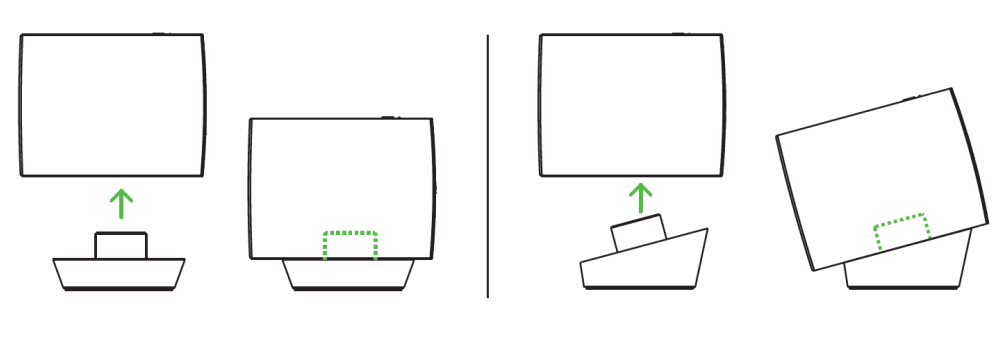

SOUNDBAR FEET

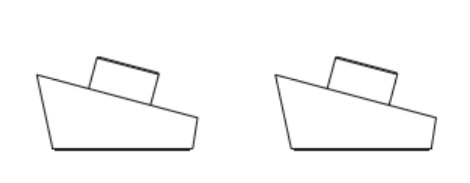

The extra pair of detachable feet lets you change the soundbar angle to ensure that the sound is delivered with the least amount of obstruction. Depending on the feet orientation, you can set the soundbar to either a flat or raised angle.
PERSONALIZE YOUR EXPERIENCE
Razer Synapse (PC)
Use the Razer Synapse* app to select from any of the soundbar’s EQ presets or customize your own, and even personalize and sync its lighting effect across all other Razer Synapse-enabled devices for an immersive lighting experience that’s truly yours.
Razer Audio app (mobile)
Making advanced customization just got a whole lot easier for the Razer Leviathan V2. With the Razer Audio App, you’ll be able to mute or adjust its volume, customize its EQ settings and auto shutoff feature, and much more.
Razer Chroma RGB app (mobile)
With 16.8 million colors and a suite of effects to choose from, use the Razer Chroma RGB app to change the lighting effect of the soundbar from your mobile device.
CONFIGURING YOUR RAZER LEVIATHAN V2 VIA RAZER SYNAPSE
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab.

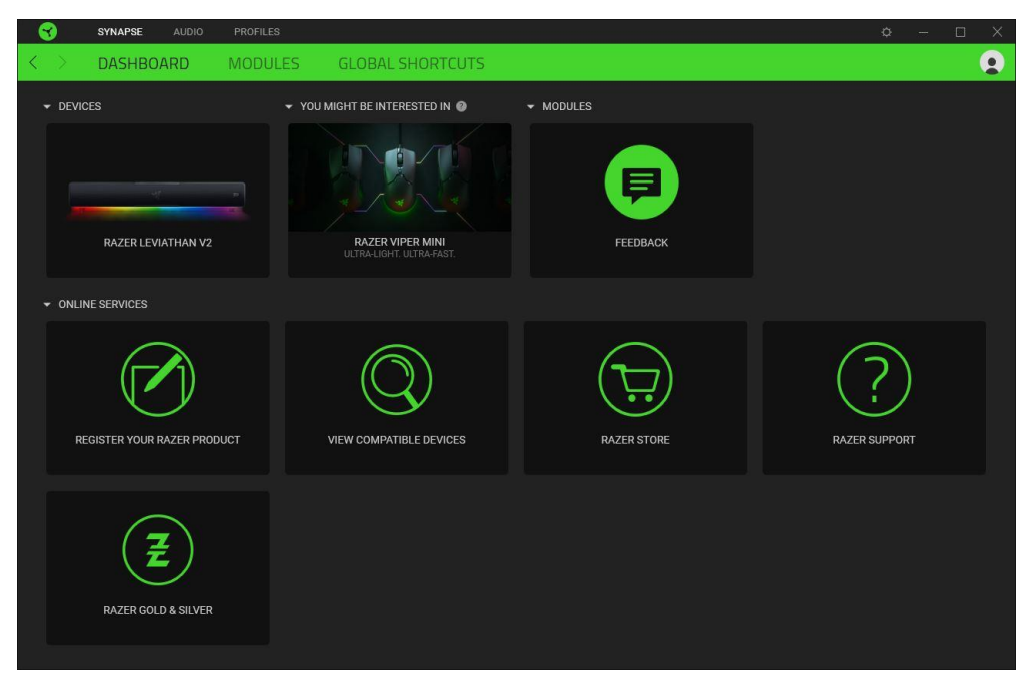

Dashboard
The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.

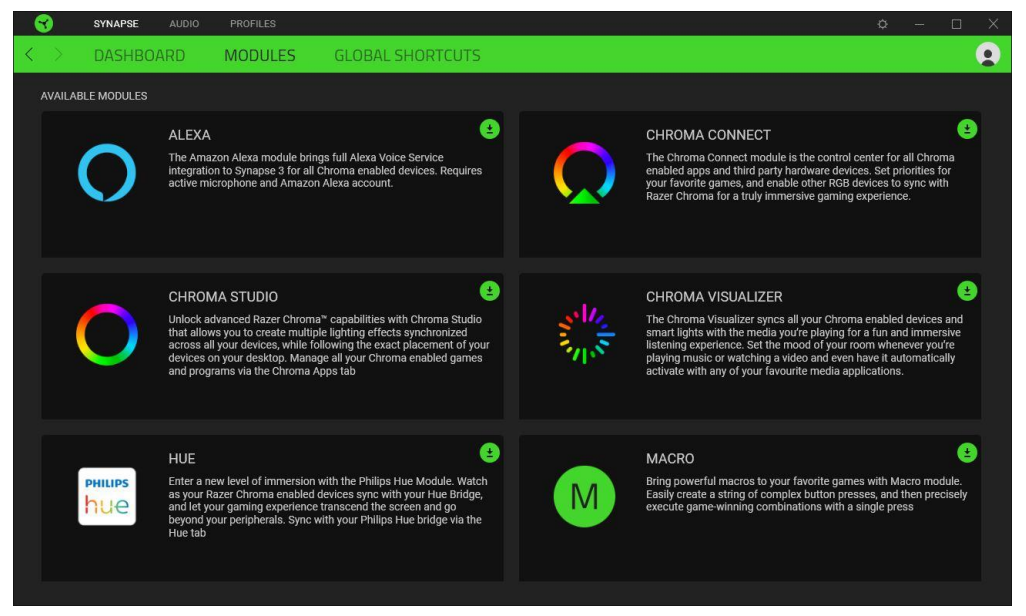

Modules
The Modules subtab displays all installed and available modules for installation.

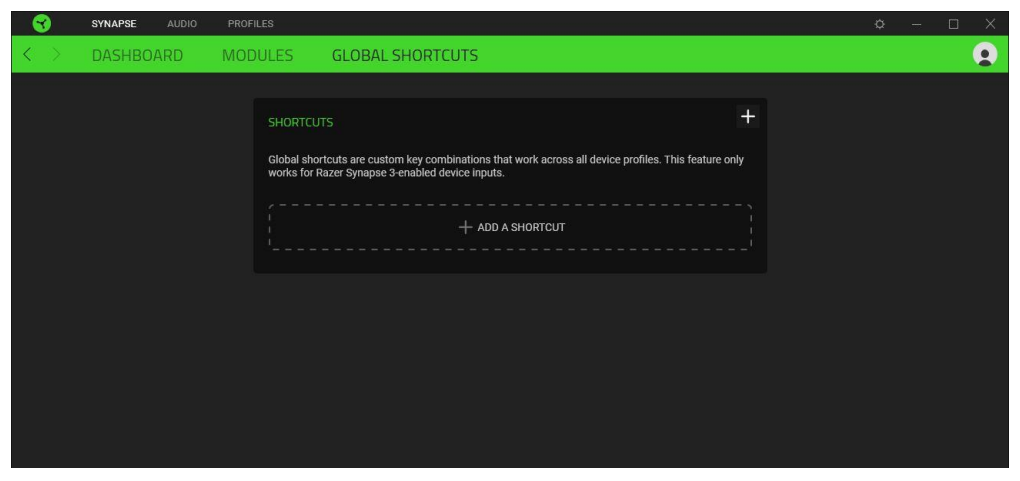

Global Shortcuts
Bind operations or Razer Synapse functions to custom key combinations from any Razer Synapse-enabled device inputs, which apply across all device profiles.
AUDIO TAB
The Audio tab is the main tab for your Razer Leviathan V2. From here, you can customize your soundbar’s settings to unleash its full potential. Changes made under this tab are automatically saved to your system and cloud storage.

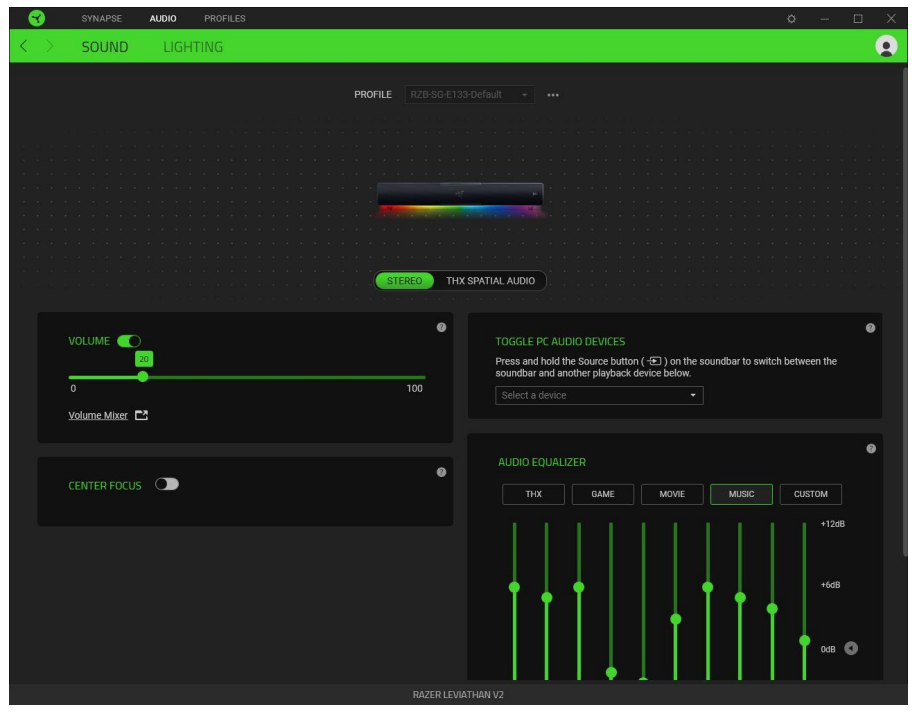

Sound
The Sound subtab is for toggling between stereo and THX® Spatial audio, setting a secondary playback device, and customizing the incoming audio settings and frequency response of the soundbar.
Profile
Profile is a data storage for keeping all your Razer peripherals’ settings. By default, the profile name is based on your system’s name. To add, rename, duplicate, or delete a profile, simply press the Miscellaneous button.
Stereo / THX® Spatial Audio
Toggle between stereo audio and THX® Spatial Audio.
Volume
Adjust the audio volume of the soundbar. You may also access the Windows volume mixer of the current playback device, where you can proportionally adjust the overall volume of the system or individually adjust the volume of each active application.
Toggle PC audio devices
Set a secondary playback device that you can immediately switch audio with when you press and hold the Source button on the soundbar.
Center focus

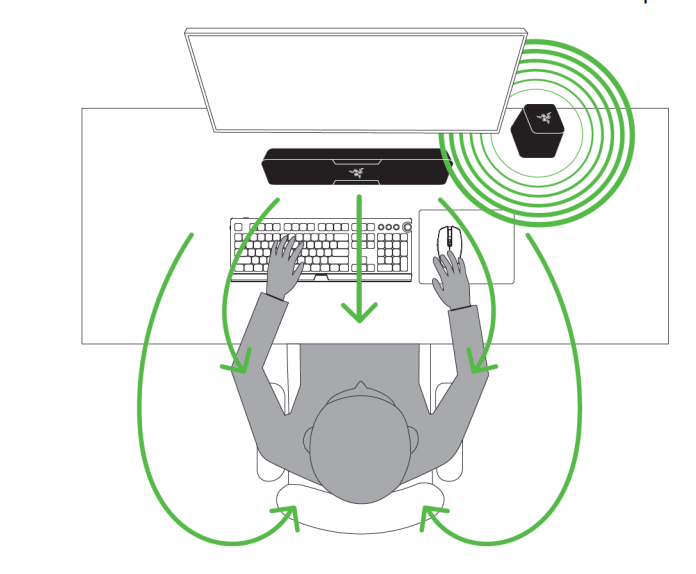

Enable this setting to direct the soundstage towards the user to increase the clarity in the center channel. This feature works best with multi-channel audio content.
Audio equalizer
Select any of the available equalizer presets created for the best audio experience designed for balance, gaming immersion, movie viewing, or enjoying your favorite music. Manually adjusting any equalizer preset will automatically set it to Custom.

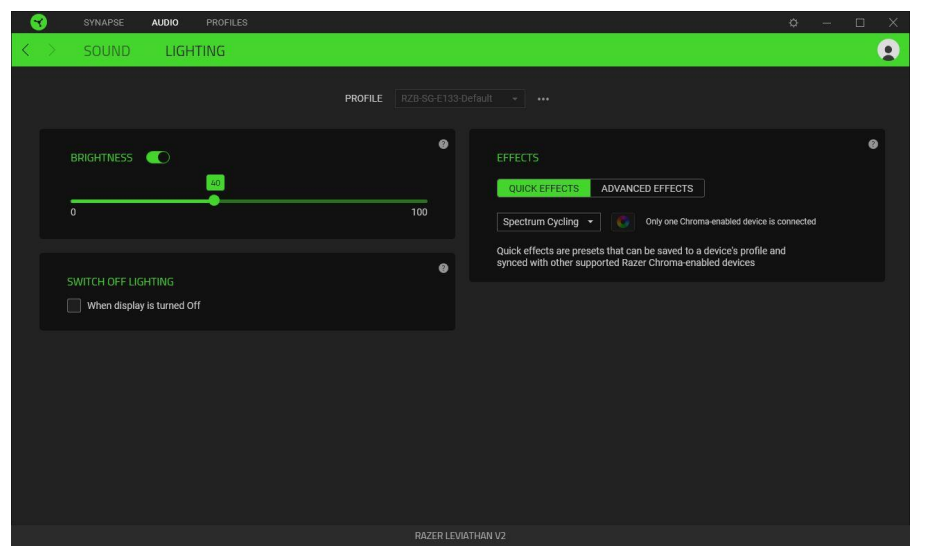

Lighting
The Lighting subtab enables you to customize the lighting on the soundbar.
Brightness
You can turn off the soundbar lighting by toggling the Brightness option or increasing/decreasing the luminance using the slider.
Switch Off Lighting
This power-saving tool allows you to disable the soundbar lighting when your system’s display is turned off.

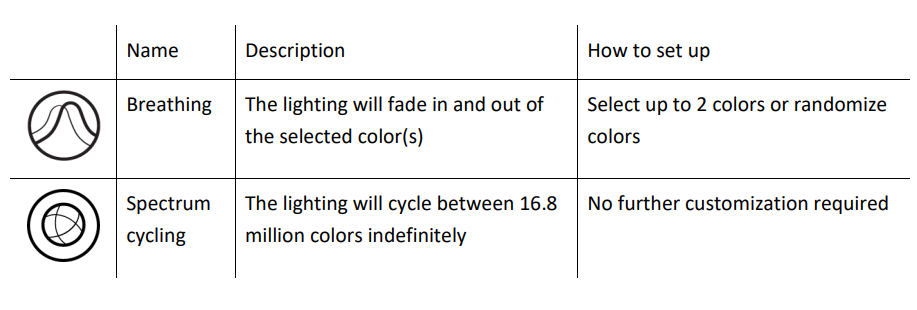

Quick Effects

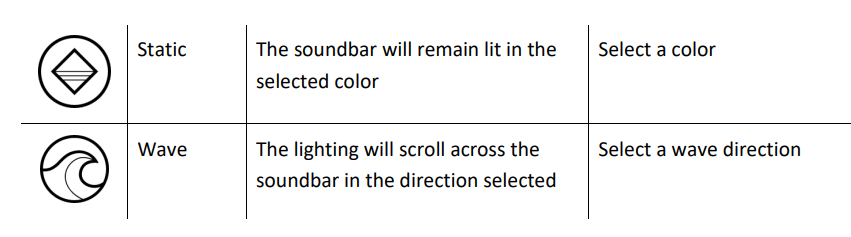

Several quick effects can be selected and applied to your soundbar’s lighting, as listed here:
If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button.
Advanced Effects
The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the Chroma Studio button.
PROFILES TAB
The Profiles tab is a convenient way to manage all your profiles and link them to your games and applications.

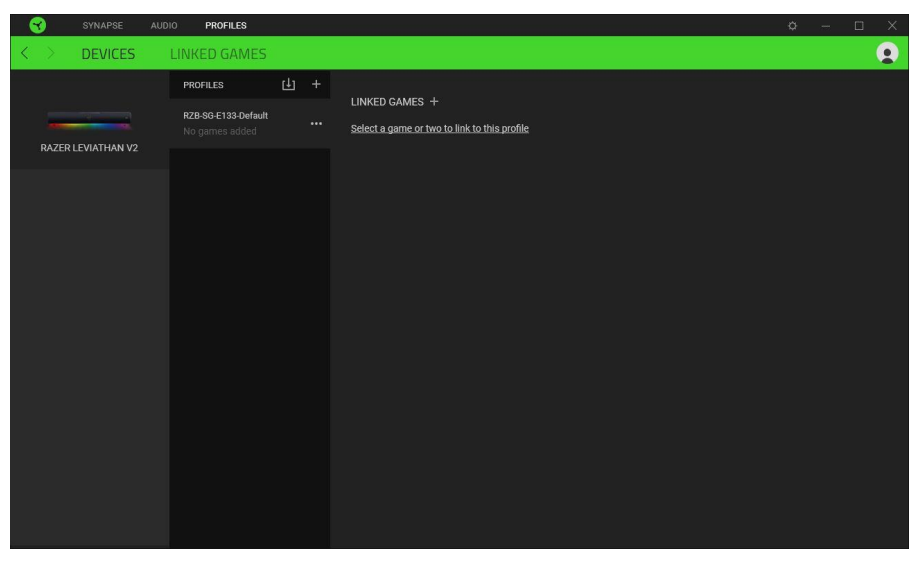

Devices
View which games are linked to each device’s profiles or which Chroma Effect is linked to specific games using the Devices subtab.
You can import Profiles from your computer or the cloud through the import button or create new profiles within the selected device using the add button. To rename, duplicate, export, or delete a profile, simply press the Miscellaneous button. Each profile can be set to activate when you run an application using the Linked Games option.

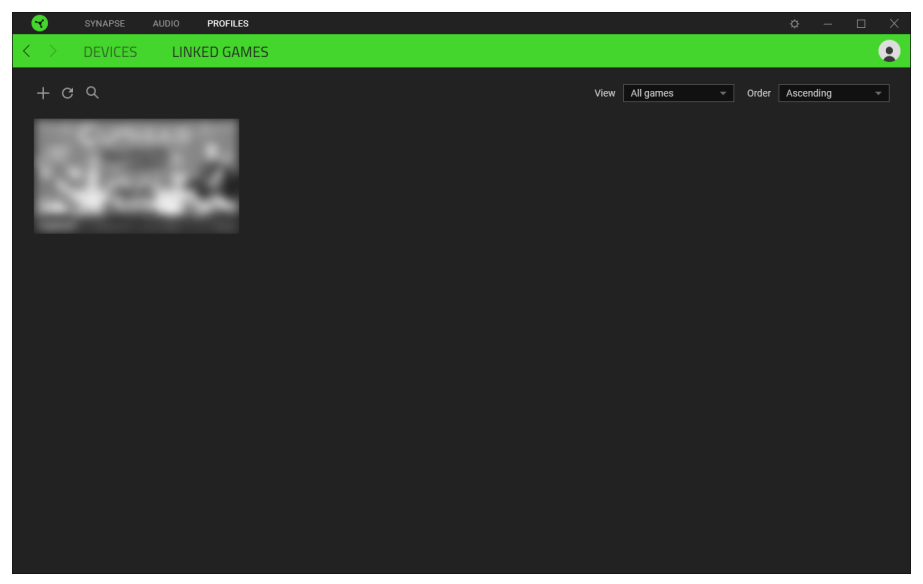

Linked Games
The Linked Games subtab allows you to add games, view devices linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here, even if they are not linked to a Razer device.
To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with. Once connected, you may click the Miscellaneous button of the corresponding Chroma Effect or device to select a specific Chroma Effect or profile.
SETTINGS WINDOW
The Settings window, accessible by clicking the button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, view the master guides of each connected Razer device, or perform a factory reset on any connected Razer device.

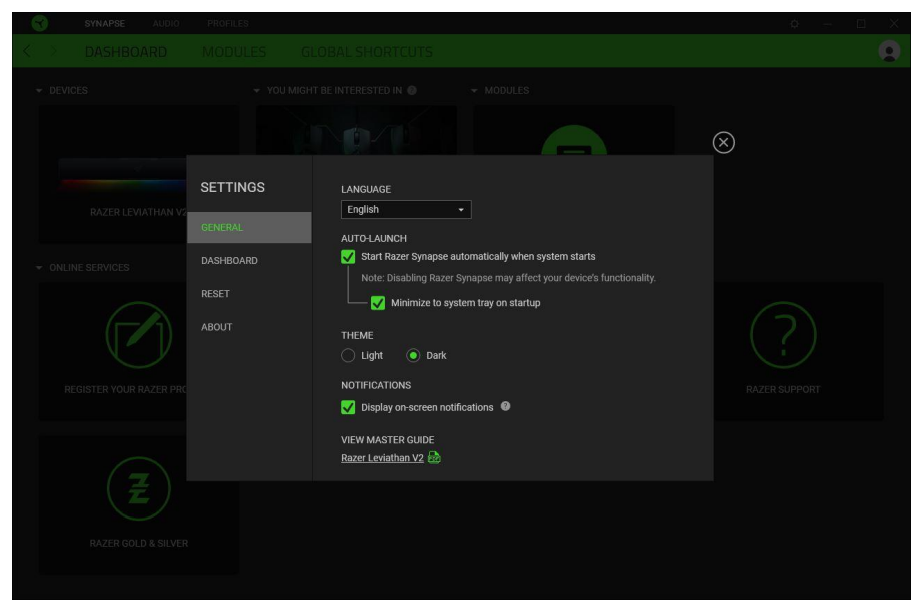

General tab
The General tab lets you change the software’s display language, startup behavior, theme, and on-screen notifications display. You may also manually sync your profiles to the cloud or view the master guide of all connected Razer devices and installed modules.
Dashboard tab
Use the Dashboard tab to customize which Razer device recommendations based on your setup, and the games you play will appear on the Dashboard.
Reset tab
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse’s new features on its next launch.
About tab
The About tab displays brief software information and a copyright statement, and provides relevant links for its terms of use. You may also use this tab to check for software updates or as quick access to Razer’s social communities.
SAFETY AND MAINTENANCE
SAFETY GUIDELINES
To achieve maximum safety while using your Razer Leviathan V2, we suggest that you adopt the following guidelines:
- Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.
- Do not take apart the device, and do not attempt to operate it under abnormal current loads. Doing so will void your warranty.
- Keep the device away from liquid, humidity, or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device to stabilize the temperature to an optimal level.
- Listening to excessively loud volumes over extended periods can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86 dB to affect your hearing for 8 hours a day. We, therefore, recommend that you reduce the volume to a comfortable level when listening for prolonged periods. Please, take good care of your hearing.
MAINTENANCE AND USE
The Razer Leviathan V2 requires minimal maintenance to keep it in optimum condition. Once a month, we recommend you clean the soundbar and its subwoofer using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
