Redragon K552 Mechanical Gaming Keyboard User Guide

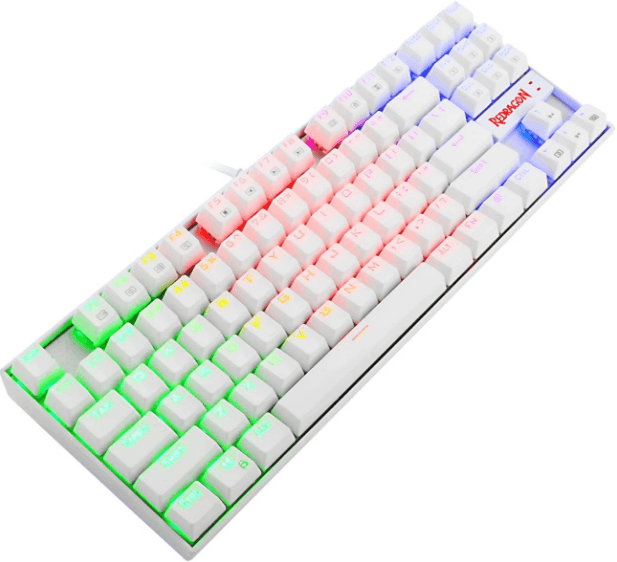

Redragon K552 Mechanical Gaming Keyboard

Warranty Rules

1. Within the guarantee period, repair is guaranteed for failure due to electrical circuit problems. Man-made damages, such as disassembly, hard impacts, submersion into water, plugging into improper current or voltage, and damage caused by natural disasters such as fire, flood, or earthquake, are not included.
2. . Consumable parts (such as foot sticks) and spare parts replacement are not included in our warranty.
3. Please fill out the warranty card. The warranty card is valid with the stamp of the retailer.
4. This warranty card will not be reissued if lost. Please keep it in a safe place.

OS Support

Windows XP/Vista/Win7/Win8/Win10

Product feature

1. Plug and play, no driver or software needed.
2. Multi-level backlight brightness.
   1. Press and hold the [FN] key, and then press the arrow key [↑] to increase the backlight brighness of the keyboard.
   2. Press and hold the [FN] key, and then press the arrow key [↓]key to decrease the backlight brighness of the keyboard.
3. Breathing or showing speed
   1. Press and hold the [FN] key, and then press the arrow key [←] to slow down.
   2. Press and hold the [FN] key, and then press the arrow key [→] keys to speed up.
4. Selectable backlight modes
   • Press and hold the [FN] key, and then press the [INS] (M) key to switch among the following 9 modes:
     1. Snake
     2. Left-To-Right
     3. Water Drop
     4. Steady On
     5. Tracking
     6. Breathing
     7. Zone-Defined
     8. Wave
     9. Minimizing
5. [FN] function key for backlight gaming modes:
   1. [FN]+[1] (L1): First Person Shooter (FPS) Mode
      • ESC, W, A, S, D ,  ↑ , ← , ↓ , →.
   2. [FN]+[2] (L2): Cross Fire (CF) Mode
      • • Q, W, E, R, A, S, D, G, B, 1, 2, 3, 4, 5, Space, L-Ctrl, L-Shift, L-Alt, Tab, F1, F2, F3, Home, End, PgUp, PgDn, PrtSc, ScrLk.
   3. [FN]+[3] (L3): Call of Duty (COD) Mode
      • Q, W, E, R, T, A, S, D, F, G, C, V, 1, 2, 3, 4, 5, 6, 7, L-CtrI, L-Shift.
   4. [FN]+[4] (L4): Real Time Strategy (RTS) Mode
      • Q, W, E, R, T, Y, U, P, A, S, D, F, G, H, K, L, Z, X, N, M, Space, L-Ctrl, L-Shift, L-Alt 1, 2, 3, 4, 5, 6, 7, 8, 9, 0.
   5. [FN]+[5] (L5): LOL/DOTA Mode
      • Q, W, E, R, D, F, G, V, B, L-Ctrl, L-Alt, Tab, Space, ~, 1, 2, 3, 4, 5, 6, Esc.
   6. [FN]+[6] (L6): Racing Mode
      • W, A, S, D, R, ↑, ←, ↓, →, L-Ctrl, L-Shift, L-Alt.
   7. [FN]+[7] (L7): NBA Mode
      • W, E, R, A, S, F, Z, X, C, V, Space, ↑, ↓, ←, →, 1, 2, 3, 4, L-Shift, L-Ctrl, L-Alt.
   8. [FN]+[8] (L8): LOL/DOTA Simple Mode
      • Q, W, E, R, D, F, B, 1, 2, 3, 4, 5, 6.
   9. [FN]+[9] (LR1), [FN]+[0] (LR2): Custom Game Modes.
      • With these game modes, you can create your lighting schemes for your own needs and preferences.
        1. Press [FN]+[9] (LR1) or [FN]+[0] (LR2) to choose which game mode to customize.
        2. Press [FN]+[Home] (LR) to start recording your custom scheme.
        3. Press any key to turn on the backlight on the pressed key. Press again to disable the backlight on the pressed key.
        4. Press [FN]+[End] (S) to save your scheme.
      • If you want to clear any custom game mode, press [FN]+[PageUp].
6. Swap functions of [W][A][S][D] and arrow keys
   1. Press and hold the [FN] key, and then press the [W] key to interchange the function of the four letter keys [WI[A][S][D] and the four arrow keys [↑][↓] [←][→].
   2. Repeat the above operation to resume the previous setting.
7. Disable the [WIN] (Windows) key
   1. To disable the [WIN] key: Press and hold the [FN] key, and then press the [WIN] key to turn off the [WIN] key to avoid going to the desktop while gaming if the user presses the [WIN] key by mistake.
   2. Repeat the above operation to resume the function.
8. Multimedia function: 12 multimedia keys. Access by pressing the [FN] key and one of the [F1]~[F12] keys at the same time.
   • FN+F1 MyComputer
   • FN+F2 Search
   • FN+F3 Calculator
   • FN+F4 Media Player
   • FN+F5 Previous Track
   • FN+F6 NextTrack
   • FN+F7 Play/Pause
   • FN+F8 Stop
   • FN+F9 Mute
   • FN+F10 Volume Down
   • FN+F11 Volume Up
   • FN+F12 Lock/Unlock Keyboard

FAQ

1. If the keyboard doesn’t respond, please check if the keyboard’s USB cable is correctly inserted into the corresponding USB port on the computer, or try another USB port on the computer.
2. If you spill liquid on the keyboard, please remove the keyboard’s USB cable from the computer immediately. Wipe up excess liquid and put the keyboard in a warm place (for instance, under a lamp) to let the keyboard dry naturally before using it again.
