REDTIGER GolfVue Series 1 Golf Rangefinder User Manual

REDTIGER GolfVue Series 1 Golf Rangefinder

Cautions

• Please do not gaze at the emission hole when firing the laser.
• Please do not aim this device to the sun directly. Avoid permanent damage to the eyes and the device’s internal components.
• Please do not disassemble or repair the product without authorization. Redtiger will not be responsible for any product damage or injury caused by unauthorized disassembly or modification of the product.
• Please keep the product in proper place, and should be keep out of the rich of children.
• Please do not put the product out of the storage temperature 14 °F -140 °F (-10°C – 60°C).
• Please comply with the relevant national laws and regulations; do not use this product for any illegal purpose

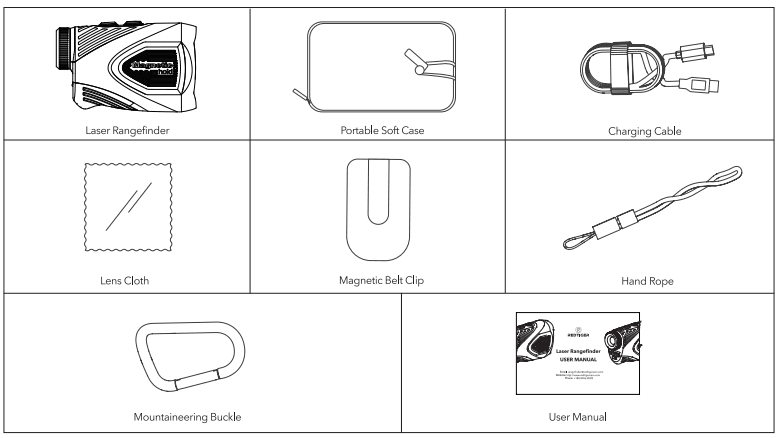

Packing list

Product Introduction

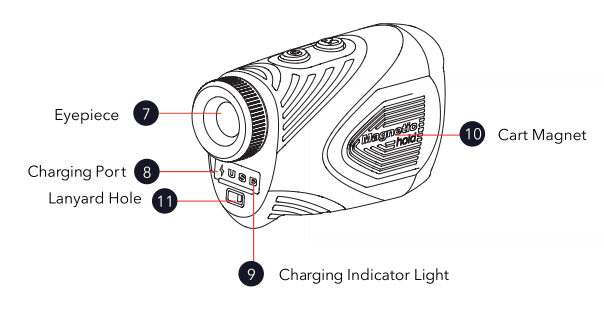

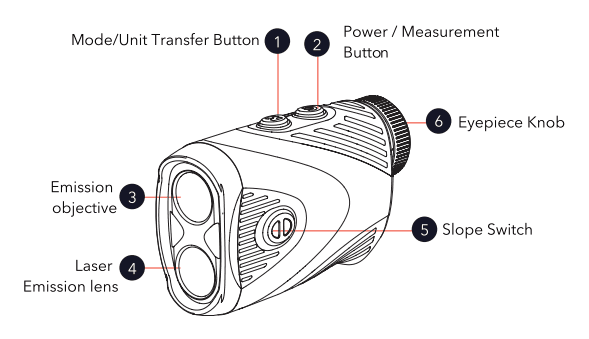

Layout

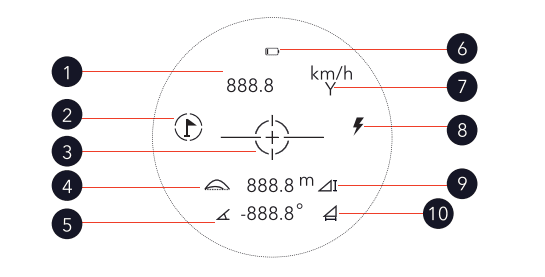

Display Screen

1. Indication
2. Flag
3. Measuring Circles
4. Golf Ballistic Compensation
5. Angle
6. Battery Power
7. Distance/Speed Unit
8. Measuring
9. Height
10. Horizontal Distance

About Battery Power:

• Three cells of battery power: 75%-100% Power
• Two cells of battery power: 50%-75% Power
• One cell of battery power: 25%-50% Power
• Space battery power: less than 25% Power

Function

1. On/Off
   Short Press Power/Measurement Button to power on, Automatically power off with 8s inactivity (Press any button can wake it up)
2. Slope Switch
   The rangefinder is designed with a unique slope switch.
   When the slope switch is on, ready for amateur use and training. When the slope switch is off, it can be used in professional events and meets the regulations of golf championships.
3. Mode setting
   Short press the Mode/Unit Transfer Button to switch between three measurement modes.
   • Golf Ballistic Mode
   • Speed Measuring Mode
   • Ranging Mode
     Long press the Mode/Unit Transfer Button to switch distance unit Y or M and speed unit km/h or mph.

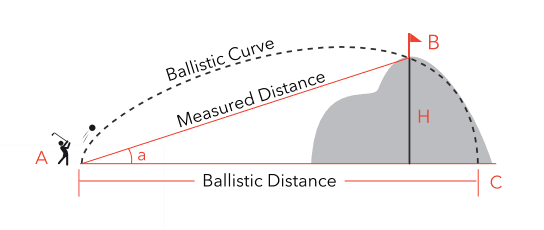

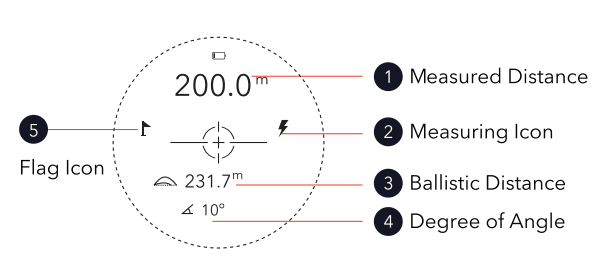

4. Golf Ballistic ModeBallistic Distance, and Degree of Angle will only be displayed when the Slope switch is turned on.
5. Ranging Mode

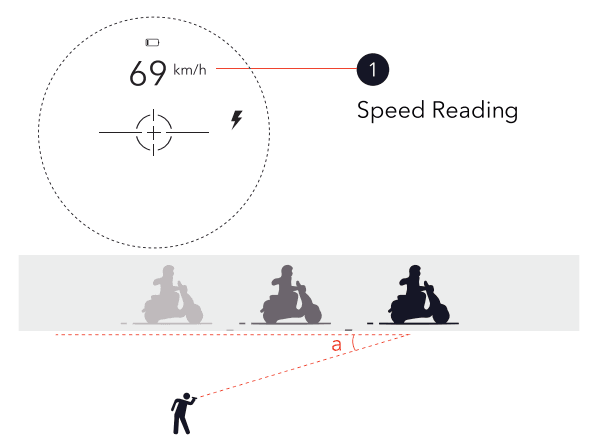

6. Speed Measuring ModeSpeed Measurement Range: 18-300km/h
   Measuring Method:
   In the Speed Measuring Mode, press the power/ measurement button, align the Crosshairs with the object to be measured, and move slightly with the object to measure the speed of the object. The horizontal angle between the Measurer and the measured moving object should be less than 10°, the smaller the angle, the higher the accuracy.

Specification

• SIZE: 115*75*45mm
• Weight: 180g
• Measurement Range: 1200Y
• Accuracy:
  • ±0.3(300Y)
  • ±0.5(1200Y)
• Unit: M, Y
• Laser Wavelength: 905nm
• MagnificationL: 7X
• Objective Lens Diameter: 21mm
• Eyepiece Diameter: 15mm
• Diopter: ±60
• Eye Relief: 3.7mm
• Battery: 750mAh
• Charging Pot: Type-c
• Waterproof: IP54
• Magnet: Yes
• Field of View: 70
• Display: Transflective LCD
• USB-C Output: 5V/2A

ATTENTION

1. Before use, please ensure to calibrate the rangefinder eyepiece until you can see objects clearly with your eyes. The data observed at this point is the most accurate.
2. During use, maintain a steady hand to ensure that the rangefinder lens remains stable during measurement.
3. Keep the rangefinder lens and eyepiece clean for effective focusing.
4. Environmental Conditions: Different environmental conditions may impact the performance of the rangefinder. For instance, extreme weather conditions such as rain, fog, mist, or intense sunlight can potentially reduce the accuracy of the rangefinder.
5. Target Surface: The reflective properties of the target surface can influence the measure- ment results of the rangefinder. Particularly, for highly reflective surfaces or materials like glass, the rangefinder may struggle to measure the distance.
6. Battery Status: If the rangefinder is battery-powered, low battery levels can lead to unstable performance and reduced accuracy. Ensure the use of fully charged batteries and regularly check the battery status.

FAQ

Charging

• Use the type-c charging cable to charge; the red light means it is charging, and the green light means it is fully charged.
• Fully charged for 30000 measurements.
• When the screen shows one cell of battery power recommended to charge.

Display Is Not Clear

Rotate the eyepiece knob to adjust the diopter until focus in target.

Clean

Please clean the eyepieces or objectives with the included microfiber cloth. For a deeper cleaning, use camera lens tissue and camera lens cleaning fluid. The cleaning solution needs to be dipped on the cleaning cloth, and the cleaning solution cannot be directly applied to the lens.

Waterproof

The waterproof level of this product is IP54, and the product cannot be directly exposed to heavy rain or soaked in water.

Customer Service

WORDS FROM HEART

Since our products are related to the safety of customers, we are committed to producing the best praduct quality and high-quality after sales support.

Given no product being flawless, we sincerely believe the true measure of the company’s character is what it does *after* its product does not meet expectations. We feel sorry for those customers, but deeply grateful for them to make us one more step closer to your most trustful brand.

We are willing to provide a one-month free return for your product, 2-year limited warranty, and lifetime technical support. Your product is guaranteed to be free of defects in materials and products from the date of purchase. In addition, you can also exchange your 2-year-old product for a discounted price by contacting us online.

Behold the motif of complexity to us, simplicity to others. It’s such a pleasure to listen to your advice, and we will promptly address any problems that arise.

Wishing you all the best, Sincerely Redtiger Customer Service Team”. Email: rangefinder@redtigercam.com
