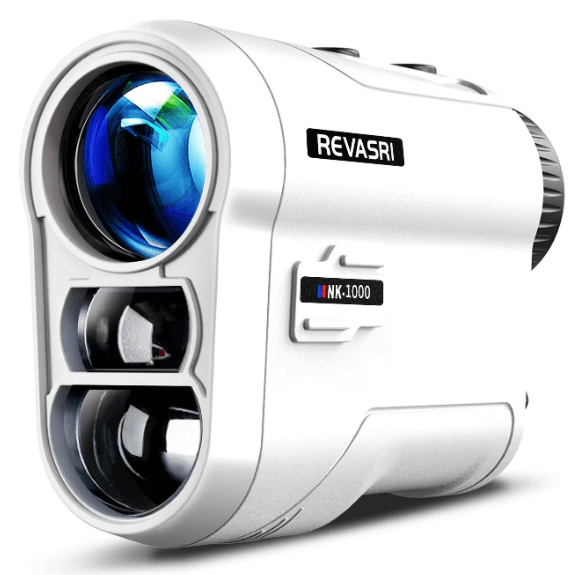

REVASRI 1000 yards Hunting Laser Rangefinder
Introduction

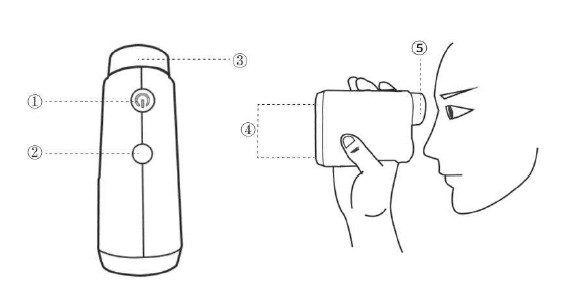

When the device is power off, it is a precise optical telescope, user can adjust eyepiece knob to make it clear.
- Power button
- Mode button
- Eyepiece Knob
- Objective lens
- Eyepiece

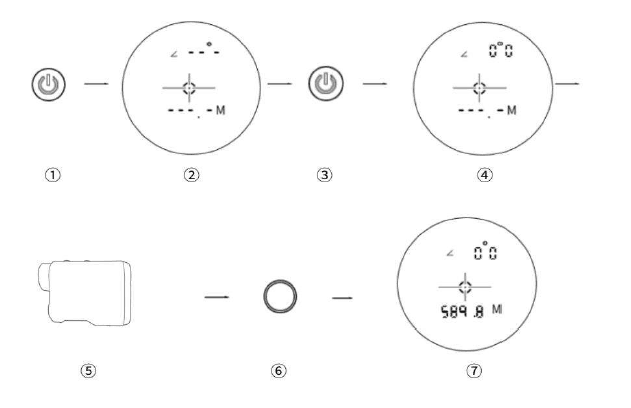

Angle Calibration
The device needs to be calibrated when the angle is inaccurate. Operating on a horizontal platform or a tripod in which the horizontal angle has been adjusted.
- Power on
- LCD
- Long press the power button
- Angle flash
- Release the power button
- Short press mode button to calibrate
Device angle is 0°0 under horizontal status after finishing calibration
Switch Unit Button
It has two units: Yard (Y) & Meter (M), default unit is Yard (Y). Press the Power button & Mode button together to switch the unit.
Working Principle
The Rangefinder uses a safe 905nanometer laser that is safe for human eyes, invisible and meets the standard of Class I.
- First, calculate the time from emission to return after encountering the target object.
- Second, multiply the time and the speed of the light together, then divide by 2 to obtain the distance of the target object.
Product Parameters
- Anale Ranging Scooe: -9o• to 9o•
- Laser Safetv: Class1, Laser Wavelenath gosnm
- Power Supply: Rechargeable Lithium Battery or CR 2
- Magnification: 6.5X
- Field of View: 6.5°
- Objective Lens Diameter: 24MM
- Eyepiece Lens Diameter: 13.2MM
- Ranging Error: ±0.5M/Y (Distance<700M/Y)
- Focusing Mode: Manual Focusing Eyepiece
- LCD Display: transmissive LCD Display
- Exit Pupil Diameter: 3.8MM
- Lens Quality: Multi-Coated
- Ranging Method: Semiconductor Laser Ranging
Attentions
- Please use the standard battery/ standard charge in the right way.
- Do not view the emissions for long periods with a magnified lens.
- Do not put the device out of the storage temperature of -20~50°C.

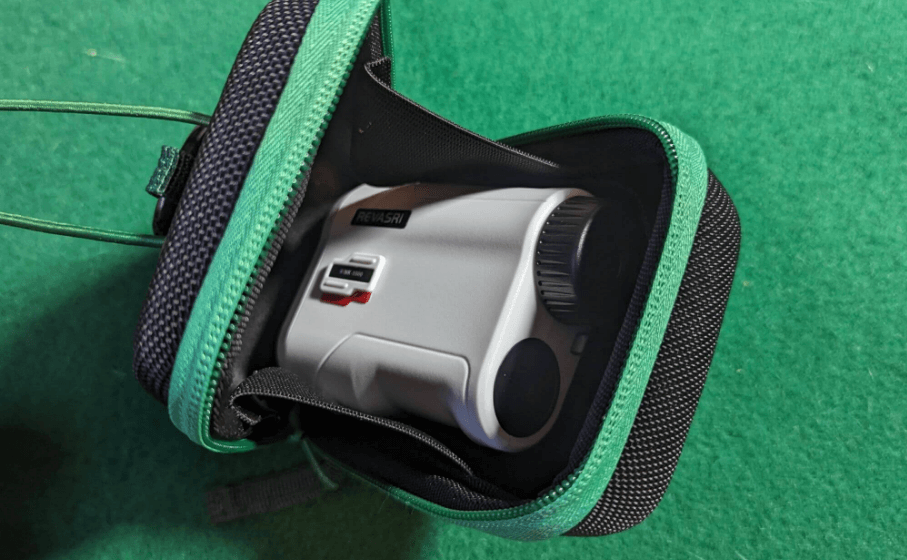

- Avoid direct sunlight to the eyepiece to avoid damaging the eyepiece display/internal components. Put it in a protective case when you are not using it.
- The device will power off if there is no operation exceeding 20s. Please do not press or press the power button again and again.
Measurement Mode & Operation

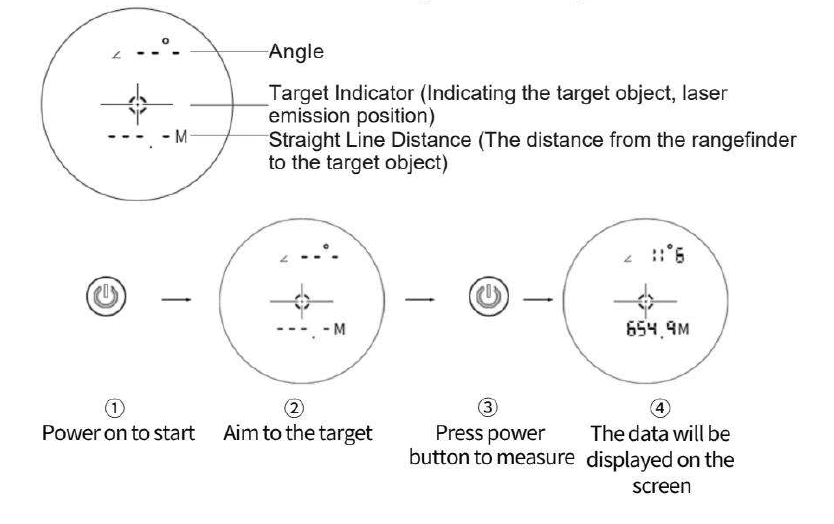

Mode 1. Ranging Mode
Measure the distance from the rangefinder to the target.

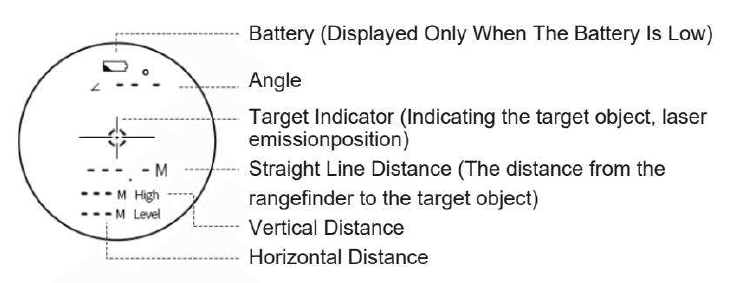

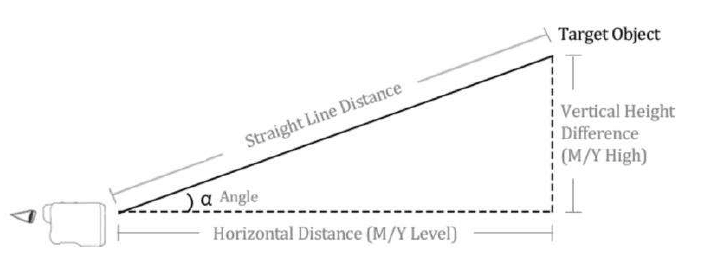

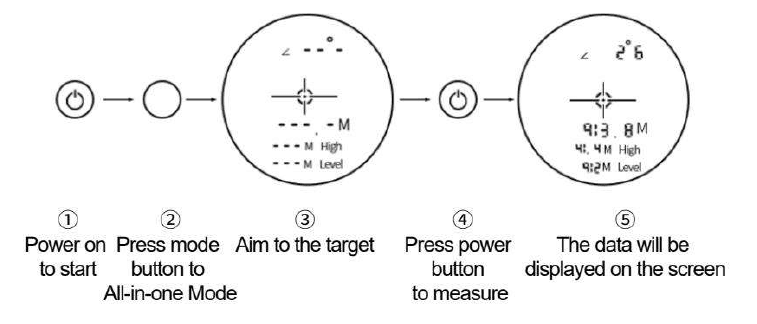

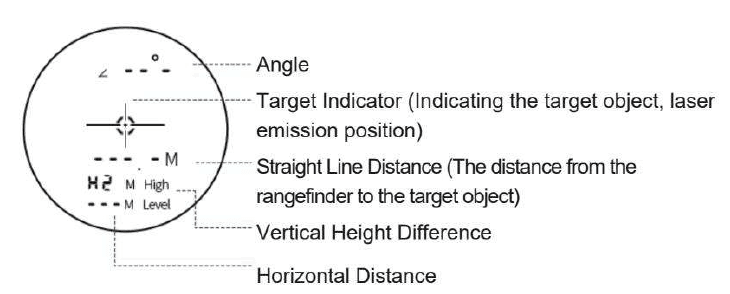

Mode 2. All-in-one Mode
Measure the straight line distance, angle, vertical distance & horizontal distance.

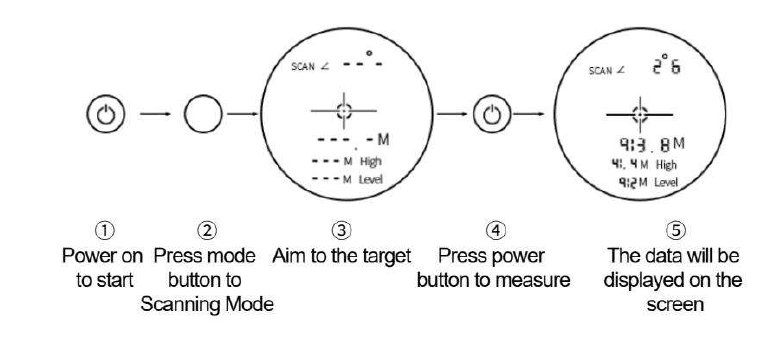

Mode 3. Scanning Mode
Continuous measure straight line distance, angle, vertical distance & horizontal distance.

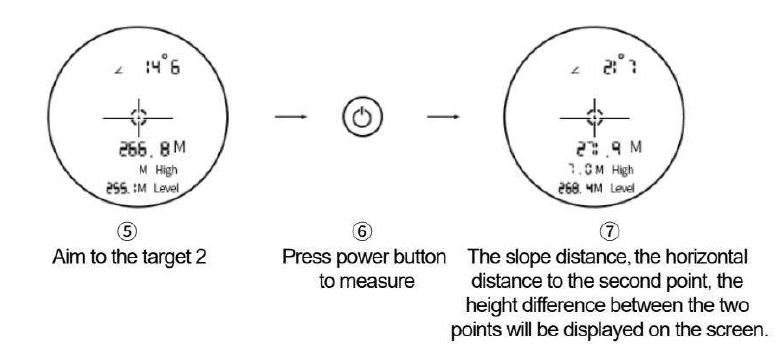

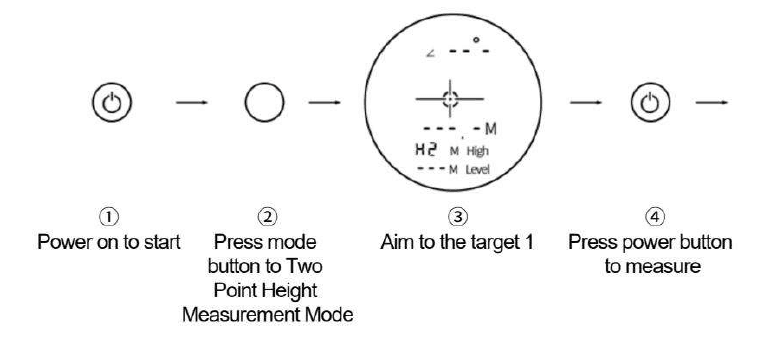

Mode 4. Two-Point Height Measurement Mode
This mode can measure the vertical height difference between two targets.

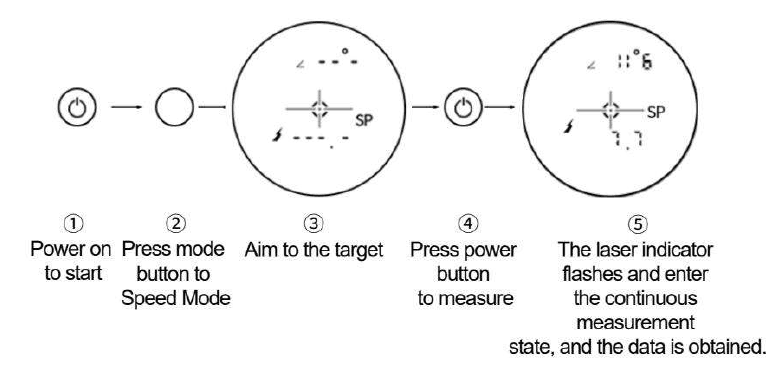

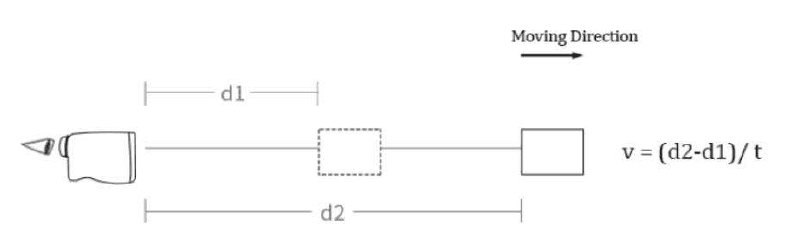

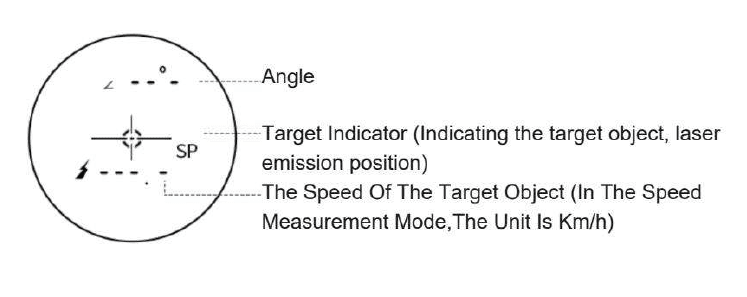

Mode 5. Speed Measurement Mode
Speed mode can measure the speed of the target object moving in radial motion. The speed of the target object moving in parallel cannot be measured because the distance from the rangefinder to the target has no change.

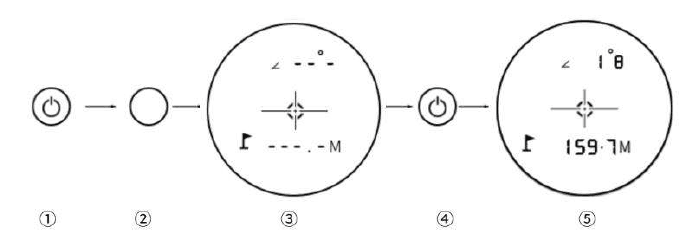

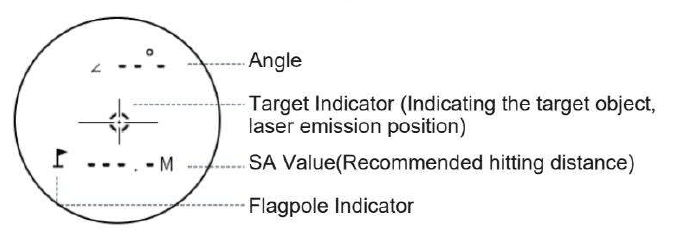

Mode 6. Golf Distance Compensation Mode
- Power on to start
- Press the mode button to Golf Mode
- Select the target object and aim the target indicator at the target object
- Long press the power button to enter the scanning Mode (Aim at the slope/background behind the flagpole)
- Move the Target Indicator from the background to the flagpole slowly. The flagpole is locked successfully; the rangefinder vibrates and displays suggest hitting distance
- When the slope is positive, play distance will be greater than sight distance.
- When the slope is negative, play distance will be less than sight distance.

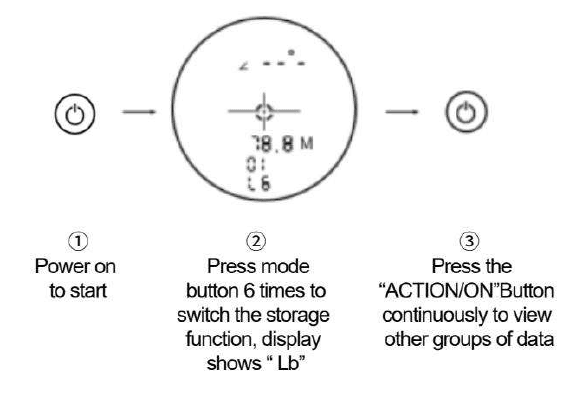

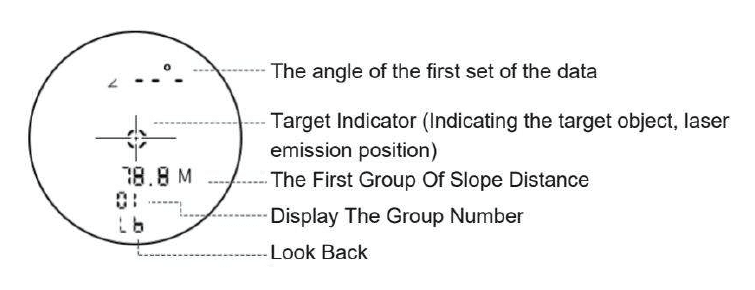

Storage Function
