REVASRI MINI4 Golf Rangefinder with Slope and Pin Lock User Manual

REVASRI MINI4 Golf Rangefinder with Slope and Pin Lock

Warning

• Do not view the emissions for long periods of time with magnified lenses.
• Avoid direct sunlight to the eyepiece to avoid damaging the eyepiece display/internal components.
• The equipment contains electrical and/or electronic components and, therefore, cannot be disposed of in the same way as ordinary
  household waste. These wastes should be disposed of at community-provided waste collection points.
• Put the battery away from the fire. Do not throw the device into the fire, otherwise, it may cause an explosion.

Maintenance

1. The lenses of our laser rangefinder are multi-coated for the highest light transmission. Removing fingerprints, clean with the lens
   circularly demisting cloth.
2. If a cleaning solution is used, it needs to be placed on the clean cloth. Do not put it on the lenses directly.
3. This device has a built-in rechargeable lithium battery. When it displays ‘low battery’, charge it with a USB cable.
4. Do not put the device out of the storage temperature of -20~50°C.
5. If the device is not used for a long time, it must be packed in a protective case and placed in a dry environment.

Introduction

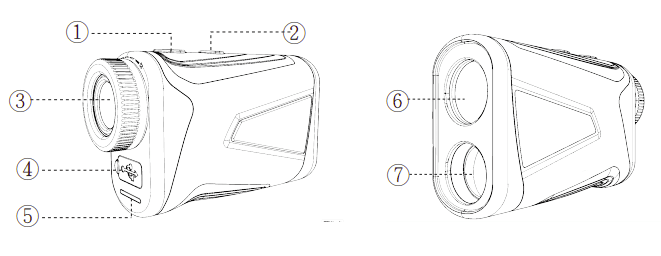

1. Power Button
2. Mode Button
3. Eyepiece Knob (Adjust knob for clarity)
4. Battery
5. Slope
6. Laser Receiving Objective Lens
7. Laser Transmission Objective Lens

LCD Display

1. Actual distance
2. Distance Units- M=Metres Y=Yards F=Feet
3. Target Indicator
4. Play distance
5. Slope
6. Flagpole Icon

Power Button

1. Press the to power on the unit.
2. No operation after 30 seconds, power off.

Mode Button

• Press to switch to, Tour mode or Slope mode

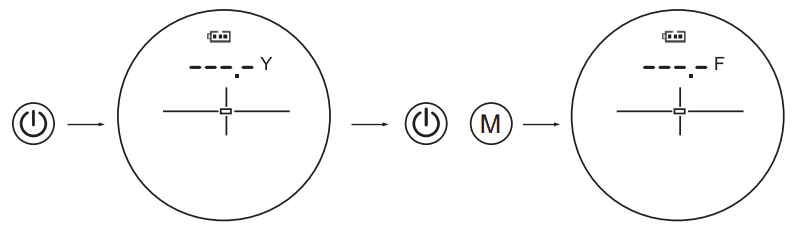

Switch Unit Button

• Press & together 2s to change unit Y, M or F.

Mode 1, Tour Mode, No Slope

1. Power on
2. Select the target object and aim the target
3. Press the “ ” Button to measure
4. The data will be displayed on the screen

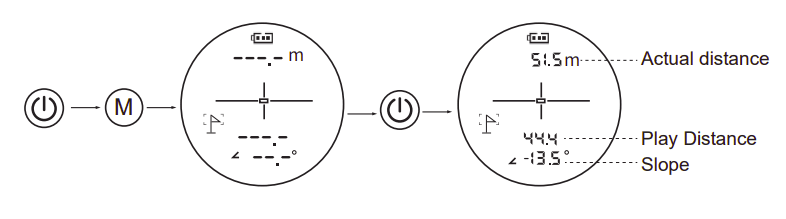

Mode 2, Slope Mode with Slope

The training mode has golf compensated distance, it can easily help golfers to get compensated distance when they want it.In this model,
you will see a logo ” ” appear on the display.

1. Power on.
2. Press to slope mode.
3. Select the target object and aim the target.
4. Press the Button to measure.
5. The data will be displayed on the screen

Scan, Flagpole lock & Vibration

Under both modes, there are scan, flagpole lock, and vibration functions. Tips as below.

Tips as below:

1. Aim at the slope/ background behind the flag, long long-press the power button to enter the scanning mode.
2. Move the rangefinder Target Indicator from the background to the flag slowly.
3. The flag is locked successfully; the rangefinder vibrates and displays the measurement data.

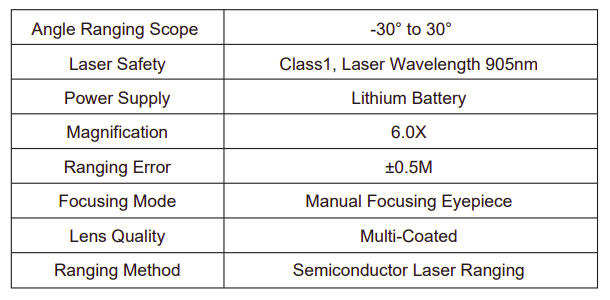

Technical Specifications

Warranty Card

This product has a one-year warranty of defects in materials and defective workmanship from the date of purchase. During the warranty period, if there is any defect, we will repair or replace the product according to the status of each case when we receive the returned product.
Non-warranty situation:

• Wrong operation or man-made damage.
• Maintenance provided by unauthorized person or unit.
• Just send back the equipment; no accessories ( case, strap, batteries, etc.) are required.
• If repairs are required, please send the device to your local dealer along with the warranty card & purchase invoice.
