Richmat HJH129B Ble Smart home Remote

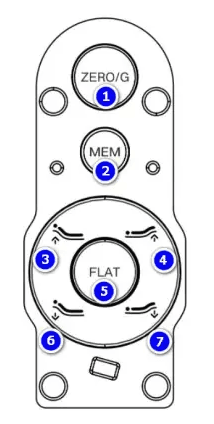

Remote control button silicone diagram
Remote control function description
| Button label | Function |
1 | Press the button, the motor runs to the memory position ZG with one button Multiplexing function: long press FLAT+ZG for about 3s, the buzzer will sound, and the current motor position will be recorded to ZG. |
2 | Press the button, the motor will run to the memory position M1 with one button Multiplexing function: long press FLAT+ M1 for about 3s, the buzzer will sound, and the current motor position will be recorded to M1. |
| 3 | The head motor extends. |
| 4 | The foot motor extends. |
| 5 | With one key reset, all motors retract to the minimum stroke position. |
| 6 | The head motor retracts. |
| 7 | The foot motor retracts. |
| Coding method: [Remote head up + foot up (3,4) + control box pairing key] The buzzer sounds, indicating that the pairing is successful. | |
Precautions
To protect the reliability and safety of the motor and control box, do not switch the buttons frequently
Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- (1) This device may not cause harmful interference, and
- (2) This device must accept any interference received, including interference that may cause undesired operation.
- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
For more manuals by Richmat, visit ManualsLibrayy
Richmat HJH129B Ble Smart home Remote FAQs
How do I pair the Richmat HJH129B BLE remote with my device?
To pair, ensure Bluetooth is enabled on your smart device, then press and hold the pairing button on the remote. Follow any on-screen prompts on your app to complete the connection.
What devices are compatible with the HJH129B BLE remote?
The remote is compatible with many smart home control boxes and devices that support Bluetooth Low Energy (BLE) functionality, including both iOS and Android systems.
How can I reset the Richmat HJH129B BLE remote?
To reset, press and hold the reset button (usually found on the back) for a few seconds until the indicator light flashes, signaling a successful reset.
What should I do if the Bluetooth connection drops?
Ensure the remote and device are within range and that there are no large objects or walls obstructing the signal. If issues persist, restart both devices and attempt reconnecting.
Is there a way to update the firmware on the HJH129B BLE?
Yes, check the connected app for available firmware updates. Follow the prompts within the app to install updates when available.
How do I enable sleep mode on the remote?
Sleep mode typically activates automatically after a period of inactivity to conserve battery. You can wake the remote by pressing any button.
Can I use multiple HJH129B BLE remotes with one control box?
Yes, but the control box should support multi-device connections. Check the specifications to ensure compatibility with multiple remotes.
How do I troubleshoot connection issues with the HJH129B BLE remote?
Restart the remote, ensure Bluetooth is on, and verify compatibility. If issues persist, try resetting the remote or reinstalling the associated app.
What is the range for the Bluetooth connection?
The remote generally has a range of around 30-50 feet, depending on interference and obstructions between the devices.
Is the HJH129B BLE remote compatible with both Android and iOS devices?
Yes, it is compatible with both Android and iOS devices that support Bluetooth Low Energy.
