Ring Battery Doorbell
Quick Start
- Charge before use.
- Open the Ring app and select Set Up a Device. Then follow the in-app instructions.
- Scan this code. This identifies your Ring device to make setup fast and easy.

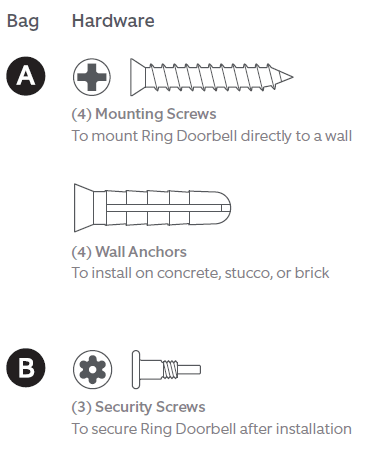

Included installation hardware.

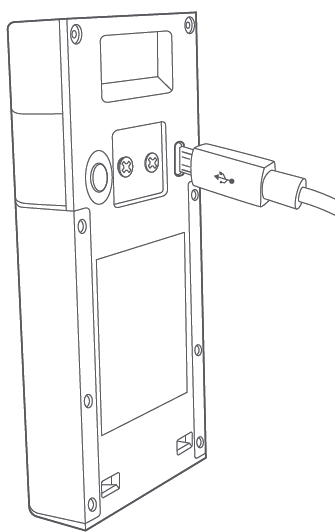

Fully charge your Ring Doorbell.
Plug it into a USB power source with the included cable. Once the light ring is fully lit, it’s ready to use.
Set up your Ring Doorbell near your wifi router.
In the Ring app, select Set Up a Device and follow the in-app instructions.
Try it out.
After setup, push the button on the front of your Ring Doorbell to see video from the camera in the Ring app.
If you have problems with video quality after installation, you may need to move your router closer to your door or add a Ring Chime Pro. Learn more at: ring.com/chime-pro
Install your Ring Doorbell.
For the best results, mount it around four feet (1.20 meters) above the ground.
If you’re connecting to existing doorbell wiring that’s higher than four feet and want to angle your Ring Doorbell down for a better view, you can purchase a Wedge Kit online at ring.com/accessories.
Optional: Remove your existing doorbell.
If connecting to existing doorbell wires, shut off power at the breaker. If you’re not sure which breaker controls your doorbell, turn off the master breaker for your home, or contact an electrician.
Once power is turned off, remove the doorbell button from the wall and disconnect the wires.
Your Ring Doorbell is compatible with doorbell systems supplying 8–24 volts AC at 50 or 60Hz, 40VA max.
CAUTION!
You’ll be working with electrical wires during the installation process. If you are uncomfortable or inexperienced with doing so, consult with a licensed electrician. Do not wire your Ring Doorbell to a DC-powered intercom system or other DC power source.
Mark the screw holes.
Use the bracket as a template to mark the four corner holes.
Optional: Install the wall anchors.
You’ll need to install wall anchors when installing on stucco, brick, or concrete (skip ahead to page 11 if installing on wood).
Grab 4 of the wall anchors from Bag A. Using your Ring Doorbell as a template, mark 4 drill holes on the wall. Use a 1/4” masonry drill bit (not included) to drill the holes, then insert the 4 wall anchors.
Install the mounting bracket.
If connecting to existing doorbell wires, feed the wires through the hole in the mounting bracket first.
Using a Philips head screwdriver, drive the mounting screws from Bag A into your wall (or into the anchors, if installed) until they are flush with the mounting bracket.
Optional: Wiring to an existing doorbell.

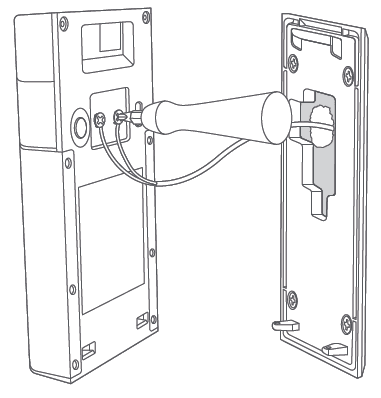

Connect the wires.
Connect the wires coming out of your wall to the screws on the back of your Ring Doorbell. Either wire can connect to either screw. The order doesn’t matter.
CAUTION!
If wiring directly to a doorbell transformer, connect a 25-ohm, 50W wirewound resistor in series with one of the doorbell wires to protect your Ring Doorbell. Do not connect to a DC transformer, halogen, or lighting transformer, or intercom.
Attach your Ring Doorbell to the mounting bracket.
Hook the slot on the rear of your Ring Doorbell onto the tab near the top of the mounting bracket. Then, let the Doorbell pivot down to sit flush on its bracket.
Secure the doorbell.
CAUTION!
If you use the wrong screws to secure the doorbell, you could damage the battery during installation, create a fire hazard, and be seriously injured.
DO NOT USE any screw other than the included short security screws when securing your Ring Doorbell to the bracket.
Use the star-shaped end of the included screwdriver to insert and tighten two of the security screws from Bag B into the bottom of your Ring Doorbell.
Optional: Restore power at the breaker.
If you connected to existing doorbell wires, turn power back on at the breaker. It may take a moment for your Ring Doorbell to power on. You’ll know it’s ready once it lights up and speaks to you.
Your Ring Doorbell is now ready to use.
Free Ring Protect Plan for 30 days.
Your new device comes with a free, 30-day trial of Ring Protect. This comprehensive subscription service lets you review, save, and share your video and photo history anytime so you never miss a moment.
To continue using Ring Protect after your free trial ends, visit ring.com/protect-plans to compare plans and pricing.
For additional help, visit ring.com/help
Or give us a call
- US 1 800 656 1918
- Canada 1 855 300 7289
- Worldwide +1 310 929 7085
For a list of all our customer support numbers, visit ring.com/callus
