Rooms To Go 11081027 Dual Power Reclining Sofa User Guide

Rooms To Go 11081027 Dual Power Reclining Sofa

LIST OF PARTS

TOOLS REQUIRED: NO TOOLS REQUIRED

• Seat x1
• Left Backrest x1
• Middle Backrest x1
• Right Backrest x1
• LSF KD Wing x1
• RSF KD Wing x1
• Wall Plug Transformer x1

ASSEMBLY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Misuse can cause FIRE or DEATH by ELECTRICAL SHOCK

Read all instructions before using this furnishing.

DANGER – To reduce the risk of electric shock:

• Always unplug this furnishing from the electrical outlet before cleaning or servicing

WARNING- To reduce the risk of burns, fire, electric shock, or injury to persons:

• Unplug from the outlet before putting on or taking off parts
• Never operate this furnishing if it has a damaged electrical cord or plug, if it is not working properly, or if the electrical cord or plug has been damaged or dropped into water. Stop using this furnishing and call a service center for examination and repair
• Keep the electrical cord and plug away from heated surfaces and other heat sources
• To disconnect, turn all controls to the off position, then remove the plug from the outlet.
• When operating, ensure that the electrical cord is not under the base, legs, or motion mechanism to avoid damage to the electrical cord or plug.
• Do not strain or stretch the electrical cord
• Do not use extension cords or power strips
• Keep out of reach of children. This is not a toy.
• Plug directly into a compatible electrical socket.
• Do not modify the plug or use any adapters.

PART ASSEMBLY

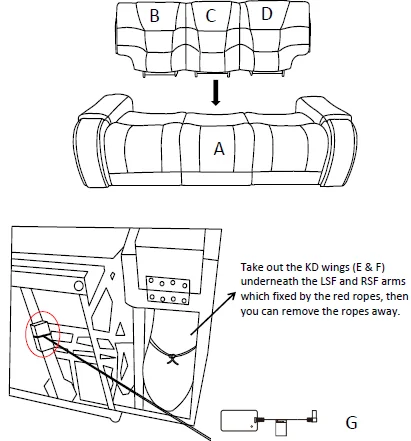

STEP 1

Install the Backrest(B & C &D) into the Seat (A ) by connecting the female receivers to the male connectors. Ensure that female receivers on each side of the backrest are connected to the seat male connectors.

Install all backrests of sectional pieces in the same way described above.

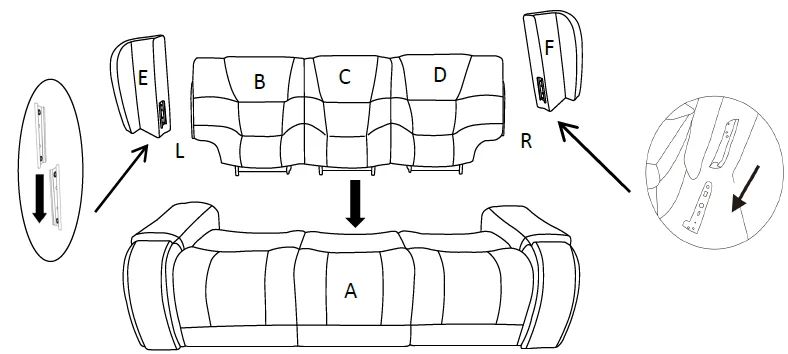

KD Wing Assemble:

Hold the back KD wings and flap with both hands and line male and female brackets together (L matches L, R matches R). Apply downward force to the top of the back (one side at a time) to ensure snap engagement.

POWER CONNECTIONS

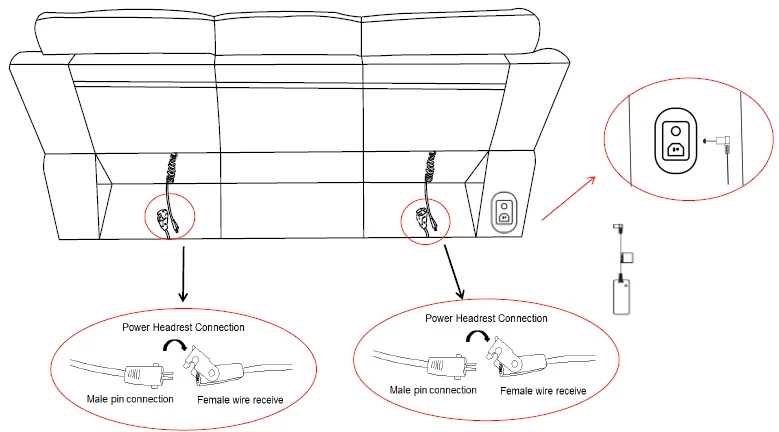

Step 2

Lift the velcroed flap located at the bottom back of the sofa.

Latch the male pin connector from the backrest (headrest motor wire ) to the female wire receiver located at the bottom of the sofa underneath the flap.

This instruction is applicable to the sofa dual power reclining.

STEP 3

Connect the wall plug transformer to the transformer switch.

STEP 4

Connect the wall plug transformer to the outlet.

ELECTRICAL

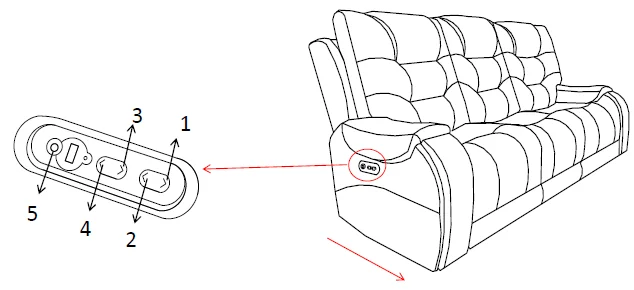

Step 5

1. Press the button for Seat Forward
2. Press the button for Seat Backwards
3. Press the button for the Headrest Forward
4. Press the button for the Headrest Backwards
5. Home Button

WARNINGS

• Keep the unit at least 24″ from all heat sources.
• Avoid placing the unit in areas where the unit can be exposed to direct sunlight or other powerful light sources, as fading or discoloration may occur.
• Do not reach under the seat when the mechanism is operating, or serious injury may occur.
• Reclining mechanism should only be operated while seated properly.
• Do not sit on the arms or the backrest.
• Do not jump or roughhouse on furniture.
• Keep the unit at least 5.5 inches from the wall.
• If the unit must be moved, do not drag. The unit must be lifted in order to be moved.
• Do not continuously operate the mechanism for more than one minute, or the unit may go into protection mode by shutting down to prevent overheating.
• Unplug the unit from the power source prior to cleaning the mechanism.
• Do not allow electrical components to come into contact with any liquids.

CARE AND CLEANING

• Upholstered furniture is packaged tightly to protect it during transit. This packaging can sometimes cause creases or misshapen cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
• Dust often and use a vacuum cleaner to remove debris from seams and crevasses.
• Use a soft, damp cloth to gently clean soiled areas and wipe them clean. Do not rub.
• Do not use household cleaners or solvents. Such cleaners may cause damage and/or discoloration.
• Do regularly use a dedicated leather care product on the leather furniture to prevent the buildup of body oils.

TROUBLESHOOTING

Headrest not working

Ensure that the wall power outlet is functional, step 2, 3, 4

Not reclining

Ensure that the wall power outlet is operational, step 3, 4

USB not working

Check all power connections, steps 3, 4

Backrests gaps

Ensure the backrests are properly clipped into the male posts located on the seat mechanism. Check that brackets are not loose, positioned improperly, or bent.
