Samsung HW-J450 Wireless Audio Soundbar User Manual

Samsung HW-J450 Wireless Audio Soundbar

FEATURES

TV Sound Connect

TV Sound Connect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

HDMI

HDMI transmits video and audio signals simultaneously and provides a clearer picture. The unit is also equipped with the ARC function which lets you listen to sound from your TV through the Soundbar via an HDMI cable. This function is only available if you connect the unit to an ARC-compliant TV.

SURROUND SOUND

The SURROUND SOUND feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer. Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound Effects

You can select different Sound Effects – STANDARD (Original Sound)/MUSIC / VOICE / SPORTS / CINEMA / NIGHT MODE – depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar’s USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high-quality stereo sound, all without wires!

Using Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App by accessing the app through Google Play store.

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

DESCRIPTIONS

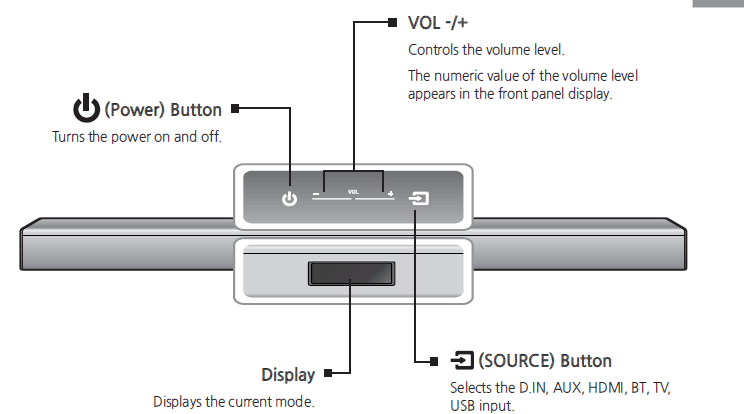

TOP/FRONT PANEL

• If there is no input from the product or remote control for 25 seconds, the display will dimmer automatically.
• While the unit is powered on, pressing the ( ) button for more than 3 seconds sets the button to act as MUTE button. To cancel MUTE button setup, press the ( ) button for more than 3 seconds again.

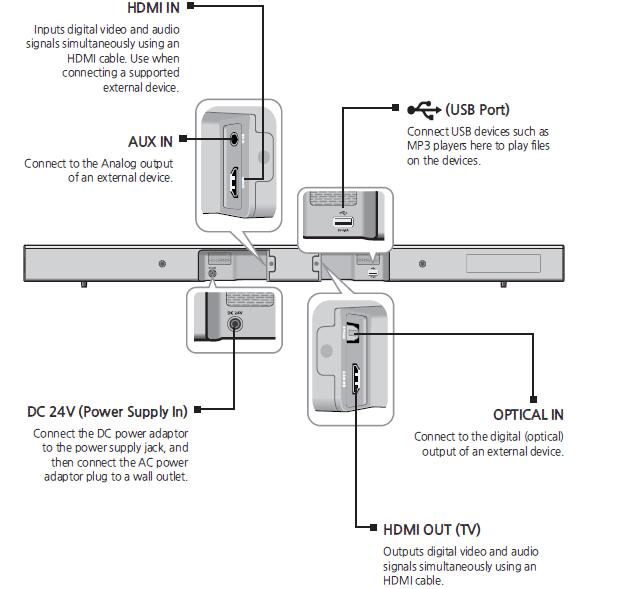

REAR PANEL

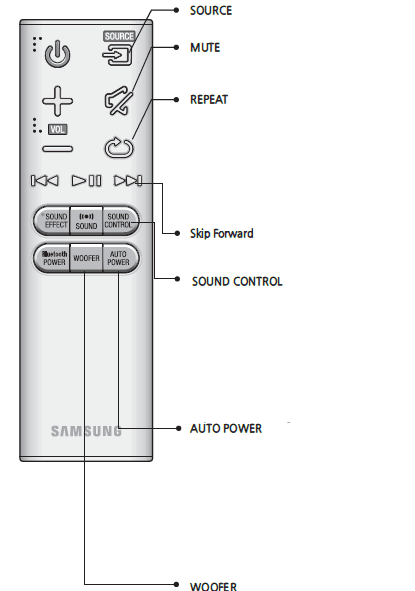

REMOTE CONTROL

REMOTE CONTROL BUTTONS AND FUNCTIONS

SOURCE

Press to select a source connected to the Soundbar.

MUTE

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

REPEAT

Press to set the REPEAT function during music playback from a USB device.

OFF-REPEAT : Cancels Repeat Playback.
TRACK-REPEAT : Repeatedly play a track.
ALL-REPEAT : Repeatedly play all tracks.
RANDOM-REPEAT : Plays tracks in random order. (A track that has already been played may be played again.)

MUTE

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press the button, the next file is selected.

• Soundbar is a Samsung proprietary name.
• Operate the TV using the TV’s remote control. SOUND CONTROL (Use the buttons to adjust level.) Press to select TREBLE, BASS, or AUDIO SYNC. Then, use the buttons to adjust the Treble, Bass volume from -6 to +6. If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the SOUND CONTROL button to sync the audio with the video.Use the buttons to set the audio delay between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function may not work. Press and hold the SOUND CONTROL button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz,2.5KHz, 5KHz and 10KHz are selectable and each can be adjusted to a setting between -6 and +6.

AUTO POWER

Auto Power Link: Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (Auto Power Link : Default OFF, ON-Any net+ / OFF-POWER LINK or OFF-Any net+ / ON-POWER LINK ). The Any net+ function lets you control the Soundbar with the remote from an Any net+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable. Any net+:Press the AUTO POWER button to turn the Any net+ function on or off.

WOOFER (Use the button to adjust volume )

You can control the woofer volume. Press the button to increase or decrease the subwoofer volume. You can select SW (-12, -6,-5,-4,-3,-2,-1,0,+1,+2,+3,+4,+5,+6).

CONNECTIONS

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

Installation Precautions

• Install on a vertical wall only.
• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.
• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit’s weight.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar.
  –Diameter: M5
  –Length: 1 3/8 in (35 mm) or longer recommended.
• Connect cables from the unit to external devices before you install them on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

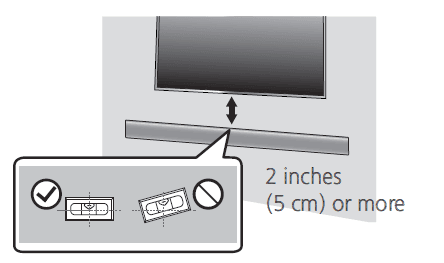

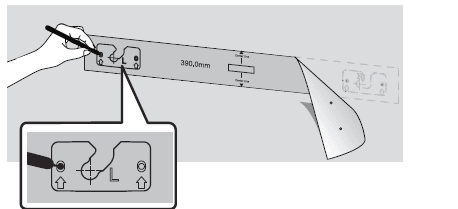

1. Place the installation guide against the wall surface.
   ●The installation guide must be level.
   ●Install at least 2 inches (5 cm) below the TV, if the TV is mounted on the wall.
2. Mark the location where the screws will go through on the wall using a pen, and then remove the installation guide.

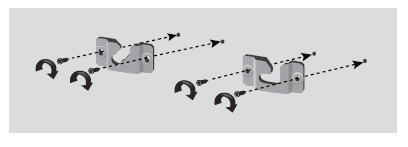

3. Fasten the wall mounts and screws to the marked locations.
   ●The left and right mounts are different shapes.

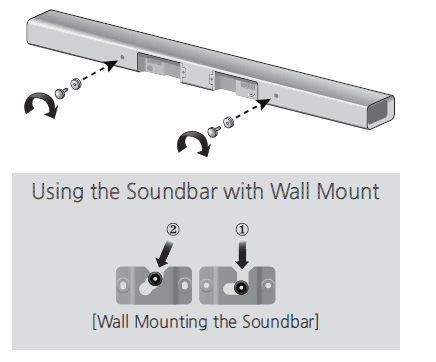

4. Secure the two holder screws to the screw holes on the back of the Soundbar’s main body, one on the left and one on the right.
5. Insert the USB cable into the back of the Soundbar before installing it on the wall.
6. Set the holder screws on the back of the Soundbar into the grooves of the wall mount. For safe installation, make sure to push the holder screws to the bottom of the grooves.

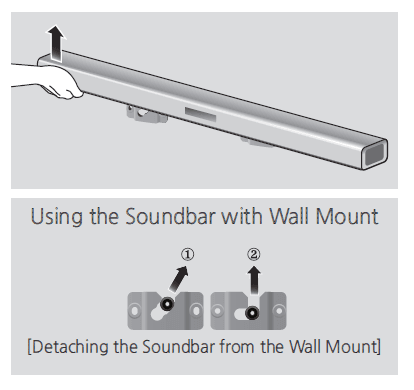

DETACHING THE WALL MOUNT

1. Pull the Soundbar upwards as shown in the figure to separate it from the wall mount.

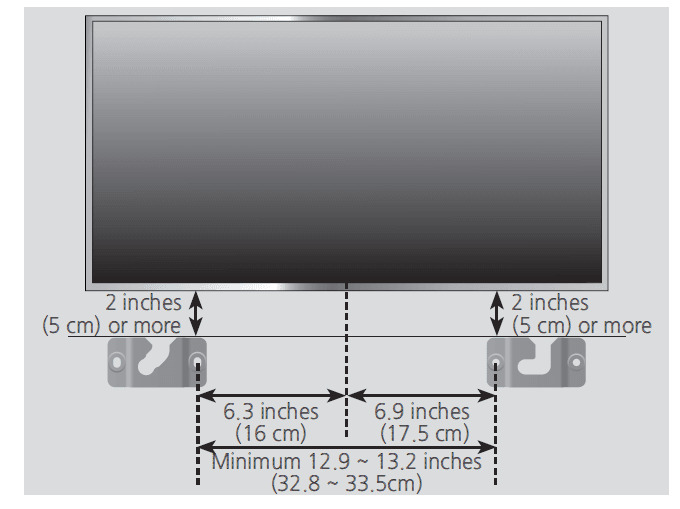

INSTALLING THE BRACKET WITHOUT REFERRING TO THE WALL-MOUNT INSTALLATION GUIDE

1. Place the “Wall Mount L” on the desired wall surface while parallel to the floor as shown above, and fix a screw through the hole on its right end.
2. Place the “Wall Mount R” on the desired wall surface while parallel to the floor as shown above, and fix a screw through the hole on its left end.
   If Wall Mount L/R are to be mounted beneath the TV, check their fixing hole positions in steps 1 and 2, so that they are aligned appropriately to the center of the TV’s bottom.
3. Fix screws through the rest of the holes.

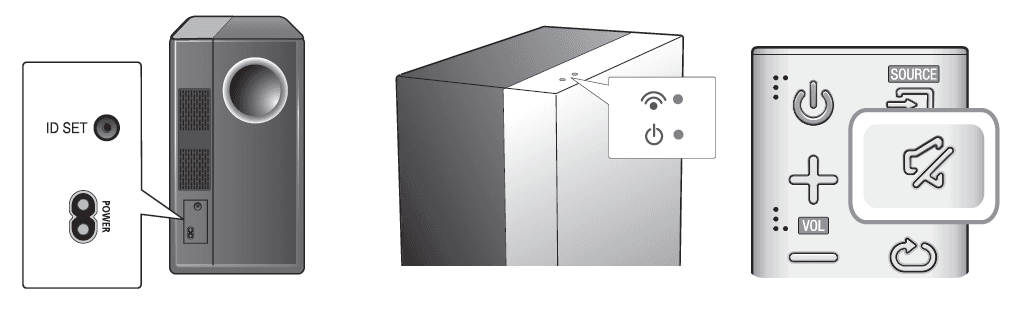

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer’s linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the Link indicator does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
   • The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
3. While the main unit is powered off (in STANDBY mode), press and hold the MUTE ( ) on the remote control for 5 seconds.
4. The ID SET message appears on the Soundbar’s display.
5. To finalize the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.
   • The main unit and the subwoofer should now be linked (connected).
   • The Link indicator (Blue LED) on the subwoofer should be on.
   • If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.

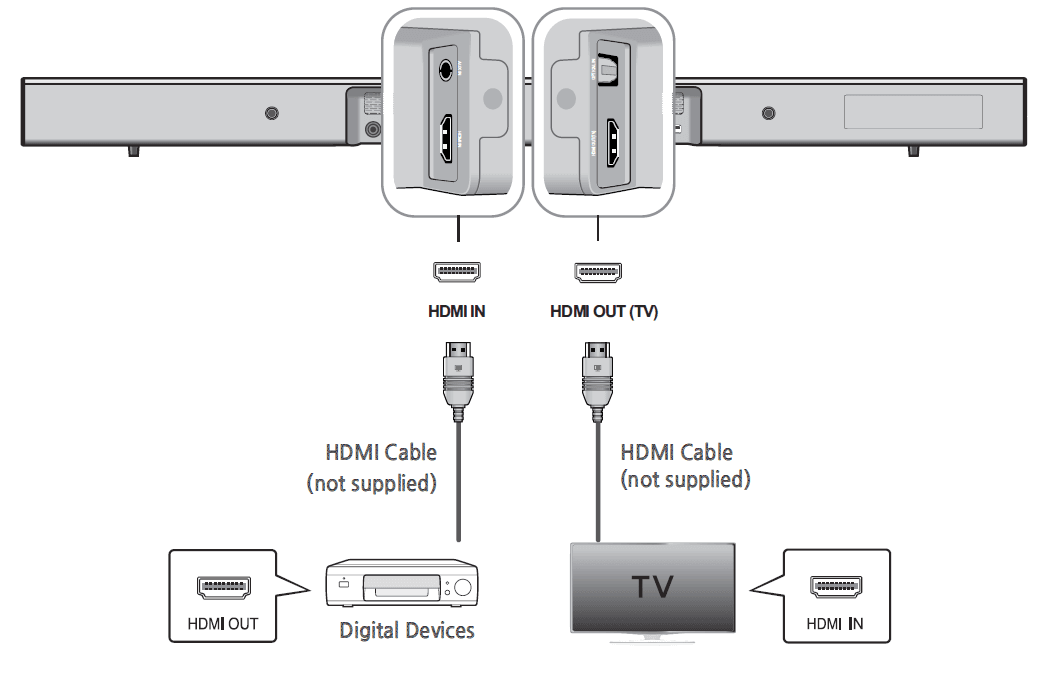

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set-top boxes, and more. HDMI prevents any degradation to the signal due to conversion to analog and maintains the video and audio quality of the original digital source.

HDMI IN

Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device. and,

HDMI OUT (TV)

Connect an HDMI cable (not supplied) from the HDMI OUT (TV) jack on the back of the product to the HDMI IN jack on your TV.

HDMI OUT (ARC)

The ARC function allows digital audio to output via the HDMI OUT (ARC) port. It can be enabled only when the Soundbar is connected to a TV that supports the ARC function

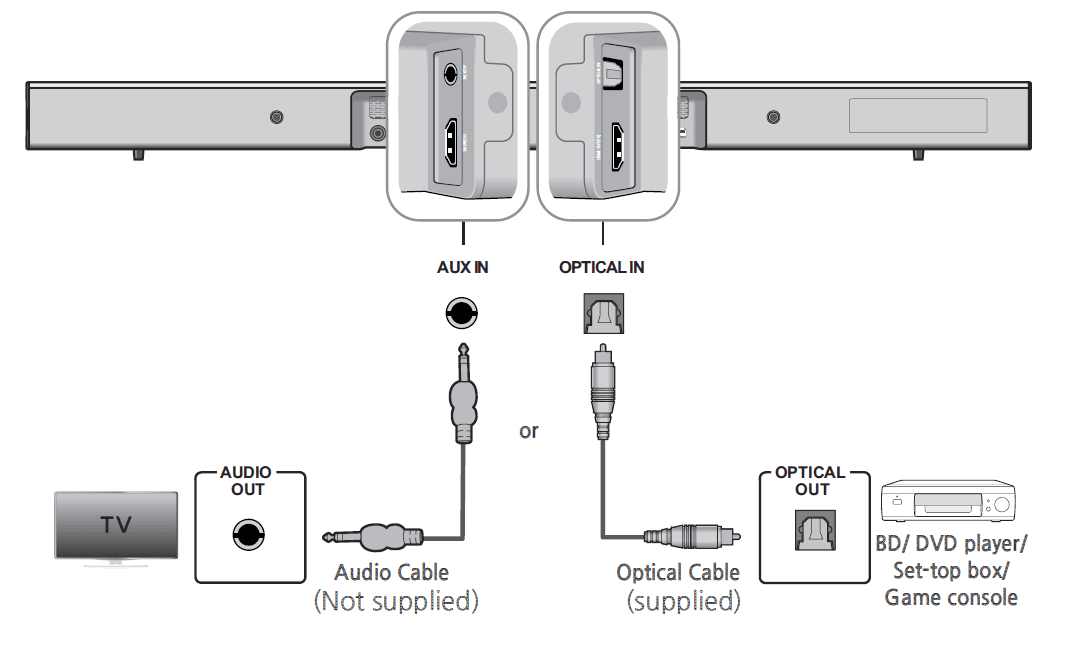

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG) CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one optical digital jack and one audio analog jack, giving you two ways to connect it to a TV.

AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the TV or Source Device. Change the function to AUX. or,

OPTICAL IN

Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the TV or Source Device. Change the function to D.IN.

FUNCTIONS

INPUT MODE

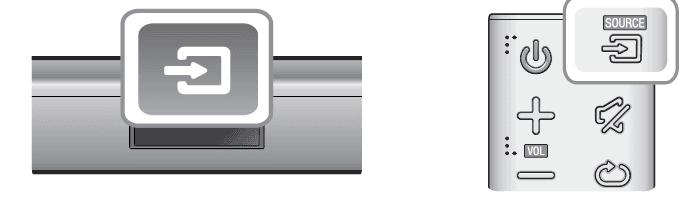

Press the button on the main unit’s top panel or the (SOURCE) button on the remote control to select the mode you want.

The unit turns off automatically in the following situations.

• D.IN/HDMI/BT/TV/USB Mode
  -If there is no audio signal for 25 minutes.
• AUX Mode
  -If the AUX cable is disconnected for 25 minutes  In Auto Power Down ON mode if there is no KEY input for 8 hours when the AUX cable is connected.
  -To turn the Auto Power Down function OFF, press and hold the p button for 5 seconds. OFF/ON-AUTO POWER DOWN appears on the display.

ARC (HDMI OUT)

ARC (Audio Return Channel) transfers the digital audio signal to the HDMI OUT (ARC) port.

1. Connect the TV supporting ARC to the Soundbar with an HDMI cable.
2. Turn on the TV, and turn on the Soundbar’s Anynet+.
3. Press the button on the main unit’s top panel or the (SOURCE) button on the remote control to select the D.IN mode.

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with high-quality stereo sound, all without wires!

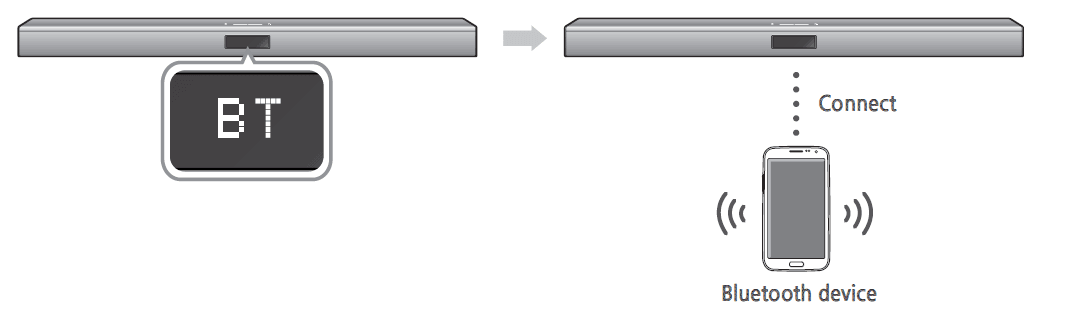

To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function.

1. Press the button on the main unit’s top panel or the (SOURCE) button on the remote control to select the BT mode. You will see BT READY on the front display of the Soundbar.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device’s user manual.)
3. Select the Stereo headset menu on the Bluetooth device. You will see a list of scanned devices.
4. Select “[Samsung] Soundbar J-Series” from the list. When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name]  BT on the front display. The device name can only be displayed in English. An underline ” _ ” will be displayed if the name is not in English. If the Bluetooth device has failed to pair with the Soundbar, delete the previous “[Samsung] Soundbar J-Series” found by the Bluetooth device and have it search for the Soundbar again.
5. Play music on the connected device. You can listen to the music playing on the connected Bluetooth device over the Soundbar. In BT mode, the Play/Pause/Next/Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

Bluetooth POWER on (Bluetooth POWER)

When the Bluetooth Power On function is on and the Soundbar is turned off, if a previously paired Bluetooth device tries to pair with the Soundbar, the Soundbar turns on automatically.

1. Press the Bluetooth POWER on the remote while the Soundbar is turned on.
2. ON-Bluetooth POWER appears on the Soundbar’s display.

To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual.

• The Soundbar will be disconnected.
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display.

To disconnect the Soundbar from the Bluetooth device

Press the (SOURCE) button on the remote control or the button on the product’s top panel to switch from BT to another mode or turn off the Soundbar.

• The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, when:
  -A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
  -It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
  -It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and the Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

USING SAMSUNG AUDIO REMOTE APP

Install the Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App by accessing the app through Google  Play store.

Accessing the Samsung Audio Remote App

After you install the Samsung Audio Remote app, follow the instructions in the app.

TV SOUNDCONNECT

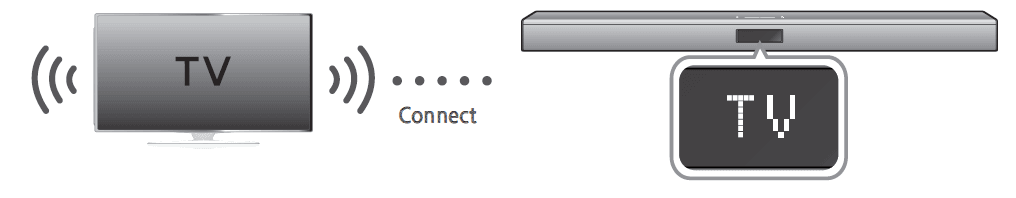

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

Connecting a TV to the Soundbar

1. Turn on the TV and Soundbar.
   • Turn on the menu of the TV.
   • Move to Speaker Settings on the “Sound” tab.
   • Set the “Add New Device” menu to “On”.
2. Press the button on the main unit’s top panel or the (SOURCE) button on the remote control to select the TV mode.
3. On the TV, a message asking whether to enable the TV SoundConnect function. “[Samsung] Soundbar” is displayed on the TV screen.
4. Select <Yes> to finish connecting the TV and Soundbar with the TV remote control.

Using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar’s power on and off as well.

1. Connect the TV to your Soundbar using the TV SoundConnect function.
2. Press the Bluetooth POWER button on the Soundbar remote. “ON/OFF-BLUETOOTH POWER” appears on the Soundbar’s display.
   • ON-BLUETOOTH POWER: The Soundbar turns on and off when you turn the TV on or off.
   • OFF-BLUETOOTH POWER: The Soundbar only turns off when you turn the TV off.

USB

You can play music files located on USB storage devices through the Soundbar.

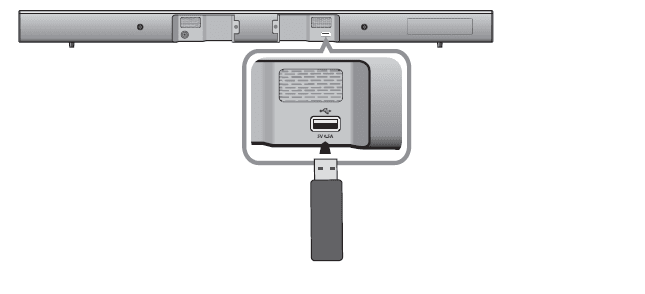

1. Connect the USB device to the USB port on the back of the product.
2. Press the button on the main unit’s top panel or the (SOURCE) button on the remote control to select the USB mode.
3. USB appears on the display screen.
   ● The Soundbar connection to the USB device is complete.
   ● The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 25 minutes.

Before you connect a USB device

Be aware of the following:

• If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the Soundbar’s display.
• This product may not be compatible with certain types of USB storage media.
• The Soundbar supports the FAT16 and FAT32 file systems. – The NTFS file system is not supported.
• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
• Digital camera PTP protocols are not supported
• Do not remove the USB device while it is transferring files
• DRM-protected music files (MP3, WMA) from commercial websites cannot be played
• External HDDs are not supported.
• Mobile phone devices are not supported.
• File Format Type Compatibility list:

SOFTWARE UPDATE

Samsung may offer updates for the Soundbar’s system firmware in the future. If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time. Please visit samsung.com or contact the Samsung call center to receive more information about downloading updated files.

• Insert a USB device containing the firmware update into the USB port on the main unit.
• Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.
• After reset, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. If the connection to the subwoofer is not established automatically after resetting, refer to page 13. If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.
• Once the software update is completed, turn off the product and then press and hold the ( p ) button on the remote control for more than 5 seconds. “INIT” appears on the display and the unit is powered off. The upgrade is complete.
• Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.
• Depending on the manufacturer, some USB devices may not be supported.

TROUBLESHOOTING

Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

SPECIFICATIONS

WARRANTY

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of One (1) Year Parts and Labor* (*90 Days Parts and Labor for Commercial Use) This limited warranty begins on the original date of purchase and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.

Warranty service can only be performed by a SAMSUNG-authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG’s obligations concerning software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end-user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their warranties. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to:

damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION CONCERNING THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,

AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO THE PURCHASER AND THE PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an authorized Samsung reseller. THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE PROHIBITED. For a list of Samsung authorized retailers, please go to:

http://www.samsung.com/us/peaceofmind/authorized_resellers.html Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To obtain warranty hardware service, please contact the SAMSUNG customer care center.

For more manuals by Samsung visit, ManualsLibraryy

Samsung HW-J450 Wireless Audio Soundbar-FAQs
