Setting up your French Door Refrigerator

Getting ready to install the refrigerator

Congratulations on your purchase of this Samsung French Door Refrigerator. We hope you enjoy the state-of-art features and efficiencies that this new appliance offers.

Selecting the best location  for the refrigerator

• A location with easy access to a water supply.
• A location without direct exposure to sunlight.
• A location with a leveled floor.
• A location with enough space for the refrigerator doors to open easily.

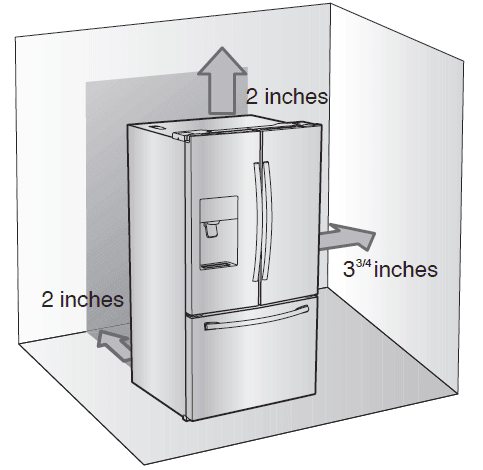

• A location that allows sufficient space to the right, left, back and top for air circulation.
• A location that allows you to move the refrigerator easily if it needs maintenance or service.
• If the refrigerator does not have enough space, the internal cooling system may not work properly. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When you install the refrigerator next to a fixed wall, you need a minimum clearance of 3 ¾” (95mm) between the refrigerator and wall to allow the door to swing open. First thing! Make sure that you can easily move your refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc.

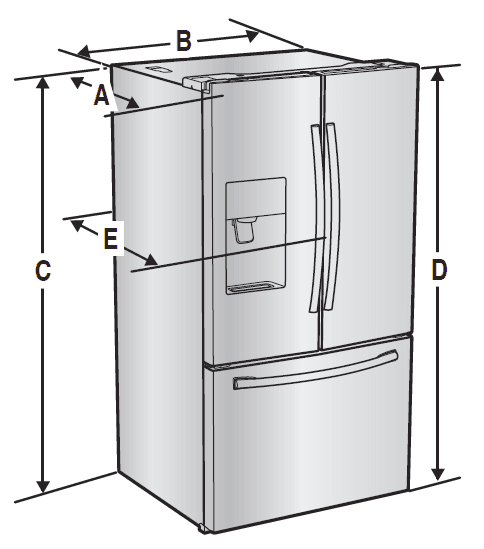

The following chart details the exact height and depth of this Samsung French Door Refrigerator

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Do not install the refrigerator where the temperature will go below 50ºF (10ºC).
• Do not locate the refrigerator where it may become wet.

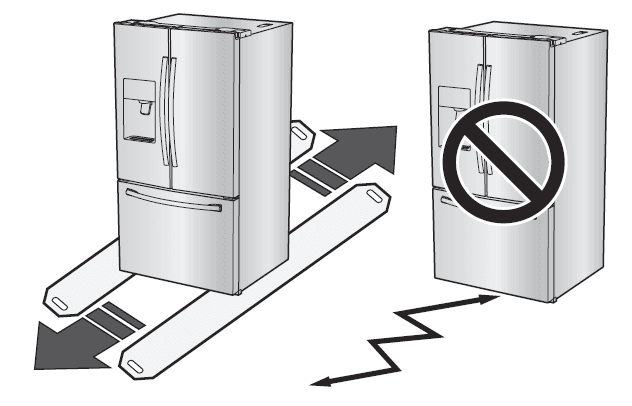

When moving your refrigerator

• To prevent floor damage, be sure the front adjusting legs are in the up position (above the floor). Refer to ‘Adjusting the Level’ in the manual (on page 9)

FLOORING

• For proper installation, you must place this refrigerator on a level, hard surface that is the same height as the rest of the floor. This surface should be strong enough to support a fully loaded refrigerator, or approximately 331lbs (150kg).To protect the finish of the flooring, cut a large section of the cardboard carton and place it under the refrigerator where you are working. When moving the refrigerator, you need to pull and push it straight forwards or back. Do not wiggle it from side to side.

Accessories and required tools

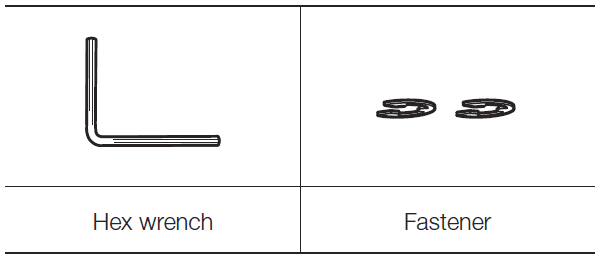

• The following accessories are included with your refrigerator:

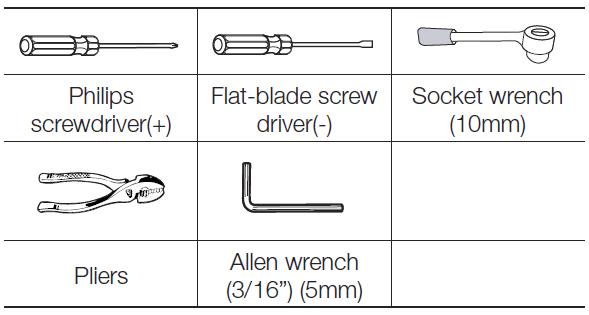

Required Tools (Not provided)

• You need the following tools to complete the installation of your refrigerator:

Removing the refrigerator doors

For some installations you need to remove the fridge and freezer drawers so you can move the refrigerator to its final location. Do not remove the doors/drawer if you don’t need to. If you do not need to remove the refrigerator doors, go to Adjusting the Level on page 9. If you need to remove the doors. continue below. Before removing the door/drawer, make sure you read the following items:

• Disconnect power to the refrigerator before removing the door or drawer.
• Be careful not to drop, damage or scratch the door/drawer while removing them.
• Be careful not to get injured while removing the door/drawer.
• Reattach the door/drawer properly to avoid:
  • Moisture from air leakage.
  • Uneven door alignment.
  • Wasting energy due to improper door seal.

Disassemble the refrigerator doors

• Be careful not to drop and scratch the doors while removing the doors.

 With the door opened

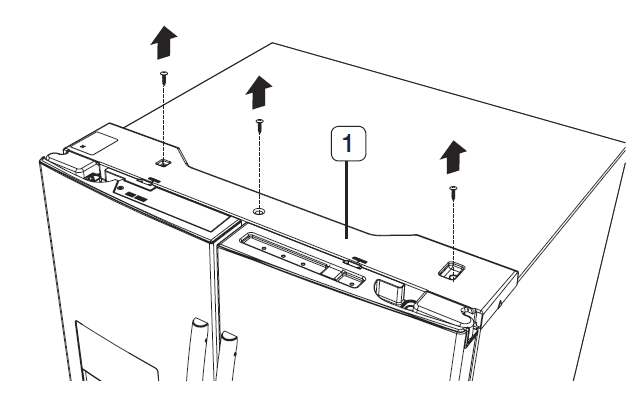

1. Remove 3 screws holding down the TOP TABLE ( 1 ) and turn it with wires connected

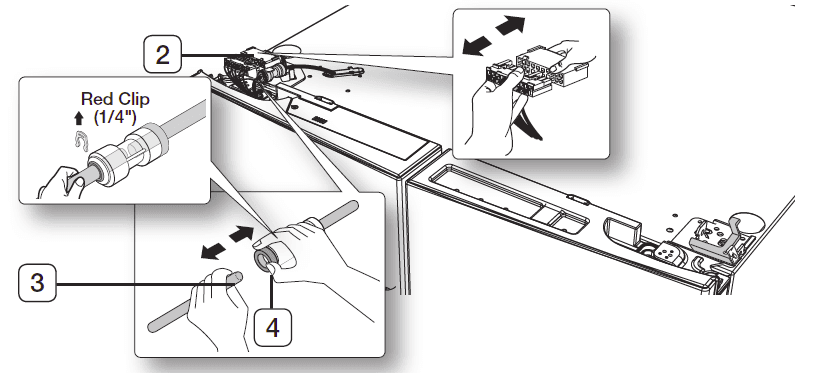

2. Disconnect two connector ( 2 ) on the left side door. To remove the water coupler from the hinge, twist and pull it from the hinge. Remove the water line ( 3 ) while pressing the marked part ( 4 ) of the water line coupler.
   1. If a red clip is on the coupler, it must be removed before removing the tube

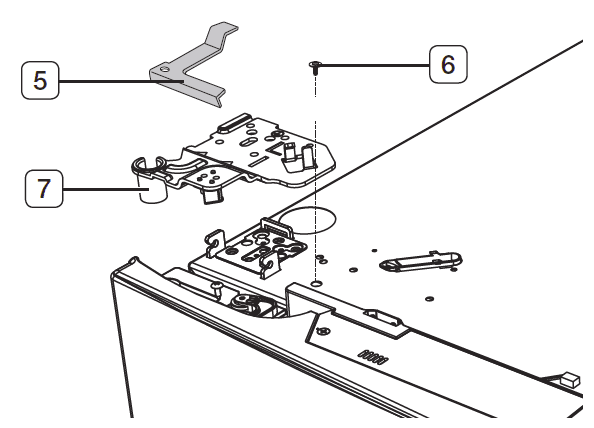

3. Pull and remove the hinge lever ( 5 ) . Remove the ground screw ( 6 ) attached to the upper left door hinges with a philips screwdriver (+). Remove the upper left and right door hinges ( 7 ).
4. Lift the door straight up to remove.

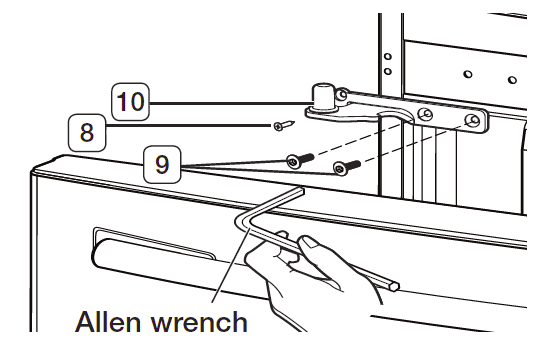

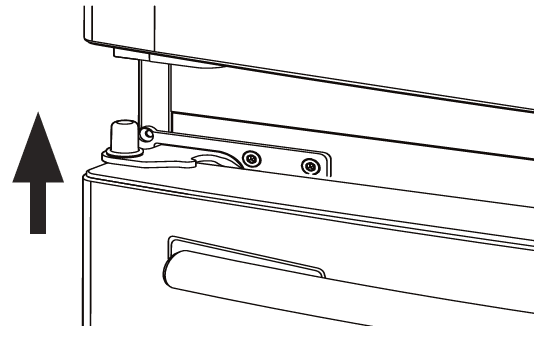

5. Remove the screw ( 8 ) attached to the lower left and right door hinges with a Philips screwdriver (+). Remove the 2 hex head bolts ( 9 ) attached to the lower left and right door hinges with an allen wrench (3/16”). Remove the lower left and right door hinges ( 10 ).

REATTACHING THE REFRIGERATOR DOORS

To reattach the fridge doors after you have moved the fridge to its final location, assemble parts in reverse order.

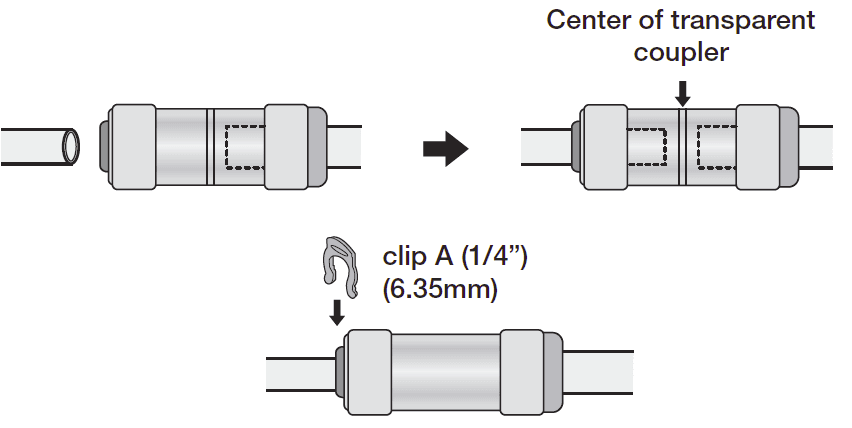

1. The Water Line must be fully Inserted to the center of transparent coupler to prevent water leakage from the dispenser.
2. Insert the clip in the install pack and check that it holds the line firmly

DISASSEMBLE ThE FLEX DOOR

1. Take out the upper drawer by lifting it up.

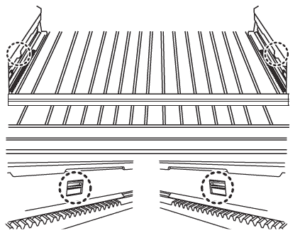

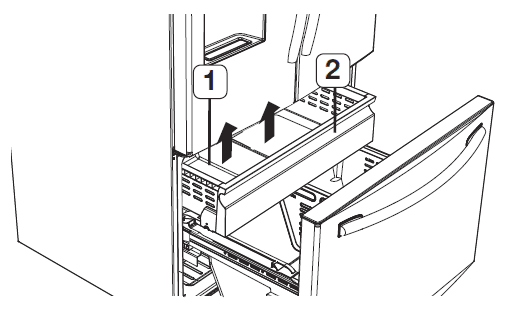

2. Take out the lower basket ( 1 ) by lifting the basket up from the rail system.

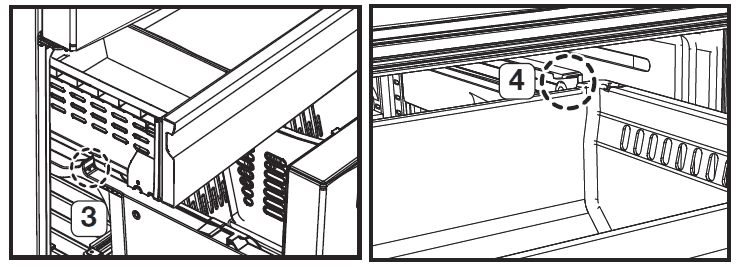

3. Press the fixing hook of rail system
4. After holding and pulling out the top of the Freezer Door, remove it at the rail system.
   • Make sure there is no scratch at the end of the Sliding Rail by being dented from the floor.
   • Make sure that you mount the freezer basket in the right position when removing/installing the freezer door. Failing to do so may result in the door not opening or closing properly.

Assemble the freezer drawer

• To reattach the drawer after you have moved the fridge to its final location, assemble parts in reverse order.

Adjusting the Level

• Make sure the refrigerator is level so that you can make final adjustments. Use a level to test if the refrigerator is level both side to side and back to front. If the refrigerator is not level, it will not be possible to get the doors perfectly even, which may cause moisture condensation and increased energy bills. Below is an example of how to level the refrigerator if the left side of the refrigerator is lower than the right side.

How to adjust the level

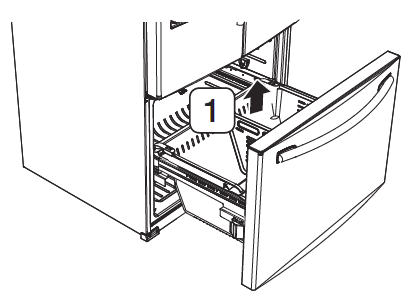

1. Open the freezer drawer and remove the lower basket.

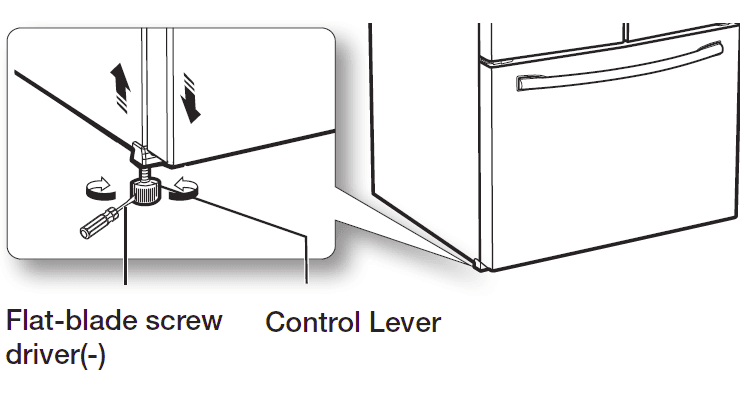

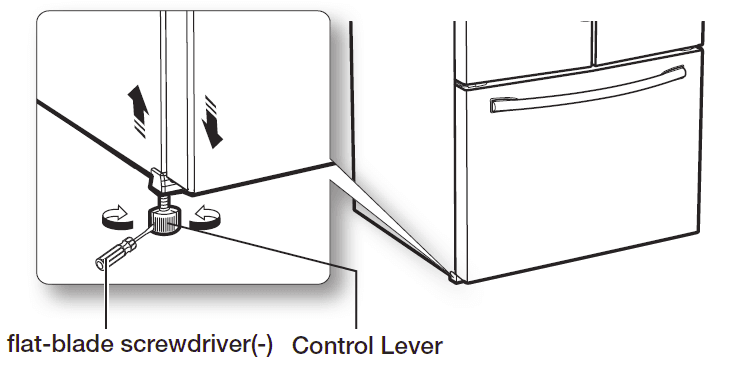

2. Insert a flat-blade screwdriver (-) into a notch on the left control lever, and turn it count clockwise to level the refrigerator. (You turn the lever clockwise to lower the refrigerator and counterclockwise to raise it.)
   • Both control levers must be touching the floor to avoid possible personal injury or property damage because of tipping.
   • If the right side is lower, perform the same procedure, but with the right control lever.
   • It is difficult to remove the cover leg front from the refrigerator, so we do not recommend making small adjustments with the control lever. Instead, refer to the next page for the best way to make minor adjustments to the doors.

Making minor adjustments between doors

Remember, a leveled refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator.

The left door is fixed. To make minor adjustments between doors, adjust only the right door.

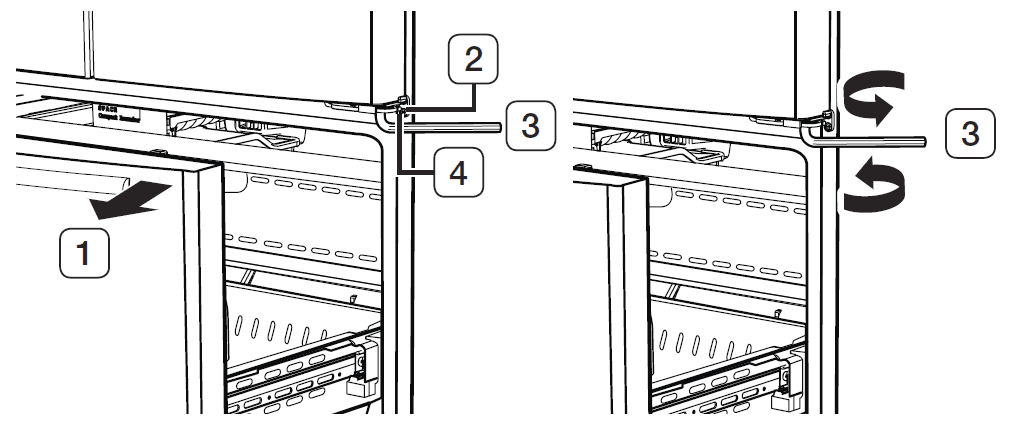

1. Pull out the freezer drawer ( 1 ), then you can see the lower hinge ( 2 ).
2. Insert the supplied allen wrench (3/16”) ( 3 ) into the shaft ( 4 ) of the lower hinge.
3. Please adjust the height by turning the hex wrench ( 3 ) clockwise ( ) or counterclockwise ()
   • When you turn the hex wrench counterclockwise(), the door will move up.
4. After adjusting the doors, insert the supplied fastener ( 6 ) using a pliers ( 5 ) in the gap between the hinge-grommet ( 7 ) and the lower hinge ( 8 ). The number of fasteners you’ll need to insert depends on the gap.
   • 2 fasteners are enclosed with the refrigerator. The thickness of each fastener is 0.04”.

Installing the water dispenser line

• A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that. In order for the ice maker to operate properly, a water pressure of 20~125psi ( 138~862kPa) is required.
• Under normal conditions, a 170 cc (5.75 oz.) cup can be filled in about 10 seconds. If the refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to compensate for the low pressure.
• After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from the water outlet.
• Water line installation kits are available at extra cost from your dealer. We recommend using a water line installation kit that contains copper tubing and ¼” compression nut.

Connecting to the water supply line

1. First, shut off the main water supply.
2. Locate the nearest cold water drinking line and install the pipe clamp and shut off valve
3. Connect the water line installation kit to the shut off valve.

Connecting the water supply line to the refrigerator.

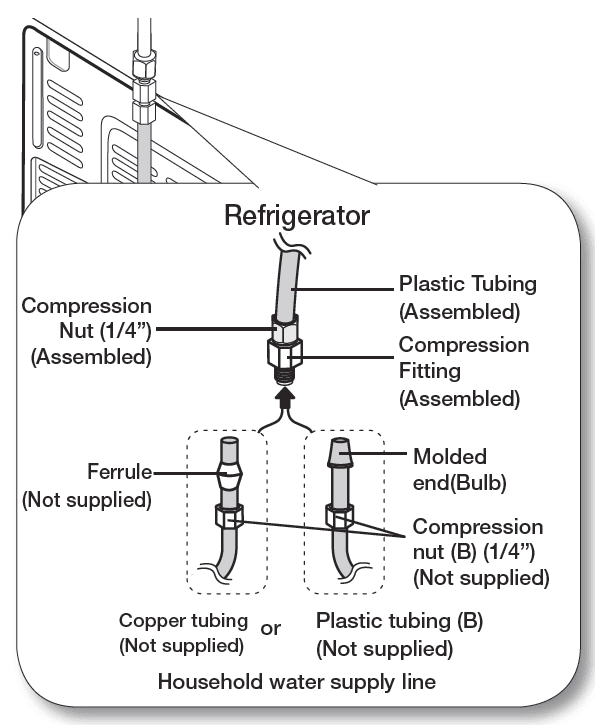

There are several items that you need to purchase to complete this connection. You may find these items sold as a kit at your local hardware store.

1. Connect the household water line to the assembled compression fitting.
2. • If you are using copper tubing, slip the compression nut ( B ) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown.
3. If you are using plastic tubing ( B ) , insert the molded end (Bulb) of the plastic tubing ( B ) into the compression fitting. Do not use without the molded end (Bulb) of the plastic tubing ( B )
4. Tighten the compression nut ( B ) onto the compression fitting. Do not over-tighten the compression nut ( B ) .
5. Turn water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.
6. Flush 1 gallon of water through the filter before drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it into the kitchen sink after it is filled, and then repeat.
7. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the freezer makes to ensure all impurities have been removed from the water line. Only connect the water line to a drinkable water source. If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug, leak-free connection.

Completing the set up

Now that you have your new refrigerator installed in place, you are ready to set up and enjoy the features and functions of the appliance. By completing the following steps, your refrigerator should be fully operational.

1. Make sure your refrigerator is in an appropriate location with reasonable clearance between it and the wall. Refer to installation instructions in this manual.
2. Once the refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The freezer will get slightly chilled and the motor will run smoothly. Reset the refrigerator and freezer to the temperatures you want.
4. After you plug the refrigerator in, it will take a few hours to reach the appropriate temperature. You can store food and drinks in the refrigerator after the temperature is sufficiently cool

Operating your French Door Refrigerator

Using the control panel

( 1 ) Energy SaverHold 3 sec for °c↔°F	Touching this button turns Energy Saver mode on and off. When you turn Energy Saver on, the Energy Saver icon lights.Turn Energy Saver off and the icon goes off. The Energy Saver function automatically turns on when power is supplied to the refrigerator. If condensation or water drops appear on the doors, turn the Energy Saver mode off. Touch and hold this button for 3 seconds to switch the temperature units between °C and °F.
( 2 ) Freezer (Hold 3 sec for Power Freeze)	Touch this button to set the freezer to your desired temperature.You can set the temperature between -8°F and 5°F (between -23°C and -15°C). Touch and hold this button for 3 seconds to decrease the time needed to freeze products in the Freezer. It can be helpful if you need to quickly freeze easily spoiled items or if the temperature in the freezer has warmed dramatically (For example, if the door was left open).
( 3 ) Ice type/Water Hold 3 sec for Filter Reset	Touch this button to select the ice or water function. You can select water or the types of ice(cubed/crushed ice).Each time you press the button, the cubed and crushed ice modes alternate and the Cubed or Crushed ice icon lights up, indicating your selection. After you replace the water filter, touch and hold this button for 3 seconds to reset the water filter life indicator.

( 4 ) Alarm Hold 3 sec for Lighting	To turn the door open alarm on and off If the door alarm is set to On, an alarm beeps if any refrigerator door is left open for more than three minutes.The beeping stops when you close the door. The door alarm function is preset to On in the factory. You can turn it off by touching and then releasing this button. You can turn it back on in the same fashion. The icon lights up when the function is on. If you touch and hold the Alarm/Lighting button for 3 seconds, the dispenser LED Lamp will stay on.
( 5 ) Fridge Hold 3 sec for Power cool	Touch this button to set the fridge to your desired temperature. You can set the temperature between 34°F and 44°F (between 7°C and 1°C). Touch and hold this button for 3 seconds to decrease the time needed to cool products inthe Refrigerator. It can be helpful if you need to quickly cool easily spoiled items or if the temperature in the fridge has warmed dramatically (For example, if the door was left open).
( 6 ) Ice off Hold 3 sec for child Lock	If you don’t want to make more ice, touch the Ice Off button.Touching this button for 3 seconds turns on Child Lock which locks the display panel and dispenser buttons so the buttons can not be used. The Child Lock icon lights up to indicate you’ve activated the Child Lock function. Press 3 seconds to unlock.
( 7 ) Ice off	If you don’t want to make more ice, touch the Ice Off button.The icon will light up and the Ice-Maker stops making ice. We recommend you to stop ice making if the following occur: –  There is enough ice in the ice bucket. –  You want to save water and energy. –  Water is not being supplied to the refrigerator. If the ice maker function is ON, and the water Line is not connected, there will be a water valve noise from the back of the unit, press the Ice Off (hold 3sec for child lock) button for less than 3 seconds until the Ice Off Indicator (          ) illuminates.
( 8 ) Filter	Water filter usageThis icon will light up when you need to change the filter. After you use about 300 gallons of water, the filter indicator lights up. (about 6 months). After you install the new water filter, reset the filter indicator by touching the Alarm/hold 3 sec for Filter Reset button. •   If water is not dispensing or dispensing slowly, you need to replace the water filter because the water filter is clogged. •   Some areas have large amounts of lime in their water, which causes the water filter to clog more quickly.
cooling off Mode	Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on the shop floor. In Cooling Off mode, the refrigerator’s fan motor and lights work normally, but the compressors do not run, and the refrigerator and freezer do not get cold. To start Cooling Off mode, touch and hold the Energy Saver button and the Freezer button for 5 seconds during normal operation. The refrigerator chime sounds and the temperature display flashes OF OF.To cancel Cooling Off mode, touch and hold the Energy Saver and the Freezer buttons again for 5 seconds.

Changing the water filter

To reduce risk of water damage to your property DO NOT use generic brands of water filters in your SAMSUNG Refrigerator. USE ONLY SAMSUNG BRAND WATER FILTER. SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused by water leakage from use of a generic water filter. SAMSUNG Refrigerators are designed to work ONLY WITH SAMSUNG Water Filter. The Filter light turns red to let you know when it is time to change your water filter cartridge. To give you time to get a new filter, the red light comes on just before the capacity of the current filter runs out. Changing the filter on time provides you with the freshest, cleanest water from your refrigerator.

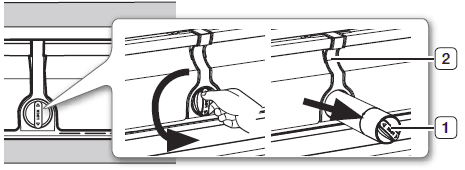

1. Shut off the water supply. Then, turn the water filter ( 1 ) about 1/4 turn, counter-clockwise.
2. Pull the water filter ( 1 ) from the case filter ( 2 )
   • To change the water filter more easily, shut off the water supply valve.

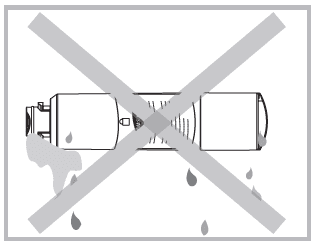

   • Sometimes, it is hard to disassemble the water filter because impurities in the water cause it to stick. If you are having difficulties, grip the water filter firmly and pull it hard.
   • When you pull the water filter, a little water can leak from the opening. This is normal. To inimize the water leaks, keep the filter cartridge horizontal when you pull it.
   • To prevent overflow, empty the water filter tray ( 3 ) and dry around the filter case ( 2 ).

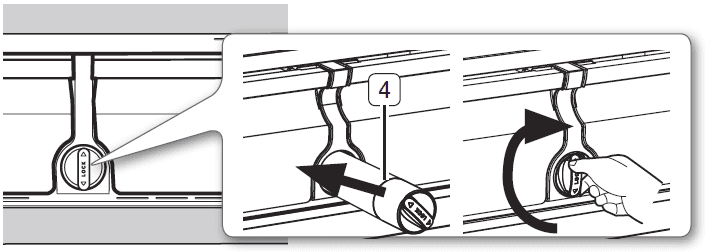

3. Insert the new filter into the filter case ( 4 ).
4. Push the filter, and then turn it clockwise until it locks.
   • If you have trouble inserting the water filter because of high water pressure shut off the water supply valve.
   • The locked symbol should be lined up with the indicator line
5. Touch the “Ice Type/Water Hold 3 sec for Filter Reset” button for ((Filter Reset) ) about 3 seconds to reset the water filter. The color of indicator (Filter) changes from red to off
6. If you turned off the water supply, turn it back on. For a replacement water filter, you can visit your local home Improvement center or contact the Samsung Parts distributor. Be sure the replacement water filter has the SAMSUNG logo on the box and on the water filter. Link: http://www.samsungparts.com

Removing any residual matter inside the water supply line after installing the water filter.

1. Turn ON the main water supply and supply water from water supply line.
2. Run water through the dispenser until the water runs clear (approx. 6 to 7 minutes). This will clean the water supply system and remove air from the lines.
3. Additional flushing may be required in some households.
4. Open the Refrigerator door and make sure there are no water leaks coming from the water filter. Be sure to flush the dispenser thoroughly, otherwise water may drip from the dispenser. This means that there is still air in the line.

Reverse Osmosis Water Supply

IMPORTANT:

The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa). If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa.) If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill after heavy usage.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. If you have questions about your water ressure, call a licensed, qualified plumber.

Controlling the Temperature

Basic temperature of Freezer and Refrigerator Compartments

•  The basic temperature and recommended temperatures of the Freezer and Refrigerator Compartments are 0°F and 37°F(or -18°C and 3°C) respectively. If the temperature of the Freezer and Refrigerator Compartments are too high or low, adjust the temperature manually.

Controlling the Freezer temperature

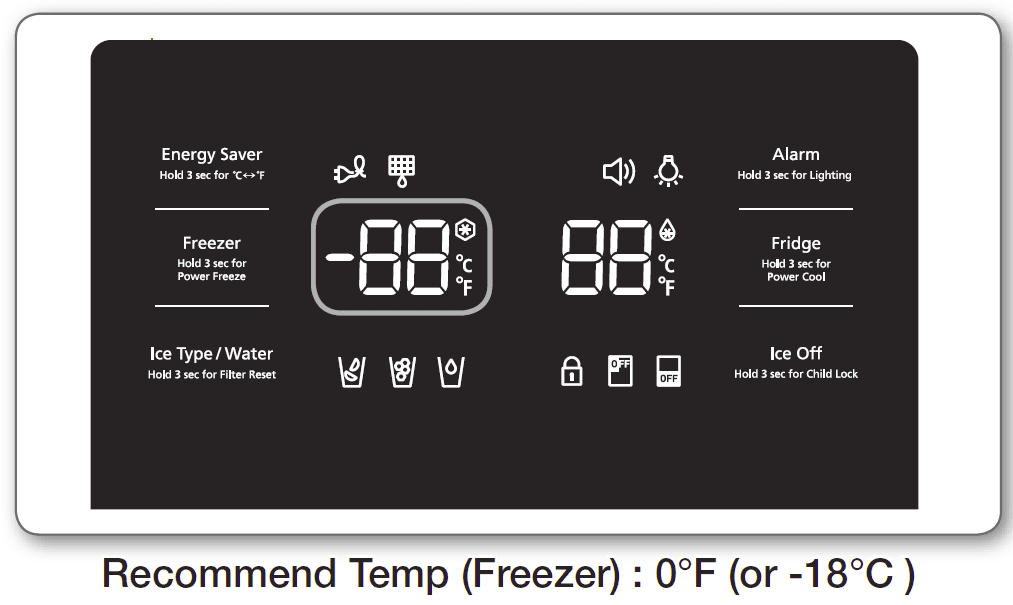

• The Freezer temperature can be set between -8°F and 5°F (or between -23°C and -15°C) to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. The Temperature will change by 1°F (or 1°C) with each press. See below.
• Fahrenheit : 0°F ➞ -1°F ➞ -2°F ➞ -3°F ➞ -4°F ➞-5°F ➞ -6°F ➞ -7°F ➞ -8°F ➞ 5°F ➞ 4°F ➞ 3°F➞ 2°F ➞ 1°F ➞ 0°F.
• Centigrade : -18°C ➞ -19°C ➞ -20°C ➞ -21°C➞ -22°C ➞ -23°C ➞ -15°C ➞ -16°C ➞ -17°C ➞-18°C.
• Keep in mind that foods like ice cream may melt at 4°F (or -15.5°C). The temperature display will move sequentially from -8°F to 5°F (or from -23°C to -15°C).

Controlling the fridge temperature

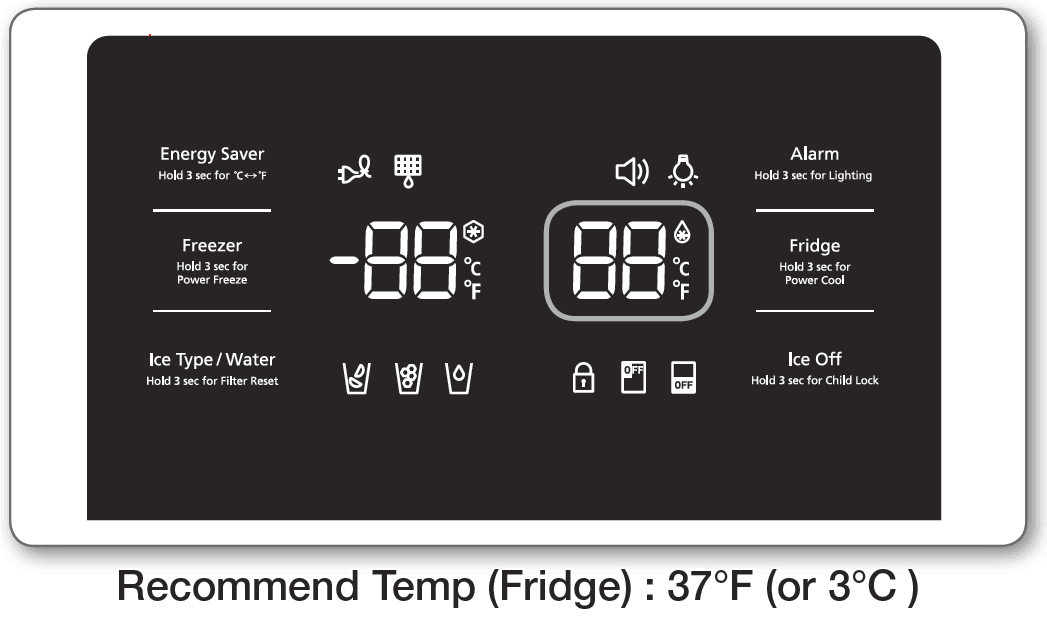

• The fridge temperature can be set between 34°F and 44°F (or between 7°C and 1°C) to suit your particular needs. Press the Fridge button repeatedly until the desired temperature is shown in the temperature display. The temperature will change by 1°F (or 1°C) with each press. See below.
• Fahrenheit : 37°F ➞ 36°F ➞ 35°F ➞ 34°F ➞ 44°F➞ 43°F ➞ 42°F ➞ 41°F ➞ 40°F ➞ 39°F ➞ 38°F➞ 37°F.
• Centigrade : 3°C ➞ 2°C ➞ 1°C ➞ 7°C ➞ 6°C ➞5°C ➞ 4°C ➞ 3°C.
• The temperature control process for the Fridge works just like the Freezer process. Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin adjusting towards the newly set temperature. This will be reflected in the digital display.
  • The temperature of the Freezer, Fridge or Cool Select Pantry Zone may rise when you open the doors too frequently, or if a large amount of warm or hot food is placed inside.
  • This may cause the digital display to blink. Once the Freezer and Fridge temperature return to their normal set temperatures, the blinking will stop.
  • If the blinking continues, you may need to “reset” the Refrigerator. Try unplugging the appliance, wait for around 10 minutes and then plug the power cord back in.
  • If there is a communication error between the Display and Main Controller, the Convertible Display light may blink. If the blinking continues for a long period of time, please contact a Samsung Electronics Service Center

Using the Cold Water Dispenser

• Push the appropriate ice type button to select what you want to be dispensed.

Using the ice Dispenser

Place a glass underneath the ice dispenser and push gently against the dispenser lever with your glass. Make sure the glass is in line with the dispenser to prevent the ice from bouncing out.

• Please wait 2 seconds before removing the glass under the dispenser to prevent spills. If the Refrigerator door opens, the Dispenser does not work.
• When Cubed Ice is selected after using the Crushed Ice mode, a small amount of residual crushed ice might be produced
• Do not pull the lever out. You could damage or break the lever’s spring.
• Allow your refrigerator to operate and cool down for 24 hours (or 1 full day).
  • Waiting 24 hours will allow your ice maker to cool properly.
• Dispense 4 to 6 ice cubes into the glass.
• After 8, and then 16 hours, dispense a full glass of ice.
  • When you press the Test button, you will hear the refrigerator chime (ding-dong). When the chime sounds, release the Test button.
  • The chime sounds automatically again to let you know the ice maker is working well.
  • If you want to remove the ice cubes without using the ice bucket, please turn the ice maker off. (However, remove the front cover from the ice maker.) The ice cubes in the ice maker can spill out over the drawer.

Using the ice-off Function

Use only the ice maker provided with the refrigerator. The water supply to this refrigerator must only be installed/connected by a suitably qualified person. Connect to a potable water supply only. To operate the ice maker properly, water pressure of 20~125psi ( 138~862kPa) is required. If you have a long vacation or business trip and won’t use the water or ice dispensers for a long time:

• Close the water valve. Otherwise, water leakage may occur.
• Remove all food.
• Unplug the refrigerator.
• Wipe excess moisture from inside and leave the doors open. Otherwise, odor and mold may develop. Do not put your fingers, hands or any other unsuitable objects in the chute or ice-maker bucket.

PARTS AND FEATURES

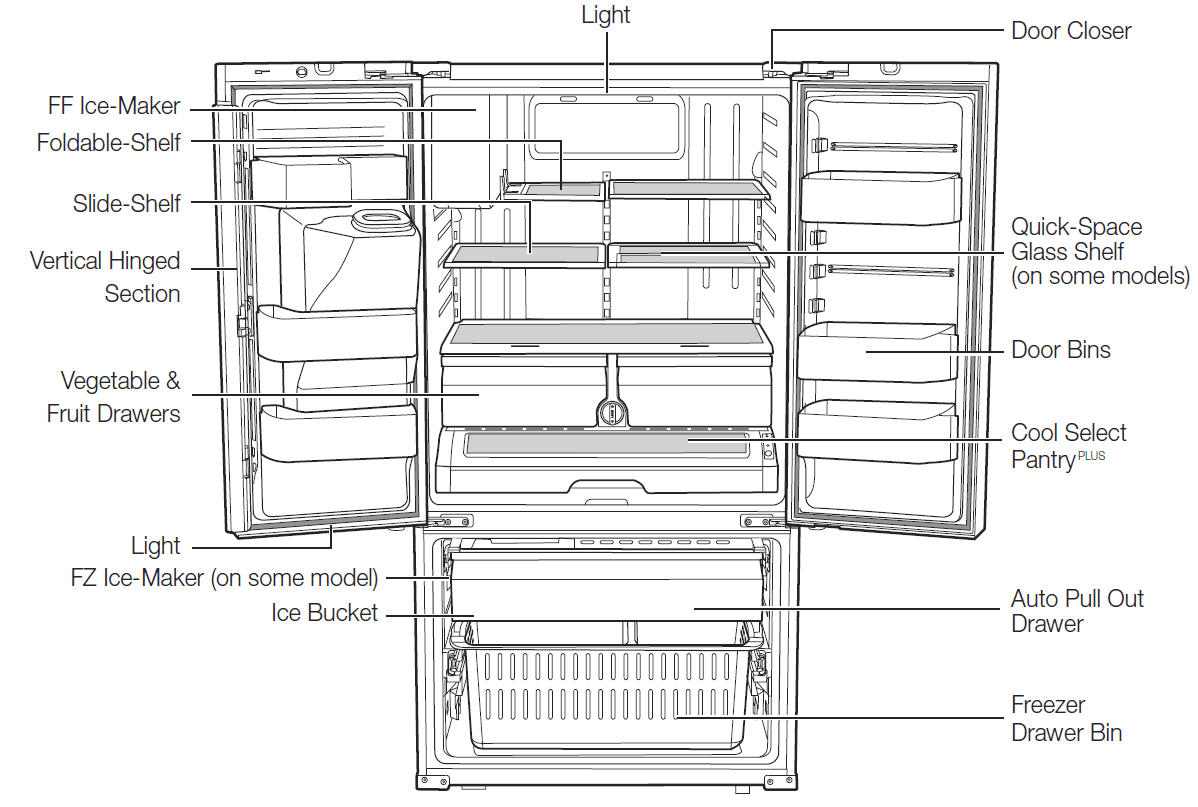

Use this page to become more familiar with the parts and features of the refrigerator

• When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid scratching the other door. If the Vertical Hinged Section is reversed, put it back to the right position and close the door. Moisture may appear at times on the Vertical Hinged Section. The door handle may become loose over time. If this happens, tighten the bolts found on the inside of the door. If you close one door with a lot of force, the other door may open.
• When the door opens, the interlock switch automatically turns off the auger motor in the ice maker for safety reasons.
• When the interior or exterior LED lamp has gone out, please contact your service agents

Using the cool select pantry ™

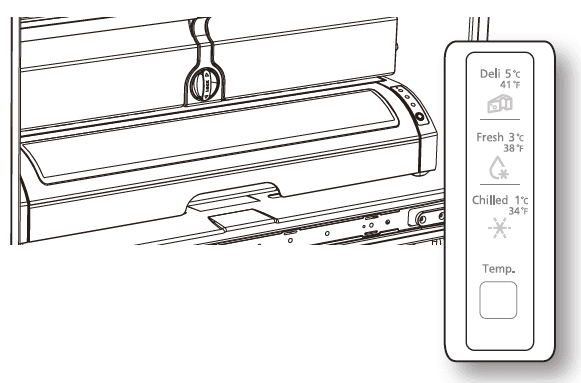

• There is a temperature control which can adjust the amount of cold air allowed into the pantry. The control is located on the right side of the pantry.
• The Pantry temperature may change depending on the number of items inside and where they are located, the ambient temperature, and how often the door is opened.

Removing the refrigerator accessories

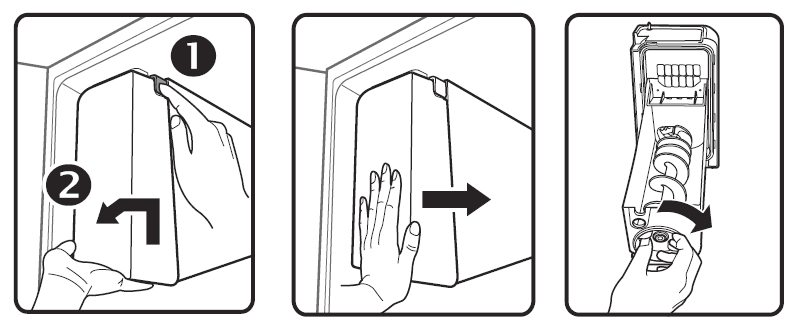

ICE BUCKET

• To remove – Lift the ice bucket ( 1 ). To relocate – Place the ice bucket into the Super extended drawer ( 2 ).

Super Extended Drawer

• To remove – Pull the drawer out to full extension. Tilt up the rear of the drawer and lift straight out.
• To relocate – Place the drawer onto the rails ( 4 ) by tilting it up. Lower the drawer into place until it is horizontal and slide the Drawer ( 3 ) in.

Freezer Drawer

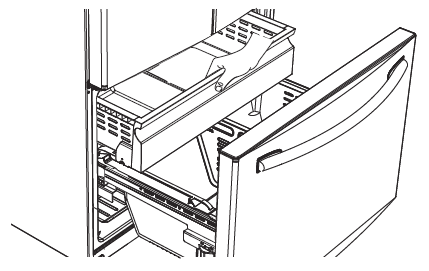

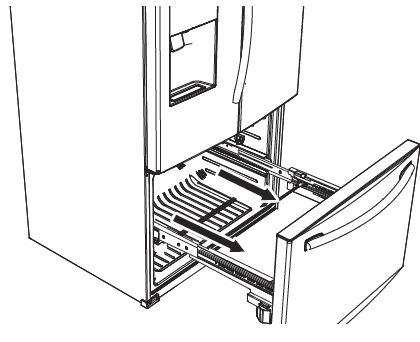

• To remove the freezer drawer – Pull the freezer drawer out fully. Tilt up the rear of the bin and lift it out to remove.
• To relocate the freezer drawer – Place the bin into the rail assembly

CLEANING THE REFRIGERATOR

Cleaning the Interior

• Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. You can remove the drawers and shelves for a more thorough cleaning. Just make sure to dry drawers and shelves before putting them back into place

 Cleaning the Exterior

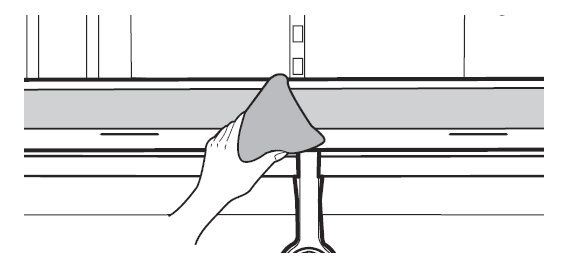

• Wipe the control panel and digital display with a damp, clean, soft cloth. Do not spray water directly on the surface of the refrigerator. The doors, handles and cabinet surfaces should be cleaned with a mild detergent and then wiped dry with a soft cloth. To keep your appliance looking its best, polish the exterior once or twice a year.

Cleaning the Ice / Water Dispenser

• Push down one end of the tray dispenser and remove it. Wipe the Ice / Water Dispenser with a clean and soft cloth. When using the crushed ice selection from the dispenser some residual ice chips may start to collect in theice chute. To prevent that residual ice from melting and running out of the chute you should clean out the residual ice when you see it start to collect in the ice chute
• When using the crushed ice selection from the dispenser some residual ice chips may start to collect in the ice chute. To prevent thatresidual ice from melting and running out of the chute you should clean out the residual ice when you see it start to collect in the ice chute.

Food storage tips

Troubleshooting

For more manuals by Samsung, visit ManualsLibraryy

Samsung RF263BEAESR Refrigerator-FAQs
