SCA Full HD 1080P Dash Cam Instruction Manual

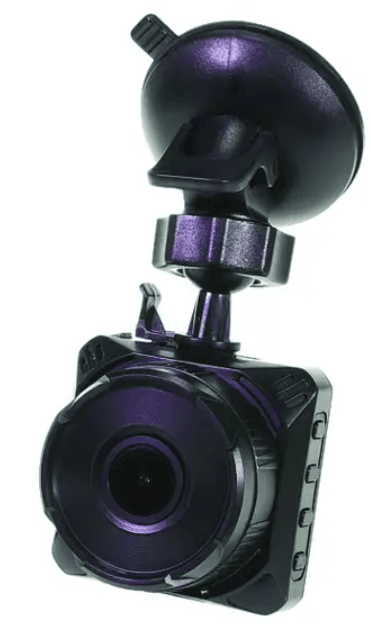

SCA Full HD 1080P Dash Cam

Product overview

• Thank you for purchasing the SCADVR18 FULL HD 1080P Dash Cam. This Dash Cam is specifically designed for real-time video and audio recording when driving. The Dash Cam simply mounts to the windscreen and records footage onto a Micro SD memory card. It has a G-sensor with adjustable sensitivity and loop recording functionality

Product features

• FHD 1920 x 1080P @ 30FPS
• 120 Degree wide viewing angle
• Time and date stamp
• 2.0” Screen
• G-Sensor function
• Mini USB interface
• Seamless cycle loop recording
• Suction cup car mount
• Built-in MIC and Speaker
• 12V in-car USB charger
• Supports Micro SD cards up to 64GB, card not included

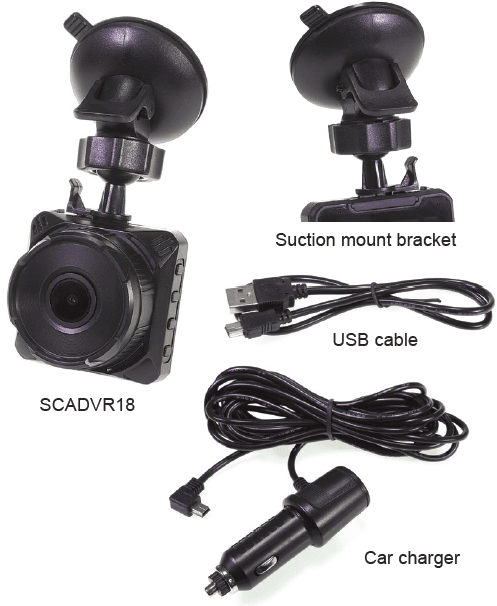

Package components

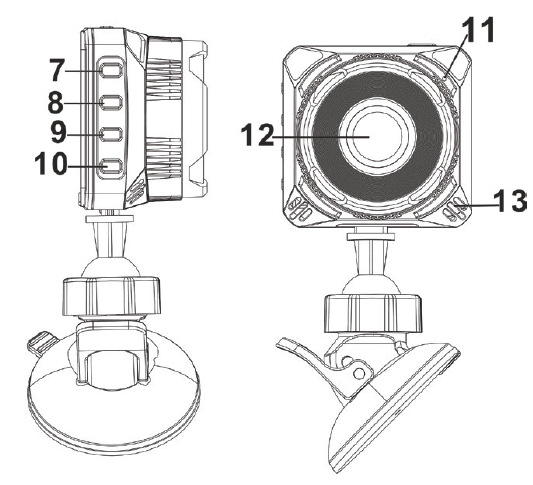

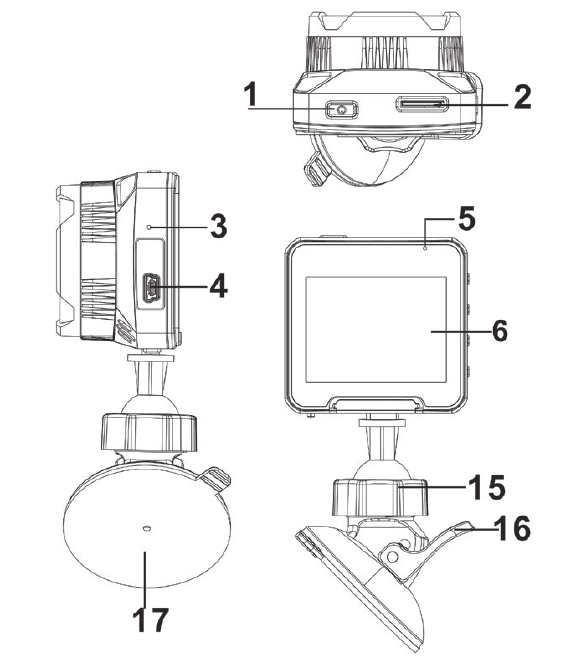

Product structure

• 1) Power button
• 2) Micro SD card slot
• 3) Reset button
• 4) Mini USB connection
• 5) Indicator light
• 6) Screen
• 15) Locking nut
• 16) Suction lock
• 17) Suction mount

• 7) OK button
• 8) Down button
• 9) Up button
• 10) Menu button
• 11) Microphone
• 12) Lens
• 13) Speaker

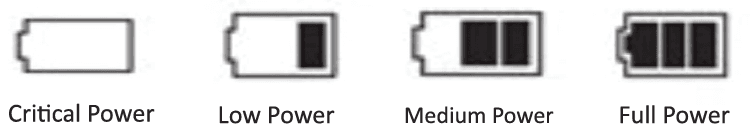

Charging the Dash Cam

The Dash Cam can be charged multiple ways:

1. Using the provided car charger. 2. Using a USB cable to connect to the Mini USB interface. When the Dash Cam is charging, a red indicator on the Dash Cam glows red. The Dash Cam takes about 2 hours to fully charge. When the Dash Cam hits full charge, the red indicator will turn off.

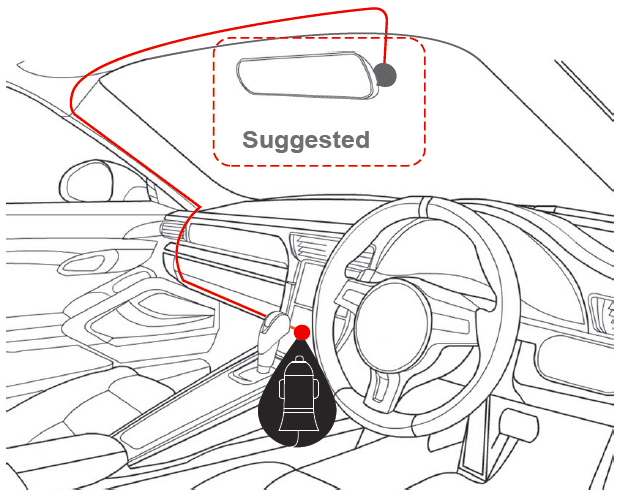

Installing the Dash Cam

1. Ensure windscreen is clean and free of debris. Attach suction cup to the windscreen and lock into position with the lever.
2. Fix where the vision is not blocked (Place close to rear-view mirror is recommended). Don’t install device on an airbag or within its working range.
3. Insert Micro SD card into the Dash Cam
4. Insert Mini USB end of the power cord into the Mini USB interface/ charging point of the Dash Cam. Connect USB charging end of the cable into USB socket adapter, place adapter into 12V power socket of vehicle.
5. Adjust the mounting bracket and rotate the camera direction to get the best view. Ensure of the bonnet of the vehicle is visible from the bottom of the screen for alignment.
6. Turn vehicle ignition to ON, and the Dash Cam will power ON and start recording automatically, you will hear an audible tone once powered.
7. A blue LED will start flashing when recording has started. When the blue LED is solid, the Dash Cam is in standby mode.
8. For the Dash Cam to work,it must receive power from the charging adapter. Once power is removed or turned off, the Dash Cam will save the current file and turn off

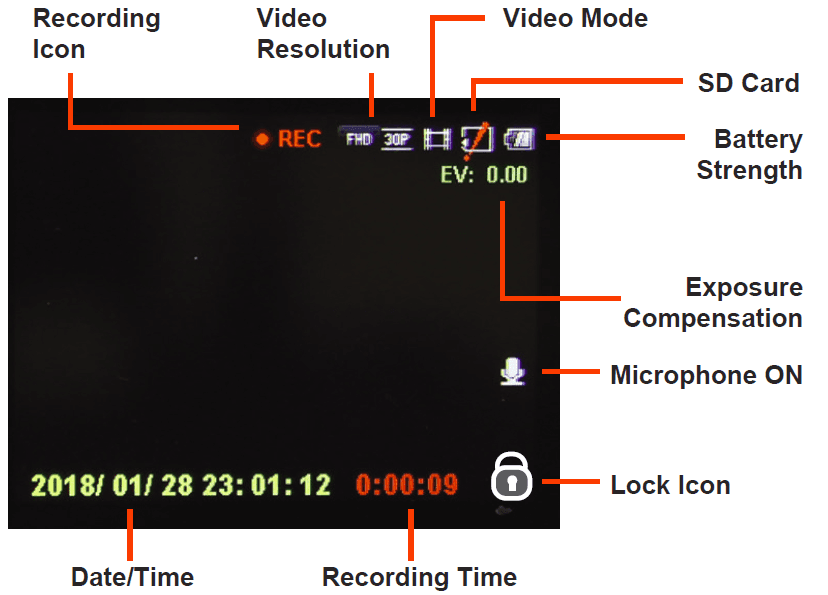

Instructions for video operation

•  Once the power source is connected and the ignition is turned on, the red indication lamp will light up and it will start recording automatically. Once ignition is turned off it will save the last file and power OFF. To power ON/OFF manually press the power button underneath. When not recording, press the Power button to switch to video mode. To start and stop recording in video mode press the OK button. The red circle indicator on the top middle of the LCD starts flashing.
  Press UP arrow to mute the mic. When recording, press the Power button to lock files (SOS). Note,do not turn off until finished recording & lock icon disappears.

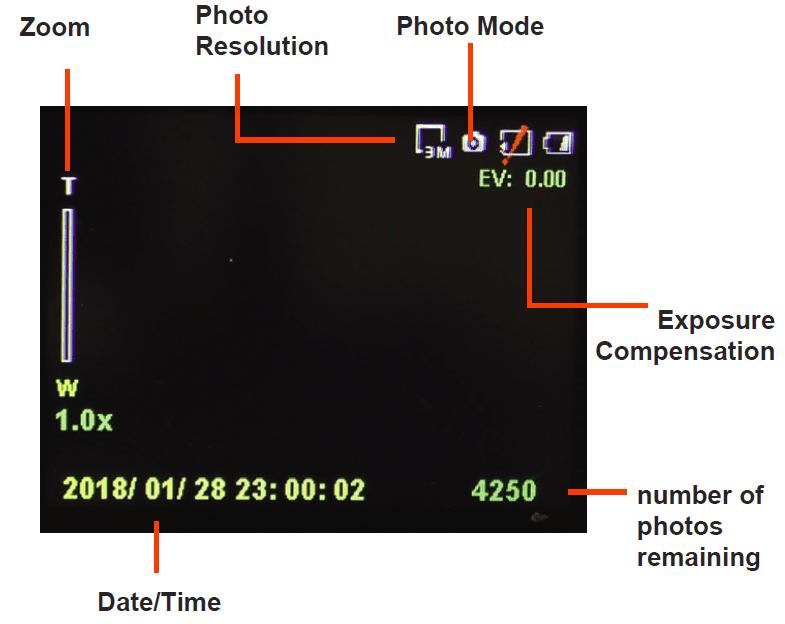

Instructions for Photo operation

• Press the Power button to switch from video mode to photo mode when not recording. The screen will change from a movie icon to a camera icon. To take a picture press the OK button. The Dash Cam makes a camera sound when a picture is taken. Use the arrow keys to Zoom in and out. Pressing the Menu button in photo mode will allow you to adjust the photo resolution, image quality, and other photo settings

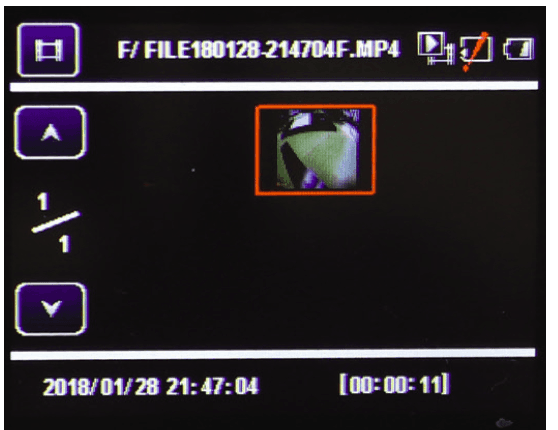

Video/Photo playback & protecting files

• Press the Power button until you see the video reel or photo icon on the top left of the screen. Using the arrow buttons, you can choose between all your
  recorded videos or photos. Press the OK button to select a file for playback. Pressing the Menu button will give the option to increase or decrease the volume, delete or protect the file. To lock or protect the file press the OK button once. Select protect options. Press OK twice show Yes or No. Press OK to confirm. The protected files have a lock icon meaning they cannot be deleted until unlocked. To unlock or unprotect the file press the Menu button once. Press OK button for protect sub menu. Select unprotect options using arrows. Press OK twice show Yes or No. Press OK to confirm. To exit press power button.

Dash Cam menu

• Menu Settings
• Press the Menu button to enter into Movie or Still Capture menu when not recording. Press again to enter the General Settings. You can navigate through the individual settings menu by using the Up/Down buttons. To change or edit a selected setting, use the arrow buttons and press the OK button to confirm. Press the Menu button again to exit the menu settings

Movie mode menu settings

• Movie Mode:
• Two resolutions are available 1920×1080 30fps or 1280×720 30fps
• Movie Clip Time (Loop Recording):
• This feature allows you to set the size of the files your Dash Cam will record before saving and creating a new file. It allows the Dash Cam to record over the oldest recorded files once the card is full. The card records video in 1,2,3,5 & 10 minute files. If you want to keep any of the files, it is best to upload them to your computer.
• Sound Record:
• This Feature will allow you to turn the Dash Cam’s recording sound on or off. If you want to stop the Dash Cam recording sound in the cab of your vehicle, set this feature to ‘off’.

General Settings

• LCD Power Save:
• This feature will turn your LCD off completely or off after 1 or 3 minutes but will continue to record regardless. This feature is useful for night driving as having the LCD on could be a distraction or illegal.
• G Sensor:
• The G-sensor function activates in the case of a car accident by determining the gravitational acceleration (1g = 9.8 meters/second^2). When this function activates, the Dash Cam will take 3 3-minute locked video file. You can set the sensitivity of the Gravity sensor in the Dash Cam. Sensitivity is Level 0 (less sensitive) to Level 4 (sensitive). We recommend this be set to Level 0-1 to help stop false or irrelevant readings.
• Reset Setup:
• This allows you to reset the settings back to factory default.
• Format:
• This feature allows you to format/delete all the files off your micro SD card and also reinstalls your DCIM directory and Dash Cam software on your SD card so the micro SD card can operate with your Dash Cam free of errors.
• FW Version:
• This simply shows the firmware/software employed by the Dash Cam’s hardware.

Connecting to a PC

USB Interface:

• The supplied in-car charger is used to power the Dash Cam via the Mini USB interface. The Mini USB cable can also be used to connect to a computer for data transfer.

When connecting your Dash Cam to a PC with the USB cable, the Dash Cam will present ‘MSDC’ on its screen allowing you to transfer your videos and photos to your PC. Press OK button and a “NO NAME” icon will appear on your PC with 3 folders created inside.

1. EVENT: For locked files.
2. NORMAL: For video files
3. PHOTOS: For picture files

Maintenance

• Maintaining the Battery:
• To prolong the battery life, you must charge your Dash Cam on a 5 volt home charger at least once a week for 2-3 hours with the Dash Cam off. If you don’t use the car daily, for cars that are used daily for more than 1 hour, you can charge the Dash cam once every 3 weeks for 2-3 hours. It is not recommended to power the Dash Cam with only the battery. The battery will only run for 10-15 mins continuously, always use the charger provided. The internal battery is for backing up, time/date, and saving data.
• Formatting Card:
• It is advisable to format the Micro SD card weekly if you have the setting G-sensor mode setting active, all footage that is locked in G-sensor mode will fill up the card, causing it to stop recording any more footage. Every time you remove & re-insert the Micro SD card, it will prompt you to format the card. The Dash Cam will not automatically record once turned on until it’s formatted.

Product specifications
