Sceptre 20-inch E205W Ultra Thin LED Monitor User Manual

Sceptre 20-inch E205W Ultra Thin LED Monitor

Identifying Front and Rear Panel

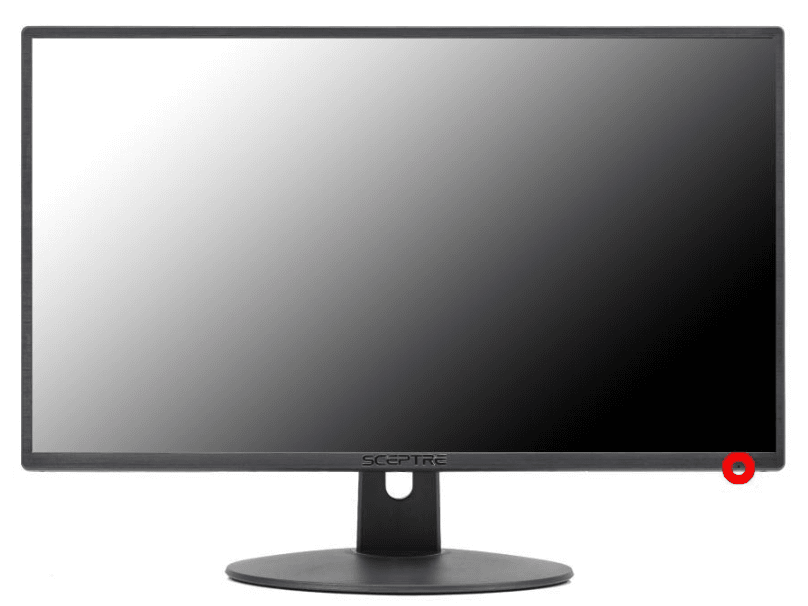

Front View

Indicator Light: This light turns blue when the monitor is turned on and red when the monitor is turned off. The light will be off if the power adapter is removed from the back of the monitor.

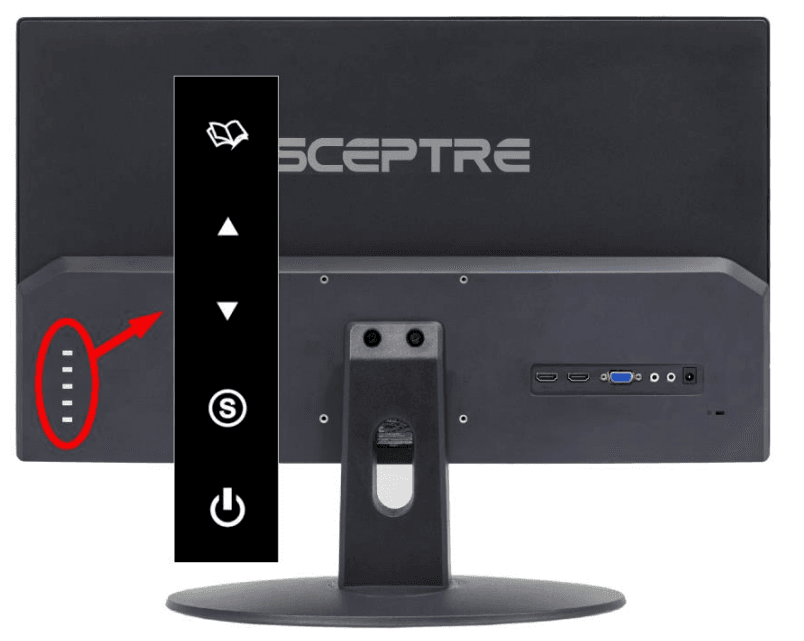

Back View with Buttons

This button activates the On Screen Display (OSD). While the OSD is active, this button will act as the select button to open up an option for adjustment.
With no OSD, this button this button will also increase the volume of the internal speaker. With the OSD turned on, this button moves the selection upwards.
With no OSD, this button will also decrease the volume of the internal speaker. With the OSD turned on, this button moves the selection downward
When the OSD is active, this button acts as the EXIT button and exits out of the option or OSD. This button switches between all the different inputs of the display.
This button turns the display on or off.

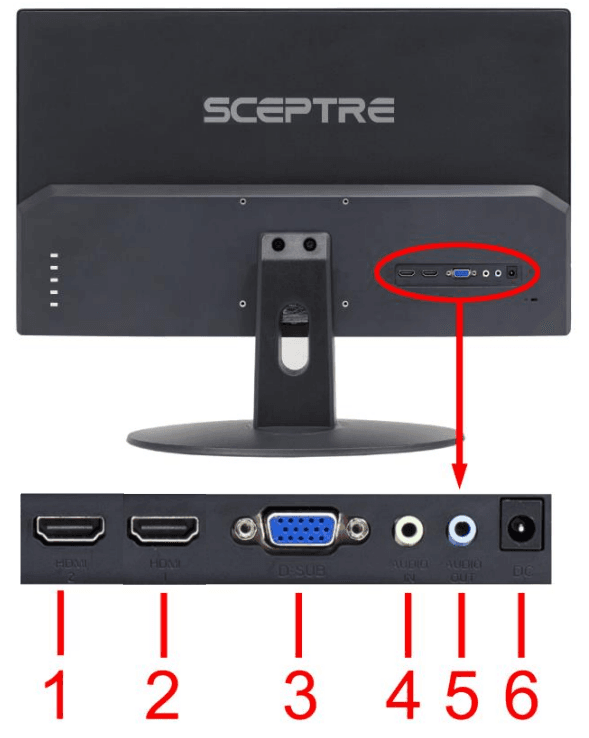

Back View with Connections

HDMI 2 – HDMI stands for High Definition Multimedia Interface. This connection is for computers with HDMI video output.
HDMI 1 – HDMI stands for High Definition Multimedia Interface. This connection is for computers with HDMI video output.
VGA – VGA stands for Video Graphics Array. This connection is for computers to send video signals to the monitor by an analog signal. This method of connection is the most commonly used connection.
AUDIO IN – This connection is for audio in from the computer going into the monitor. This connection is used with VGA.
AUDIO IN – This connection is for audio out from the monitor going out to either a speaker or headphone.
DC IN – This connection is for electricity supplied from the included power adapter.

Connections

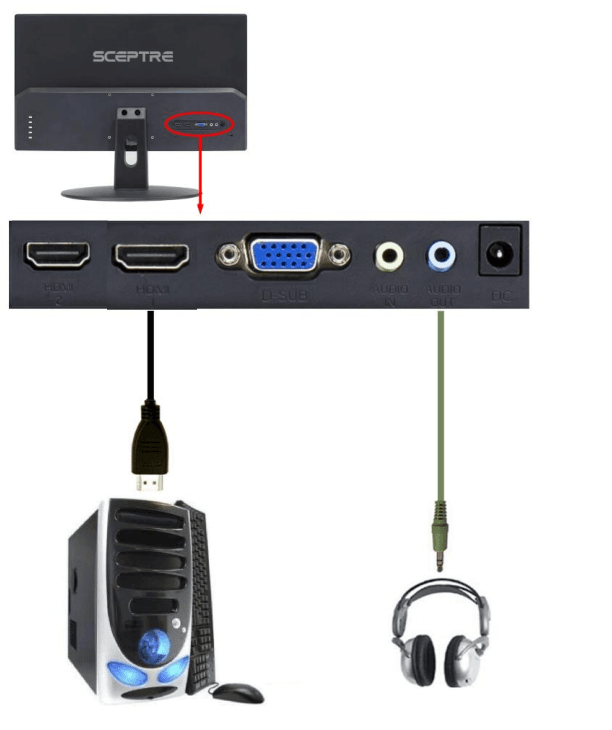

If You have HDMI Connection on Your Video Card…

Make sure the power of the E20 LED MONITOR is turned off.
Obtain a HDMI cable and connect one end to the back of the monitor and the other end to the back of the computer.
Turn on the power of both the E20 LED MONITOR and the computer.

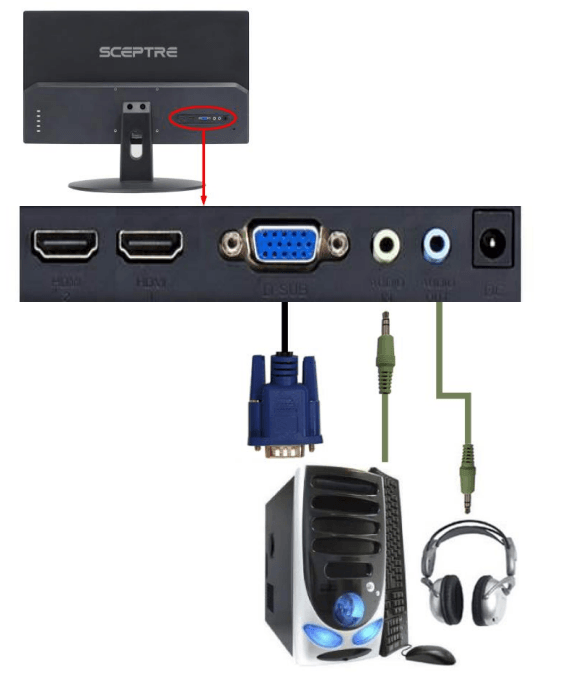

If You have VGA Connection on Your Video Card…

Make sure the power of E20 LED MONITOR is turned off.
If you were previously using a CRT (bulky) monitor, please hook up your old monitor first and make sure your refresh rate is set to 60 Hz frequency before using the E20 LED MONITOR. You can find the refresh rate information and change it by RIGHT CLICKING on the desktop with nothing selected. After you have right clicked, select the DISPLAY SETTINGS option. Scroll to the bottom of the page and click on the DISPLAY ADAPTER PROPERTIES. Click on the MONITOR tab. In that tab, change the refresh rate to 60 Hz and click on APPLY. After the refresh rate changed, please shut down the computer and monitor.
Obtain the VGA cable and connect to the VGA connection on your PC. Connect the other end of the cable to your E20 LED MONITOR.
Obtain a 3.5mm mini-jack cable connect it between the computer’s audio out and the monitor’s audio in.
Turn on the power of both the E20 LED MONITOR and the PC.

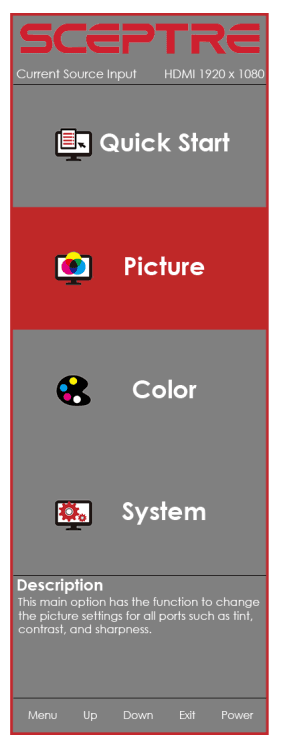

On Screen Display (OSD) Menu

The OSD menu of the monitor provides various adjustments for the monitor such as color, brightness, and contrast …..etc

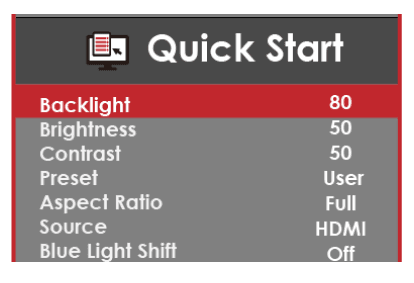

QUICK START

Quick Start offers users a variety of often adjusted options for users

BACKLIGHT – This option adjusts the intensity of the LED diode directly.
BRIGHTNESS – This option adjusts the brightness of the monitor.
CONTRAST- This option adjusts the contrast of the monitor.
PRESET – This option lets the user select different preset display modes of the monitor. Only USER mode will allow the user to adjust options freely.
STANDARD – This display mode is for regular users.
USER – This display mode allows you to adjust contrast and brightness manually.
MOVIE – This display mode is for playing movies.
ECO – This display mode is for power saving.
FPS – This display mode is for playing first person shooter games.
RTS – This display mode is for playing real time strategy games.
ASPECT RATIO – This option lets the user adjust the aspect ratio of the monitor.
FULL – This option automatically stretches any picture to the full screen regardless of picture proportion.
4:3 – This option forces any resolution to a 4:3 square format.
SOURCE – This option lets the user manually switch an input or auto where the monitor detects a signal and changes the source automatically.
BLUE LIGHT SHIFT – This display mode filters out blue light for users who want blue light protection.

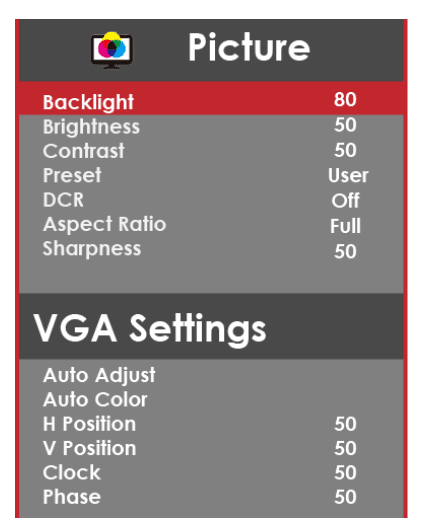

BACKLIGHT – This option adjusts the intensity of the LED diode directly.
BRIGHTNESS – This option adjusts the brightness of the monitor.
CONTRAST– This option adjusts the contrast of the monitor.
PRESET – This option lets the user select different preset display modes of the monitor. Only USER mode will allow the user to adjust options freely.
a. STANDARD – This display mode is for regular users.
b. USER – This display mode allows you to adjust contrast and brightness manually.
c. MOVIE – This display mode is for playing movies.
d. ECO – This display mode is for power saving.
e. FPS – This display mode is for playing first person shooter games.
f. RTS – This display mode is for playing real time strategy games.
DCR – This option turns on or off the dynamic contrast option of the monitor. Dynamic Contrast automatically adjusts the contrast of the monitor based off the video signal provided.
ASPECT RATIO – This option lets the user adjust the aspect ratio of the monitor.
FULL.– This option automatically stretches any picture to the full screen regardless of picture proportion.
4:3 – This option forces any resolution to a 4:3 square format.
SHARPNESS – This option adjusts the sharpness of graphics and text for this monitor.
VGA Settings – This setting allows users to adjust the image quality of the monitor.
a. AUTO ADJUST – This option auto adjusts the picture for optimal performance while under VGA connection.
b. AUTO COLOR – This option auto adjusts the color balance for the picture to maximize display performance while under VGA connection.
c. H. POSITION – This option adjusts the horizontal position of the image.
d. V. POISTION – This option adjusts the vertical position of the image.
e. CLOCK – This option adjusts the picture clarity by large increments.
f. PHASE – This option adjusts the picture clarity by small increments.

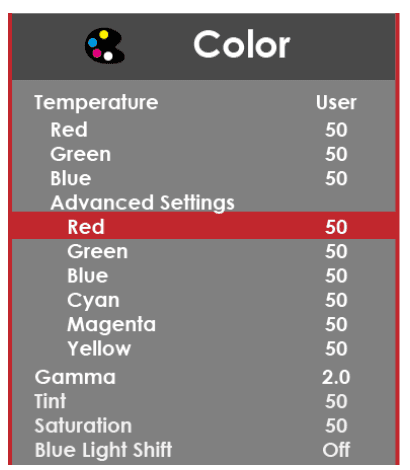

COLOR

TEMPERATURE – This option let users select different color temperatures of the monitor.
a. NORMAL – This color temperature is for users who prefer a neutral white balance.
b. COOL – This color temperature is for users who prefer a cool white balance.
c. USER – This color temperature is for users who would like to adjust the RGB (red, green, blue) values manually.
i. ADVANCE SETTINGS – This setting adjusts finer values besides RGB going into cyan, magenta, and yellow.
d. WARM – This color temperature is for users who prefer a warm white balance.
GAMMA – This option adjusts the gamma curve value of the monitor.
TINT – This option adjusts the tint of the entire monitor.
SATURATION – This option adjusts the color saturation of the entire monitor.
BLUE LIGHT SHIFT – This display mode filters out blue light for users who want blue light protection.

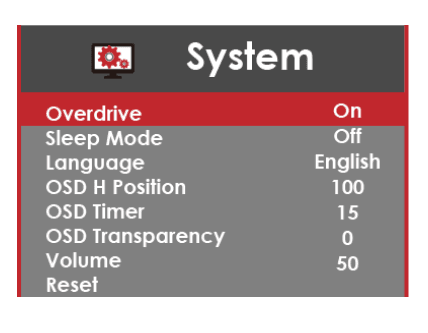

SYSTEM

OVERDRIVE – This option increases the pixel response time of the LCD screen.
SLEEP MODE – With the monitor given no video signal, enabling this option will make the monitor automatically shut off after 30 minutes, 60 minutes, or 2 hours.
LANGUAGE – This option allows users to change the menu language of the monitor.
OSD H POSITION – This option adjusts the placement of the OSD menu horizontally.
OSD TIMER – This option adjusts the time it takes for the OSD menu to automatically shut off.
OSD TRANSPARENCY – This option adjusts the opacity of the OSD menu.
VOLUME – This option allows users to change the output level of the audio out port.
RESET – This option resets all values of the menu back to factory default.

Supported VGA Resolution

RESOLUTION & REFRESH RATE

1600 x 900 @ 60Hz

1280 x 1024 @ 60Hz

1024 x 768 @ 60Hz

800 x 600 @ 60Hz

Supported HDMI Resolution

RESOLUTION & REFRESH RATE

1600 x 900 @ 60Hz

1360 x 768 @ 60Hz

1280 x 1024 @ 60Hz

1280 x 800 @ 60Hz

1280 x 768 @ 60Hz

1280 x 720 @ 60Hz

1024 x 768 @ 60Hz

1024 x 600 @ 60Hz

640 x 480 @ 60Hz

Troubleshooting

Problem	Possible solutions
DISPLAY IS UNCLEAR AND UNSTABLE	To stabilize and clarify your display, use the AUTO ADJUST function or change the resolution to the display’s optimal setting 1600 x 900 at 60Hz, then AUTO ADJUST.
THERE IS NO LED DISPLAY or SCREEN SAYS NO SIGNAL	Make sure you switched to the correct source. Check both sources to see video is on the other source. Check your video cable. It might be corrupt. Swap out the video cable for another one to see if the monitor will work. Check your power plug. See if it is fully plugged in on both the monitor and the wall.
MONITOR SAYS “SIGNAL OUT OF RANGE”	If you have a CRT monitor, please connect the CRT monitor to the computer and change the refresh rate down to 60 Hz via your video card’s display settings menu. After the setting of 60 Hz has been change you can then use the LED on the computer. 1. To change the setting go to display settings by right clicking on your desktop with nothing selected. Choose the PROPERTIES option. 2. Click on the SETTINGS tab, verify the resolution is NOT higher than 1600 x 900, and click on the ADVANCED button. 3. Click on the MONITOR tab and change the refresh rate to 60 Hz. 4. Click on OK 2-3 times to finalize your change. If you do NOT have a CRT monitor or it’s already broken, please make sure both the E20 LED monitor and your computer is turned off. 1. Turn on the LED monitor and the computer. 2. While the computer is turned on, press the “F8” key on your keyboard continuously until a selection menu appears and select the “Safe Mode” option. 3. When you’ve entered Safe Mode please uninstall any video card driver and monitor driver by using either the “Add / Remove Programs” icon or going into “System 4. Properties” and manually removing anything under “Monitors” and “Display Adapters”. After removing all the drivers, please reboot your computer and you should be able to see windows. Please install your monitor driver first, then your video card driver. Please remember to make sure your refresh rate should be at 60Hz.
I CAN’T OPEN THE OSD	You need to have a valid video signal going through the monitor before you can turn on the OSD.

Problem	Possible solutions
I CANNOT GET THE RESOLUTION 1600 x 900	If you are using HDMI, please try out VGA to see if you are able to achieve that resolution. If your VGA can then, your video card’s HDMI cannot support widescreen resolutions. Sometimes your video card will not read the monitor correctly and will not allow you to achieve the resolution you want. Rebooting your computer will solve the situation. You can also make sure your video card’s video drivers are up to date. You can find what video card you have by clicking on START then RUN. Type in “DXDIAG”. When the diagnostic window pops up, click on the DISPLAY tab. The program will tell you what video chipset you have. Copy that name then search it with an online search engine like GOOGLE™. Find your video card company’s web address and search for newer drivers. If updating your drivers does not work, you probably have one of the older video cards and cannot achieve a widescreen resolution. You’ll need to upgrade your video card to a newer one.
THE VIDEO IS TOO BRIGHT NO MATTER WHAT I ADJUST	Sometimes having older video cards this type of problem might happen due to newer LEDs having to provide HD video capability and not being fully compatible with older video cards. You can try adjusting the contrast to a lower value and adjust the brightness to compensate.
THE WORDS AND VIDEO ARE TOO BLURRY	Are you using the monitor’s native resolution? If not you’ll need to switch resolution to the native 1920 x 1080 at 60 Hz to make the words clearer. If the words are still blurry, please try enabling or disabling CLEAR TYPE function from windows.
THE COLORS ARE NOT CORRECT	Sometimes the colors are not correct because your VGA or HDMI cable is loose or corrupt. Please try reconnecting your cable or swap out your current cable to see if the problem persists.
HOW DO I RESET THE MONITOR	Make sure there is a valid video signal to the monitor and press menu to open the OSD. Look for RESET under the OTHER options.
I CHANGED MY COLOR SETTINGS NOW I CAN’T GET THE FACTORY DEFAULT BACK.	Open the OSD, under OTHER, select RESET to reset all values back to factory default.

Problem

Possible solutions

THE WORDS ARE TOO SMALL AT 1600 x 900

At the native resolution of 1600 x 900, some people might feel that the words are too small to read. You can change the size of the words in Windows Operating System via its display properties.

For Windows XP

1. Right click on the background with nothing selected. Left click on the PROPERTIES option.

2. Click on the SETTINGS tab.

3. Under SETTINGS, click on the ADVANCED button.

4. Under GENERAL tab, change the size of the words by selecting the option NORMAL SIZE and change it to LARGE SIZE.

5. Click on OK on all windows to exit.

6. Once you have finished rebooting, the computer is ready for use.

For Windows VISTA or Windows 8 or Windows 10

1. Right click on the Wallpaper. Left click on the PERSONALIZE option.

2. Click on ADJUST FONT SIZE (DPI) option on the left column and

3. Click on CONTINUE.

4. In there you can change the size of the words by changing from the option DEFAULT SCALE to LARGE SCALE.

5. Click on APPLY to finalize your selection.

6. Once you have finished rebooting, the computer is ready for use.

Specification

Display panel
Active Area / Screen Size	20” (diagonal 21.53“)
Aspect Ratio	Widescreen 16 : 9
Resolution	Native: 1600 x 900
Brightness	200 cd/m2
Dynamic Contrast	1000:1
Response Time	5ms (G-to-G)
Refresh Rate	Up to 75 Hz
Viewing Angle	Typical 170/160 Degree (Horizontal/Vertical)
Colors	16.7 million of colors
LED Backlight	30,000 hours
Monitor Display
Dimension	With Stand: 18.01” x 7.02” x 13.57” Without Stand: 18.01” x 1.32” x 10.43”
Weight	4.43 lb (with stand), 3.68 lb (without stand)
Wall Mount Pattern	75mm x 75mm Screw Size M4 x 10mm
Power input	Input: 100 – 240V~ 50/60Hz, 2A Max
Tilt	Backward:15° Forward: 5°
Features
On Screen Display Control (OSD)	QuickStart, Picture, Color, System
OSD Language	English (Default), French, Spanish, Chinese
Preset Picture Mode	Standard, User, Movie, Eco
Preset Game Mode	RTS, FPS
Blue Light Shift	Available
I/O	VGA, HDMI (HDCP supported)
Compliance	FCC, cETLus, ISTA 6, HDMI, WHQL (Win 10), Energy Star

LIMITED PRODUCT WARRANTY

Please read this warranty card carefully, it is a “ONE-YEAR LIMITED WARRANTY” on parts and labor (90 days for commercial use) and is only valid when purchased from an Authorized Reseller, only on new and non-refurbished product, and available to customers in the Continental US, Alaska, Hawaii and Puerto Rico. See below for the SCEPTRE Extended Service warranty.

SCEPTRE’s Responsibility
SCEPTRE units purchased from an authorized SCEPTRE U.S. Reseller in the United States and that are used in the fifty (50) United States or Puerto Rico and Canada are warranted to be free from manufacturing defects in materials and workmanship for a period of one (1) year from the date of their original retail purchase (or a period of ninety (90) days for commercial use). If the unit fails to conform to this warranty, we will service the unit using new or refurbished parts. In the event that the part required for replacement is no longer in production and/or is obsolete, SCEPTRE will repair or replace the unit with similar or like parts of equal value. If a similar or like part is not available, a charge may be incurred to the owner, for any upgraded parts substituted.

Service Labor
During a period of one (1) year from the effective warranty date (or a period of ninety (90) days for commercial use), SCEPTRE will provide, when needed, service labor to repair a manufacturing defect at its designated Service Center. To obtain warranty service in the United States, you must first call our Customer Support at (800) 788-2878. The determination of service will be made by SCEPTRE Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO SCEPTRE WITHOUT PRIOR AUTHORIZATION.

Parts
New or remanufactured parts will be used for repairs by SCEPTRE at its designated Service Center for one (1) year (or ninety (90) days for commercial use) from the effective warranty date. Such replacement parts are warranted for the remaining portion of the original warranty period.

Service
During the one (1) year (or ninety (90) days for commercial use) warranty period, SCEPTRE will, at its option and sole discretion, repair or replace defective parts, including replacement of the entire Panel. The Customer will be required to ship the unit to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs, you are responsible for all transportation charges to the service facility. SCEPTRE is not responsible for the de-installation or re-installation of the unit.

Packaging and Shipping Instructions
When you send the product to an authorized SCEPTRE service facility, you must use the original carton box and packing material or an equivalent as designated by SCEPTRE. If you no longer have them, don’t hesitate to get in touch with Sceptre’s Customer Support.

FOR MORE MANUALS BY SCEPTRE, VISIT ManualsLibraryy

Sceptre 20-inch E205W Ultra Thin LED Monitor User Manual
