Sealight S2S LED headlight bulb
Package Contents:
- LED Bulb X2
- User Manual X1
- Gloves X2

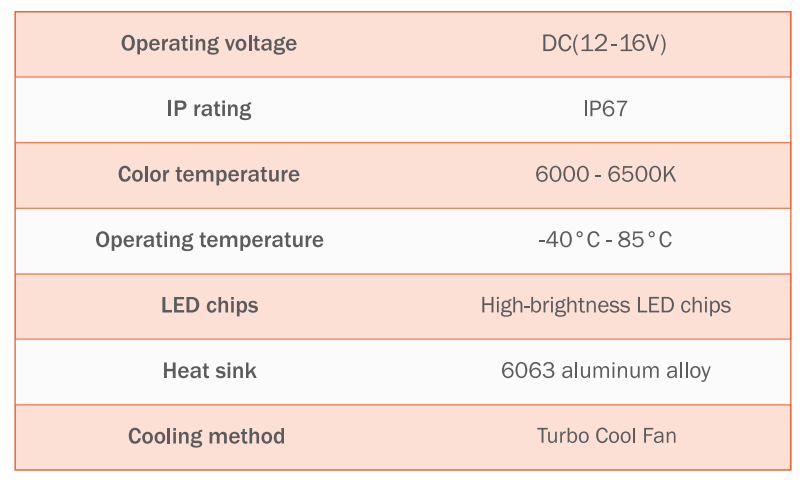

Product specifications
USER INSTRUCTIONS
- Please purchase the product through official channels; otherwise, we won’t provide after-sales service.
- As the product has small & sharp parts, please keep it away from children.
- After receiving the product, please carefully check whether it is damaged or if any parts are missing. If there is any problem, please contact Customer Service.
- This product is only fit for vehicles that use 12V batteries. High voltage may cause damage.
TECHNICAL SUPPORT & SERVICE TEAM
- E-mail: [email protected]
- Tel: (+1) 805-538-4353
- If there are any questions about the bulbs, contact our service team for help.
INSTALLATION INSTRUCTIONS
Important Notes:
- Please light up the bulb before installation.
- The OE halogen bulb would be extremely hot for quite a long time after shutting down the engine. To avoid burns, please wait at least 2 hours before replacing the lamps.
- Wear gloves while replacing the lamps, and do not touch the LED chips.
- If the lamps do not light up, please unplug the power line, connect it reversely and try again.
Models: H11/9005/9006/9012

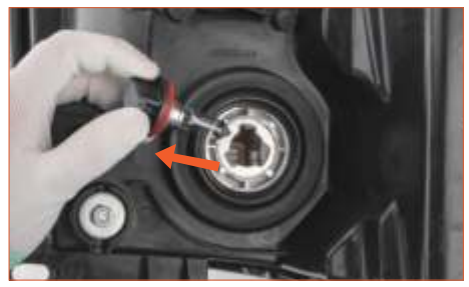

- Fig. 1: Remove the dust cover and the OE halogen bulb.

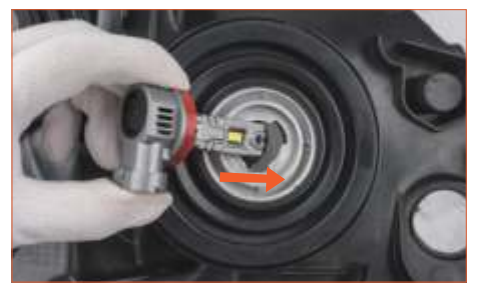

- Fig. 2: Line up the tabs with the slots of the assembly. Warning: the tabs are asymmetrical.

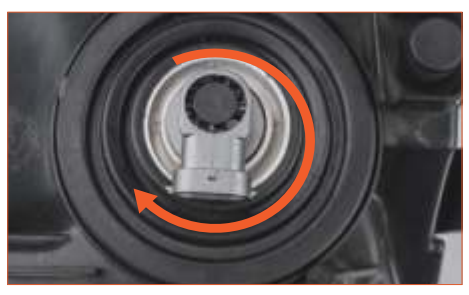

- Fig. 3: Insert the lamps, turn them clockwise, then clamp them tightly.
- Fig. 4: Connect the power line.
Suggestions

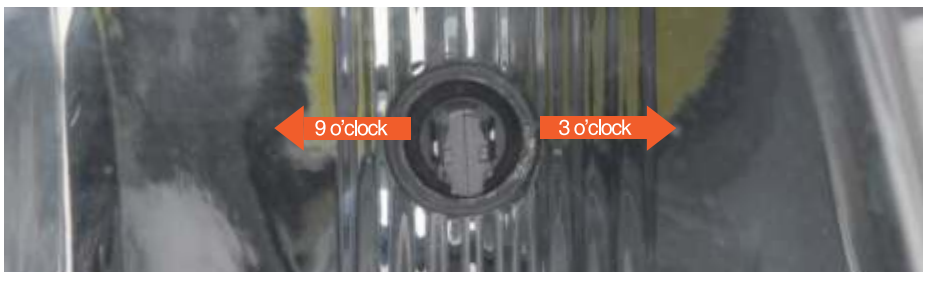

- For most vehicles, we suggest keeping the LED chips facing the 3 and 9 o’clock directions when locked into place to achieve the best beam pattern.

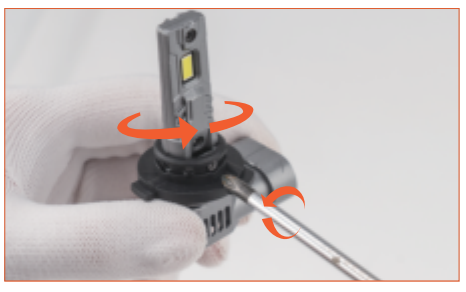

- If you are not satisfied with the beam pattern, then please try to adjust the beam pattern as the photo shows: (Only for 9005/9006)

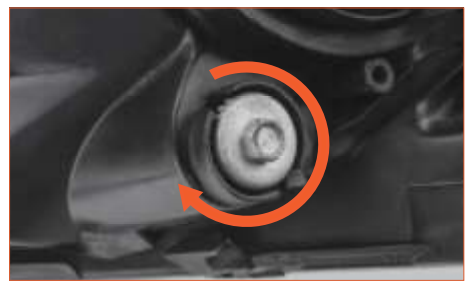

- If the beam pattern is too high, adjust the buckle of the assembly to adjust the beam pattern. (As the picture shows above)
FAQs
Q: The model of lamps I purchased is different from my OE halogen lamps. Can I get an exchange for the correct model?
- The main reasons:
- Amazon confirmed that the Fit system is not 100% accurate.
- Your headlight assembly is not an OE part.
- Please double-check the model of your OE halogen bulb. And contact our Customer Service for an exchange.
Q: The size of the lamps is not correct; they’re either too long or too wide, and LED lamps can’t be installed in the headlight assembly. How can I get proper-sized lamps for my car?
- Some LED lamps are not in a 1:1 ratio with the OE halogen bulbs. The large base is for better heat dissipation and prolonging the life of the lamps. If the lamps are not suitable for installation, please contact Customer Service.
Q: Do you meet the five phenomena below?
- Errors on the instrument panel;
- The Lamp keeps flashing.
- Can’t switch between high and low beams;
- High and low beams reversed;
- The Lamp does not turn on or off.
- The above phenomena are decoding problems, which are mainly caused by the automotive computer failing to detect the correct signal. You can contact Customer Service to obtain the decoder and solve the decoding problem.
Q: How to adjust the lamps to 3-9 o’clock? I’ve read all the instructions, but still can’t find the method.
- We recommend keeping the LED chips facing the 3 o’clock and 9 o’clock positions to ensure the best beam pattern and visual effect. However, it is impossible to adjust to this position for some vehicles. There is no need to worry about the position of the LED chips as long as the beam pattern is acceptable.
Q: The Daytime Running Lamps work incorrectly, it keep flashing. How can I solve the issue?
- DRL and high-beam functions of 9005 bulbs are achieved through different power for many models, especially Japanese cars. No matter which LED bulb you choose, it is highly possible that DRL may not work properly. If you need the DRL function to work properly, please contact Customer Service. We will propose a solution according to your car model.
Q: After installing the LED lamps, I found my High beam and Low Beam reversed. Is there any way to solve this problem?
- It is recommended to remove the lamp, rotate it by 180°, and install it again. If the problem still exists, please contact Customer Service.
WARRANTY DESCRIPTION
Thank you for purchasing our products. All of our products are manufactured with the best quality control. To protect your rights, you can extend the warranty period for 6 months by contacting us via the links below or sending us an email…
- Extended warranty period:
- E-mail: [email protected]
- Links:https://sealight-led.com/membership/
For More Manuals By SEALIGHT, Visit ManualsLibraryy.
Sealight S2S LED headlight bulb-FAQs
Q1. How do I install Sealight LED headlight bulbs?
Turn off your vehicle and locate the headlight housing. Remove the old bulb, connect the Sealight LED bulb, and secure it in place. Avoid touching the LED chips directly to prevent damage.
Q2. What is the correct orientation for LED headlight bulbs?
For single-filament bulbs, the LED chips must face side-to-side—at 3 o’clock and 9 o’clock. This ensures a proper beam pattern without dark spots or glare.
Q3. Are Sealight LED bulbs adjustable?
Yes. Sealight bulbs feature a 360° adjustable socket, allowing you to fine-tune the beam angle for your specific headlight housing.
Q4. Do LED headlight bulbs need alignment?
Yes. After installation, your headlights should be properly aligned to avoid blinding oncoming drivers. Use a wall test at 25 feet to adjust the beam height and angle.
Q5. How do I know if my headlights are misaligned?
If your lights seem dim, uneven, or if other drivers frequently flash their high beams at you, your headlights may need realignment.
Q6. What happens if LED bulbs are installed incorrectly?
Incorrect installation can cause poor fitment, wiring issues, or misaligned beams—leading to glare, reduced visibility, or even bulb damage.
Q7. How long do Sealight LED bulbs last?
Sealight bulbs are built with an advanced cooling system and can last up to 50,000 hours, far longer than halogen bulbs.
Q8. Are Sealight LED headlights legal for road use?
Only DOT-approved bulbs are legal. Always check product specifications and your local regulations before using LED headlights on public roads.
Q9. How bright are Sealight LED bulbs?
Sealight S2S bulbs deliver significantly more brightness than halogen, typically producing 6,000K cool white light for clear night visibility.
Q10. Can I replace my stock halogen bulbs with Sealight LEDs?
Yes, but most vehicles require a conversion kit or adapter to fit LED bulbs securely. Always confirm compatibility with your car model.
